Waimate Details
| Property | Value |
|---|---|
| Rupture Count | 335 |
| Ruptures Above Sect Min Mag | 333 |
| Ruptures w/ Nonzero Rates | 70 |
| Magnitude Range | [6.85, 8.05] |
| Length Range | [19, 233] km |
| Total Rate | 1.0177082E-5 /yr |
| Multi-Fault Rate | 1.0176361E-5 /yr (99.99%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 21 |
Table Of Contents

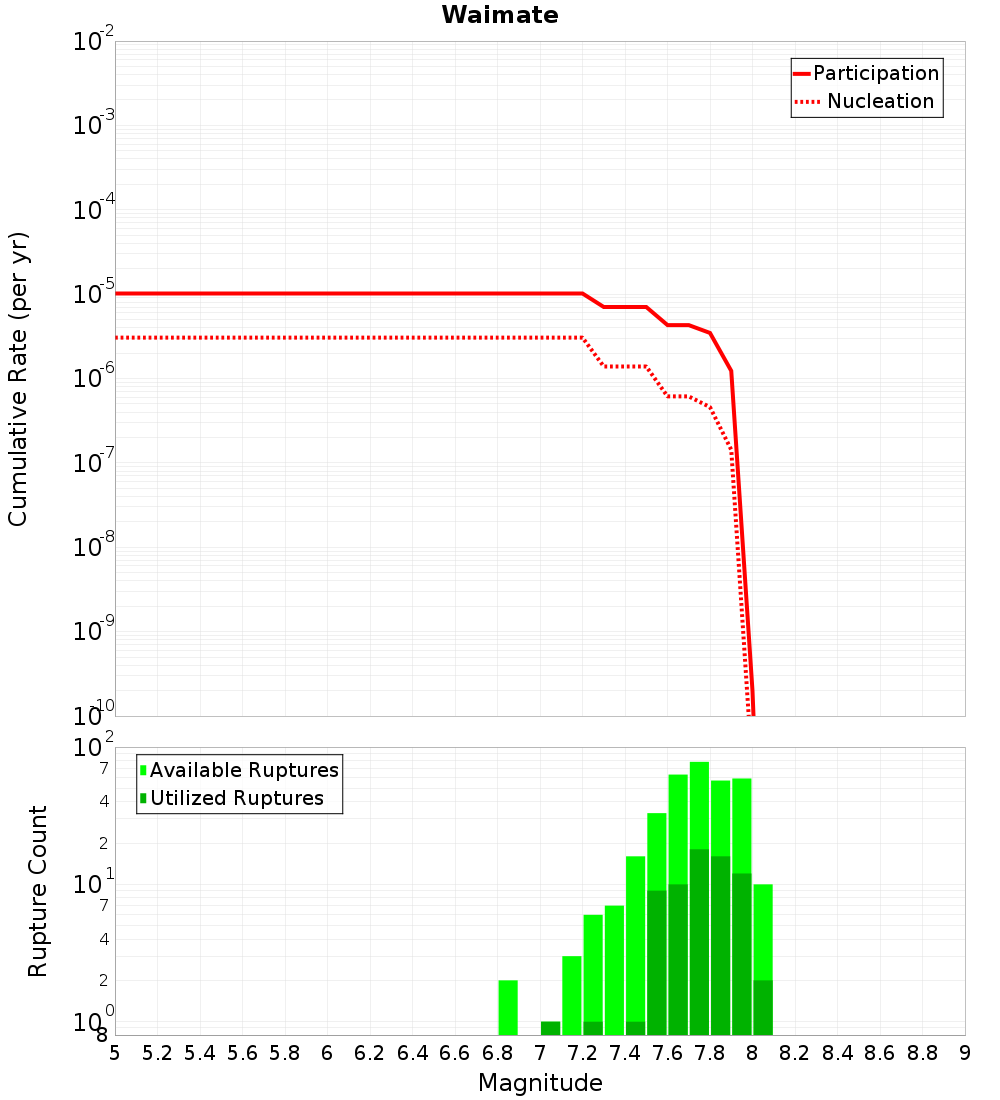

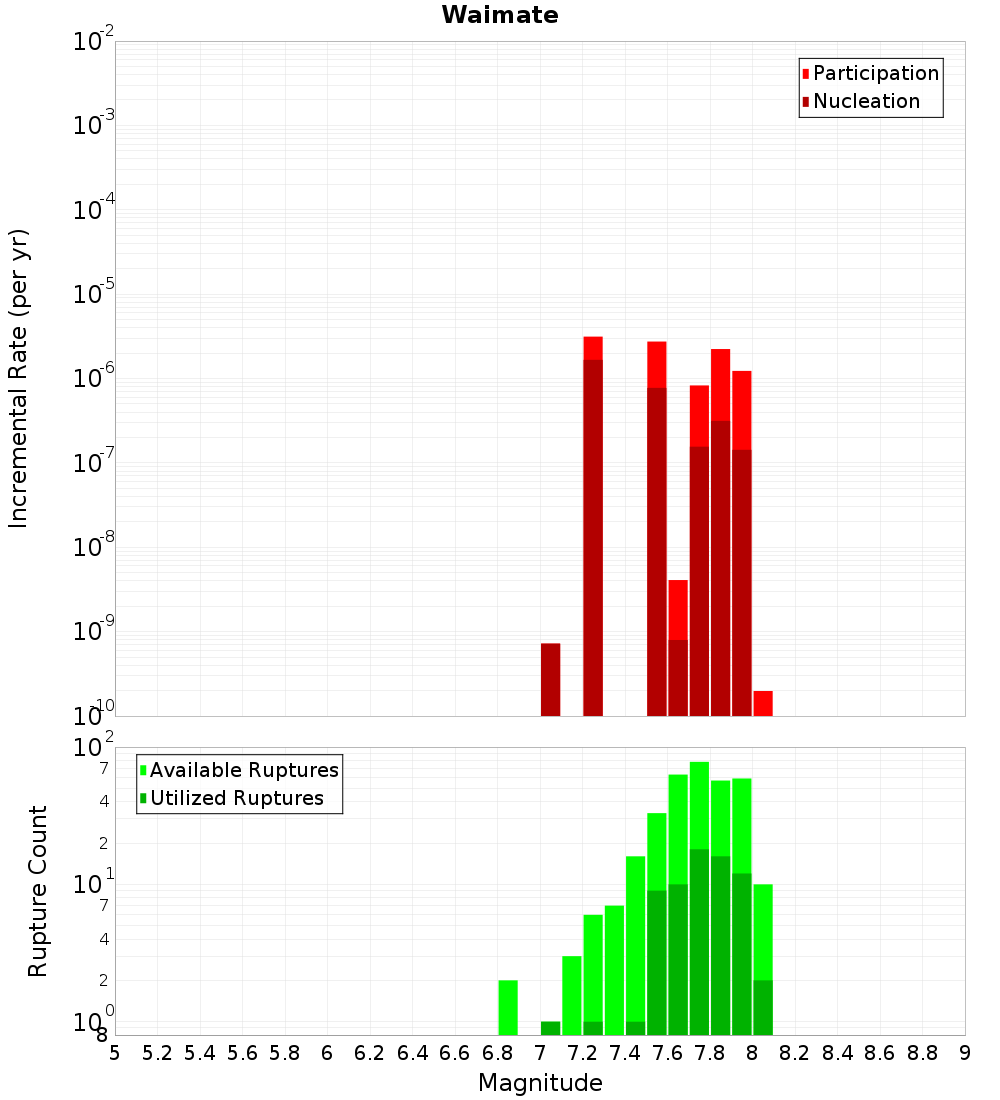

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

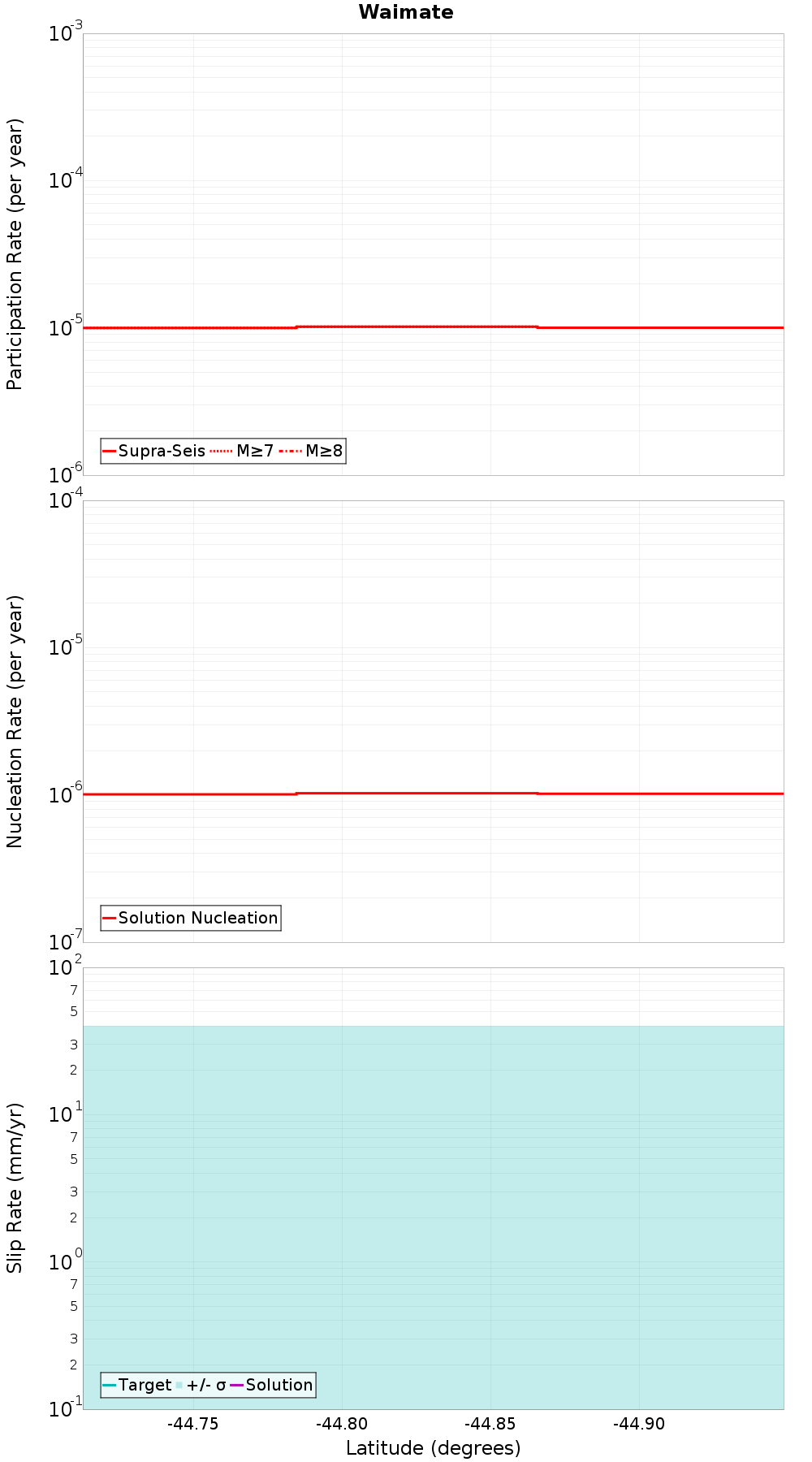

Along-Strike Values
Moment-Rates and b-Values

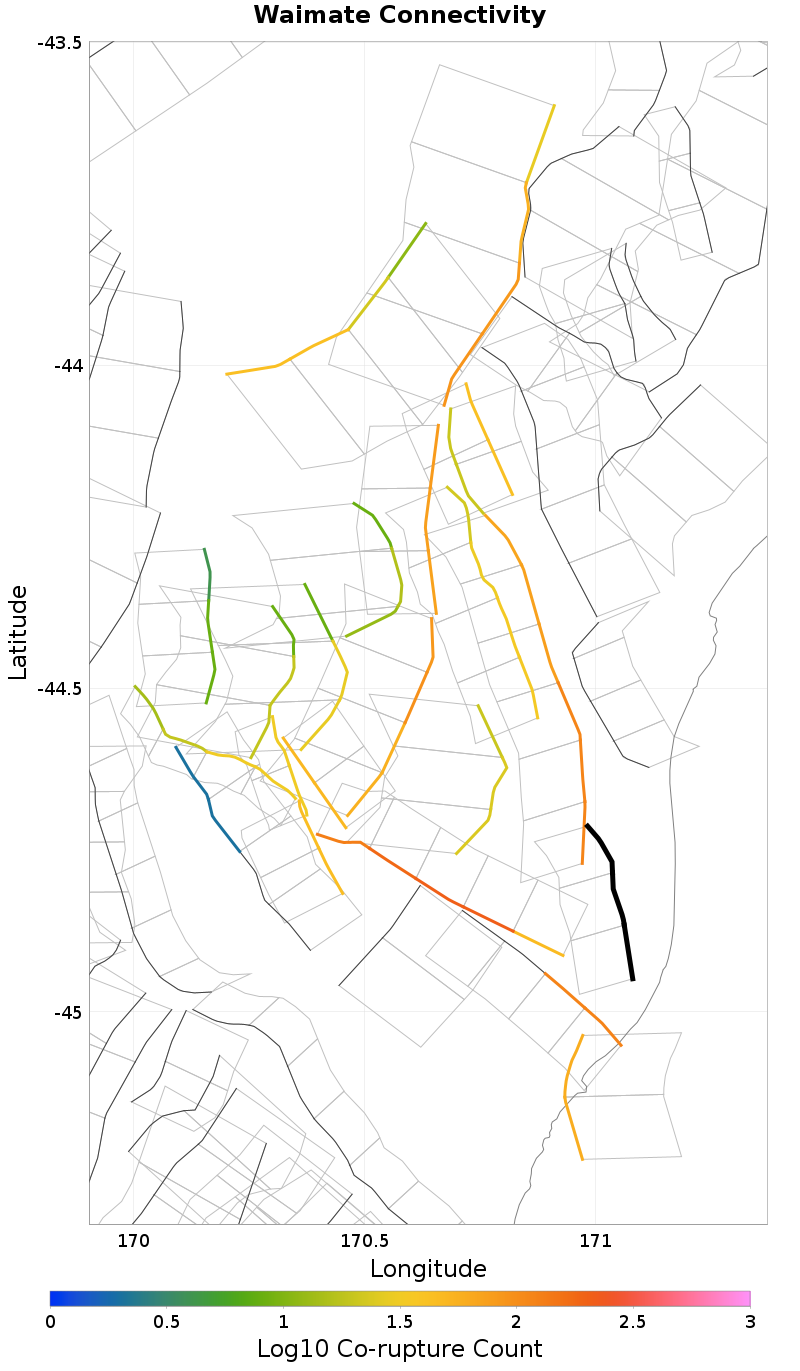

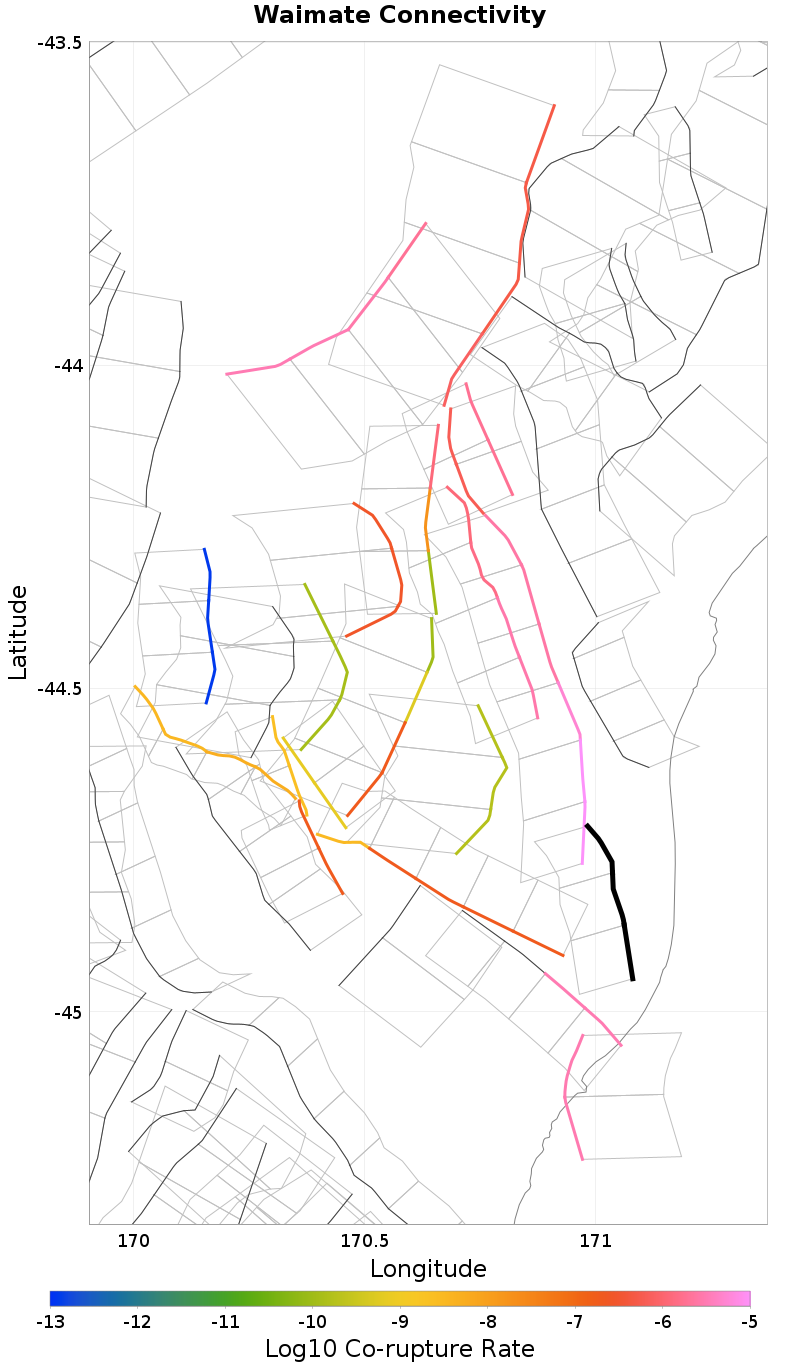

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Stonewall, 0.35 km away |
| Hunters, 0.59 km away |
| Waitaki, 8.23 km away |
| Awamoa, 8.62 km away |
| Black Hill, 11.81 km away |
| Maungati, 13.4 km away |
| Campbell Hills, 14.94 km away |
Stonewall, 0.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 210 |
| Co-rupture Rate | 1.9446493E-7 |
Hunters, 0.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 118 |
| Co-rupture Rate | 9.981896E-6 |
Waitaki, 8.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 119 |
| Co-rupture Rate | 3.0806766E-6 |
Awamoa, 8.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 59 |
| Co-rupture Rate | 2.978144E-6 |
Black Hill, 11.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Maungati, 13.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Campbell Hills, 14.94 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 24 |
| Co-rupture Rate | 1.7260406E-10 |
