Waiohau: South Details

PropertyValue
Rupture Count15,747
Ruptures Above Sect Min Mag15,744
Ruptures w/ Nonzero Rates17
Magnitude Range[7.00, 8.71]
Length Range[20, 1,129] km
Total Rate1.09559725E-4 /yr
Multi-Fault Rate9.790605E-5 /yr (89.36%)
Directly-Connected Faults3
All Co-Rupturing Faults107

Table Of Contents

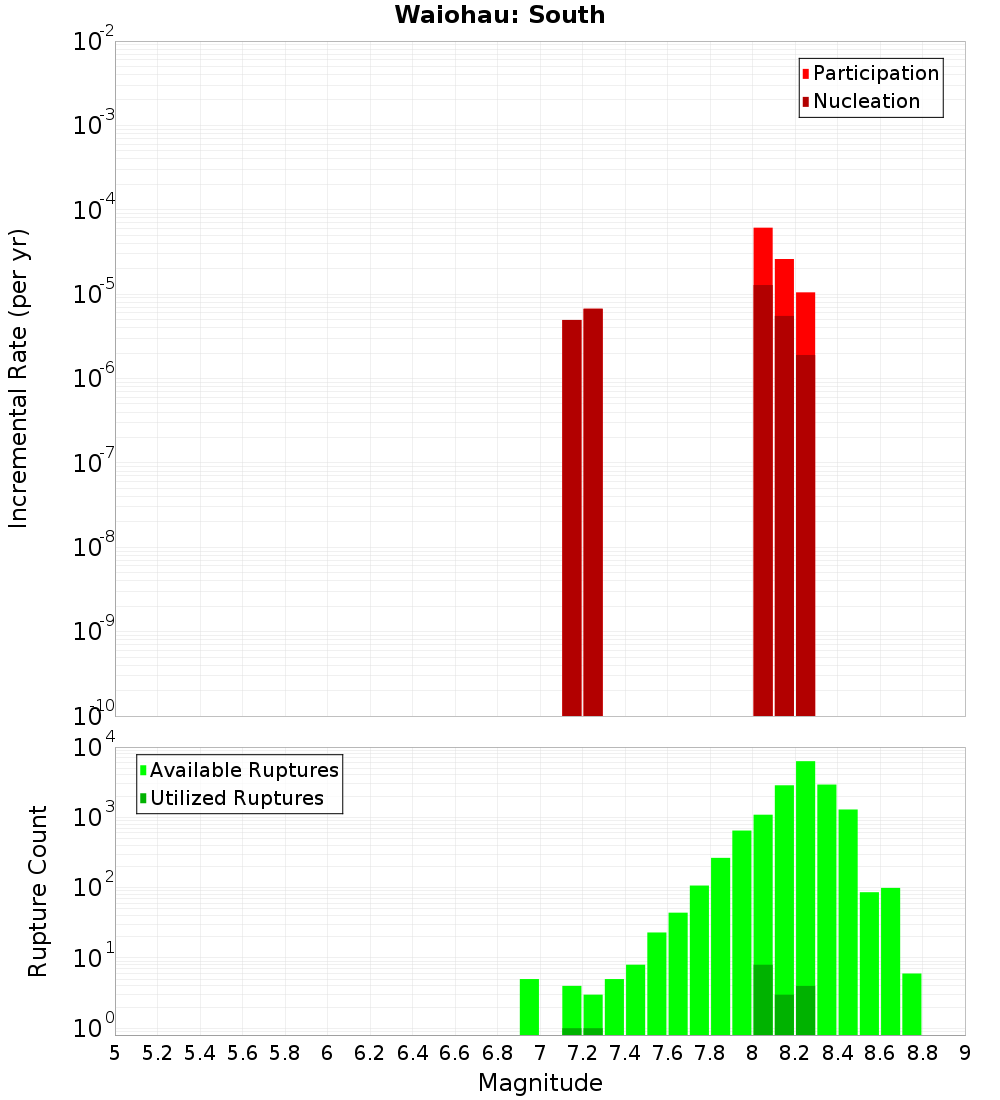

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

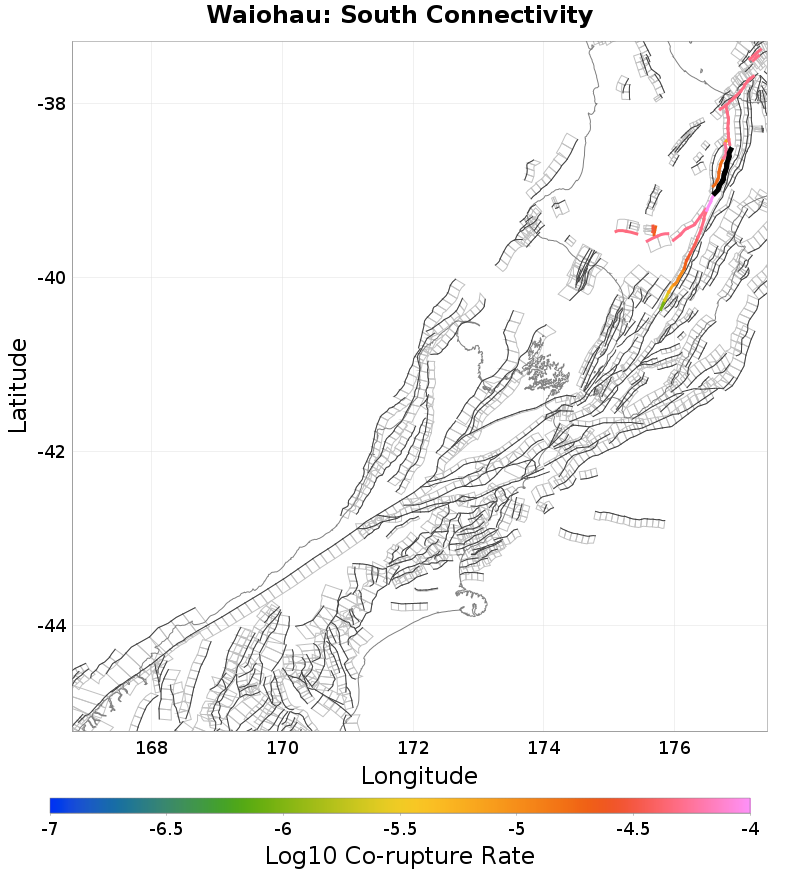

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ruahine: North, 0 km away
Waiohau: North, 0 km away
Wheao: South, 0.22 km away
Te Whaiti South, 0.76 km away
Whakatane: South, 4.67 km away
Waimana: South, 8.02 km away
Mohaka: North, 8.1 km away
Te Whaiti North, 10.36 km away
Wheao: North, 10.36 km away
Whakatane: North, 10.71 km away
Waiotahi: South, 12.21 km away

Ruahine: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx
Connected?true
Directly Connected?true
Co-rupture Count14,944
Co-rupture Rate9.790605E-5

Waiohau: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx
Connected?true
Directly Connected?false
Co-rupture Count2,007
Co-rupture Rate4.765875E-5

Wheao: South, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Te Whaiti South, 0.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx
Connected?true
Directly Connected?true
Co-rupture Count6,625
Co-rupture Rate6.540952E-5

Whakatane: South, 4.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx
Connected?true
Directly Connected?true
Co-rupture Count1,858
Co-rupture Rate0.0

Waimana: South, 8.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mohaka: North, 8.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx
Connected?true
Directly Connected?false
Co-rupture Count828
Co-rupture Rate0.0

Te Whaiti North, 10.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx
Connected?true
Directly Connected?false
Co-rupture Count603
Co-rupture Rate6.4255014E-6

Wheao: North, 10.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx
Connected?true
Directly Connected?false
Co-rupture Count430
Co-rupture Rate0.0

Whakatane: North, 10.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx
Connected?true
Directly Connected?false
Co-rupture Count529
Co-rupture Rate0.0

Waiotahi: South, 12.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
