Lyell South Details

Property	Value
Rupture Count	2,183
Ruptures Above Sect Min Mag	2,178
Ruptures w/ Nonzero Rates	407
Magnitude Range	[6.80, 8.46]
Length Range	[19, 814] km
Total Rate	1.04641666E-4 /yr
Multi-Fault Rate	1.04641666E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	32

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

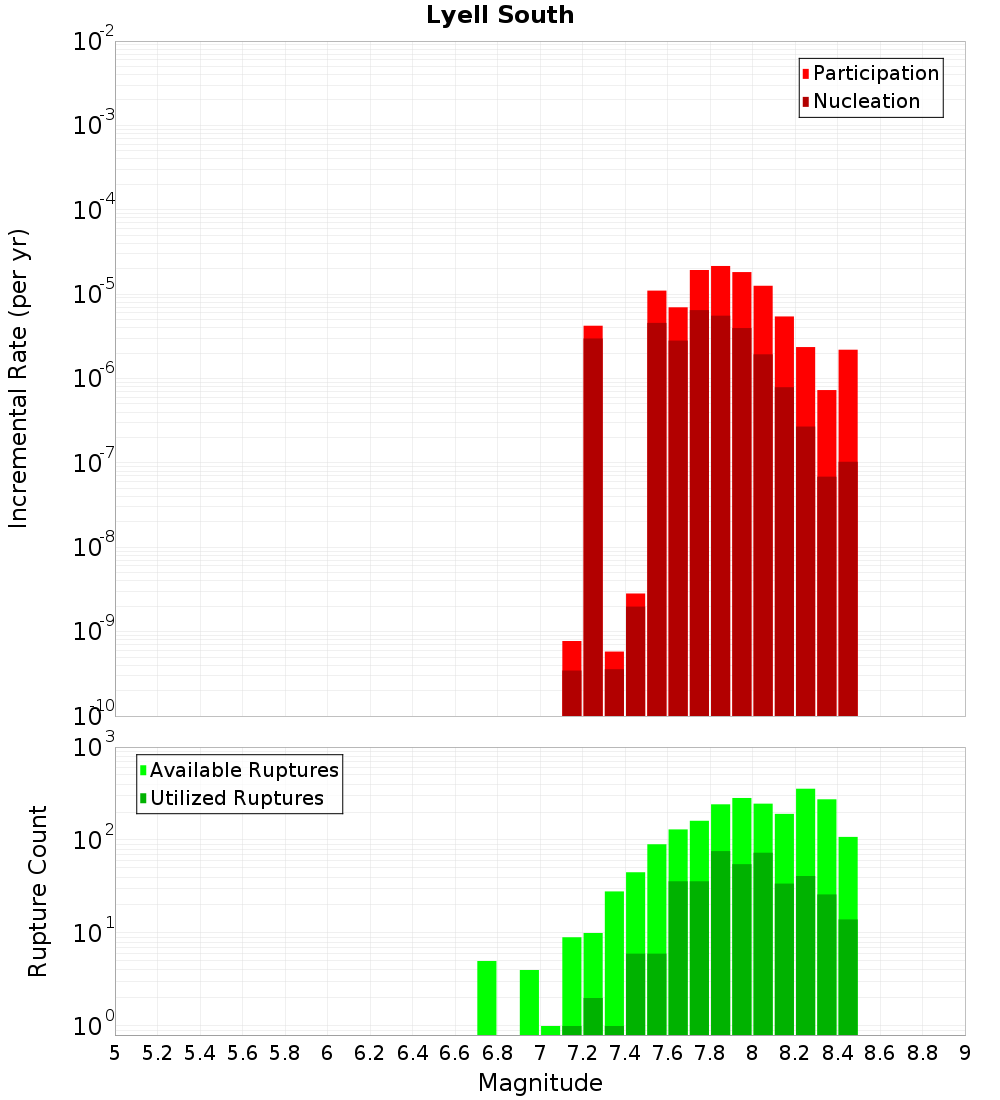

Magnitude-Frequency Distribution

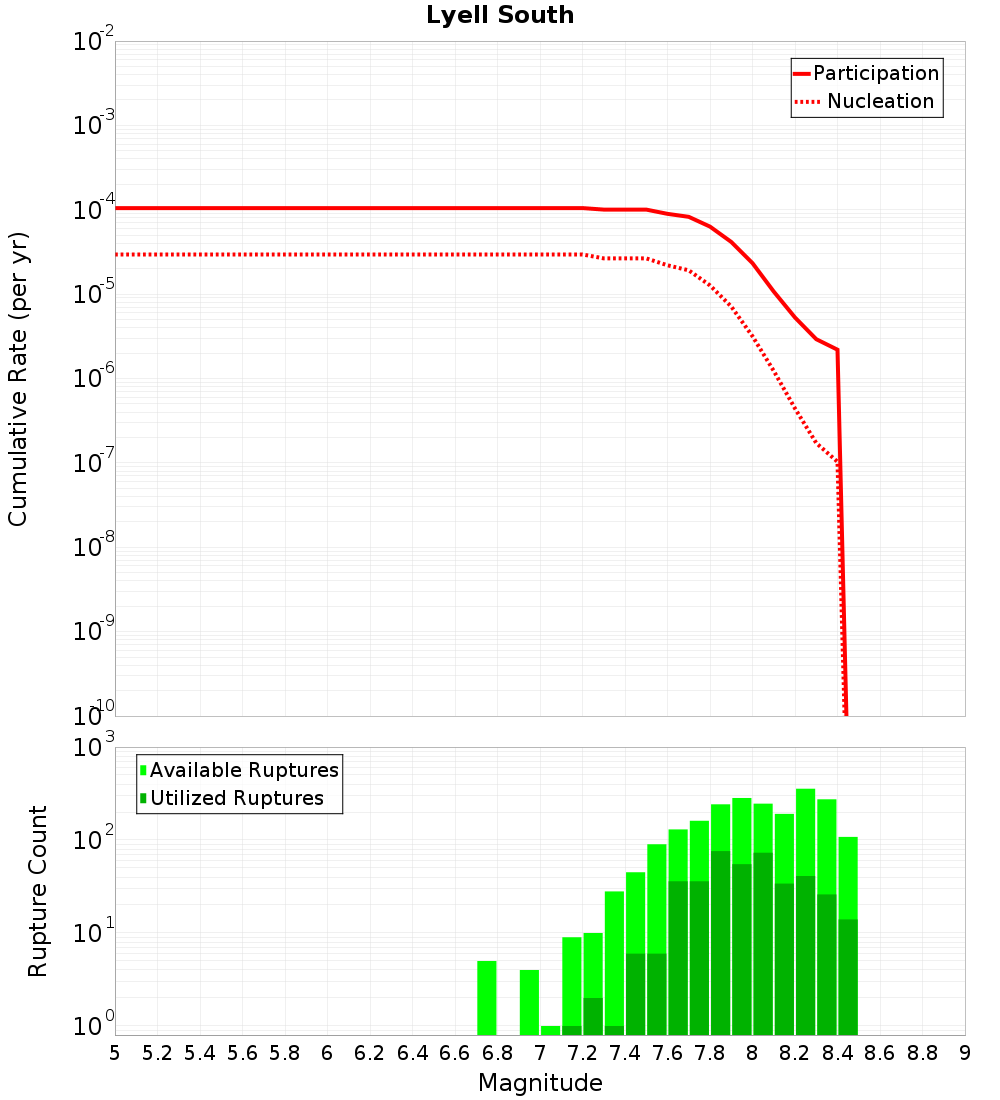

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

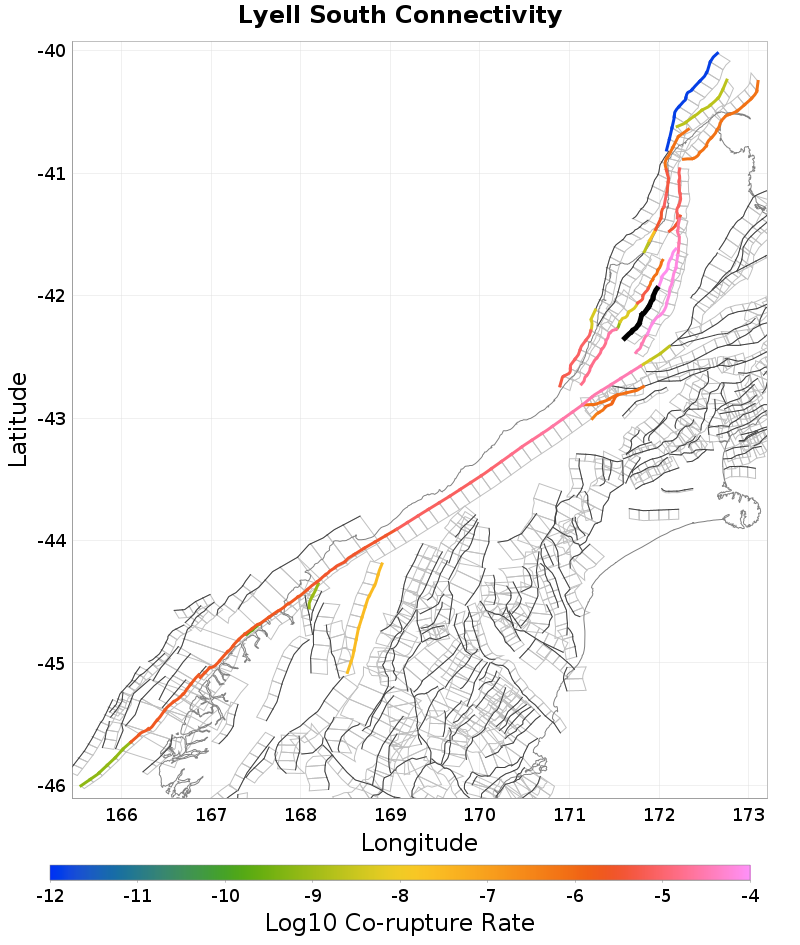

Connectivity

Nearby Sections

Fault Section
Lyell, 1.51 km away
White Creek, 6.32 km away
Maimai: North, 7.01 km away
White Creek - buried, 7.39 km away
Inangahua, 9 km away
Maimai, 9.15 km away
Maimai: South, 11.15 km away

Lyell, 1.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDIuMExwSnB0
Connected?	true
Directly Connected?	true
Co-rupture Count	1,377
Co-rupture Rate	8.2950806E-5

White Creek, 6.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDIuMExwSnB0
Connected?	true
Directly Connected?	true
Co-rupture Count	1,891
Co-rupture Rate	8.280393E-5

Maimai: North, 7.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDIuMExwSnB0
Connected?	true
Directly Connected?	true
Co-rupture Count	131
Co-rupture Rate	4.9415635E-6

White Creek - buried, 7.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDIuMExwSnB0
Connected?	true
Directly Connected?	false
Co-rupture Count	1,318
Co-rupture Rate	3.105284E-5

Inangahua, 9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDIuMExwSnB0
Connected?	true
Directly Connected?	false
Co-rupture Count	249
Co-rupture Rate	7.124452E-7

Maimai, 9.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDIuMExwSnB0
Connected?	true
Directly Connected?	false
Co-rupture Count	18
Co-rupture Rate	5.0187245E-9

Maimai: South, 11.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDIuMExwSnB0
Connected?	true
Directly Connected?	true
Co-rupture Count	71
Co-rupture Rate	2.4253095E-5
