Whangamoa Details

Property	Value
Rupture Count	32,276
Ruptures Above Sect Min Mag	32,270
Ruptures w/ Nonzero Rates	246
Magnitude Range	[6.97, 8.62]
Length Range	[23, 976] km
Total Rate	4.15441E-5 /yr
Multi-Fault Rate	4.1529536E-5 /yr (99.96%)
Directly-Connected Faults	5
All Co-Rupturing Faults	100

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

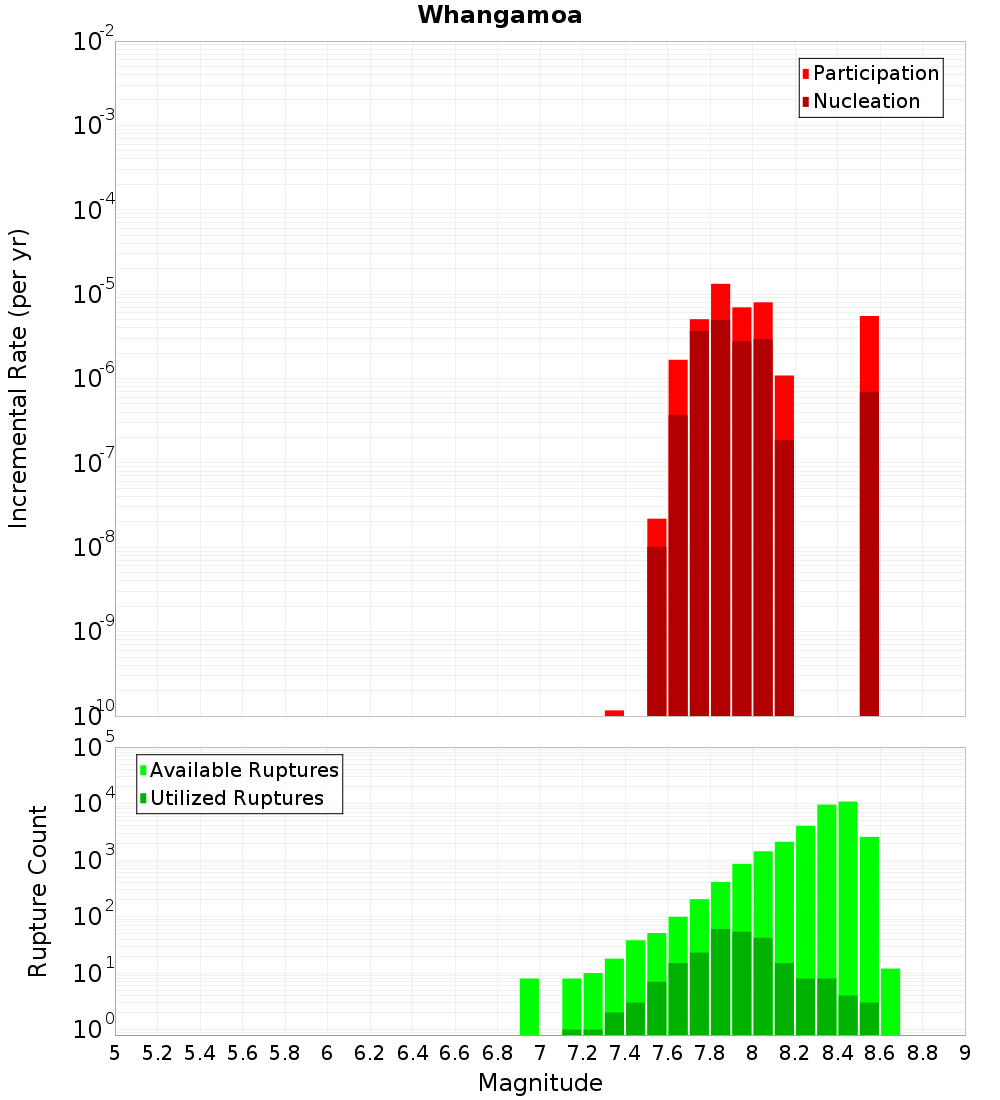

Magnitude-Frequency Distribution

Incremental	Cumulative

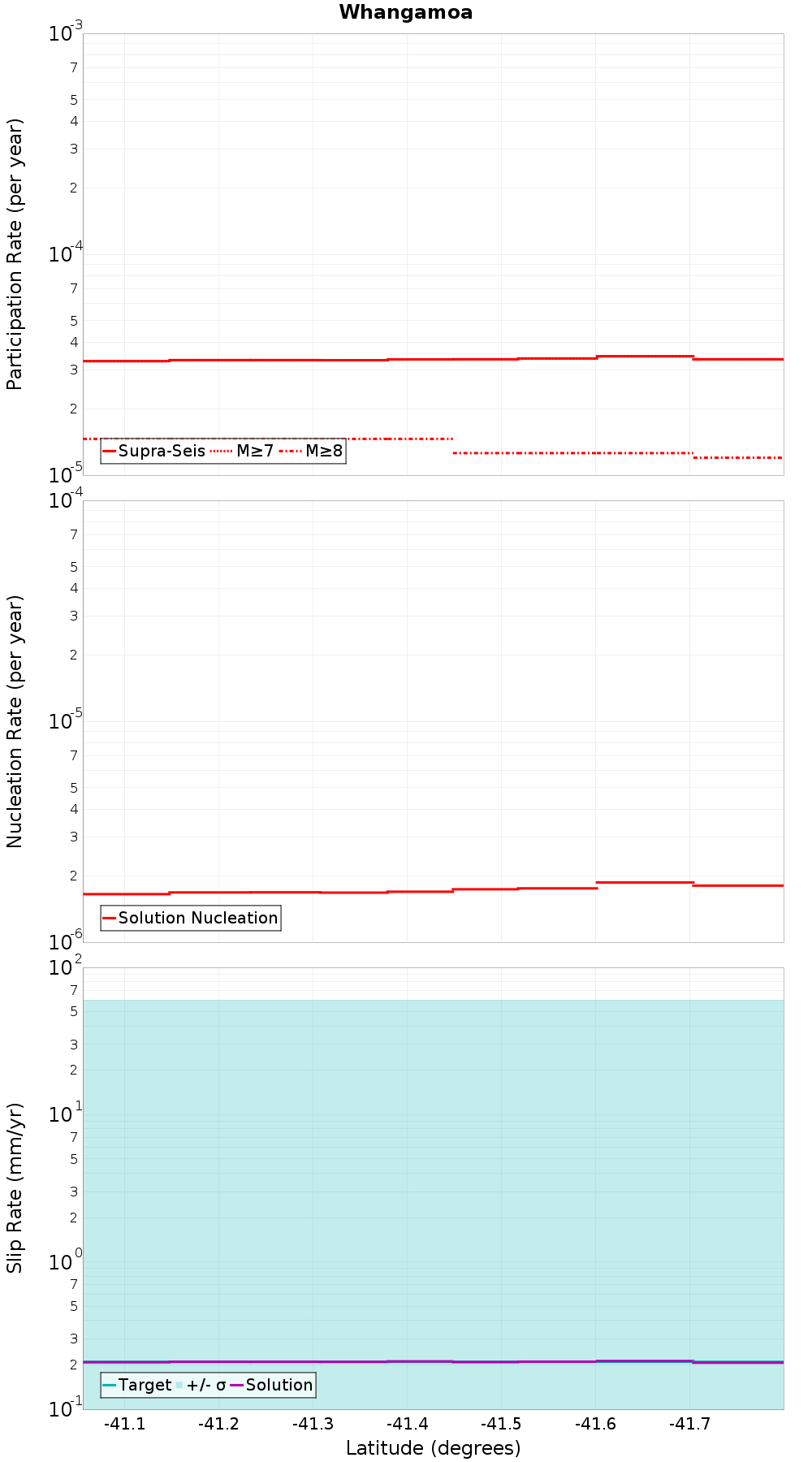

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Alpine: Springs Junction to Tophouse, 0 km away
Wairau, 0 km away
Waimea Offshore, 0.82 km away
Flaxmore - Waimea - Tahunanui, 2.28 km away
Surville, 14.06 km away
Tutaki, 14.86 km away

Alpine: Springs Junction to Tophouse, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDIuMExwSnB0
Connected?	true
Directly Connected?	true
Co-rupture Count	31,470
Co-rupture Rate	3.6024045E-5

Wairau, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDIuMExwSnB0
Connected?	true
Directly Connected?	true
Co-rupture Count	5,375
Co-rupture Rate	1.0711025E-6

Waimea Offshore, 0.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDIuMExwSnB0
Connected?	true
Directly Connected?	true
Co-rupture Count	12,245
Co-rupture Rate	1.5458314E-5

Flaxmore - Waimea - Tahunanui, 2.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDIuMExwSnB0
Connected?	true
Directly Connected?	true
Co-rupture Count	4,716
Co-rupture Rate	4.9184932E-6

Surville, 14.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDIuMExwSnB0
Connected?	true
Directly Connected?	true
Co-rupture Count	2,882
Co-rupture Rate	3.554631E-6

Tutaki, 14.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDIuMExwSnB0
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	0.0
