Grandview Details

PropertyValue
Rupture Count14,146
Ruptures Above Sect Min Mag14,144
Ruptures w/ Nonzero Rates361
Magnitude Range[6.90, 8.56]
Length Range[20, 856] km
Total Rate2.2510749E-5 /yr
Multi-Fault Rate2.2510749E-5 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults70

Table Of Contents

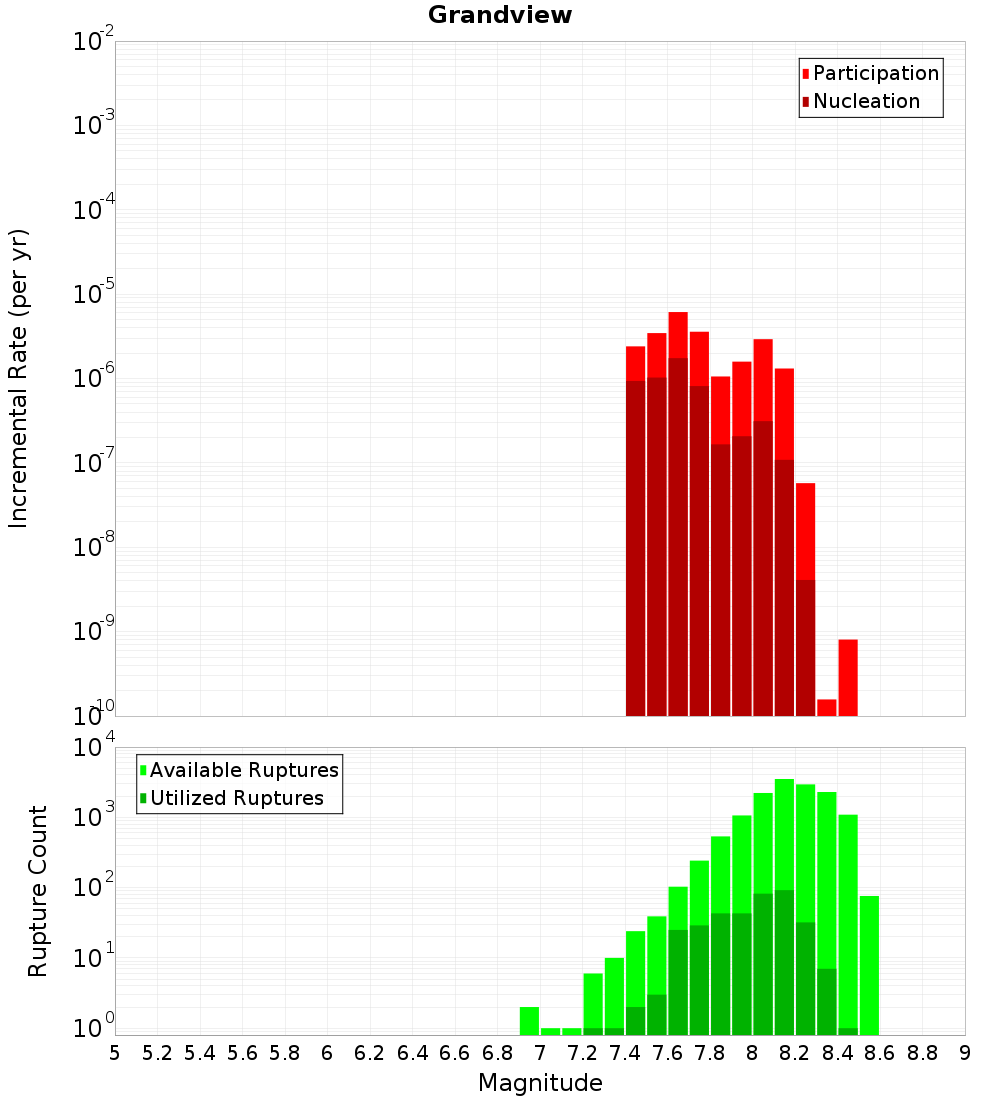

Magnitude-Frequency Distribution

(top)

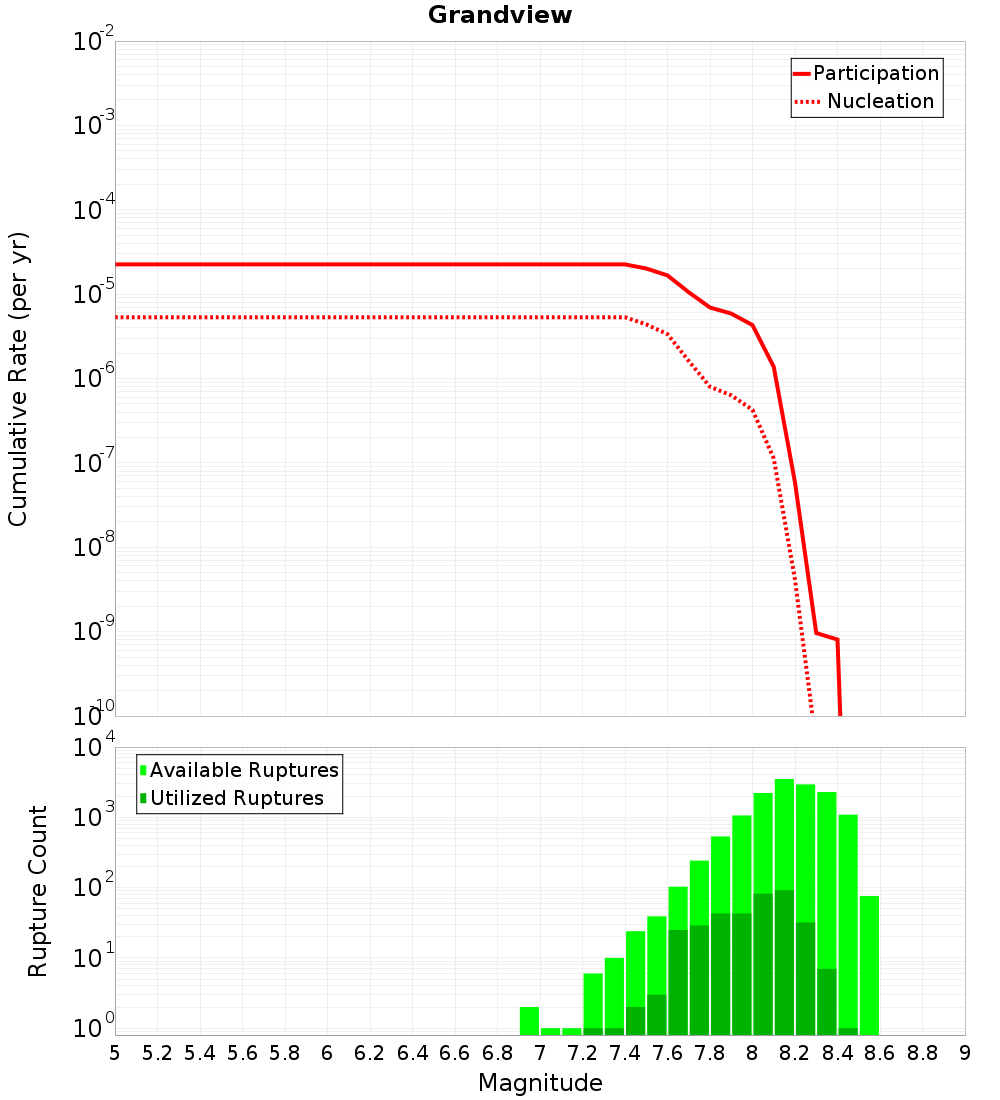

IncrementalCumulative
Incremental PlotCumulative Plot

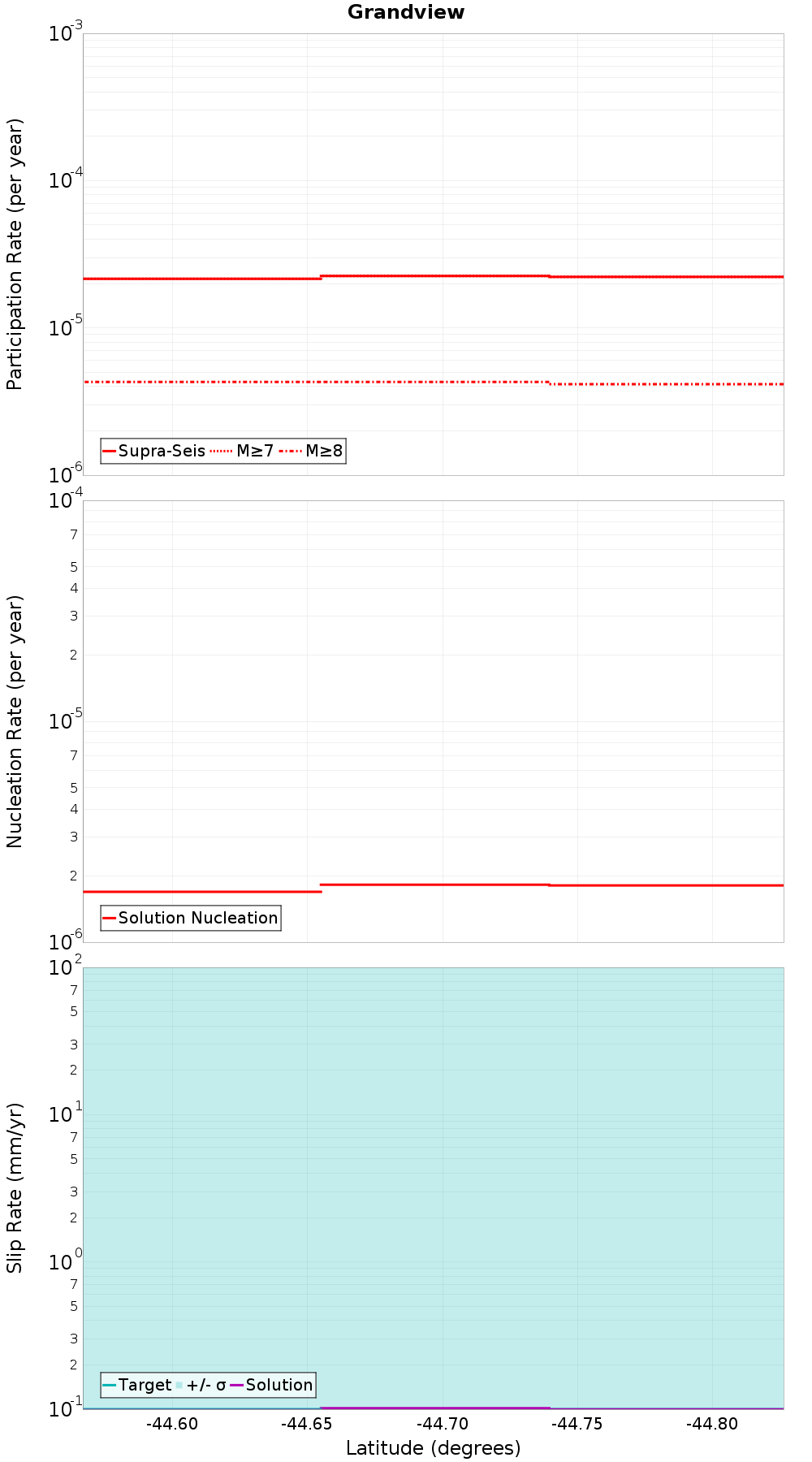

Along-Strike Values

(top)

Along-strike plot

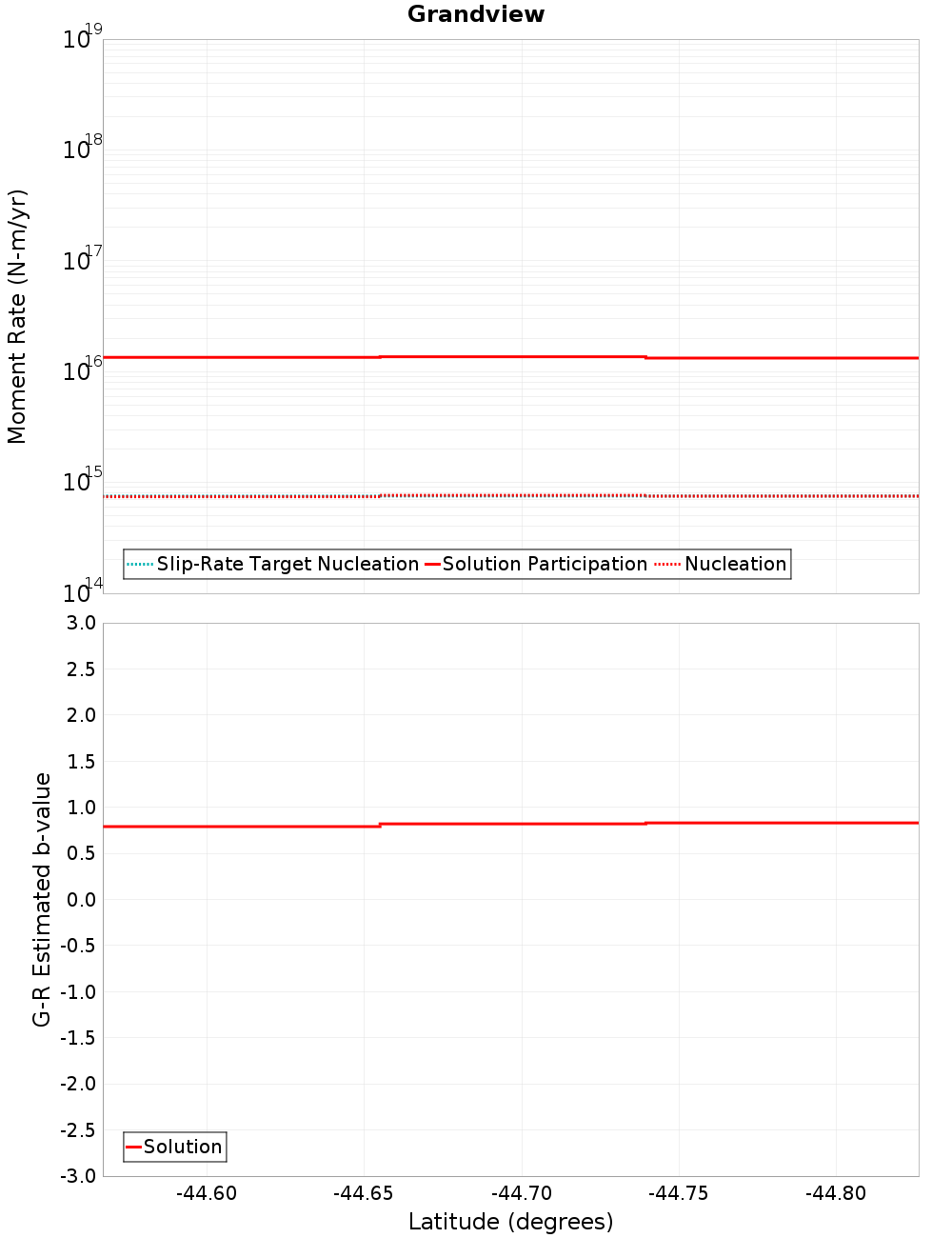

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Cluden, 0.17 km awayHunter Valley, 1.98 km away
Dunstan, 0.21 km awayDingle, 9.64 km away
Goodger, 0.22 km awayMotatapu, 11.63 km away
Lindis River, 0.23 km awayPaddys Ridge, 12.33 km away
Timaru Creek, 0.3 km awayWanaka, 12.54 km away
Cardrona - Hawea, 0.97 km awayNW Cardrona North, 14.11 km away
Dromedary, 1.36 km awayRaggedy - Blackstone, 14.9 km away
Pisa, 1.55 km awayOstler South, 14.98 km away

Cluden, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDguMGRoQ2N2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dunstan, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDguMGRoQ2N2
Connected?true
Directly Connected?true
Co-rupture Count4,133
Co-rupture Rate1.5963431E-5

Goodger, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDguMGRoQ2N2
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate6.118935E-12

Lindis River, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDguMGRoQ2N2
Connected?true
Directly Connected?true
Co-rupture Count152
Co-rupture Rate5.026853E-7

Timaru Creek, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDguMGRoQ2N2
Connected?true
Directly Connected?true
Co-rupture Count6,034
Co-rupture Rate9.382786E-6

Cardrona - Hawea, 0.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDguMGRoQ2N2
Connected?true
Directly Connected?false
Co-rupture Count66
Co-rupture Rate0.0

Dromedary, 1.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDguMGRoQ2N2
Connected?true
Directly Connected?true
Co-rupture Count2,521
Co-rupture Rate2.5584043E-7

Pisa, 1.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDguMGRoQ2N2
Connected?true
Directly Connected?true
Co-rupture Count7,733
Co-rupture Rate1.5848533E-6

Hunter Valley, 1.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDguMGRoQ2N2
Connected?true
Directly Connected?true
Co-rupture Count5,223
Co-rupture Rate8.928071E-6

Dingle, 9.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDguMGRoQ2N2
Connected?true
Directly Connected?false
Co-rupture Count2,706
Co-rupture Rate1.0360338E-6

Motatapu, 11.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDguMGRoQ2N2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Paddys Ridge, 12.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDguMGRoQ2N2
Connected?true
Directly Connected?false
Co-rupture Count92
Co-rupture Rate0.0

Wanaka, 12.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDguMGRoQ2N2
Connected?true
Directly Connected?false
Co-rupture Count2,065
Co-rupture Rate4.460615E-9

NW Cardrona North, 14.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDguMGRoQ2N2
Connected?true
Directly Connected?false
Co-rupture Count34
Co-rupture Rate0.0

Raggedy - Blackstone, 14.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDguMGRoQ2N2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ostler South, 14.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNDguMGRoQ2N2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
