Wellington: Tararua 2 Details

PropertyValue
Rupture Count43,237
Ruptures Above Sect Min Mag43,230
Ruptures w/ Nonzero Rates1,681
Magnitude Range[6.60, 8.34]
Length Range[17, 777] km
Total Rate0.0025276267 /yr
Multi-Fault Rate0.0025276267 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults121

Table Of Contents

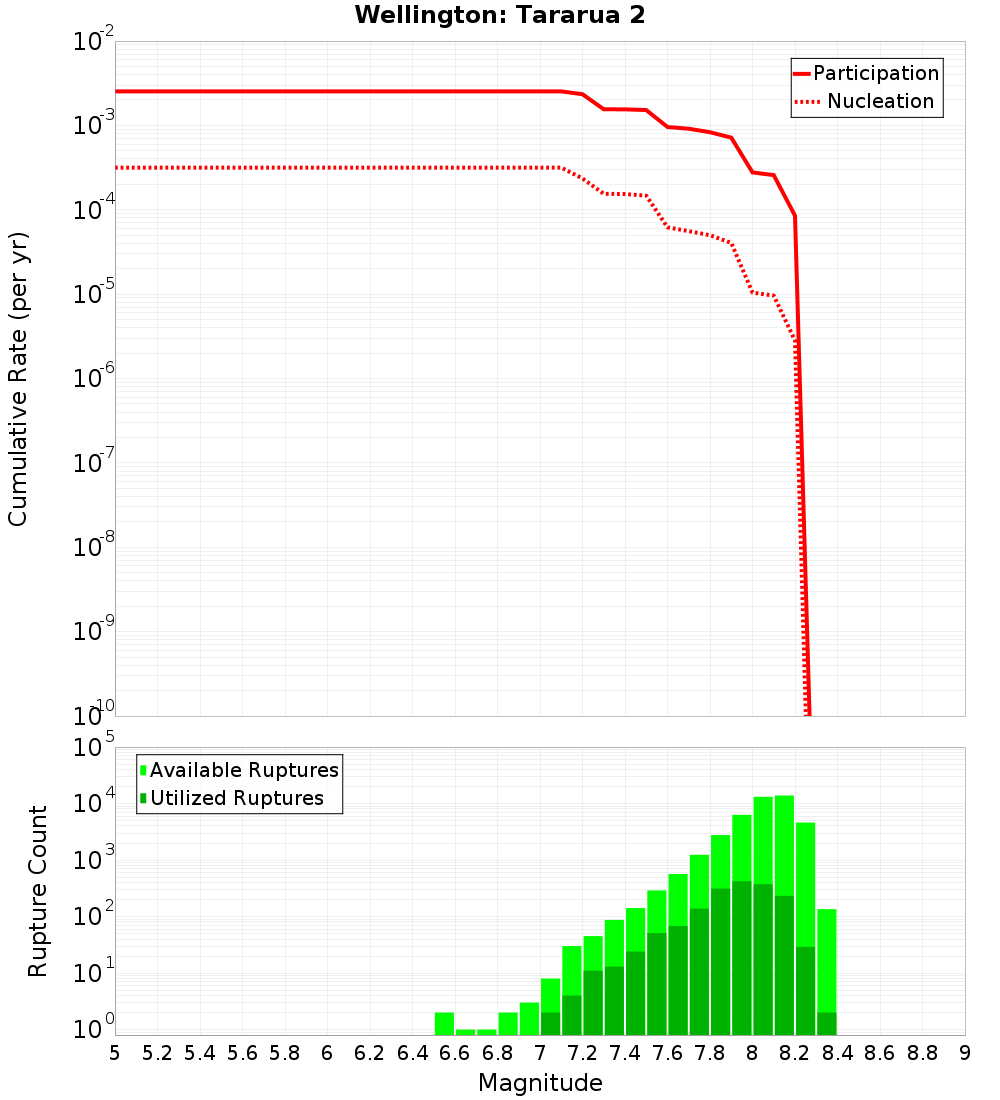

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

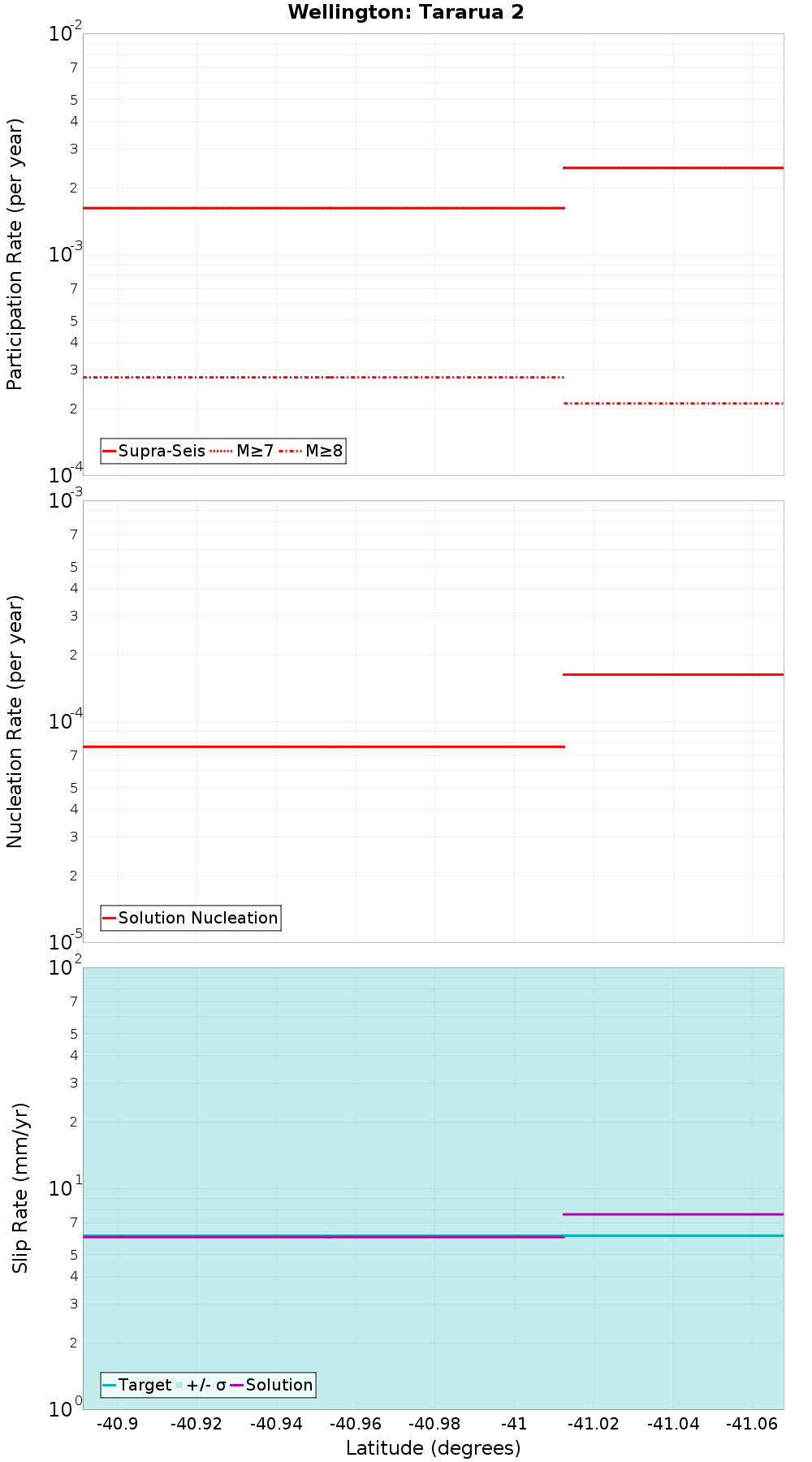

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

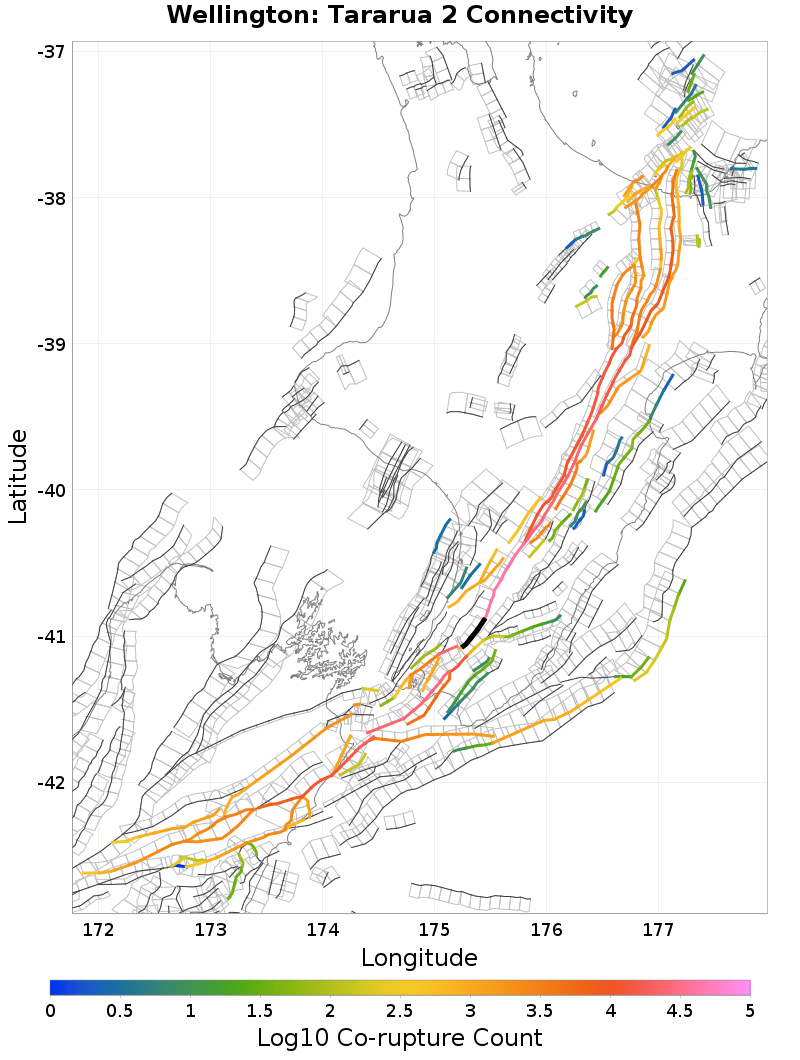

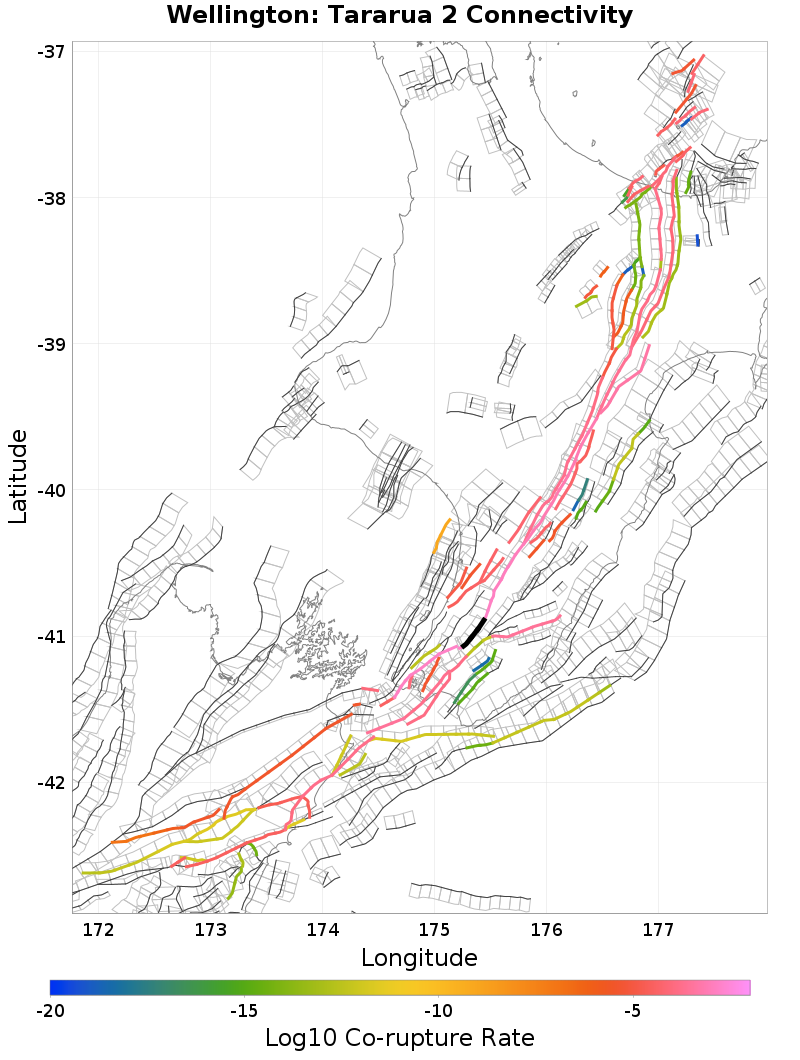

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wellington: Tararua 3, 0 km away
Wellington: Tararua 1, 0.11 km away
Wellington Hutt Valley: 5, 4.56 km away
Wairarapa: 2, 6.35 km away
Otaki Forks: 2, 6.42 km away
Moonshine, 6.9 km away
Wairarapa: 3, 7.95 km away
Carterton, 8.44 km away
Masterton, 9.41 km away
Mokonui Southwest, 9.75 km away
Otaki Forks: 1, 10.09 km away
Akatarawa, 10.96 km away

Wellington: Tararua 3, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNTcuNXNqV2pE
Connected?true
Directly Connected?true
Co-rupture Count42,630
Co-rupture Rate0.0016163774

Wellington: Tararua 1, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNTcuNXNqV2pE
Connected?true
Directly Connected?true
Co-rupture Count916
Co-rupture Rate0.0016356045

Wellington Hutt Valley: 5, 4.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNTcuNXNqV2pE
Connected?true
Directly Connected?true
Co-rupture Count25,343
Co-rupture Rate0.0015730337

Wairarapa: 2, 6.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNTcuNXNqV2pE
Connected?true
Directly Connected?true
Co-rupture Count13,579
Co-rupture Rate1.3356909E-4

Otaki Forks: 2, 6.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNTcuNXNqV2pE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Moonshine, 6.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNTcuNXNqV2pE
Connected?true
Directly Connected?false
Co-rupture Count72
Co-rupture Rate2.7905475E-13

Wairarapa: 3, 7.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNTcuNXNqV2pE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Carterton, 8.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNTcuNXNqV2pE
Connected?true
Directly Connected?false
Co-rupture Count148
Co-rupture Rate2.7371725E-4

Masterton, 9.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNTcuNXNqV2pE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mokonui Southwest, 9.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNTcuNXNqV2pE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaki Forks: 1, 10.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNTcuNXNqV2pE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Akatarawa, 10.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNTcuNXNqV2pE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
