Maimai Details

Property	Value
Rupture Count	2,768
Ruptures Above Sect Min Mag	2,768
Ruptures w/ Nonzero Rates	450
Magnitude Range	[7.09, 8.23]
Length Range	[25, 383] km
Total Rate	3.8319454E-4 /yr
Multi-Fault Rate	2.6104625E-4 /yr (68.12%)
Directly-Connected Faults	5
All Co-Rupturing Faults	19

Table Of Contents

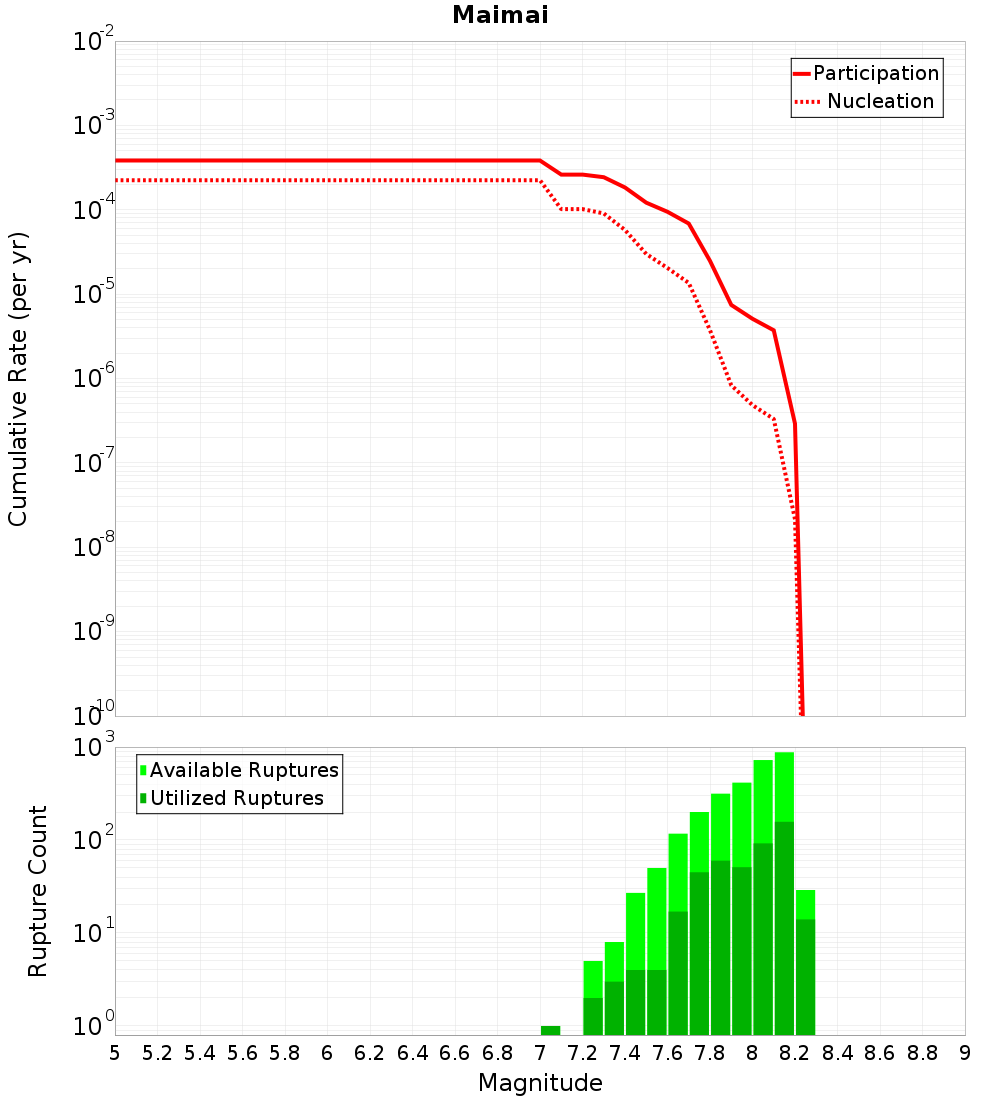

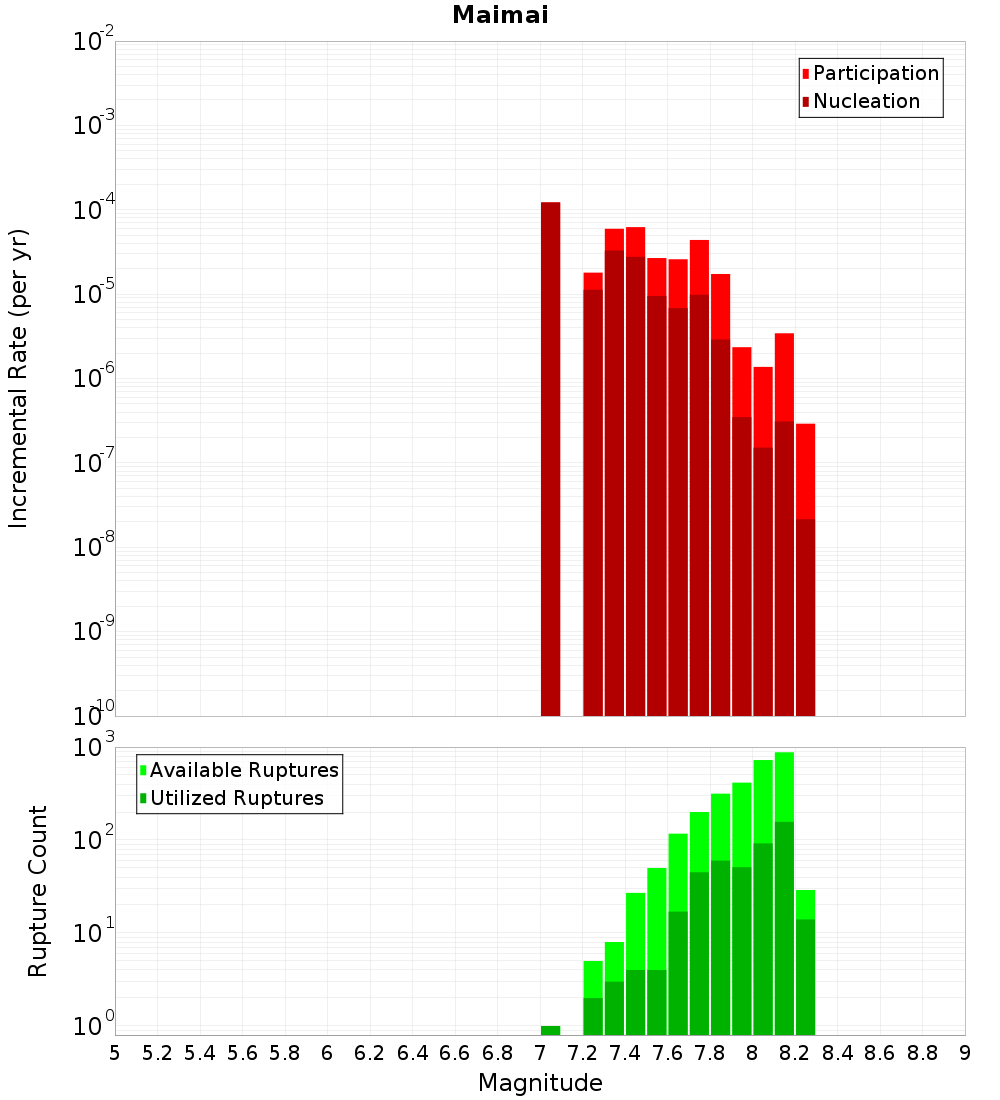

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values

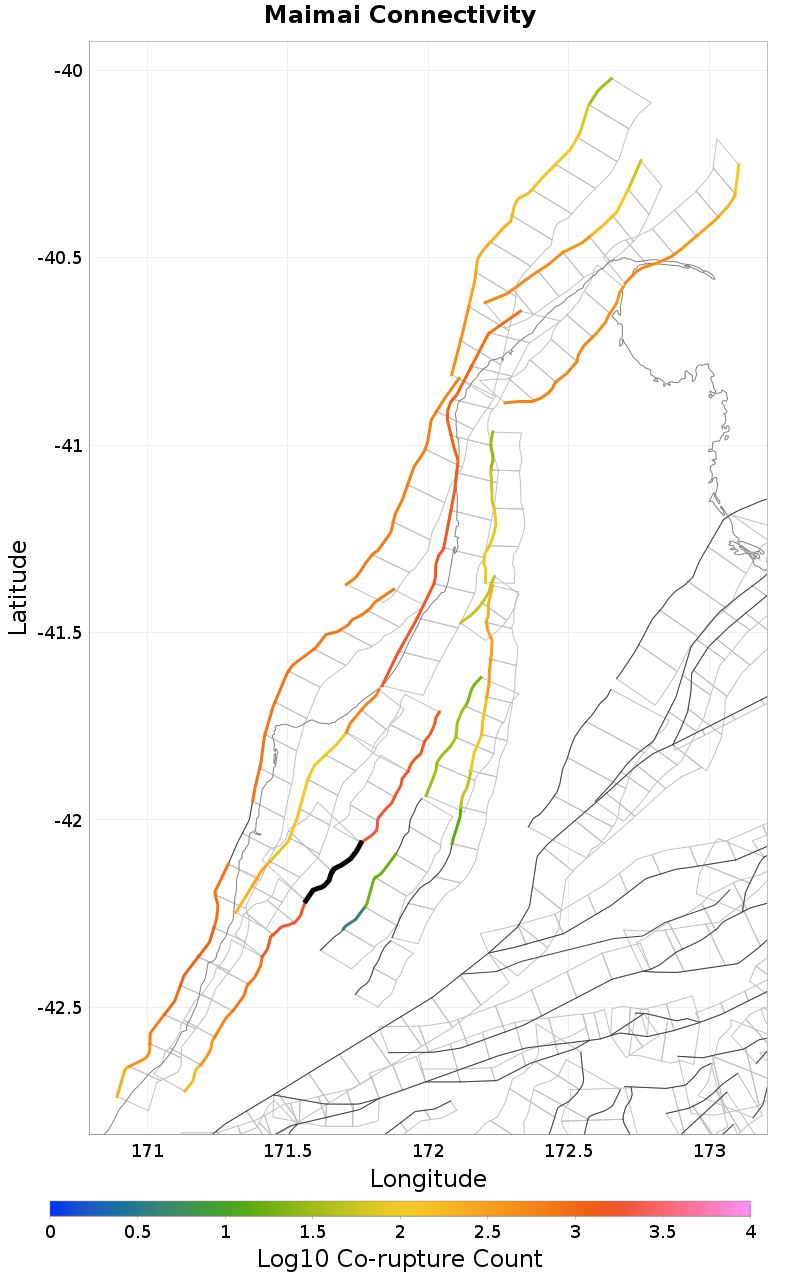

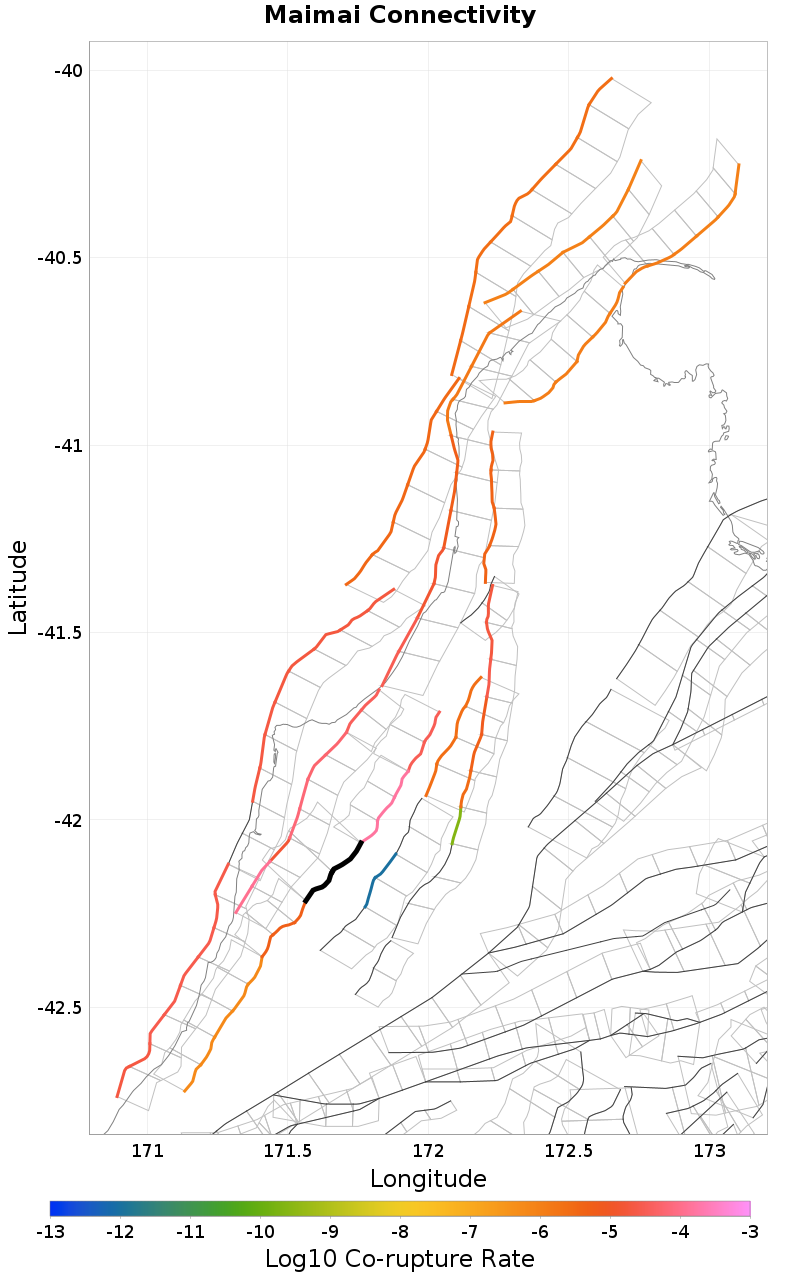

Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

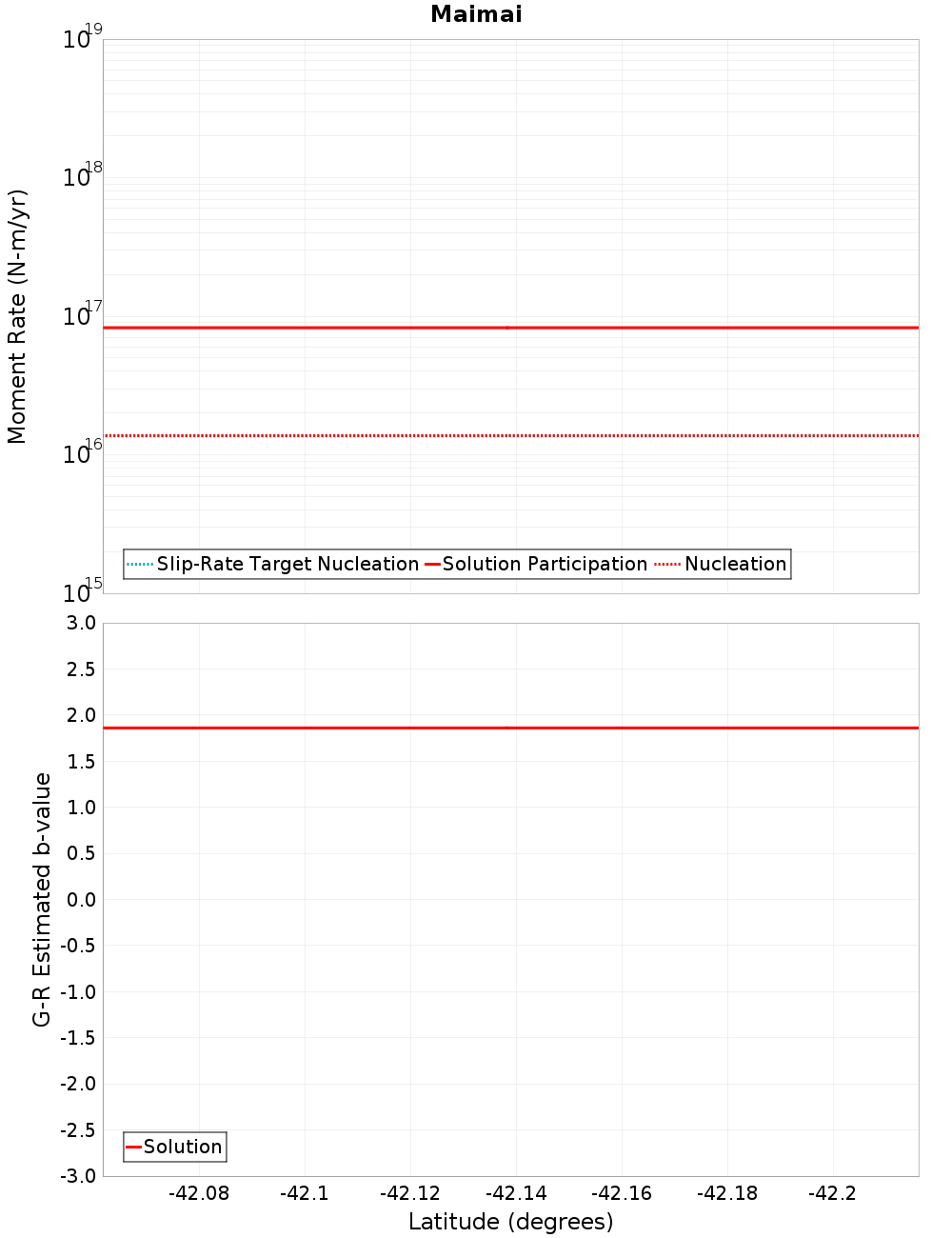

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Maimai: North, 0 km away
Maimai: South, 0.09 km away
Paparoa West, 0.14 km away
Cape Foulwind 2, 0.27 km away
Cape Foulwind 1, 4.83 km away
Lyell South, 9.15 km away

Maimai: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNjMuMExTazhh
Connected?	true
Directly Connected?	true
Co-rupture Count	1,846
Co-rupture Rate	1.5647522E-4

Maimai: South, 0.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNjMuMExTazhh
Connected?	true
Directly Connected?	true
Co-rupture Count	1,552
Co-rupture Rate	5.1877096E-6

Paparoa West, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNjMuMExTazhh
Connected?	true
Directly Connected?	true
Co-rupture Count	350
Co-rupture Rate	1.87522E-4

Cape Foulwind 2, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNjMuMExTazhh
Connected?	true
Directly Connected?	true
Co-rupture Count	805
Co-rupture Rate	2.1728316E-5

Cape Foulwind 1, 4.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNjMuMExTazhh
Connected?	true
Directly Connected?	true
Co-rupture Count	1,465
Co-rupture Rate	2.9603225E-5

Lyell South, 9.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyNjMuMExTazhh
Connected?	true
Directly Connected?	false
Co-rupture Count	18
Co-rupture Rate	9.948692E-13
