Keepa Details
| Property | Value |
|---|---|
| Rupture Count | 5,238 |
| Ruptures Above Sect Min Mag | 5,237 |
| Ruptures w/ Nonzero Rates | 298 |
| Magnitude Range | [6.62, 8.47] |
| Length Range | [11, 645] km |
| Total Rate | 6.651403E-5 /yr |
| Multi-Fault Rate | 6.651403E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 73 |
Table Of Contents

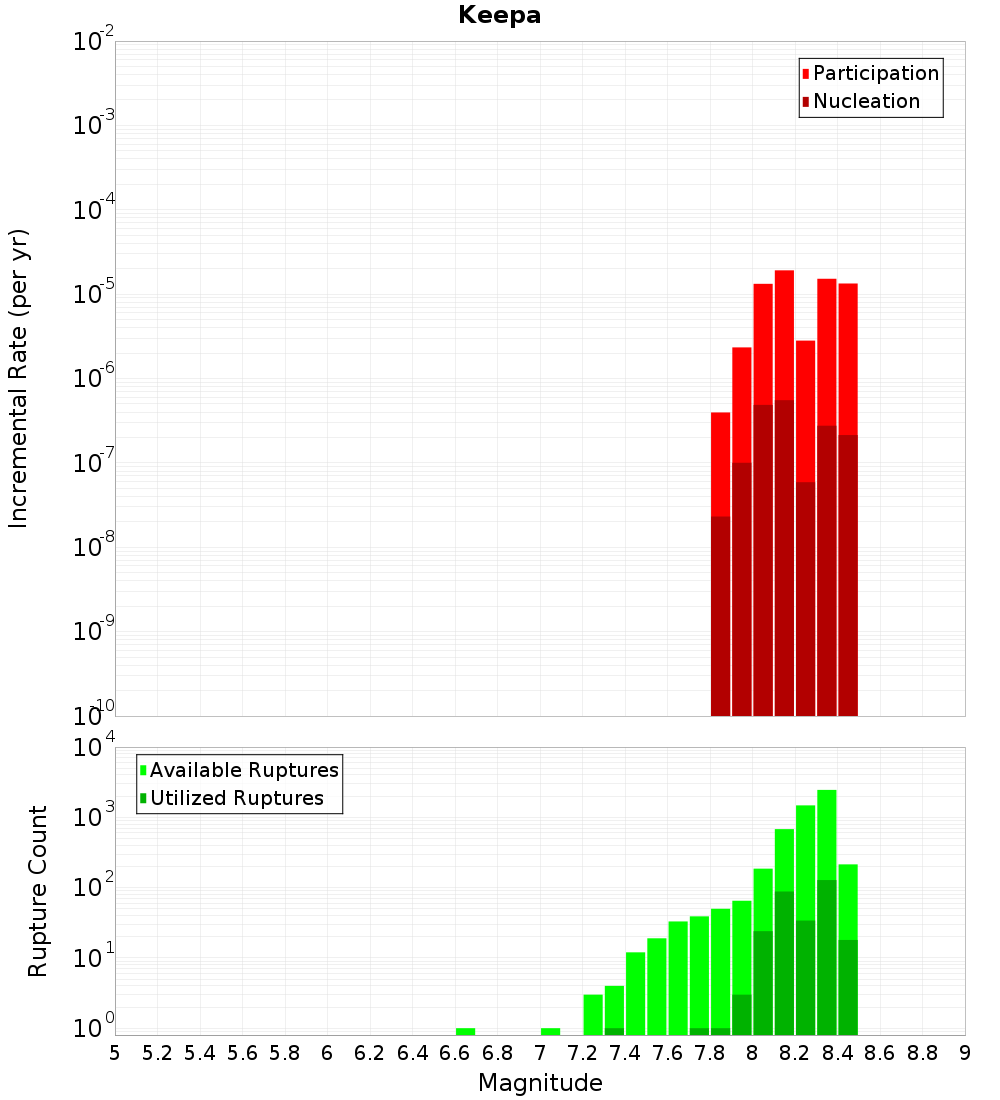

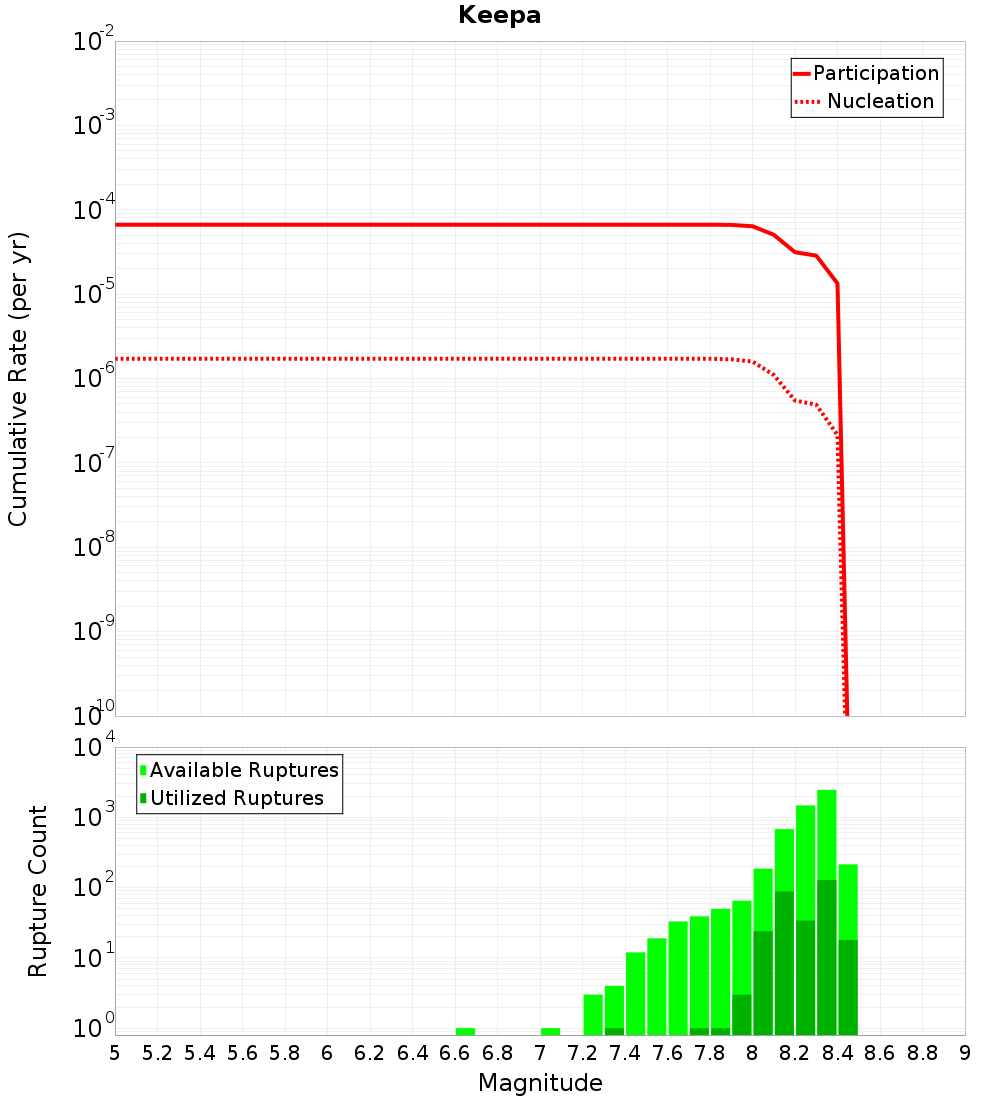

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

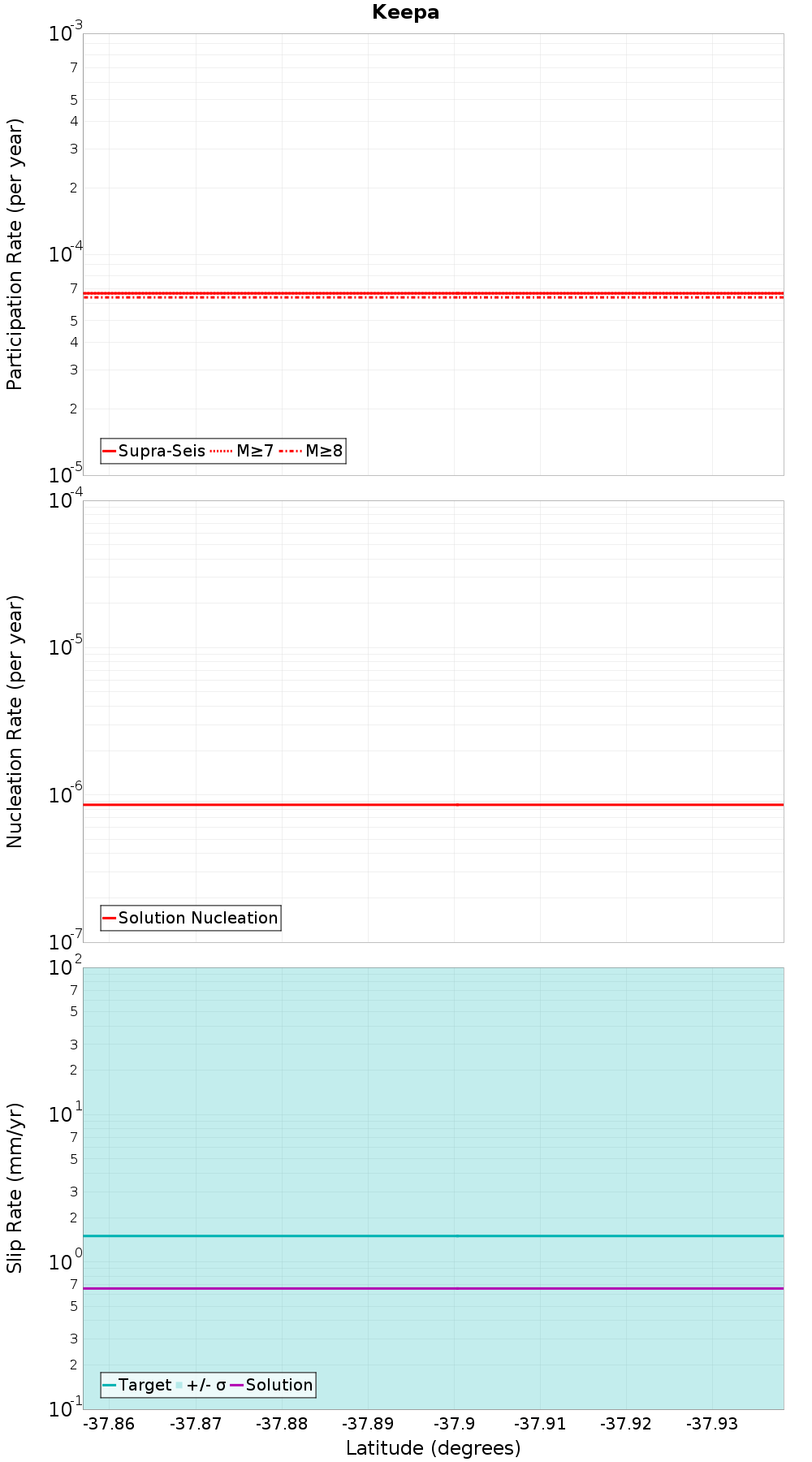

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Whakatane: North, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyODIuMG93a0JM | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
White Island 1, 0.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyODIuMG93a0JM | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2,788 |
| Co-rupture Rate | 3.908237E-5 |
Matata, 0.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyODIuMG93a0JM | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4,955 |
| Co-rupture Rate | 6.6118075E-5 |
Otakiri, 2.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyODIuMG93a0JM | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,077 |
| Co-rupture Rate | 3.1001156E-5 |
Edgecumbe Coastal, 3.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyODIuMG93a0JM | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 530 |
| Co-rupture Rate | 3.1458872E-5 |
Rangitaiki 1, 4.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyODIuMG93a0JM | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 364 |
| Co-rupture Rate | 5.437851E-17 |
Rangitaiki 2, 7.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyODIuMG93a0JM | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 19 |
| Co-rupture Rate | 0.0 |
Edgecumbe 1987, 8.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyODIuMG93a0JM | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 900 |
| Co-rupture Rate | 6.611806E-5 |
Waimana: North, 9.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyODIuMG93a0JM | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5,052 |
| Co-rupture Rate | 6.651401E-5 |
Waimanawa - Waikaremoana, 10.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyODIuMG93a0JM | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Braemar, 10.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyODIuMG93a0JM | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 612 |
| Co-rupture Rate | 1.5343287E-5 |
Waiotahi: North, 11.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyODIuMG93a0JM | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 32 |
| Co-rupture Rate | 0.0 |
