Tukituki Thrust Details

PropertyValue
Rupture Count316
Ruptures Above Sect Min Mag310
Ruptures w/ Nonzero Rates42
Magnitude Range[6.87, 8.14]
Length Range[19, 293] km
Total Rate2.0628361E-4 /yr
Multi-Fault Rate1.8768059E-4 /yr (90.98%)
Directly-Connected Faults5
All Co-Rupturing Faults22

Table Of Contents

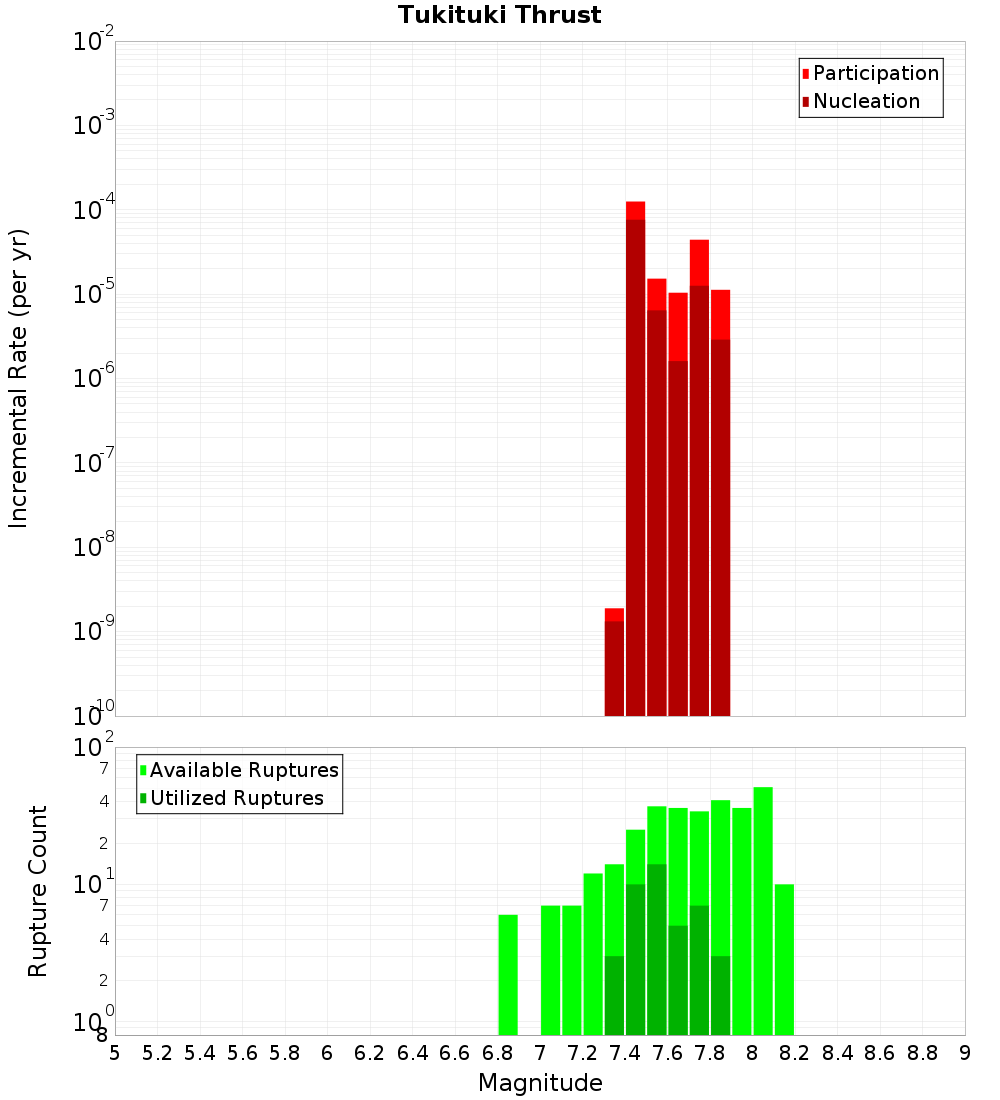

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

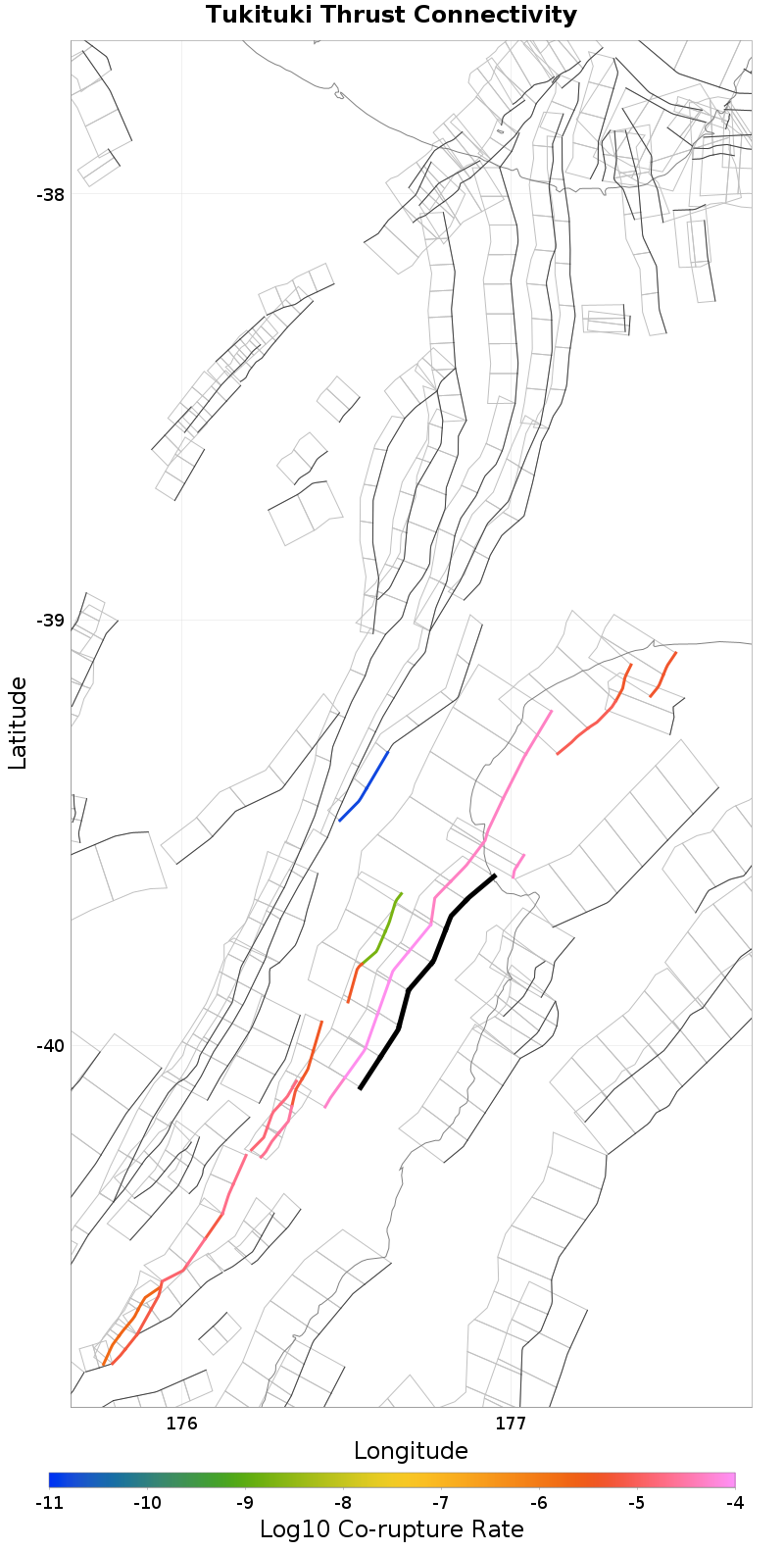

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hawke Bay 8, 2 km away
Waipukurau - Poukawa, 3.57 km away
Awanui, 3.57 km away
Clear Hills - Waikopiro, 7.68 km away
Oruawharo - Mangatoro, 9.21 km away
Te Heka, 11.15 km away
Kidnappers Ridge, 11.24 km away
Waimarama 1 & 2, 13.06 km away

Hawke Bay 8, 2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyODIuMG93a0JM
Connected?true
Directly Connected?true
Co-rupture Count22
Co-rupture Rate4.9577542E-5

Waipukurau - Poukawa, 3.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyODIuMG93a0JM
Connected?true
Directly Connected?true
Co-rupture Count39
Co-rupture Rate8.529165E-5

Awanui, 3.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyODIuMG93a0JM
Connected?true
Directly Connected?true
Co-rupture Count216
Co-rupture Rate4.61391E-5

Clear Hills - Waikopiro, 7.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyODIuMG93a0JM
Connected?true
Directly Connected?true
Co-rupture Count51
Co-rupture Rate1.676608E-5

Oruawharo - Mangatoro, 9.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyODIuMG93a0JM
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate2.7450144E-5

Te Heka, 11.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyODIuMG93a0JM
Connected?true
Directly Connected?true
Co-rupture Count44
Co-rupture Rate3.9149213E-6

Kidnappers Ridge, 11.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyODIuMG93a0JM
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimarama 1 & 2, 13.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyODIuMG93a0JM
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
