Kekerengu Bank Details

Property	Value
Rupture Count	7,838
Ruptures Above Sect Min Mag	7,827
Ruptures w/ Nonzero Rates	477
Magnitude Range	[6.80, 8.32]
Length Range	[17, 526] km
Total Rate	5.6164997E-4 /yr
Multi-Fault Rate	5.2602205E-4 /yr (93.66%)
Directly-Connected Faults	9
All Co-Rupturing Faults	53

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

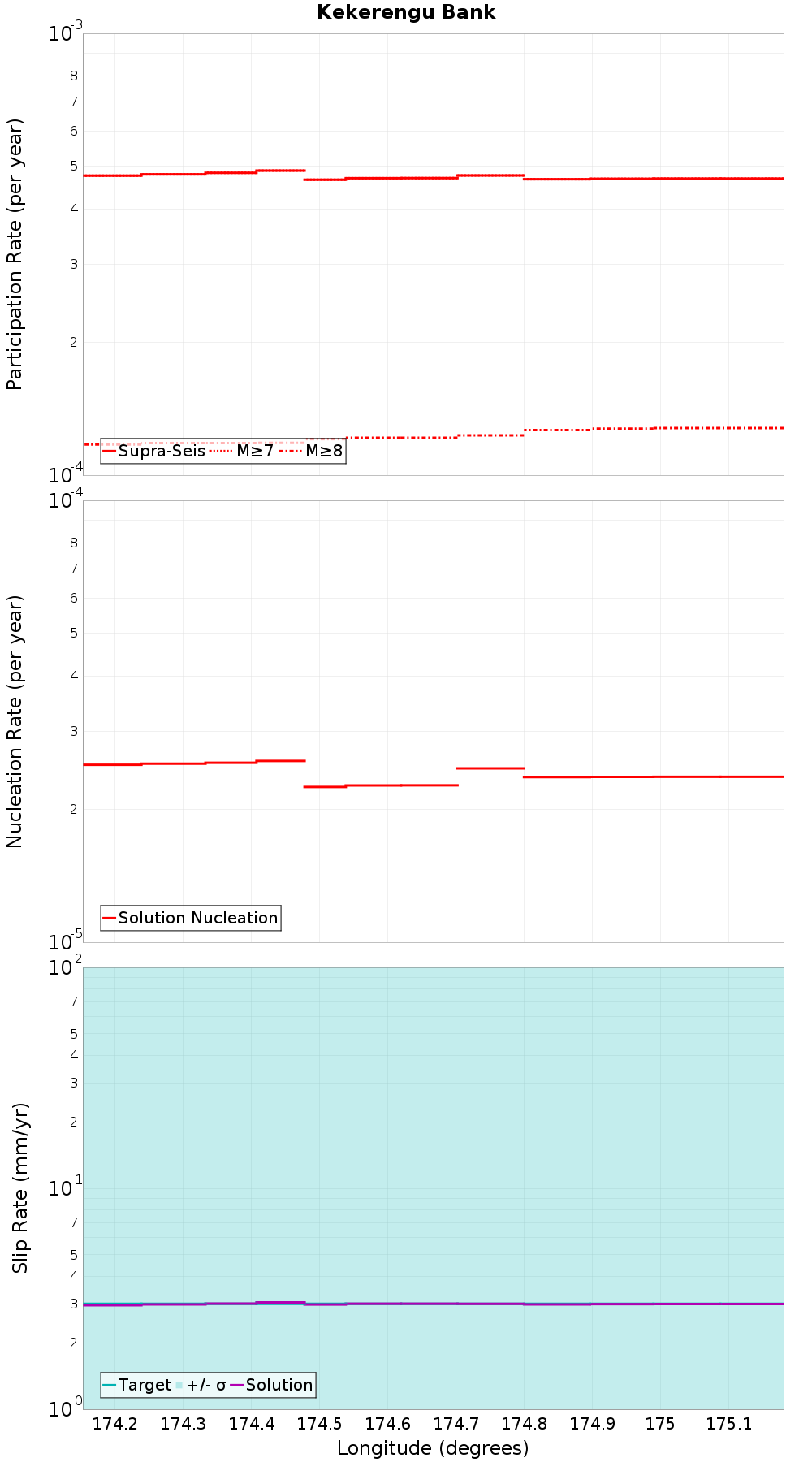

Along-Strike Values

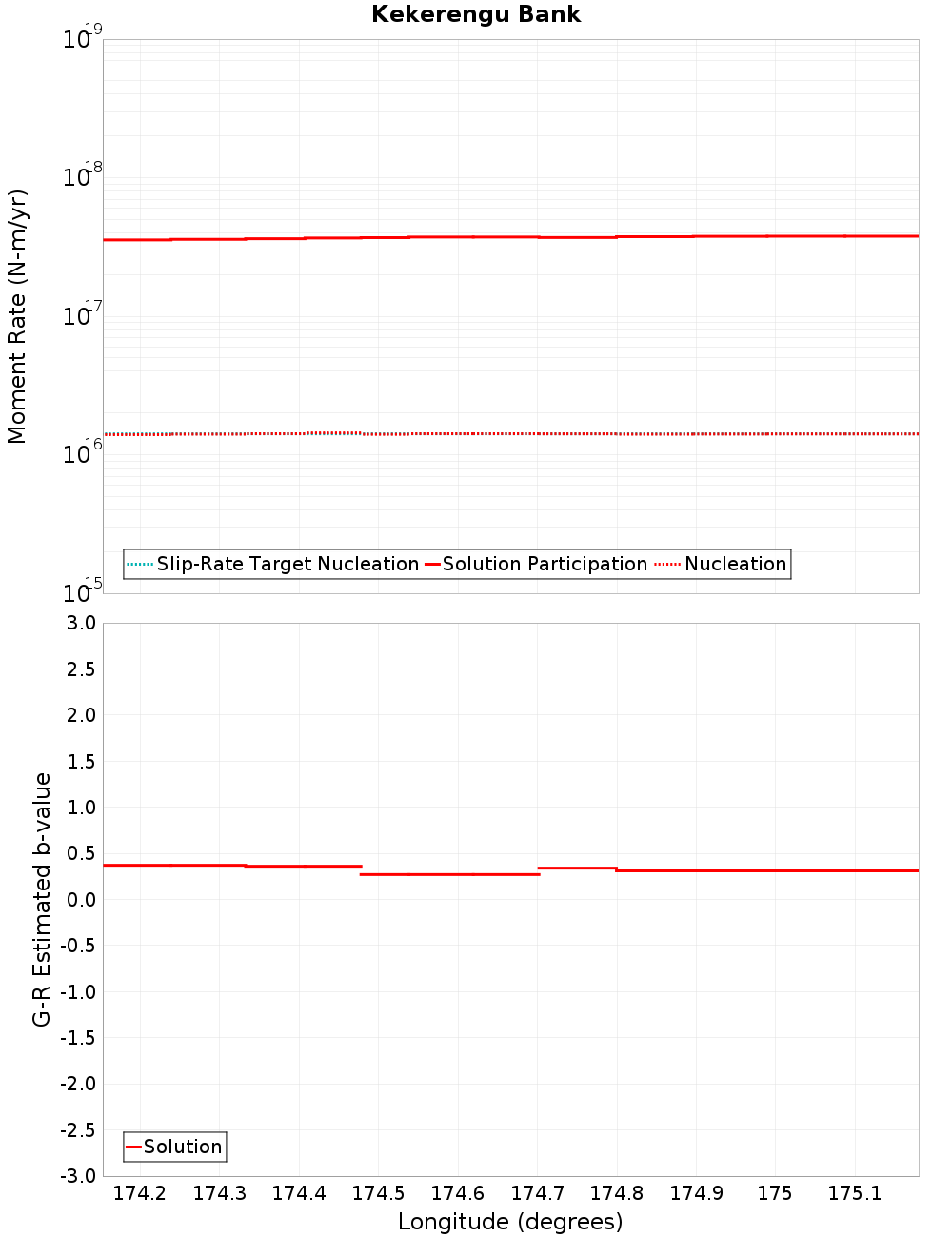

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Pahaua, 0 km away
Te Rapa 1, 3.06 km away
Marlborough Slope 2, 4.37 km away
Marlborough Slope 4, 4.72 km away
Te Rapa 2, 4.95 km away
Opouawe - Uruti, 5.25 km away
Upper Slope, 5.98 km away
Kaikoura - Mangamaunu, 7.75 km away
Campbell Bank, 8.08 km away
Hope: Te Rapa, 8.98 km away
Marlborough Slope 3, 10.31 km away

Pahaua, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyOTYuMG1RY2FR
Connected?	true
Directly Connected?	true
Co-rupture Count	2,898
Co-rupture Rate	2.2486762E-4

Te Rapa 1, 3.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyOTYuMG1RY2FR
Connected?	true
Directly Connected?	true
Co-rupture Count	71
Co-rupture Rate	9.388953E-6

Marlborough Slope 2, 4.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyOTYuMG1RY2FR
Connected?	true
Directly Connected?	true
Co-rupture Count	1,064
Co-rupture Rate	1.0286117E-4

Marlborough Slope 4, 4.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyOTYuMG1RY2FR
Connected?	true
Directly Connected?	true
Co-rupture Count	828
Co-rupture Rate	3.2627264E-5

Te Rapa 2, 4.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyOTYuMG1RY2FR
Connected?	true
Directly Connected?	true
Co-rupture Count	57
Co-rupture Rate	3.1667023E-5

Opouawe - Uruti, 5.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyOTYuMG1RY2FR
Connected?	true
Directly Connected?	true
Co-rupture Count	4,854
Co-rupture Rate	2.028515E-4

Upper Slope, 5.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyOTYuMG1RY2FR
Connected?	true
Directly Connected?	true
Co-rupture Count	252
Co-rupture Rate	2.8894308E-5

Kaikoura - Mangamaunu, 7.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyOTYuMG1RY2FR
Connected?	true
Directly Connected?	false
Co-rupture Count	20
Co-rupture Rate	3.9318785E-8

Campbell Bank, 8.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyOTYuMG1RY2FR
Connected?	true
Directly Connected?	true
Co-rupture Count	1,020
Co-rupture Rate	6.352907E-5

Hope: Te Rapa, 8.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyOTYuMG1RY2FR
Connected?	true
Directly Connected?	true
Co-rupture Count	214
Co-rupture Rate	9.337413E-6

Marlborough Slope 3, 10.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyOTYuMG1RY2FR
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	3.2547683E-5
