Kairakau South Details

PropertyValue
Rupture Count94
Ruptures Above Sect Min Mag89
Ruptures w/ Nonzero Rates36
Magnitude Range[6.71, 7.66]
Length Range[17, 140] km
Total Rate0.0010805414 /yr
Multi-Fault Rate8.8954426E-4 /yr (82.32%)
Directly-Connected Faults3
All Co-Rupturing Faults6

Table Of Contents

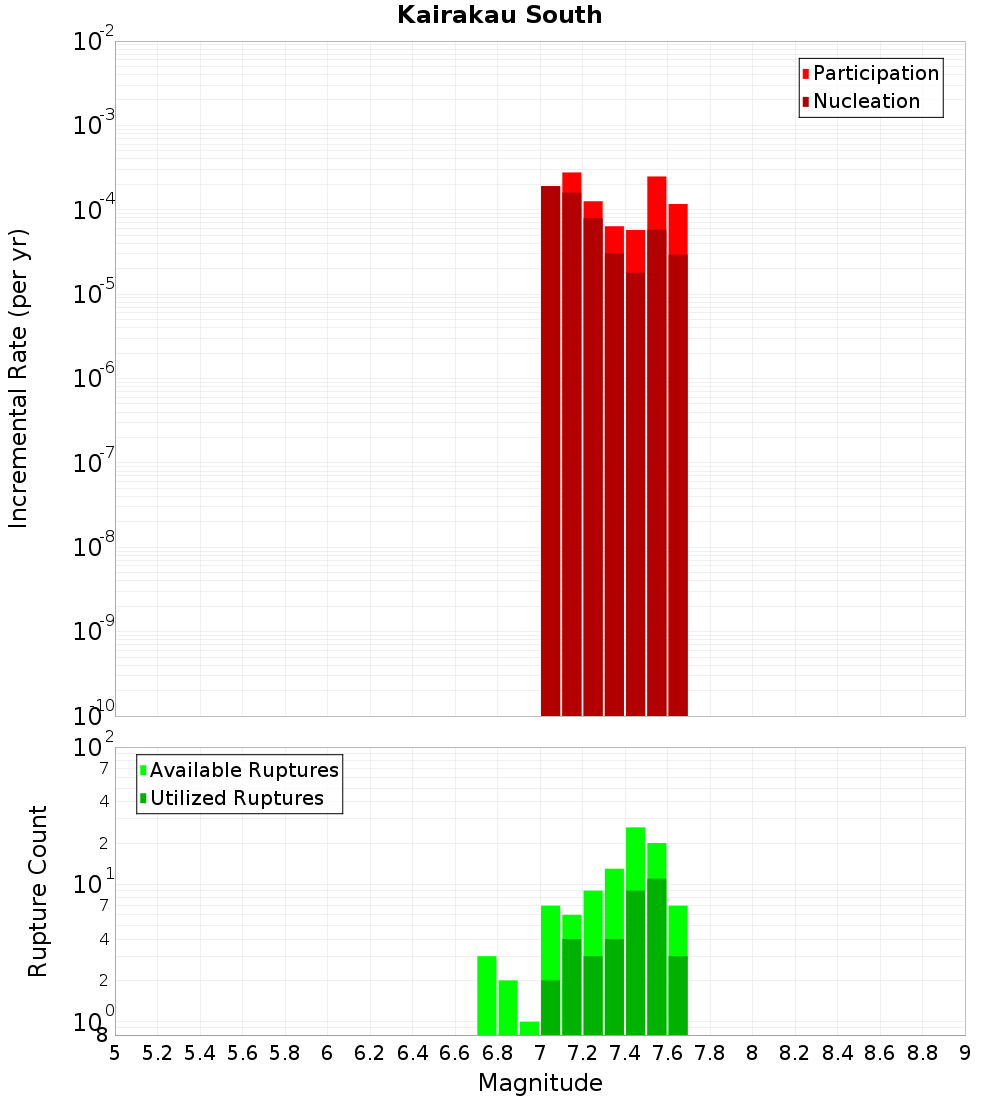

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kairakau 2, 0 km away
Kairakau North, 1.29 km away
Waimarama 1 & 2, 8.89 km away
Waimarama 3 & 4, 14.88 km away

Kairakau 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMDYuNW1Sa0d3
Connected?true
Directly Connected?true
Co-rupture Count46
Co-rupture Rate3.2066207E-4

Kairakau North, 1.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMDYuNW1Sa0d3
Connected?true
Directly Connected?true
Co-rupture Count31
Co-rupture Rate3.500546E-4

Waimarama 1 & 2, 8.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMDYuNW1Sa0d3
Connected?true
Directly Connected?true
Co-rupture Count30
Co-rupture Rate3.1217196E-4

Waimarama 3 & 4, 14.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMDYuNW1Sa0d3
Connected?true
Directly Connected?false
Co-rupture Count48
Co-rupture Rate2.8631566E-4
