Knowles Top Details

PropertyValue
Rupture Count793
Ruptures Above Sect Min Mag793
Ruptures w/ Nonzero Rates144
Magnitude Range[6.98, 8.05]
Length Range[27, 368] km
Total Rate2.6924396E-4 /yr
Multi-Fault Rate2.6924396E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults33

Table Of Contents

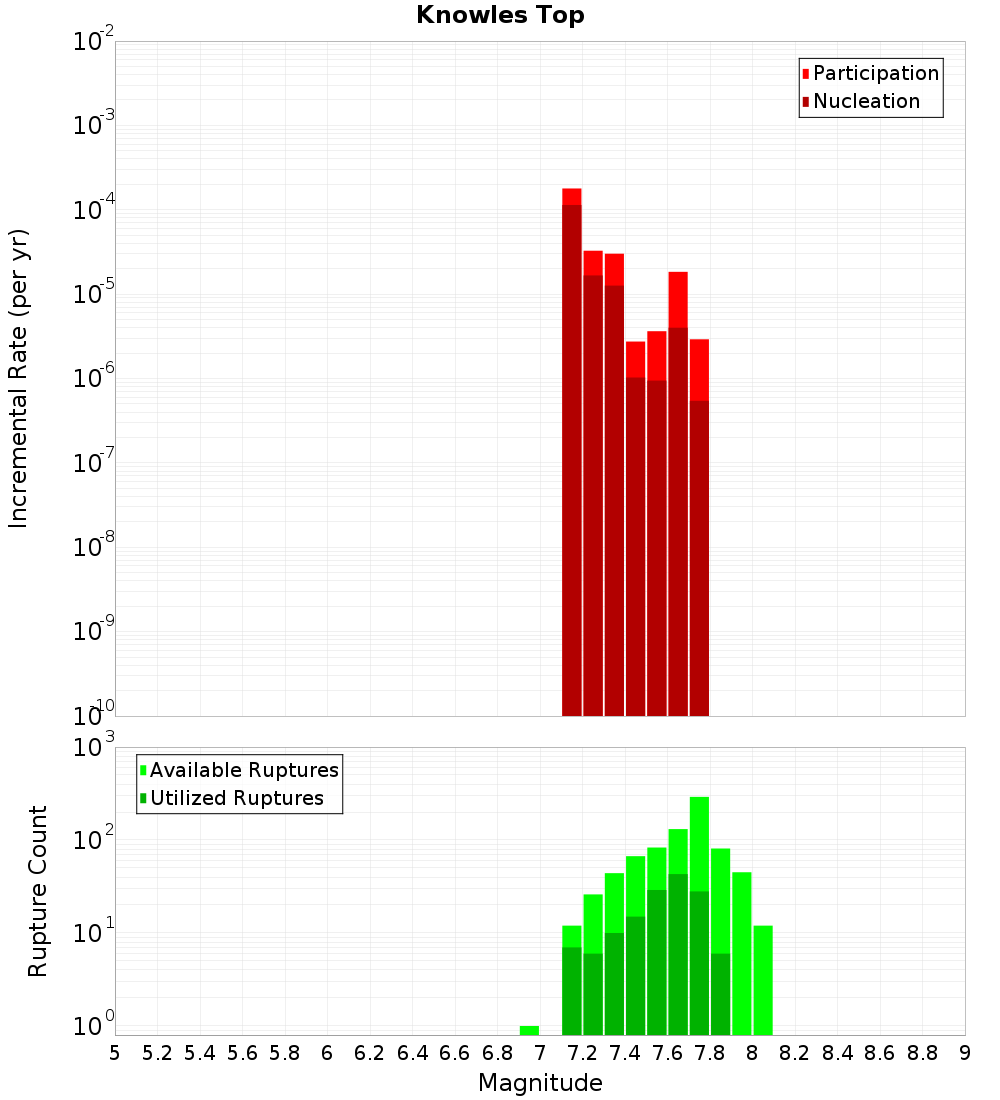

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

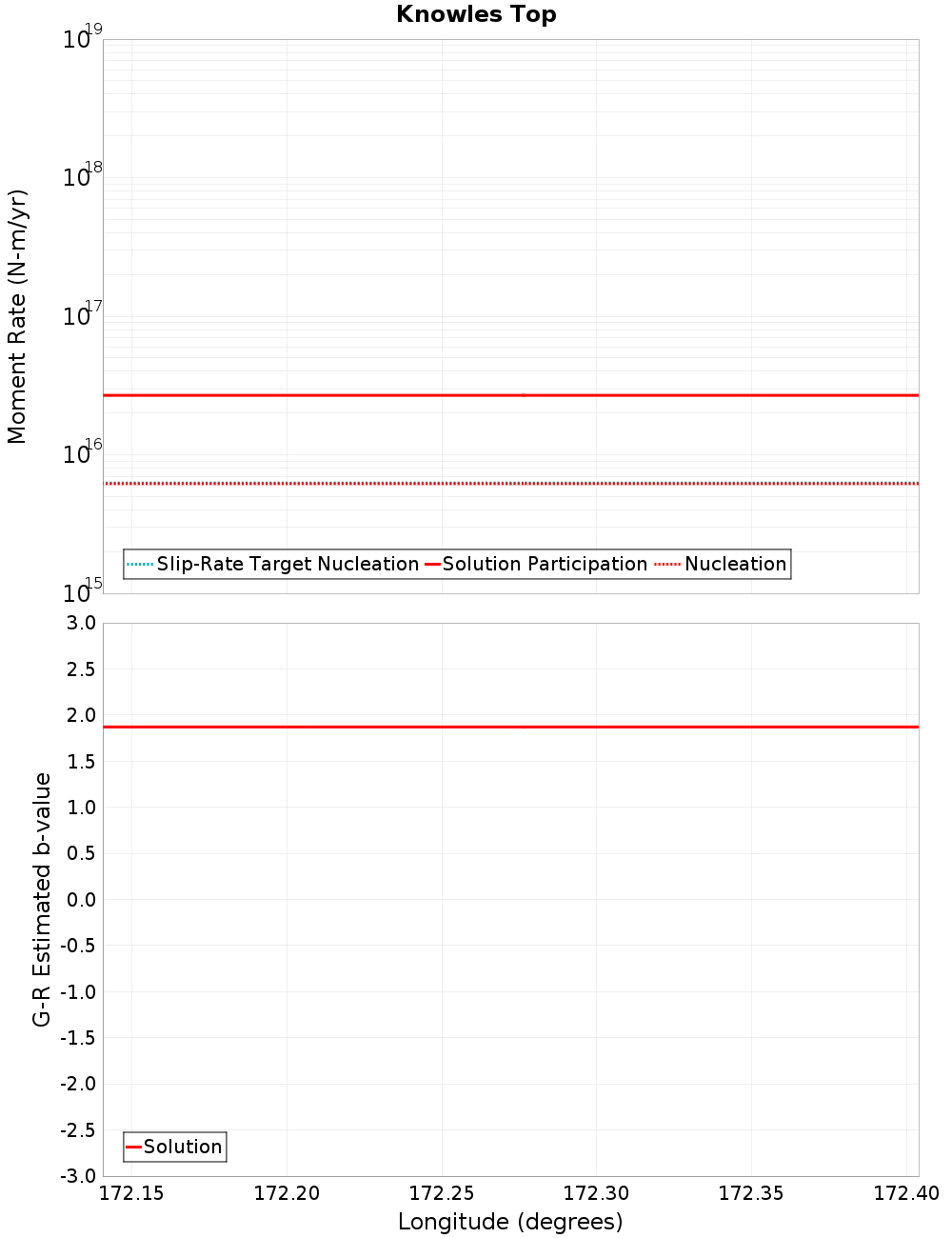

Moment-Rates and b-Values

(top)

Along-strike plot

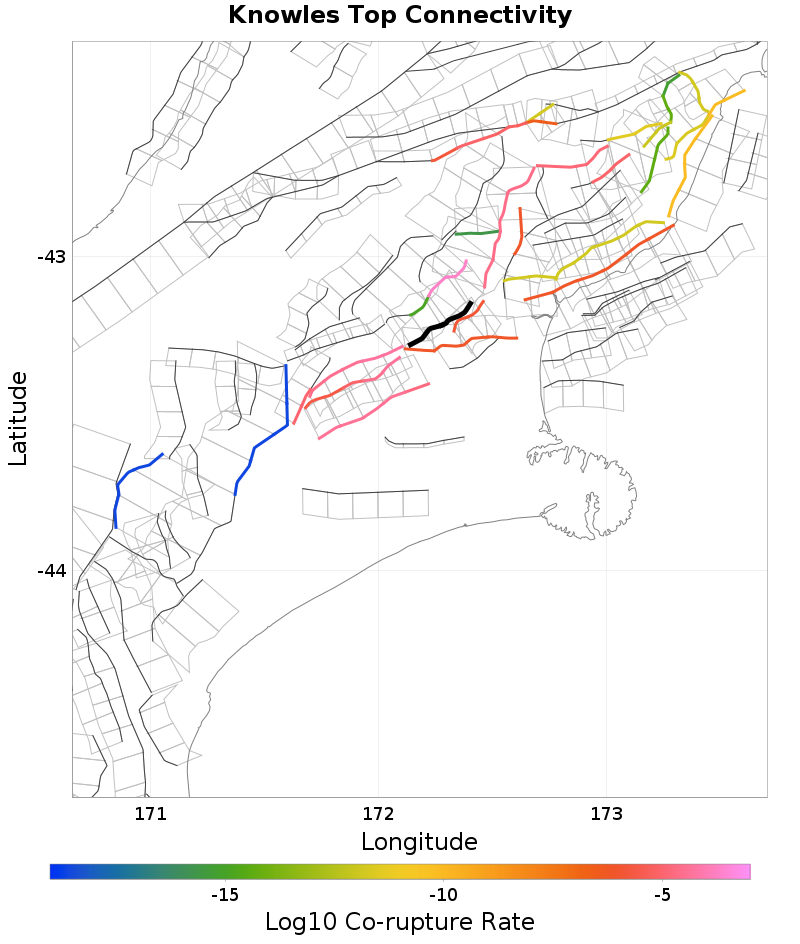

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Lees Valley, 0.13 km away
Esk South, 0.16 km away
Pancake, 0.3 km away
Mt Lawry, 1.45 km away
Starvation - Ashley, 1.58 km away
Mt Arden, 2.59 km away
Kowai - View Hill, 2.87 km away
High Peak - Sheffield, 6 km away
Porters Pass, 6.61 km away
Springbank, 8 km away
Hororata, 10.03 km away
Torlesse, 11.34 km away
Doctors, 12.44 km away
Boby Stream, 13.88 km away

Lees Valley, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTMuMExhTmlj
Connected?true
Directly Connected?true
Co-rupture Count71
Co-rupture Rate2.0134295E-4

Esk South, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTMuMExhTmlj
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pancake, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTMuMExhTmlj
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Lawry, 1.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTMuMExhTmlj
Connected?true
Directly Connected?false
Co-rupture Count21
Co-rupture Rate1.2413195E-6

Starvation - Ashley, 1.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTMuMExhTmlj
Connected?true
Directly Connected?false
Co-rupture Count53
Co-rupture Rate7.1040347E-7

Mt Arden, 2.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTMuMExhTmlj
Connected?true
Directly Connected?true
Co-rupture Count695
Co-rupture Rate2.5458574E-5

Kowai - View Hill, 2.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTMuMExhTmlj
Connected?true
Directly Connected?true
Co-rupture Count481
Co-rupture Rate4.9687755E-5

High Peak - Sheffield, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTMuMExhTmlj
Connected?true
Directly Connected?true
Co-rupture Count366
Co-rupture Rate4.336262E-5

Porters Pass, 6.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTMuMExhTmlj
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Springbank, 8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTMuMExhTmlj
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hororata, 10.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTMuMExhTmlj
Connected?true
Directly Connected?false
Co-rupture Count279
Co-rupture Rate3.9202972E-5

Torlesse, 11.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTMuMExhTmlj
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Doctors, 12.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTMuMExhTmlj
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate7.580005E-7

Boby Stream, 13.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTMuMExhTmlj
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate1.3603827E-12
