Ruby Bay - Moutere Details
| Property | Value |
|---|---|
| Rupture Count | 9,112 |
| Ruptures Above Sect Min Mag | 9,108 |
| Ruptures w/ Nonzero Rates | 2,177 |
| Magnitude Range | [6.92, 8.46] |
| Length Range | [24, 947] km |
| Total Rate | 5.0413502E-5 /yr |
| Multi-Fault Rate | 4.3470074E-5 /yr (86.23%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 68 |
Table Of Contents

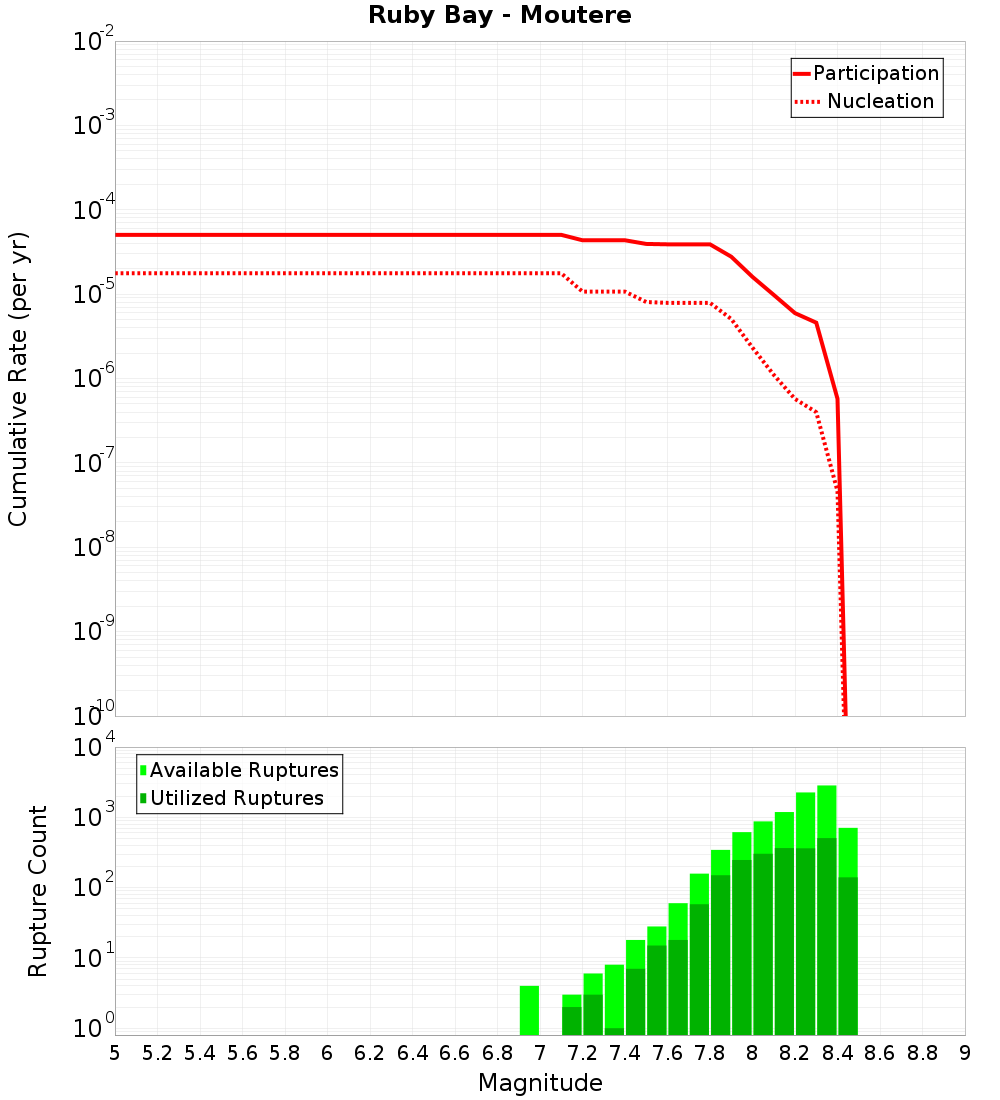

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

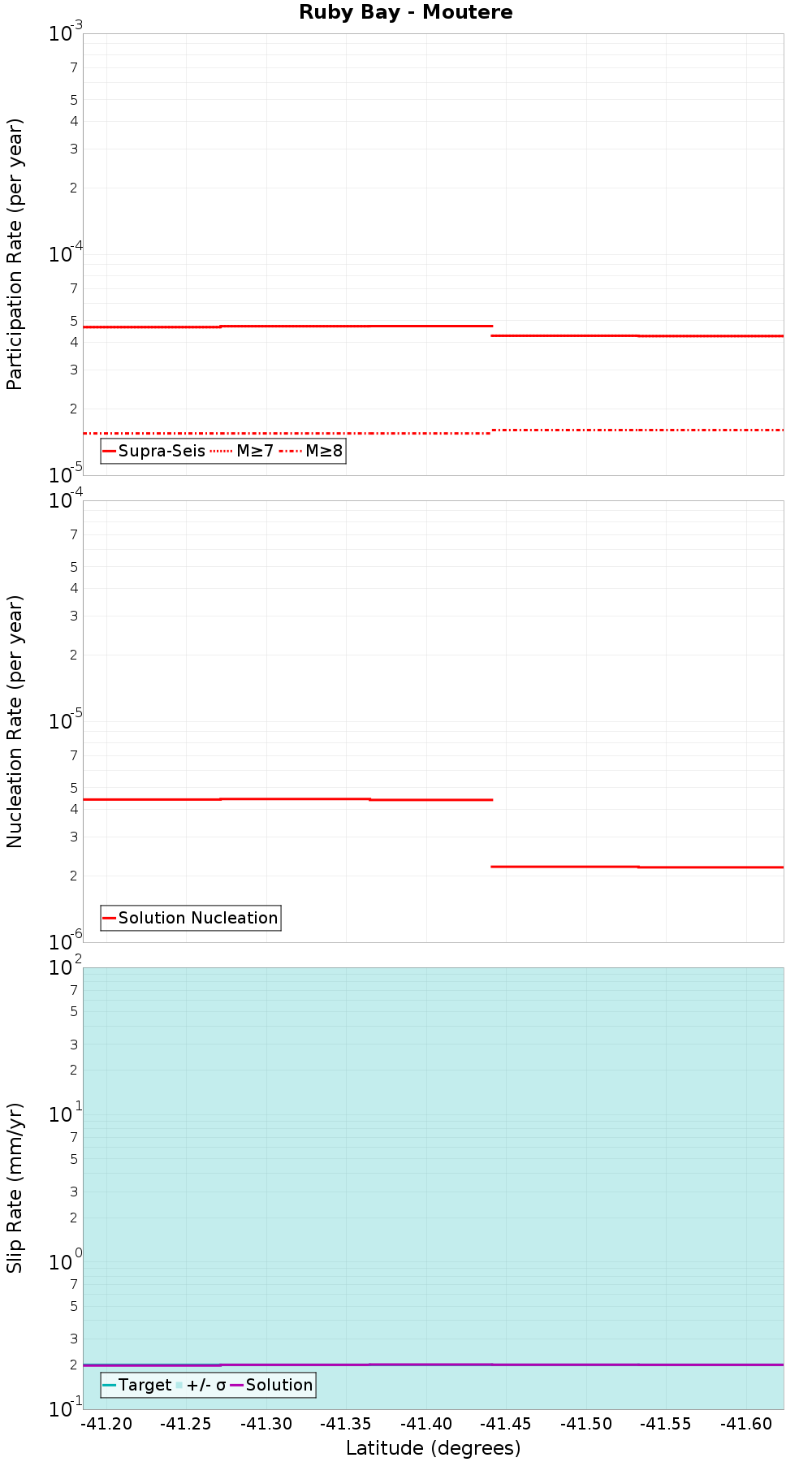

Along-Strike Values
Moment-Rates and b-Values

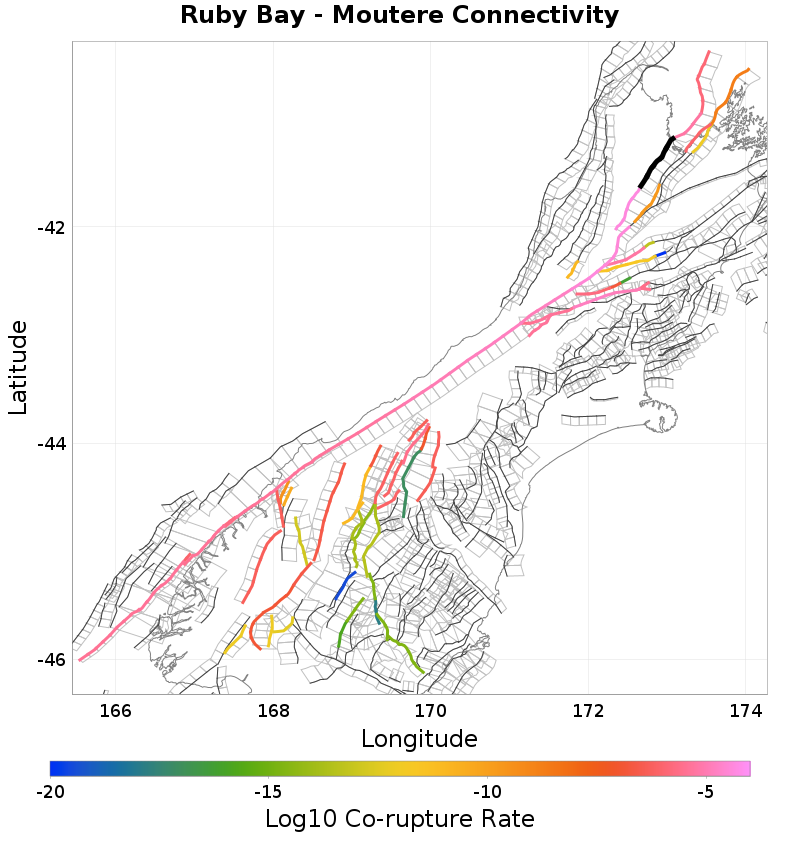

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Surville, 0.09 km away |
| Tutaki, 3.43 km away |
| Flaxmore - Waimea - Tahunanui, 9.4 km away |
| Wairau, 14.99 km away |
Surville, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTMuMExhTmlj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5,925 |
| Co-rupture Rate | 6.233636E-6 |
Tutaki, 3.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTMuMExhTmlj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 9,010 |
| Co-rupture Rate | 4.2615597E-5 |
Flaxmore - Waimea - Tahunanui, 9.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTMuMExhTmlj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 36 |
| Co-rupture Rate | 8.5324115E-7 |
Wairau, 14.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTMuMExhTmlj | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
