Flaxmore - Waimea - Tahunanui Details

Property	Value
Rupture Count	9,537
Ruptures Above Sect Min Mag	9,528
Ruptures w/ Nonzero Rates	2,567
Magnitude Range	[6.85, 8.46]
Length Range	[23, 971] km
Total Rate	2.778614E-4 /yr
Multi-Fault Rate	9.3348746E-5 /yr (33.60%)
Directly-Connected Faults	7
All Co-Rupturing Faults	71

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

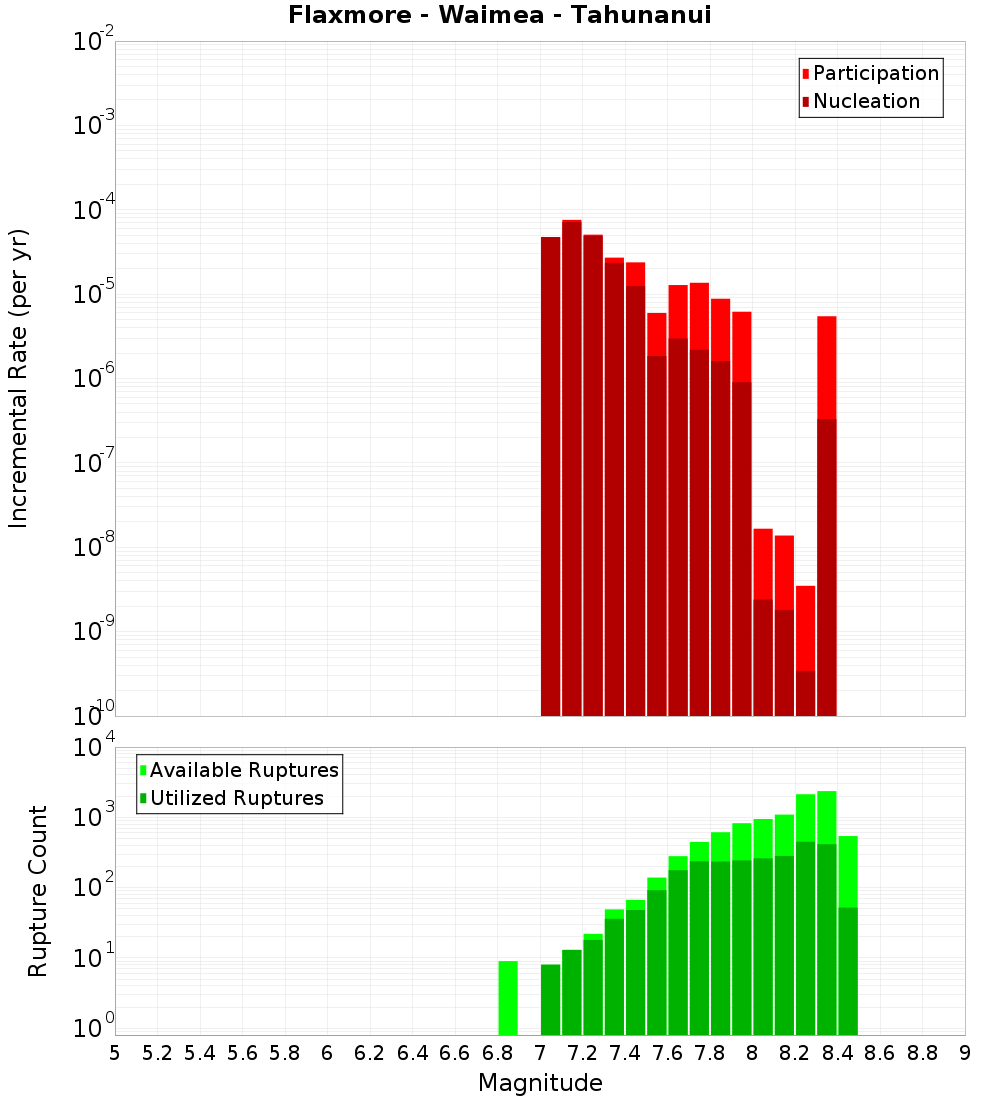

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

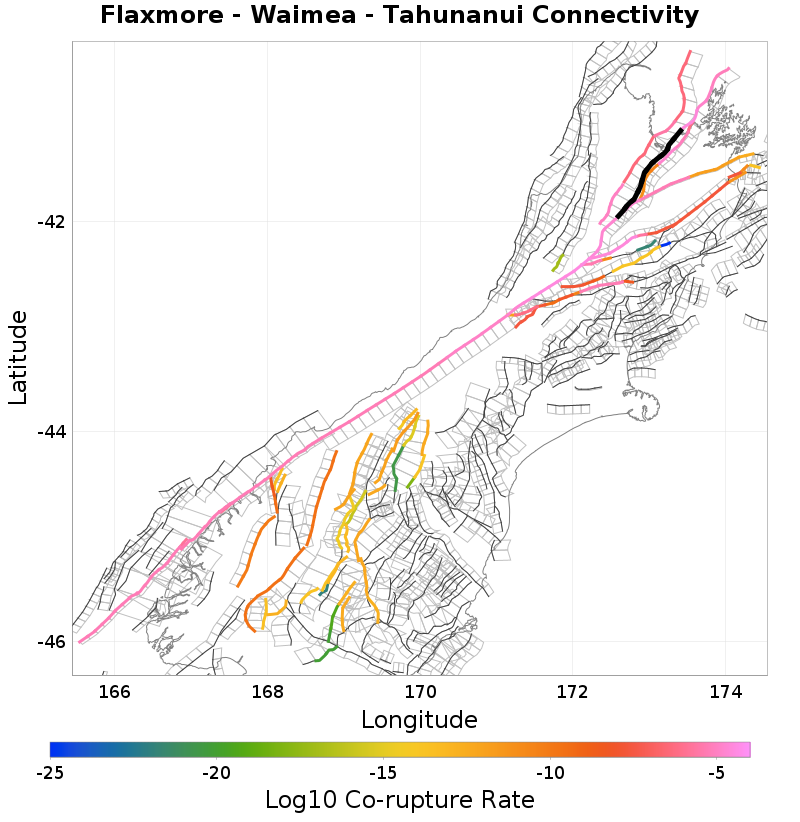

Connectivity

Nearby Sections

Fault Section
Waimea Offshore, 0 km away
Wairau, 0.17 km away
Alpine: Springs Junction to Tophouse, 0.45 km away
Whangamoa, 2.28 km away
Tutaki, 2.49 km away
Surville, 8.79 km away
Ruby Bay - Moutere, 9.4 km away
Awatere: Southwest, 12.08 km away

Waimea Offshore, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMDVHdlp2
Connected?	true
Directly Connected?	true
Co-rupture Count	4,756
Co-rupture Rate	2.7451248E-5

Wairau, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMDVHdlp2
Connected?	true
Directly Connected?	true
Co-rupture Count	136
Co-rupture Rate	5.2898745E-6

Alpine: Springs Junction to Tophouse, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMDVHdlp2
Connected?	true
Directly Connected?	true
Co-rupture Count	5,883
Co-rupture Rate	2.3234034E-5

Whangamoa, 2.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMDVHdlp2
Connected?	true
Directly Connected?	true
Co-rupture Count	4,716
Co-rupture Rate	1.5851489E-5

Tutaki, 2.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMDVHdlp2
Connected?	true
Directly Connected?	true
Co-rupture Count	191
Co-rupture Rate	9.181107E-6

Surville, 8.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMDVHdlp2
Connected?	true
Directly Connected?	false
Co-rupture Count	130
Co-rupture Rate	2.6701996E-6

Ruby Bay - Moutere, 9.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMDVHdlp2
Connected?	true
Directly Connected?	true
Co-rupture Count	36
Co-rupture Rate	3.921736E-7

Awatere: Southwest, 12.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMDVHdlp2
Connected?	true
Directly Connected?	true
Co-rupture Count	3,354
Co-rupture Rate	2.7425653E-5
