Teviot Details

Property	Value
Rupture Count	11,002
Ruptures Above Sect Min Mag	11,002
Ruptures w/ Nonzero Rates	4,565
Magnitude Range	[7.12, 8.49]
Length Range	[29, 893] km
Total Rate	6.086152E-6 /yr
Multi-Fault Rate	6.086152E-6 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	93

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

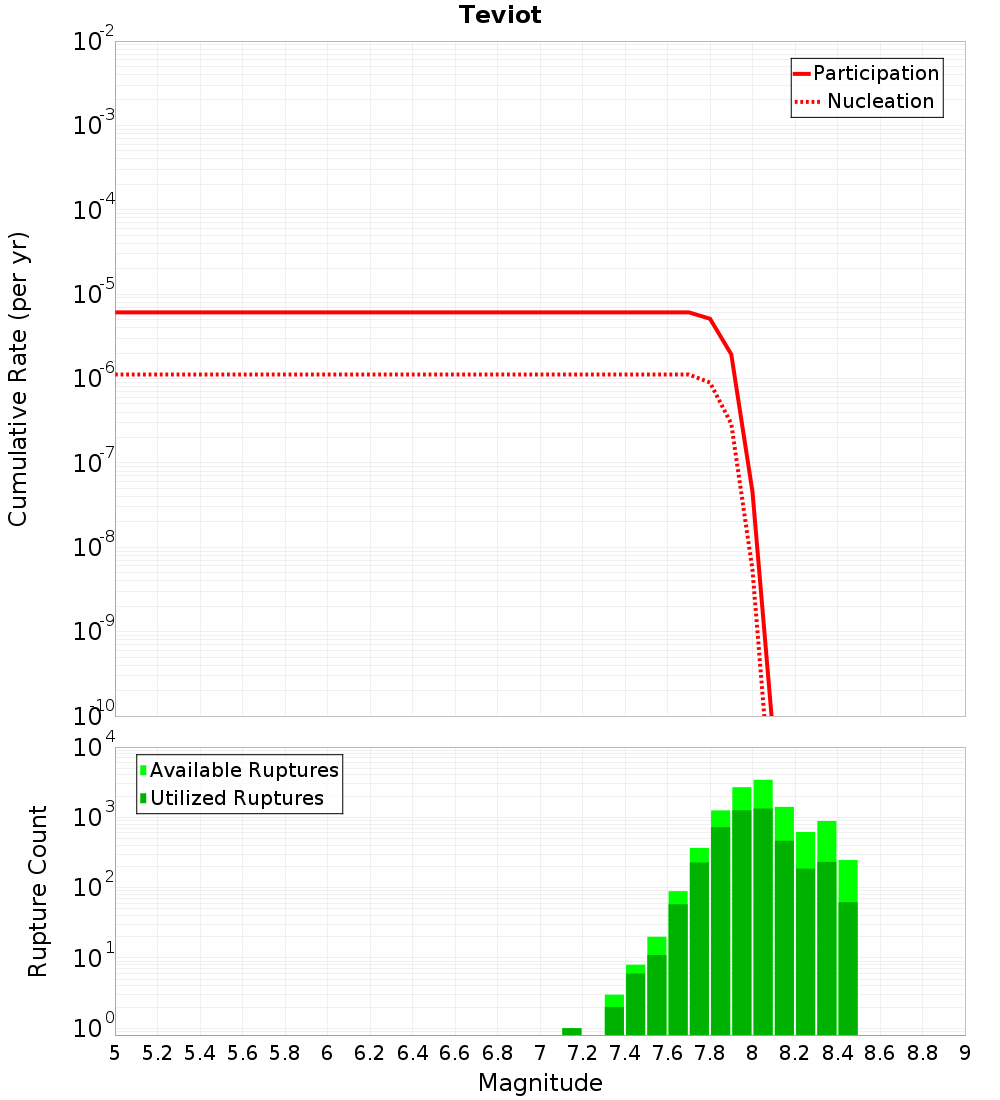

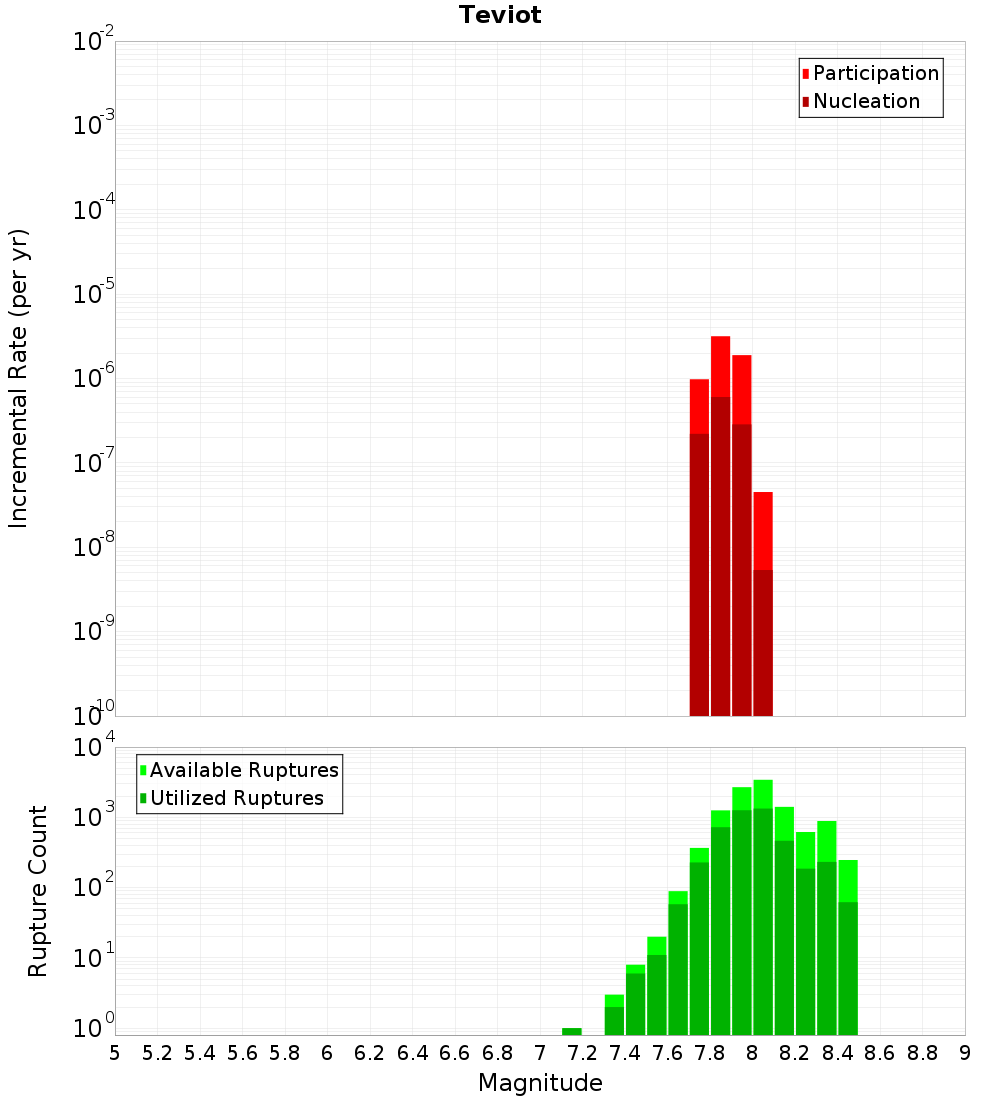

Magnitude-Frequency Distribution

Incremental	Cumulative

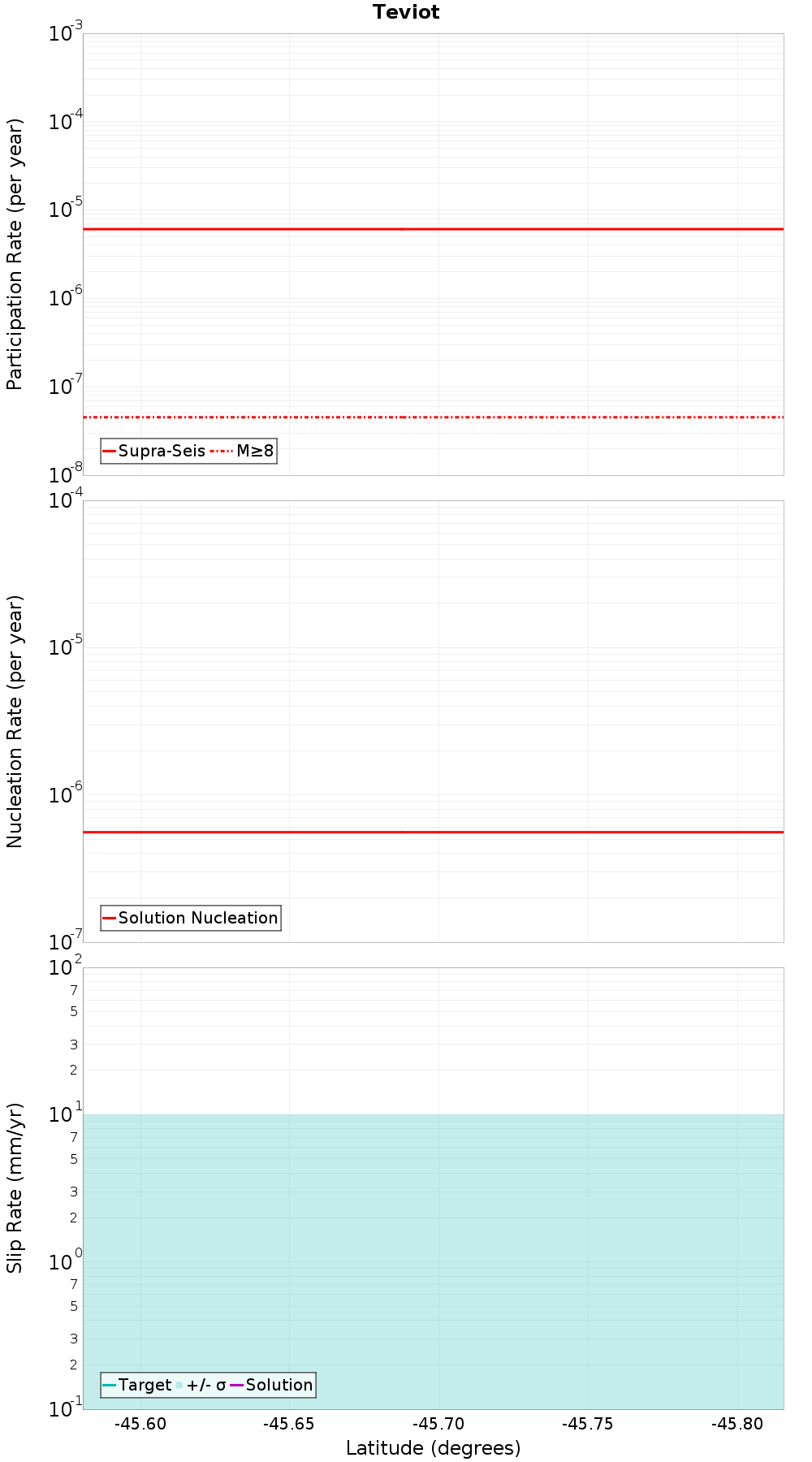

Along-Strike Values

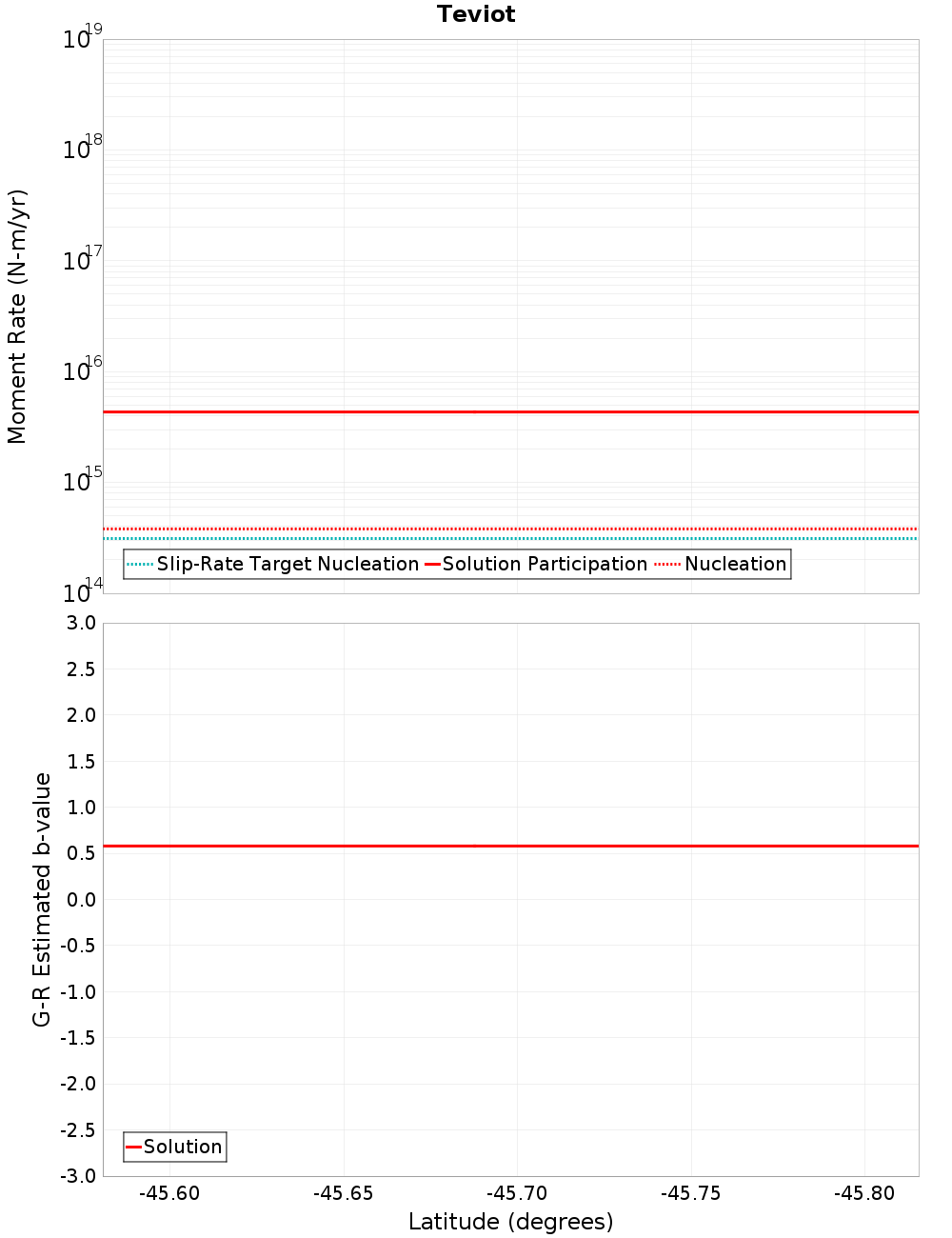

Moment-Rates and b-Values

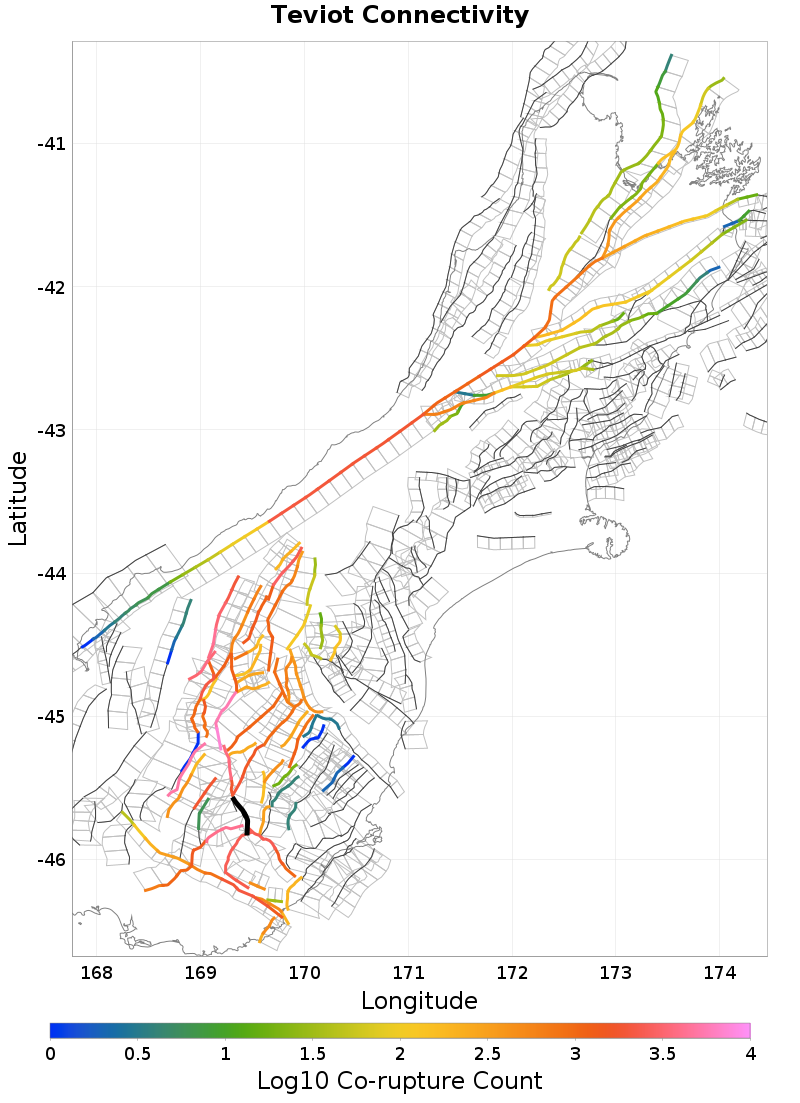

Connectivity

Nearby Sections

Fault Section
Spylaw, 0.07 km away
Garvie, 0.18 km away
Wendon Valley, 0.18 km away
Waikaia, 0.4 km away
Old Man, 0.71 km away
Blue Mountain, 0.86 km away
Tuapeka, 1.07 km away
Roaring Lion, 3.33 km away
Little Valley, 4.31 km away
Backbone, 8.3 km away
Beaumont River, 10.54 km away
Lake Onslow, 13.96 km away

Spylaw, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMDVHdlp2
Connected?	true
Directly Connected?	true
Co-rupture Count	4,133
Co-rupture Rate	3.476387E-6

Garvie, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMDVHdlp2
Connected?	true
Directly Connected?	true
Co-rupture Count	416
Co-rupture Rate	4.962429E-11

Wendon Valley, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMDVHdlp2
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	4.9928844E-16

Waikaia, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMDVHdlp2
Connected?	true
Directly Connected?	true
Co-rupture Count	1,796
Co-rupture Rate	5.762055E-9

Old Man, 0.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMDVHdlp2
Connected?	true
Directly Connected?	true
Co-rupture Count	3,621
Co-rupture Rate	5.627708E-9

Blue Mountain, 0.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMDVHdlp2
Connected?	true
Directly Connected?	true
Co-rupture Count	2,544
Co-rupture Rate	1.5177573E-6

Tuapeka, 1.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMDVHdlp2
Connected?	true
Directly Connected?	true
Co-rupture Count	2,460
Co-rupture Rate	1.0737431E-6

Roaring Lion, 3.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMDVHdlp2
Connected?	true
Directly Connected?	true
Co-rupture Count	5,109
Co-rupture Rate	1.0978507E-6

Little Valley, 4.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMDVHdlp2
Connected?	true
Directly Connected?	true
Co-rupture Count	1,983
Co-rupture Rate	4.9824666E-6

Backbone, 8.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMDVHdlp2
Connected?	true
Directly Connected?	false
Co-rupture Count	320
Co-rupture Rate	1.2237974E-11

Beaumont River, 10.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMDVHdlp2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Lake Onslow, 13.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMDVHdlp2
Connected?	true
Directly Connected?	false
Co-rupture Count	161
Co-rupture Rate	6.267206E-12
