Dalgety Details

Property	Value
Rupture Count	1,529
Ruptures Above Sect Min Mag	1,528
Ruptures w/ Nonzero Rates	68
Magnitude Range	[7.01, 8.32]
Length Range	[22, 454] km
Total Rate	4.4405806E-5 /yr
Multi-Fault Rate	4.03872E-5 /yr (90.95%)
Directly-Connected Faults	4
All Co-Rupturing Faults	44

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

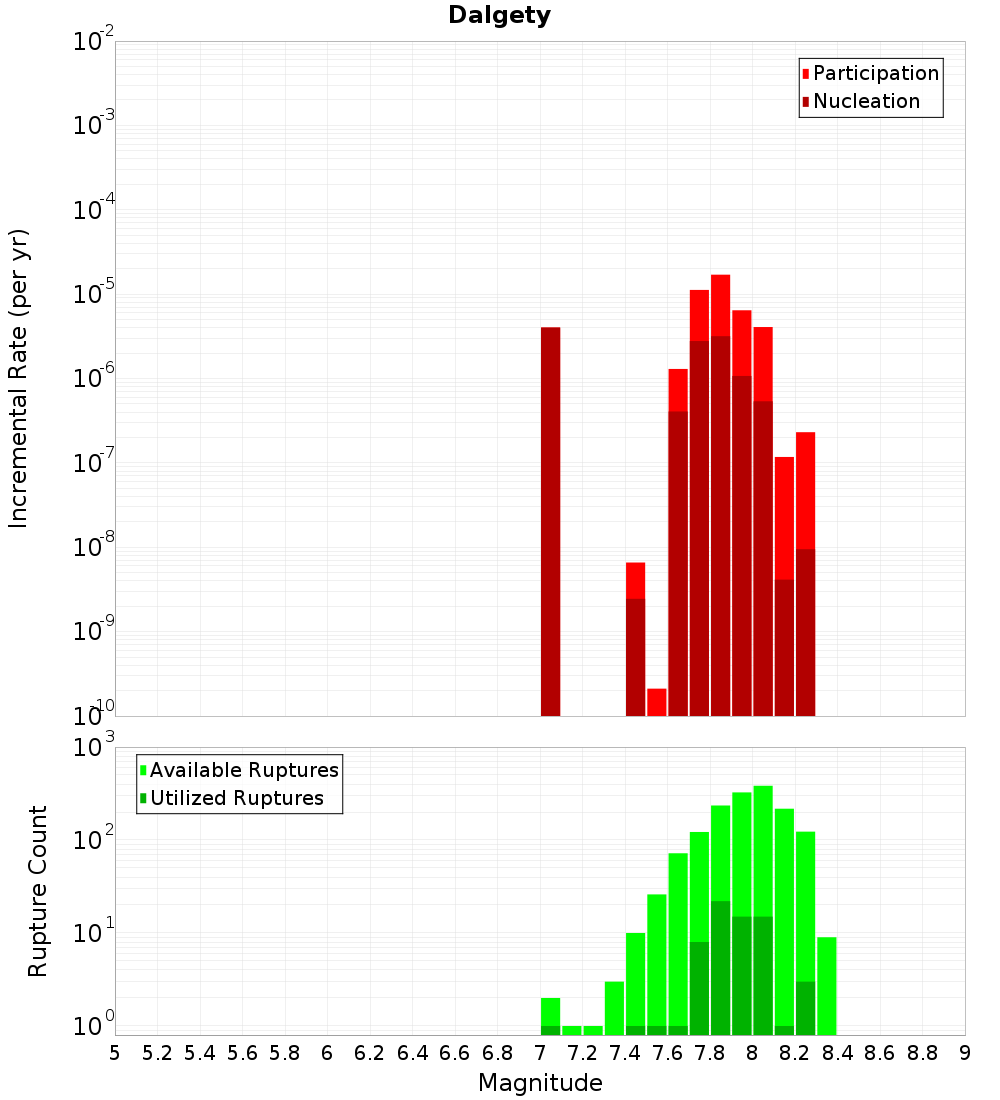

Magnitude-Frequency Distribution

Incremental	Cumulative

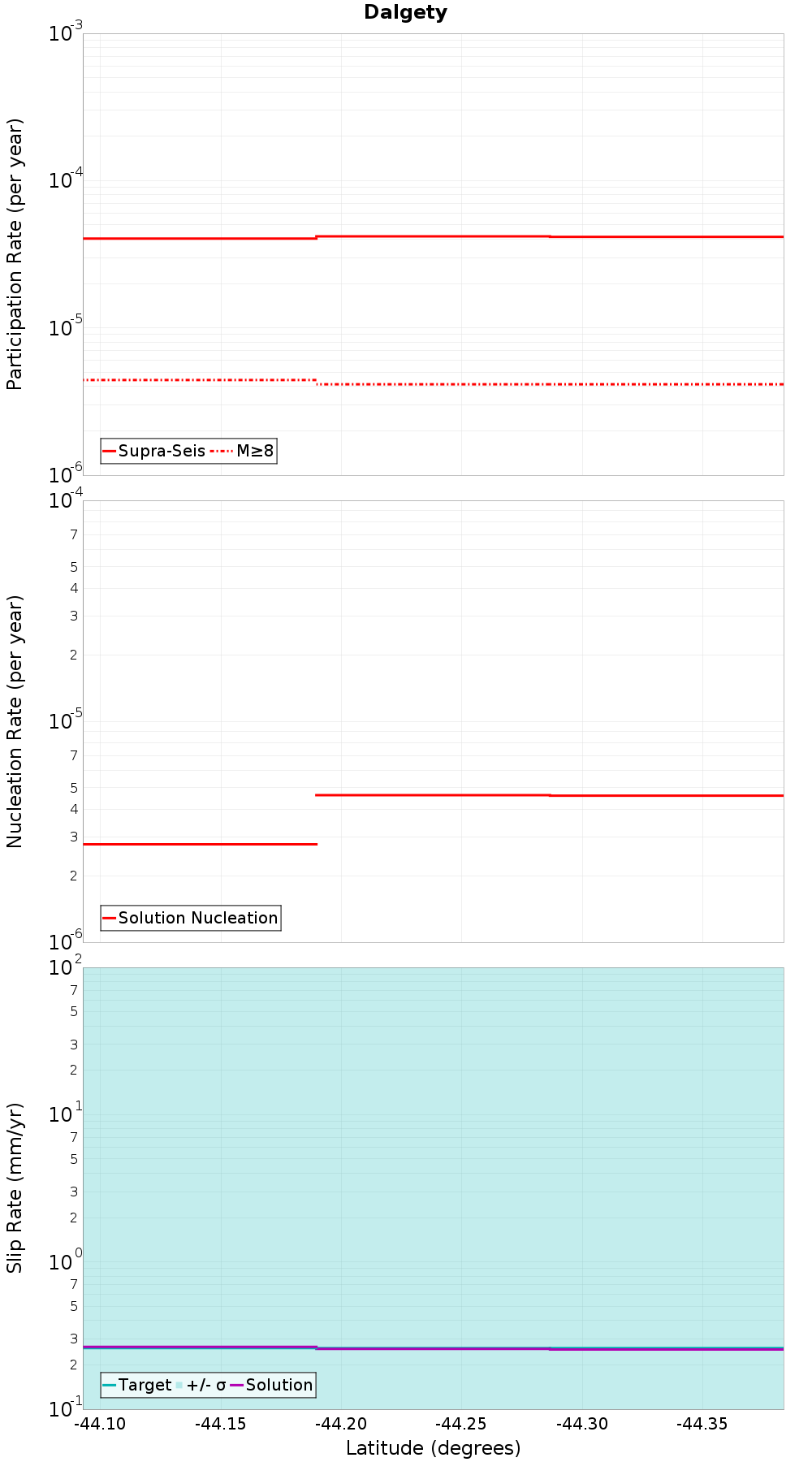

Along-Strike Values

Moment-Rates and b-Values

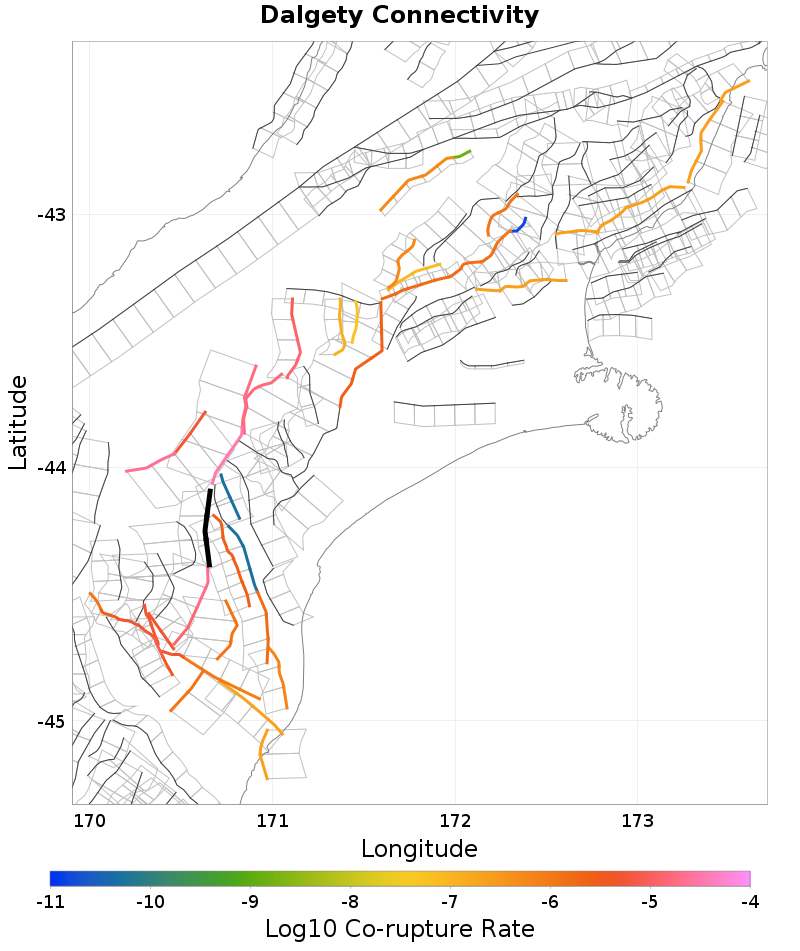

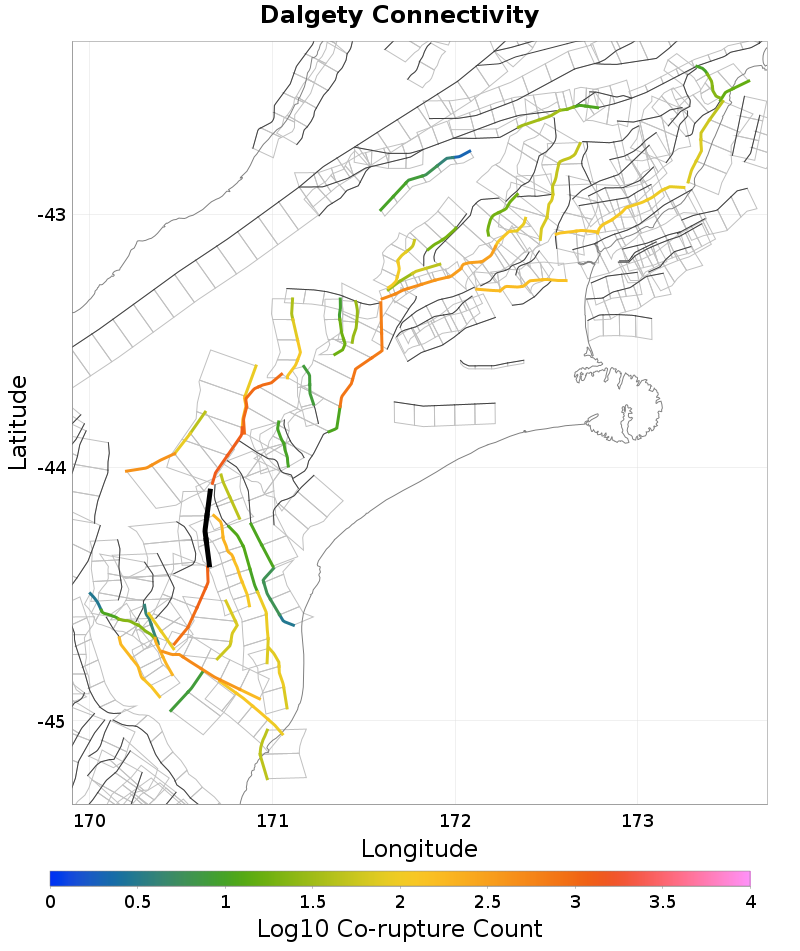

Connectivity

Nearby Sections

Fault Section
Irishman Creek, 0.34 km away
Kirkliston, 1.1 km away
Opawa, 1.94 km away
Chamberlain, 2.65 km away
Fox Peak, 3.59 km away
Grampian, 4.61 km away
Albury, 5.51 km away
Hunters, 8.91 km away
Campbell Hills, 13.77 km away

Irishman Creek, 0.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMFl6SmVD
Connected?	true
Directly Connected?	true
Co-rupture Count	425
Co-rupture Rate	2.28697E-5

Kirkliston, 1.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMFl6SmVD
Connected?	true
Directly Connected?	true
Co-rupture Count	1,144
Co-rupture Rate	1.9272302E-5

Opawa, 1.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMFl6SmVD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Chamberlain, 2.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMFl6SmVD
Connected?	true
Directly Connected?	true
Co-rupture Count	199
Co-rupture Rate	2.566304E-6

Fox Peak, 3.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMFl6SmVD
Connected?	true
Directly Connected?	true
Co-rupture Count	1,307
Co-rupture Rate	3.470873E-5

Grampian, 4.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMFl6SmVD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Albury, 5.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMFl6SmVD
Connected?	true
Directly Connected?	false
Co-rupture Count	46
Co-rupture Rate	5.182113E-11

Hunters, 8.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMFl6SmVD
Connected?	true
Directly Connected?	false
Co-rupture Count	95
Co-rupture Rate	1.5707875E-6

Campbell Hills, 13.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMTQuMFl6SmVD
Connected?	true
Directly Connected?	false
Co-rupture Count	68
Co-rupture Rate	1.2331922E-6
