Albury Details

Property	Value
Rupture Count	377
Ruptures Above Sect Min Mag	376
Ruptures w/ Nonzero Rates	54
Magnitude Range	[6.90, 8.08]
Length Range	[21, 307] km
Total Rate	3.278067E-5 /yr
Multi-Fault Rate	3.278067E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	28

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

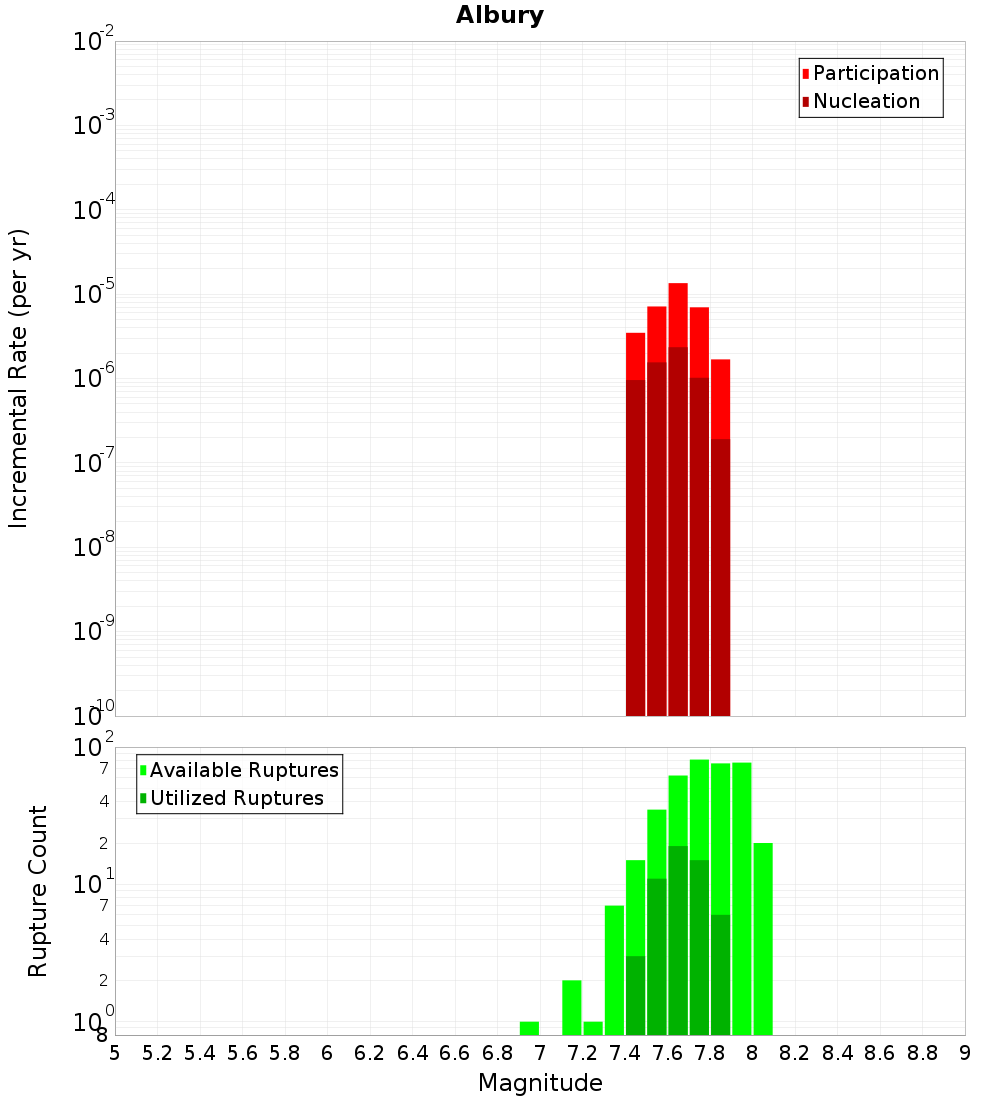

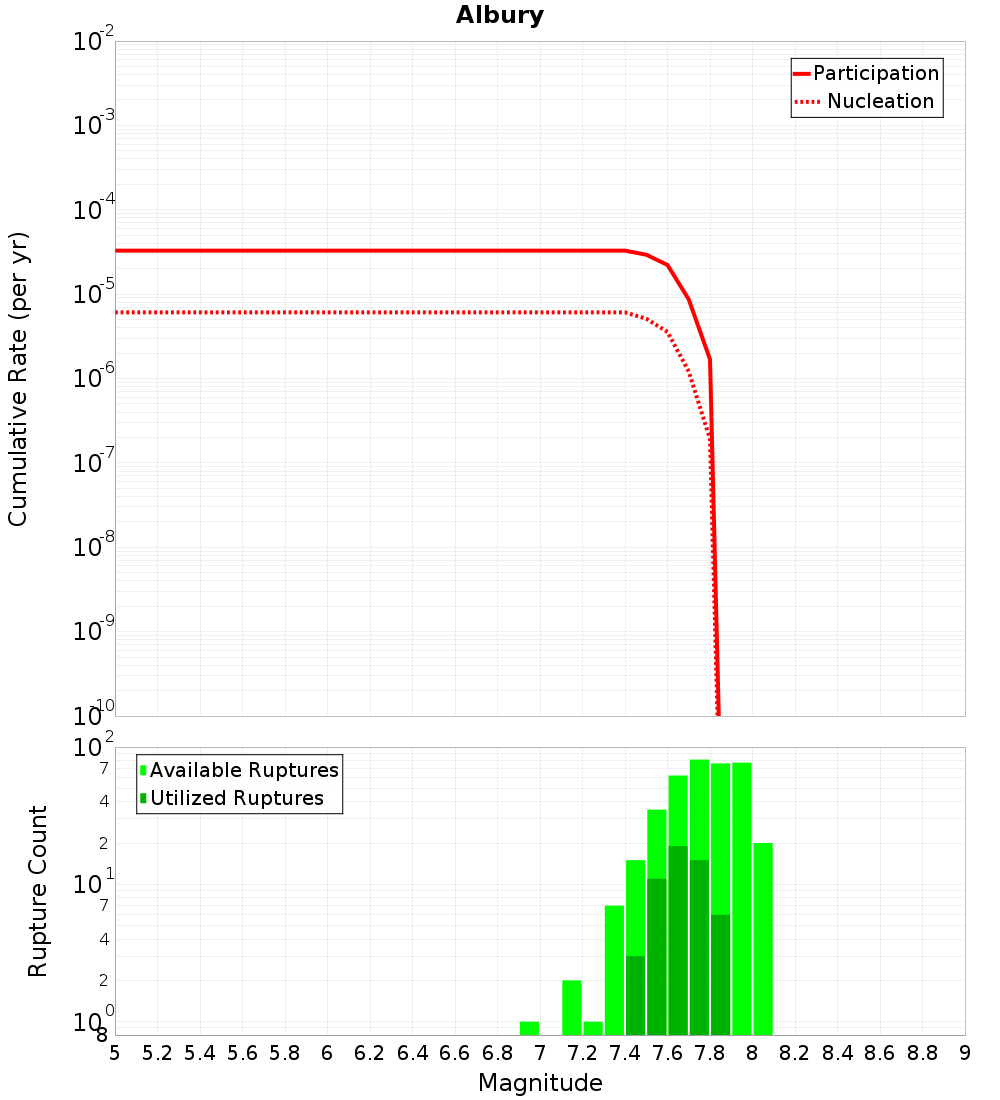

Magnitude-Frequency Distribution

Incremental	Cumulative

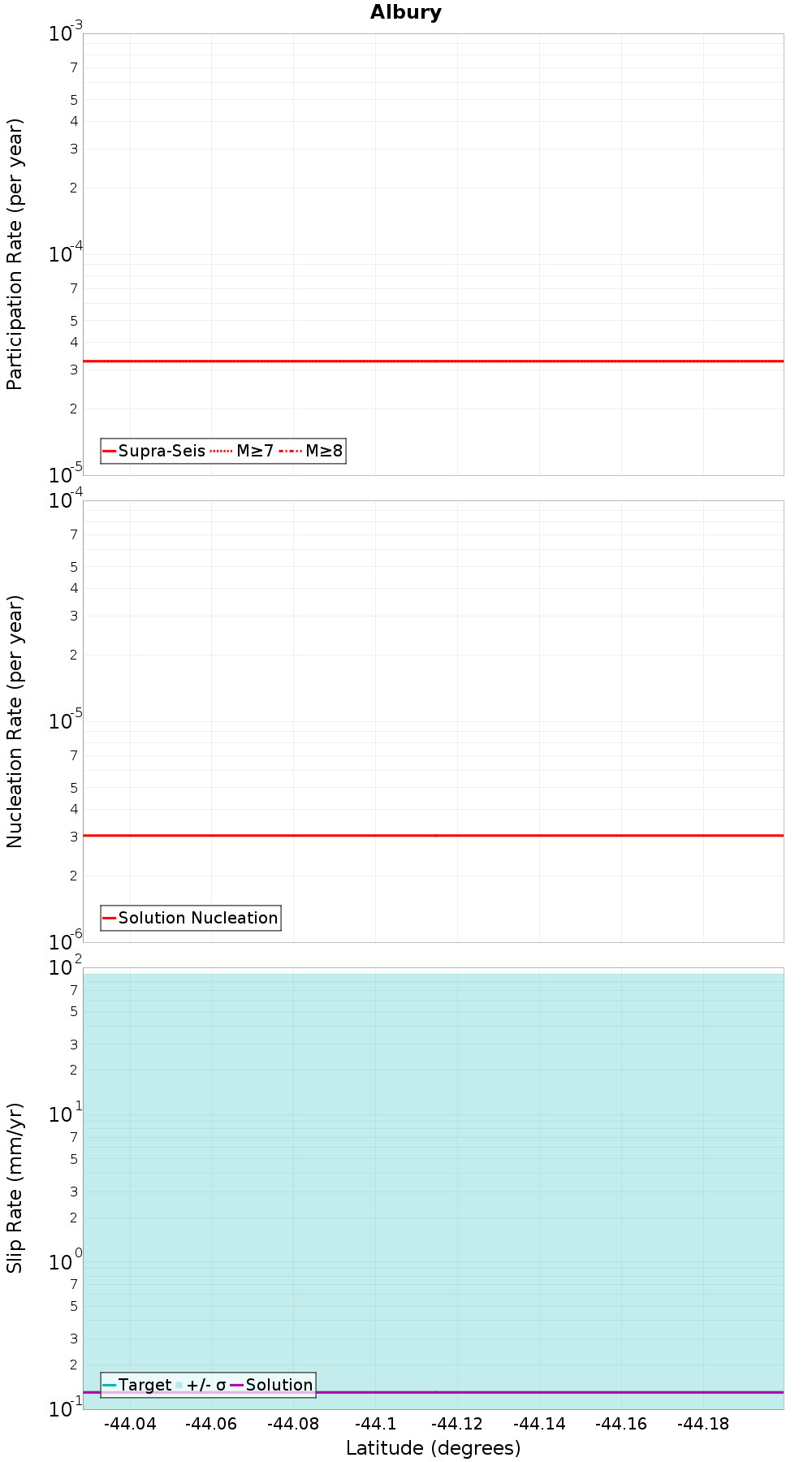

Along-Strike Values

Moment-Rates and b-Values

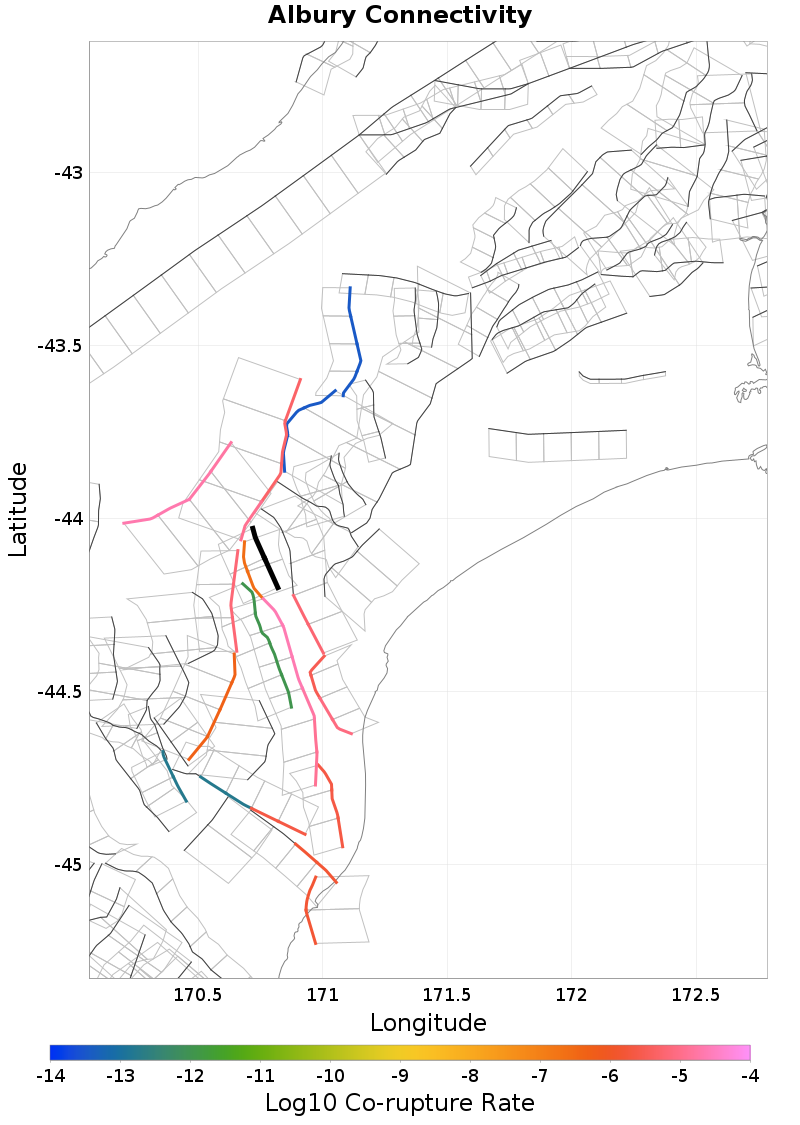

Connectivity

Nearby Sections

Fault Section
Opawa, 0.13 km away
Irishman Creek, 0.42 km away
Fox Peak, 2.46 km away
Hunters, 4.68 km away
Brothers, 4.78 km away
Dalgety, 5.51 km away
Chamberlain, 7.07 km away
Sugarloaf, 13.75 km away
Rapuwai, 14.9 km away

Opawa, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMzQuMFhFVjJH
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	2.4720654E-7

Irishman Creek, 0.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMzQuMFhFVjJH
Connected?	true
Directly Connected?	true
Co-rupture Count	80
Co-rupture Rate	2.1041526E-5

Fox Peak, 2.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMzQuMFhFVjJH
Connected?	true
Directly Connected?	true
Co-rupture Count	317
Co-rupture Rate	1.1206483E-5

Hunters, 4.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMzQuMFhFVjJH
Connected?	true
Directly Connected?	true
Co-rupture Count	196
Co-rupture Rate	2.336574E-5

Brothers, 4.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMzQuMFhFVjJH
Connected?	true
Directly Connected?	true
Co-rupture Count	139
Co-rupture Rate	5.934198E-6

Dalgety, 5.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMzQuMFhFVjJH
Connected?	true
Directly Connected?	false
Co-rupture Count	46
Co-rupture Rate	6.462731E-6

Chamberlain, 7.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMzQuMFhFVjJH
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	1.0648376E-12

Sugarloaf, 13.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMzQuMFhFVjJH
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rapuwai, 14.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzMzQuMFhFVjJH
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
