Alpine: Springs Junction to Tophouse Details

PropertyValue
Rupture Count70,243
Ruptures Above Sect Min Mag70,239
Ruptures w/ Nonzero Rates116
Magnitude Range[7.10, 8.72]
Length Range[24, 1,132] km
Total Rate0.0036215961 /yr
Multi-Fault Rate7.94973E-4 /yr (21.95%)
Directly-Connected Faults8
All Co-Rupturing Faults142

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

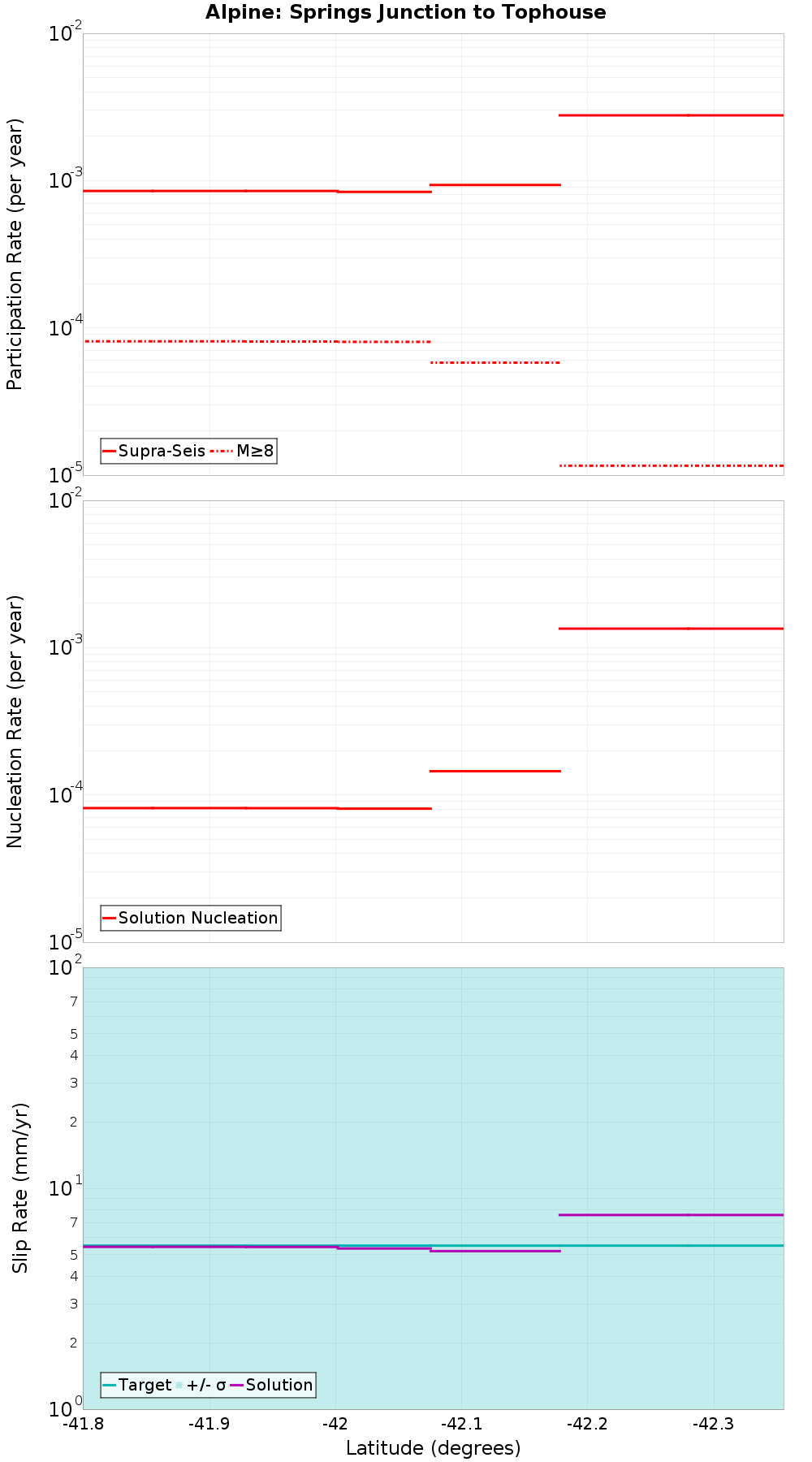

Along-Strike Values

(top)

Along-strike plot

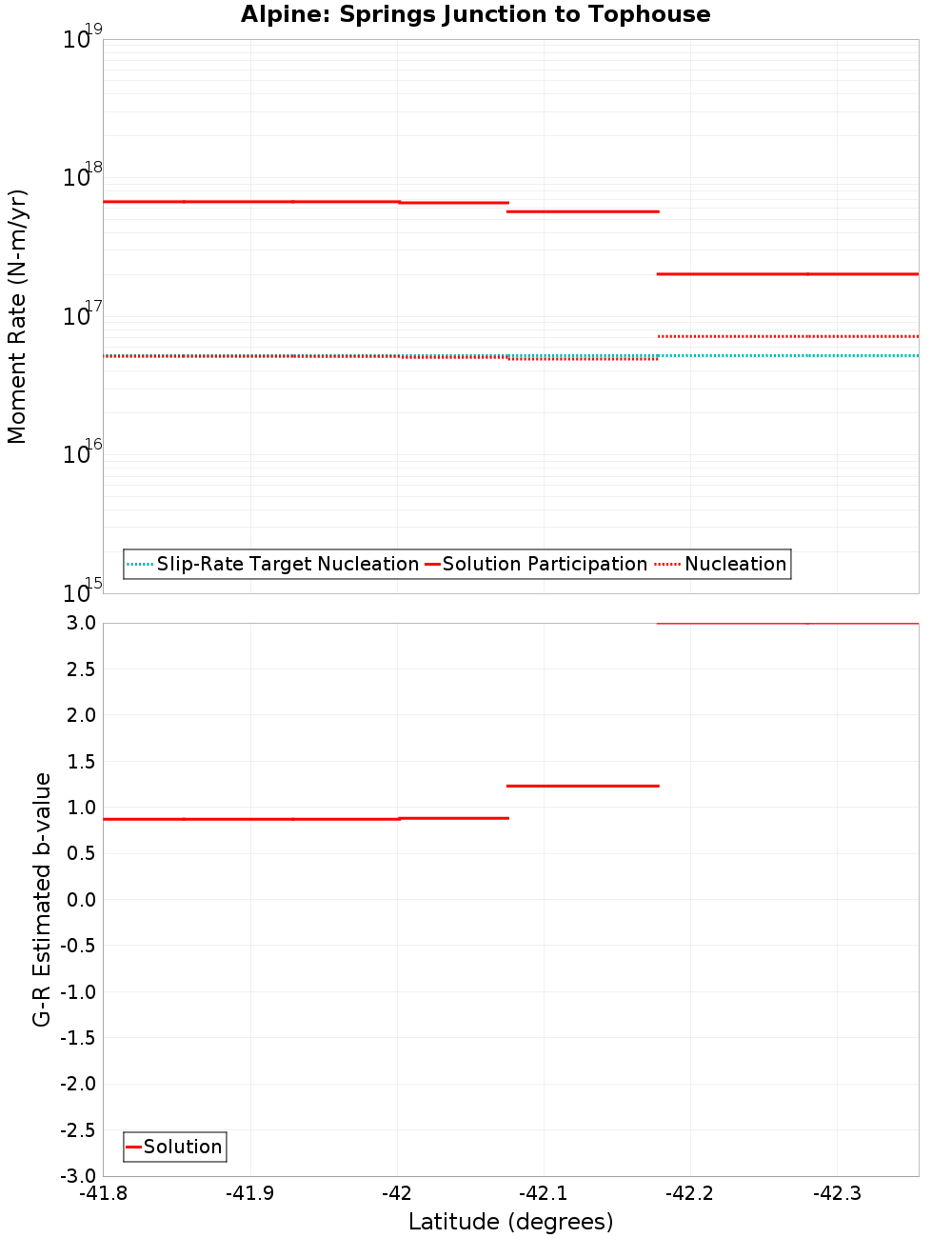

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Kaniere to Springs Junction, 0 km away
Whangamoa, 0 km away
Awatere: Southwest, 0 km away
Wairau, 0 km away
Tutaki, 0.13 km away
Fowlers, 0.19 km away
Flaxmore - Waimea - Tahunanui, 0.45 km away
Clarence: Southwest, 5.57 km away
Hope: Hope River, 13.43 km away

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNDQuMG1Fa3Iz
Connected?true
Directly Connected?true
Co-rupture Count68,054
Co-rupture Rate1.1583604E-5

Whangamoa, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNDQuMG1Fa3Iz
Connected?true
Directly Connected?true
Co-rupture Count31,470
Co-rupture Rate2.959125E-5

Awatere: Southwest, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNDQuMG1Fa3Iz
Connected?true
Directly Connected?true
Co-rupture Count692
Co-rupture Rate0.0

Wairau, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNDQuMG1Fa3Iz
Connected?true
Directly Connected?true
Co-rupture Count25,931
Co-rupture Rate7.491742E-4

Tutaki, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNDQuMG1Fa3Iz
Connected?true
Directly Connected?true
Co-rupture Count7,144
Co-rupture Rate7.884396E-6

Fowlers, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNDQuMG1Fa3Iz
Connected?true
Directly Connected?true
Co-rupture Count335
Co-rupture Rate0.0

Flaxmore - Waimea - Tahunanui, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNDQuMG1Fa3Iz
Connected?true
Directly Connected?true
Co-rupture Count5,883
Co-rupture Rate1.3443618E-5

Clarence: Southwest, 5.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNDQuMG1Fa3Iz
Connected?true
Directly Connected?true
Co-rupture Count838
Co-rupture Rate4.6070804E-6

Hope: Hope River, 13.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNDQuMG1Fa3Iz
Connected?true
Directly Connected?false
Co-rupture Count6,599
Co-rupture Rate4.399635E-6
