Springbank Details

PropertyValue
Rupture Count744
Ruptures Above Sect Min Mag743
Ruptures w/ Nonzero Rates482
Magnitude Range[6.86, 8.06]
Length Range[21, 380] km
Total Rate5.095148E-5 /yr
Multi-Fault Rate5.095148E-5 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults58

Table Of Contents

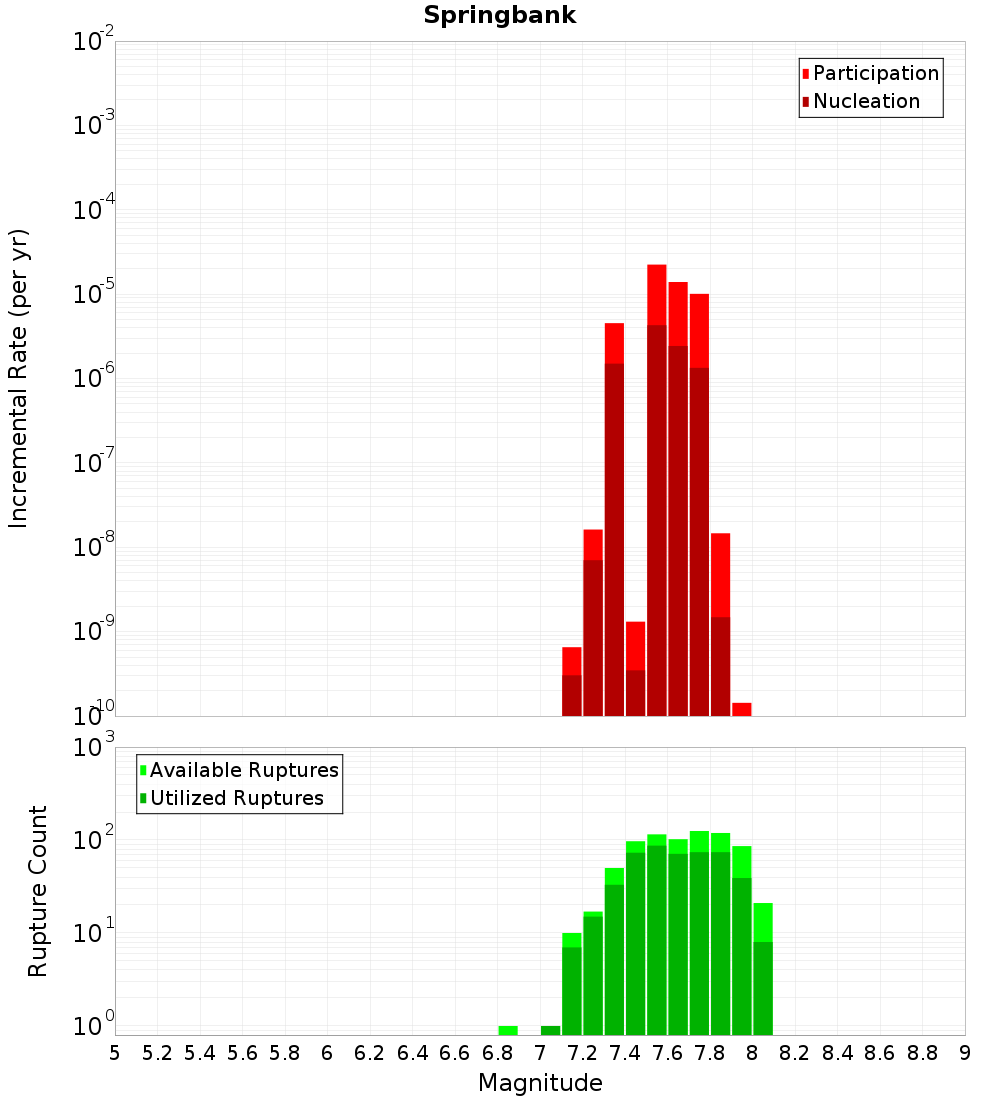

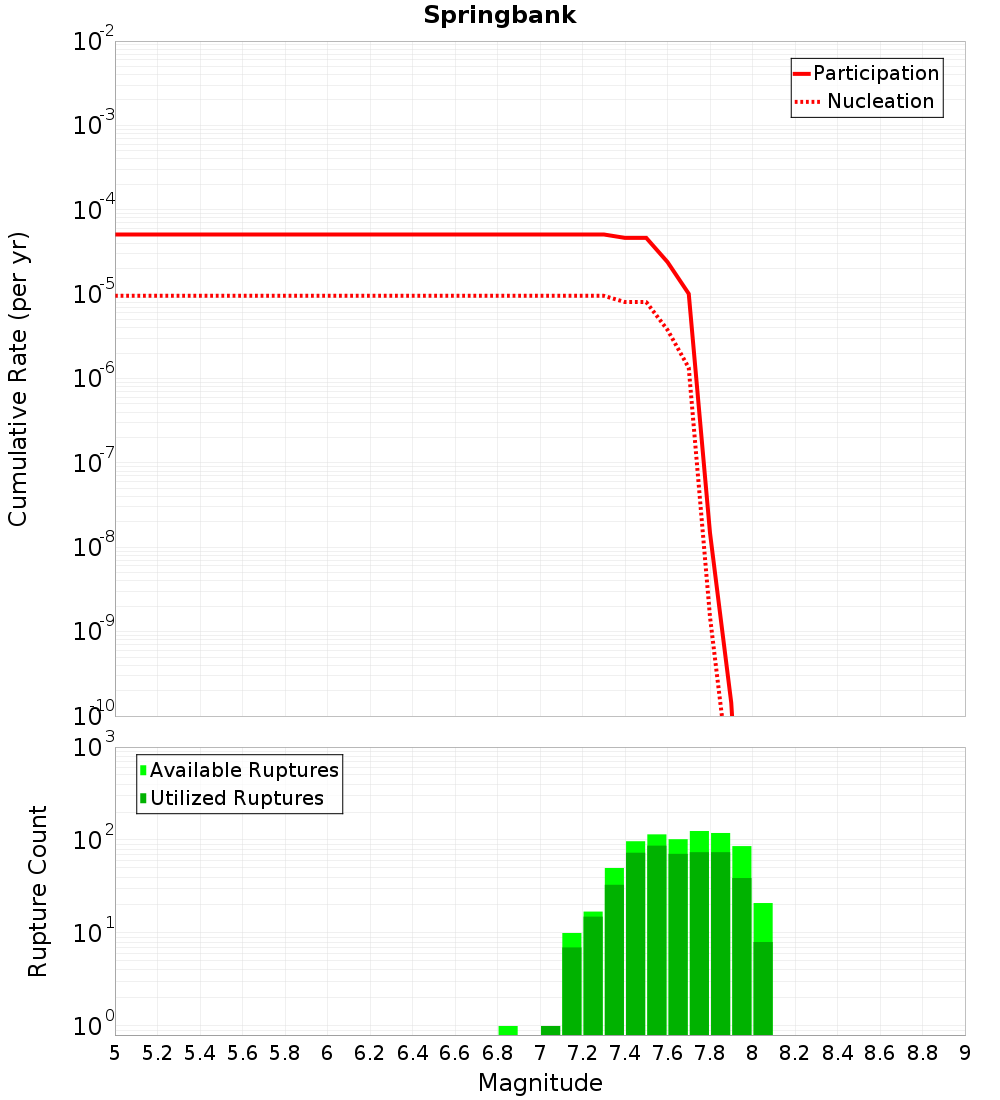

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

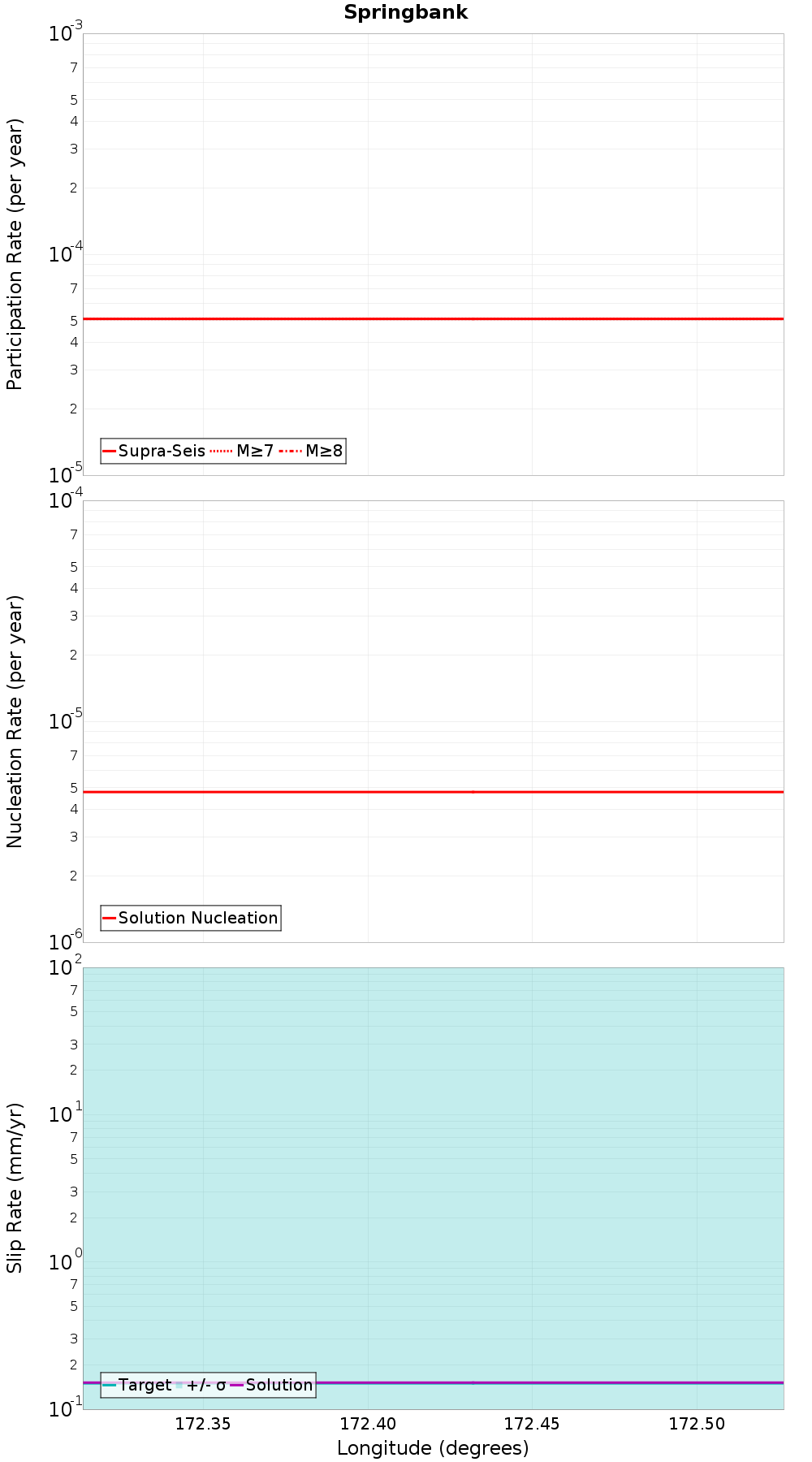

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

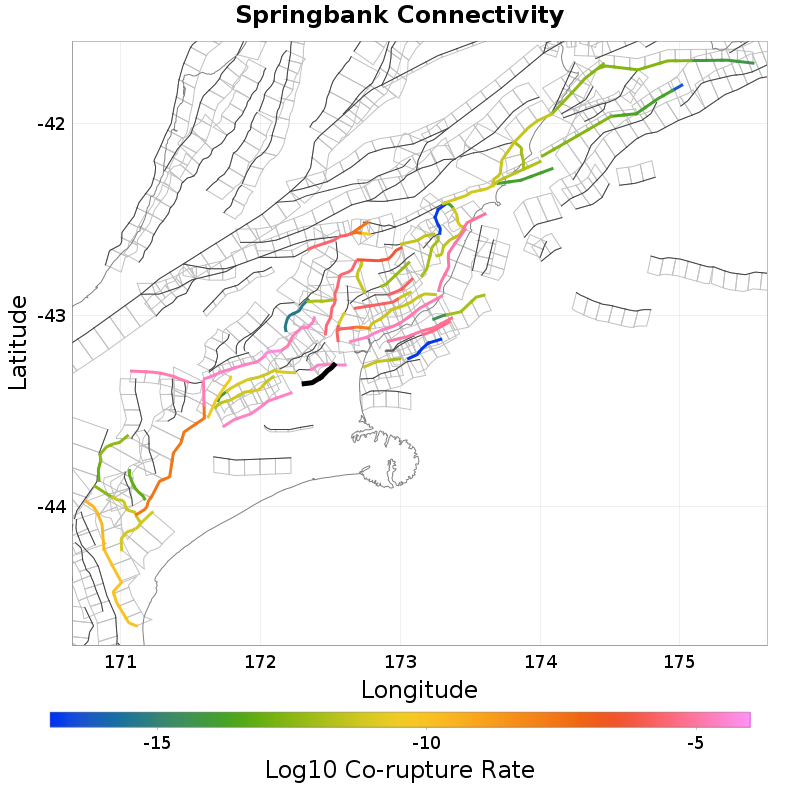

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pancake, 0.13 km away
Starvation - Ashley, 0.14 km away
Lees Valley, 0.24 km away
Mt Lawry, 0.46 km away
Esk South, 5.58 km away
Knowles Top, 8 km away
Hororata, 8.03 km away
Boby Stream, 9.36 km away
Kowai - View Hill, 10.45 km away
Mt Arden, 11.68 km away
Doctors, 12.28 km away
High Peak - Sheffield, 13.42 km away

Pancake, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNTQuMGJmVGZm
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate4.3926843E-16

Starvation - Ashley, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNTQuMGJmVGZm
Connected?true
Directly Connected?true
Co-rupture Count338
Co-rupture Rate2.758487E-5

Lees Valley, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNTQuMGJmVGZm
Connected?true
Directly Connected?true
Co-rupture Count905
Co-rupture Rate5.8175294E-5

Mt Lawry, 0.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNTQuMGJmVGZm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk South, 5.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNTQuMGJmVGZm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Knowles Top, 8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNTQuMGJmVGZm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hororata, 8.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNTQuMGJmVGZm
Connected?true
Directly Connected?false
Co-rupture Count194
Co-rupture Rate2.5932906E-5

Boby Stream, 9.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNTQuMGJmVGZm
Connected?true
Directly Connected?false
Co-rupture Count187
Co-rupture Rate1.6506134E-6

Kowai - View Hill, 10.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNTQuMGJmVGZm
Connected?true
Directly Connected?false
Co-rupture Count21
Co-rupture Rate9.031781E-12

Mt Arden, 11.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNTQuMGJmVGZm
Connected?true
Directly Connected?false
Co-rupture Count291
Co-rupture Rate2.7101057E-6

Doctors, 12.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNTQuMGJmVGZm
Connected?true
Directly Connected?false
Co-rupture Count105
Co-rupture Rate1.6367719E-6

High Peak - Sheffield, 13.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNTQuMGJmVGZm
Connected?true
Directly Connected?false
Co-rupture Count45
Co-rupture Rate1.110927E-11
