Waipiata Details

PropertyValue
Rupture Count459
Ruptures Above Sect Min Mag458
Ruptures w/ Nonzero Rates41
Magnitude Range[7.03, 8.09]
Length Range[23, 275] km
Total Rate2.6513102E-5 /yr
Multi-Fault Rate2.191934E-5 /yr (82.67%)
Directly-Connected Faults8
All Co-Rupturing Faults38

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

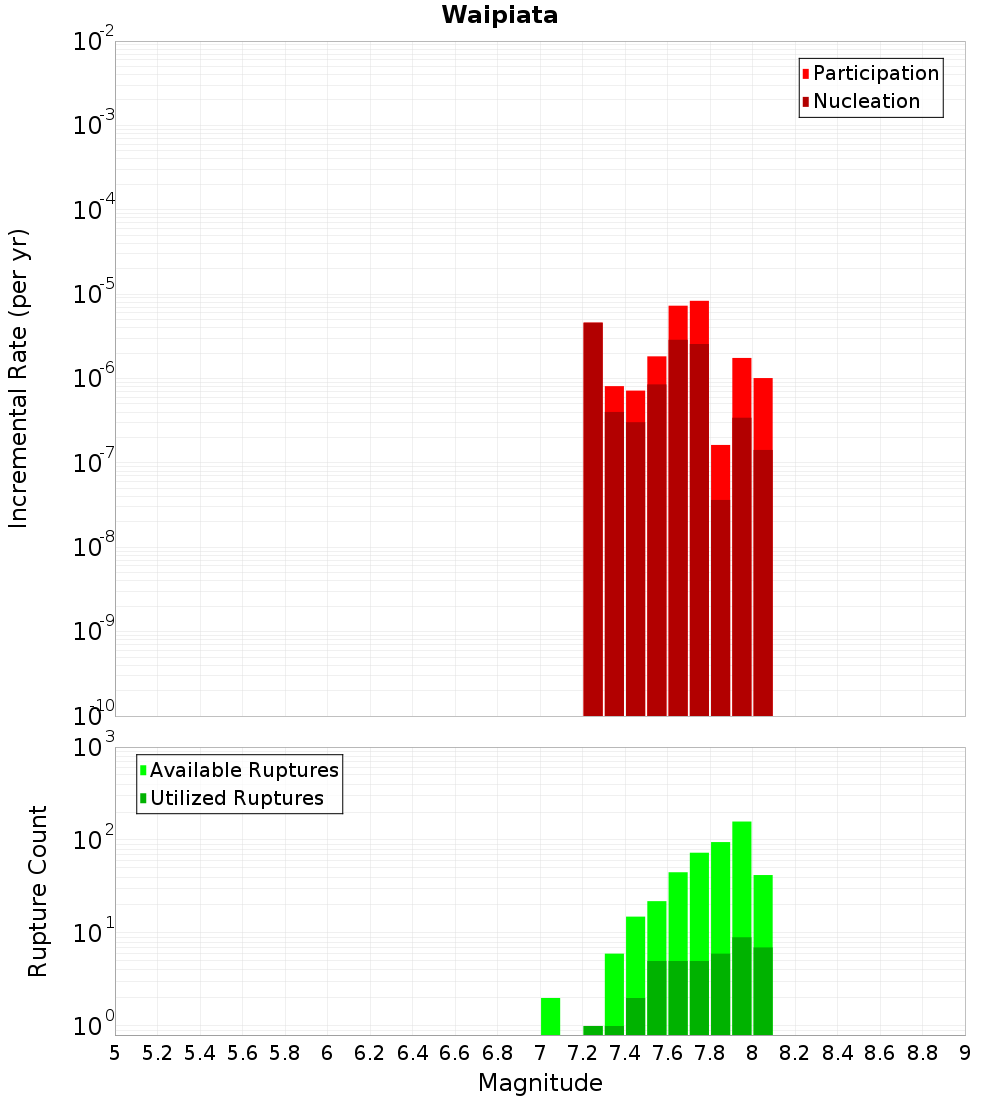

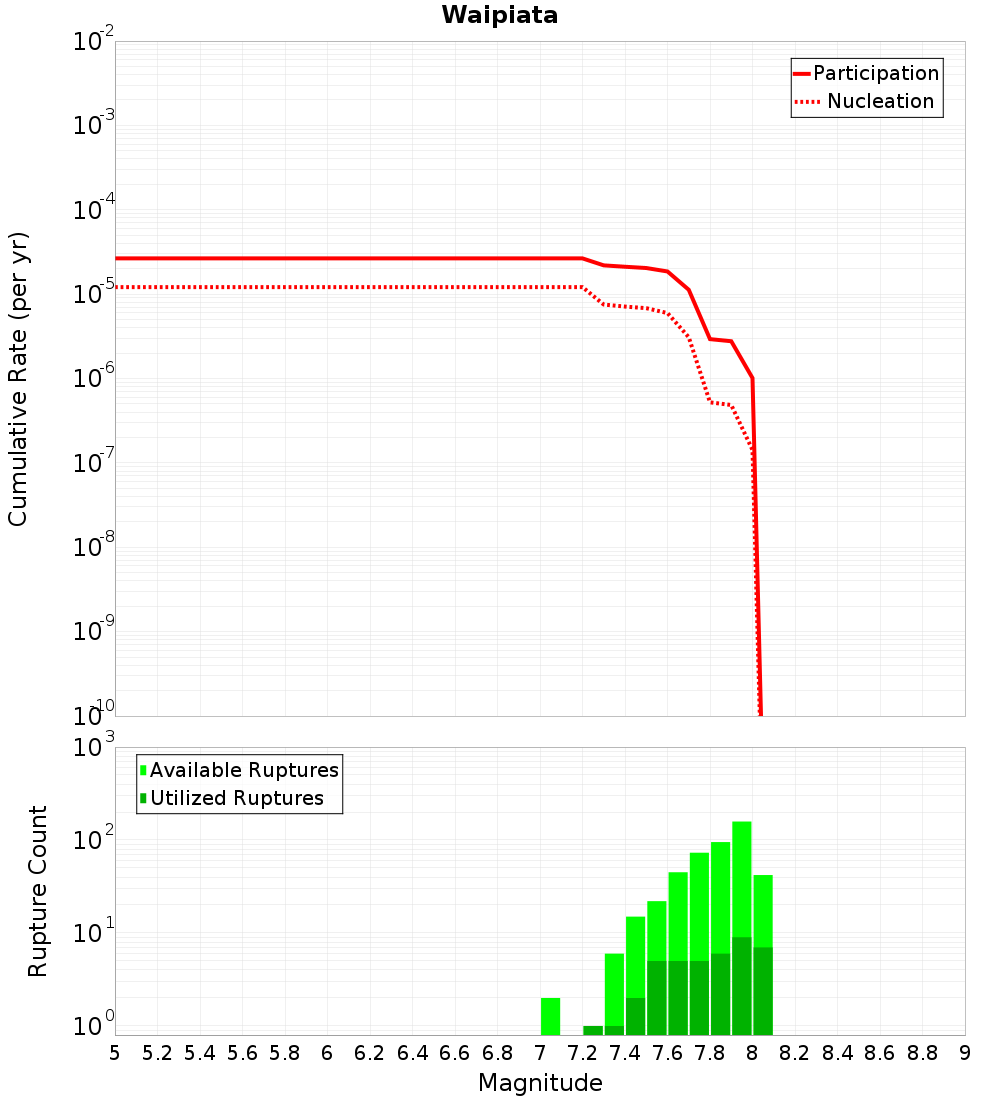

Incremental PlotCumulative Plot

Along-Strike Values

(top)

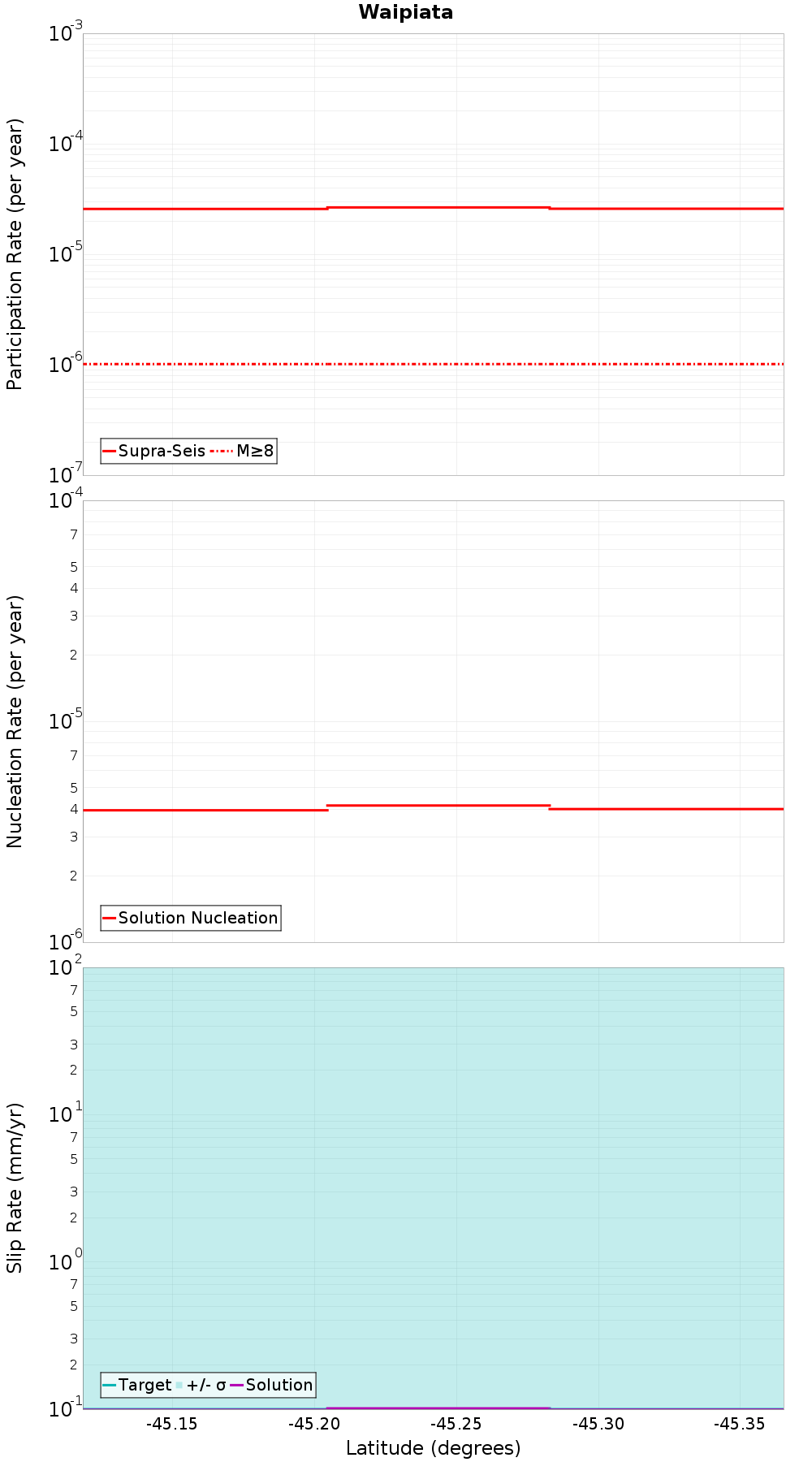

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

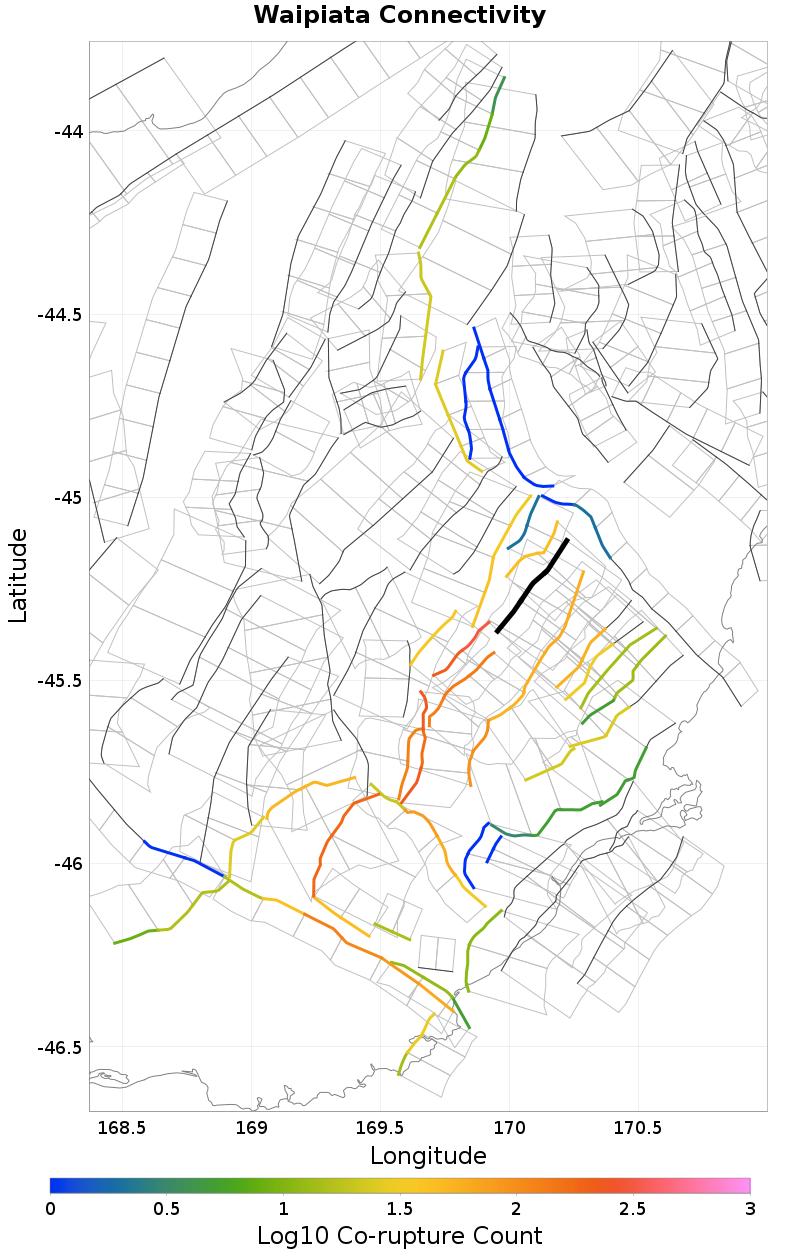

MapMap

Nearby Sections

(top)

Fault Section
Billys Ridge, 0.21 km away
Murphys Creek, 0.21 km away
Horse Flat, 0.24 km away
Hyde North, 0.42 km away
Dunback Hill, 0.51 km away
Ranfurly, 2.79 km away
Pylap, 3.22 km away
Flat Stream - Glenpark, 5.65 km away
Logan Burn, 6.25 km away
Gimmerburn, 7.59 km away
Waihemo, 7.68 km away
Nichols Rock, 8.44 km away
Cross Eden, 10.38 km away
Long Valley, 12.3 km away
Sliver Stream - Merton, 14.54 km away

Billys Ridge, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNjEuMHRqV25S
Connected?true
Directly Connected?true
Co-rupture Count31
Co-rupture Rate0.0

Murphys Creek, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNjEuMHRqV25S
Connected?true
Directly Connected?true
Co-rupture Count14
Co-rupture Rate7.146298E-7

Horse Flat, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNjEuMHRqV25S
Connected?true
Directly Connected?true
Co-rupture Count55
Co-rupture Rate0.0

Hyde North, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNjEuMHRqV25S
Connected?true
Directly Connected?true
Co-rupture Count62
Co-rupture Rate1.9267016E-5

Dunback Hill, 0.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNjEuMHRqV25S
Connected?true
Directly Connected?true
Co-rupture Count13
Co-rupture Rate7.148958E-19

Ranfurly, 2.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNjEuMHRqV25S
Connected?true
Directly Connected?true
Co-rupture Count44
Co-rupture Rate8.1819564E-7

Pylap, 3.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNjEuMHRqV25S
Connected?true
Directly Connected?true
Co-rupture Count302
Co-rupture Rate9.093325E-7

Flat Stream - Glenpark, 5.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNjEuMHRqV25S
Connected?true
Directly Connected?true
Co-rupture Count24
Co-rupture Rate2.16445E-7

Logan Burn, 6.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNjEuMHRqV25S
Connected?true
Directly Connected?false
Co-rupture Count137
Co-rupture Rate4.9951443E-10

Gimmerburn, 7.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNjEuMHRqV25S
Connected?true
Directly Connected?false
Co-rupture Count41
Co-rupture Rate9.030541E-7

Waihemo, 7.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNjEuMHRqV25S
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate9.542493E-13

Nichols Rock, 8.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNjEuMHRqV25S
Connected?true
Directly Connected?false
Co-rupture Count22
Co-rupture Rate2.16445E-7

Cross Eden, 10.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNjEuMHRqV25S
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Long Valley, 12.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNjEuMHRqV25S
Connected?true
Directly Connected?false
Co-rupture Count35
Co-rupture Rate7.4032755E-7

Sliver Stream - Merton, 14.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNjEuMHRqV25S
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0
