Gable End North Details

PropertyValue
Rupture Count265
Ruptures Above Sect Min Mag257
Ruptures w/ Nonzero Rates108
Magnitude Range[6.60, 7.79]
Length Range[15, 220] km
Total Rate0.0018569616 /yr
Multi-Fault Rate0.0018569616 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults11

Table Of Contents

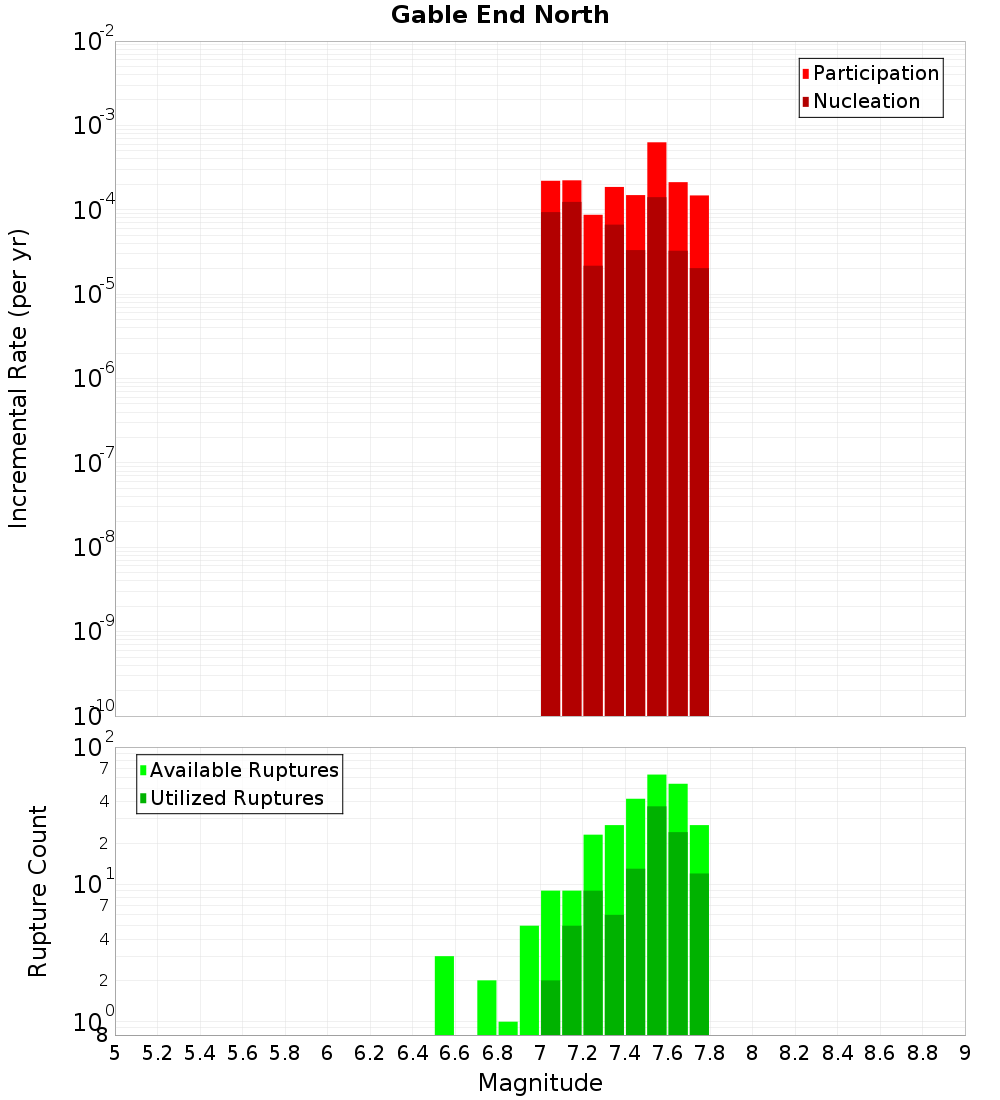

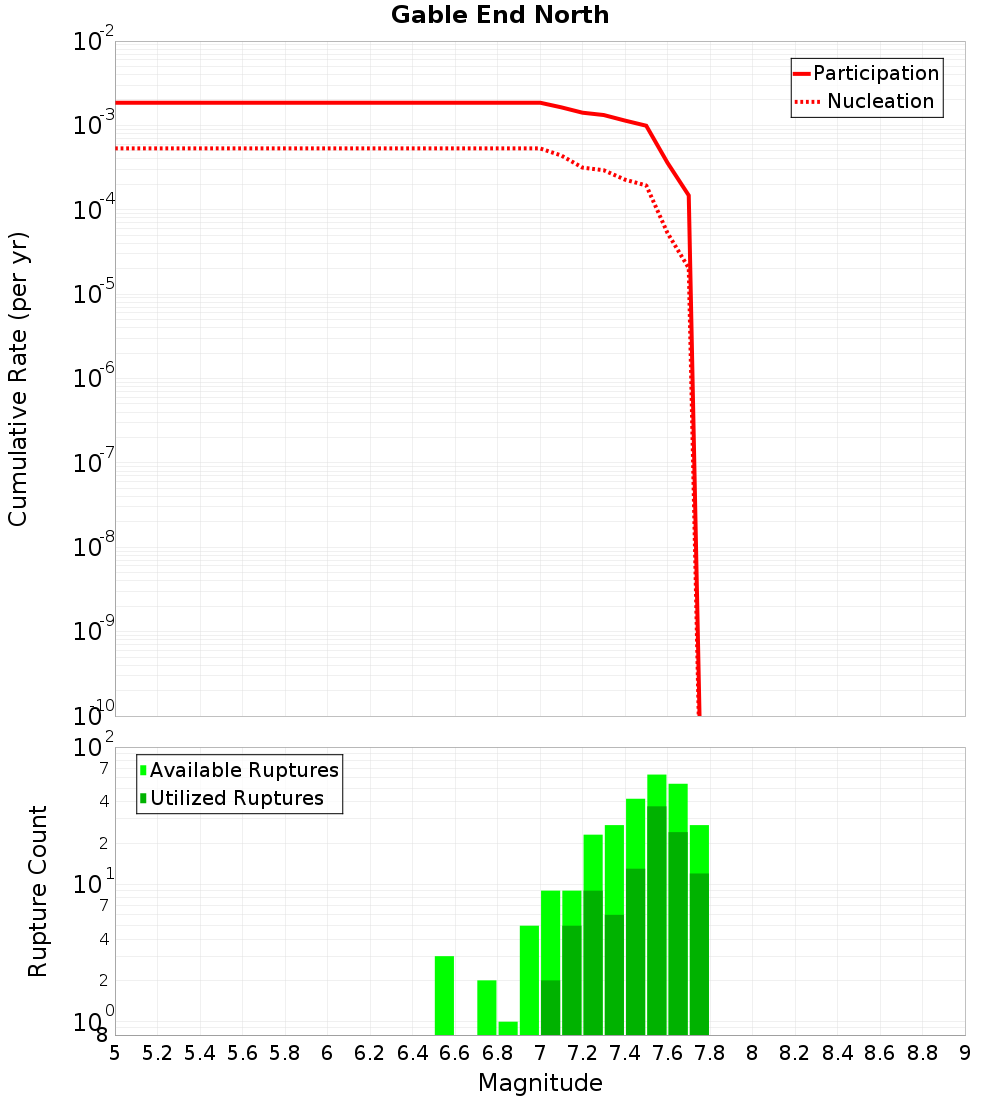

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

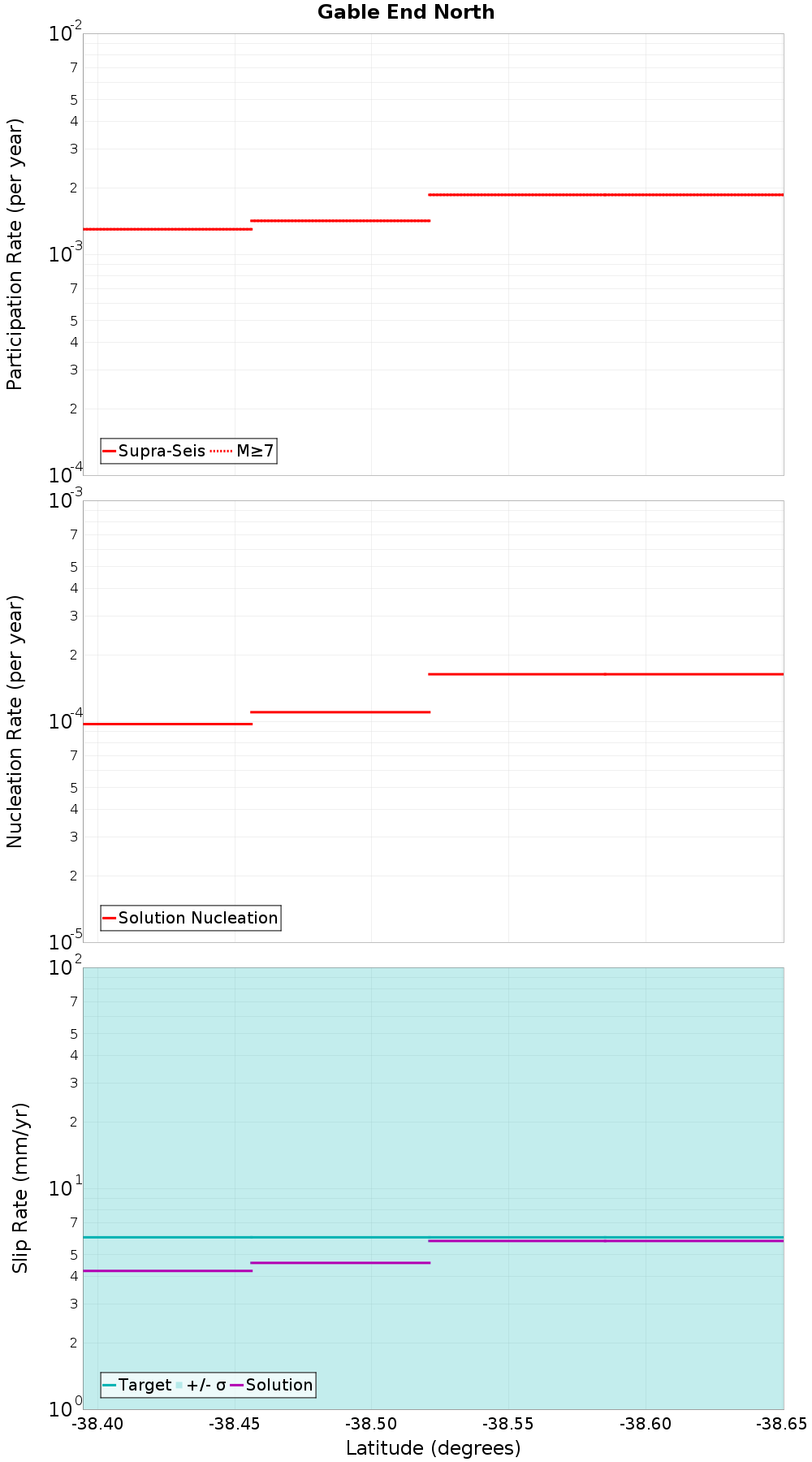

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

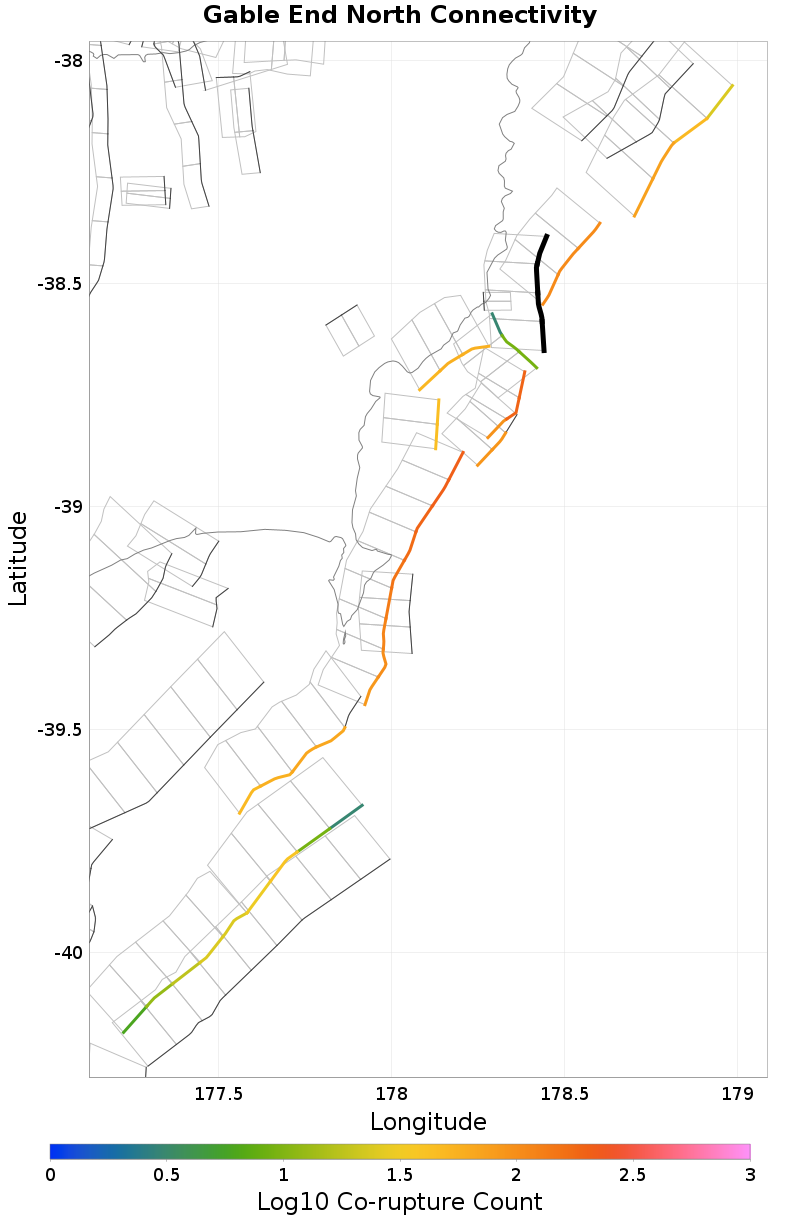

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pakarae, 0.48 km away
Ariel Bank 2, 0.9 km away
Ariel Bank, 2.13 km away
Te Ikaarongamai, 3.53 km away
Gable End South, 5.25 km away
Ariel East, 9.29 km away

Pakarae, 0.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNjYuMFE2Z3pL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ariel Bank 2, 0.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNjYuMFE2Z3pL
Connected?true
Directly Connected?true
Co-rupture Count105
Co-rupture Rate9.812763E-4

Ariel Bank, 2.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNjYuMFE2Z3pL
Connected?true
Directly Connected?true
Co-rupture Count190
Co-rupture Rate0.0010404637

Te Ikaarongamai, 3.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNjYuMFE2Z3pL
Connected?true
Directly Connected?true
Co-rupture Count9
Co-rupture Rate0.0

Gable End South, 5.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNjYuMFE2Z3pL
Connected?true
Directly Connected?true
Co-rupture Count56
Co-rupture Rate8.164979E-4

Ariel East, 9.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNjYuMFE2Z3pL
Connected?true
Directly Connected?false
Co-rupture Count89
Co-rupture Rate4.949166E-5
