Opouawe - Uruti Details

Property	Value
Rupture Count	29,397
Ruptures Above Sect Min Mag	29,382
Ruptures w/ Nonzero Rates	576
Magnitude Range	[6.91, 8.68]
Length Range	[20, 1,082] km
Total Rate	7.163709E-4 /yr
Multi-Fault Rate	6.178954E-4 /yr (86.25%)
Directly-Connected Faults	12
All Co-Rupturing Faults	139

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

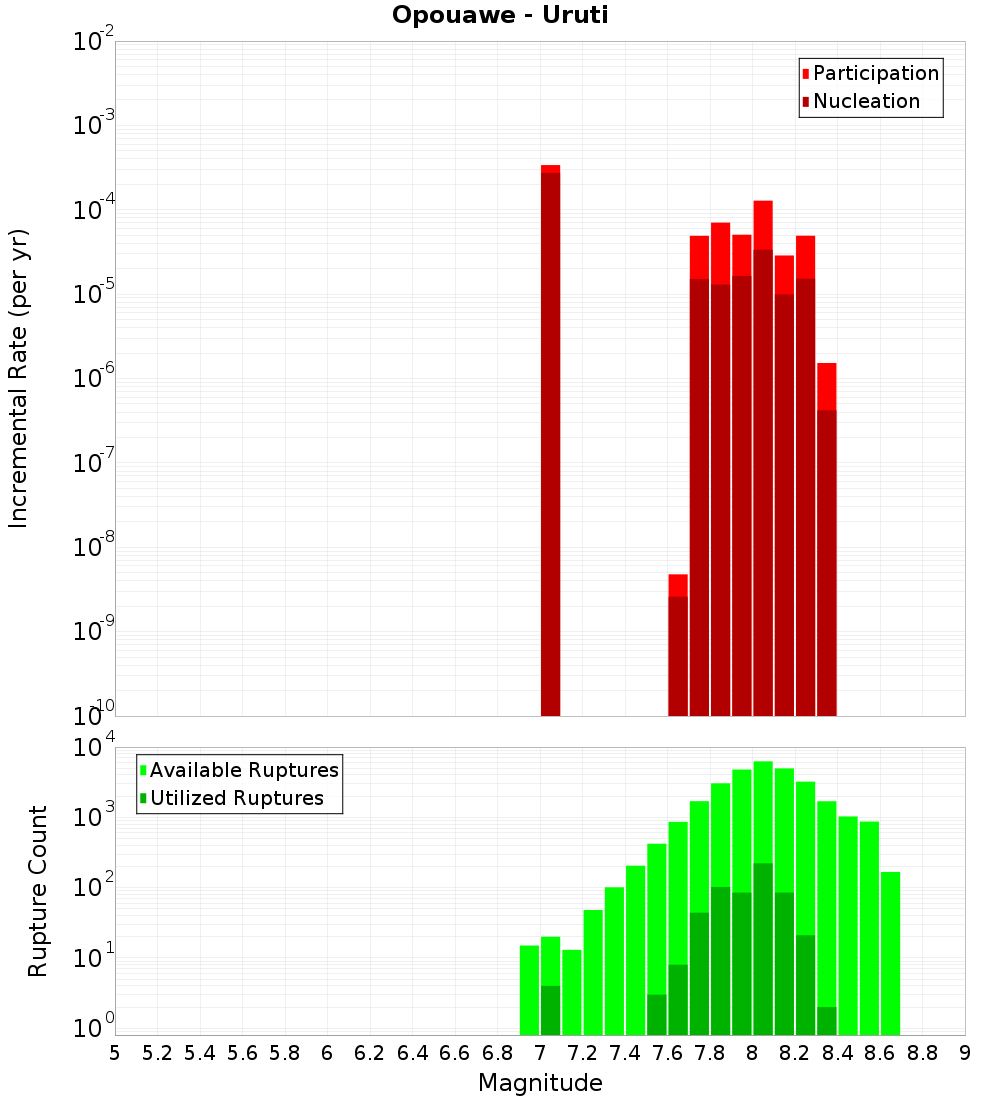

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

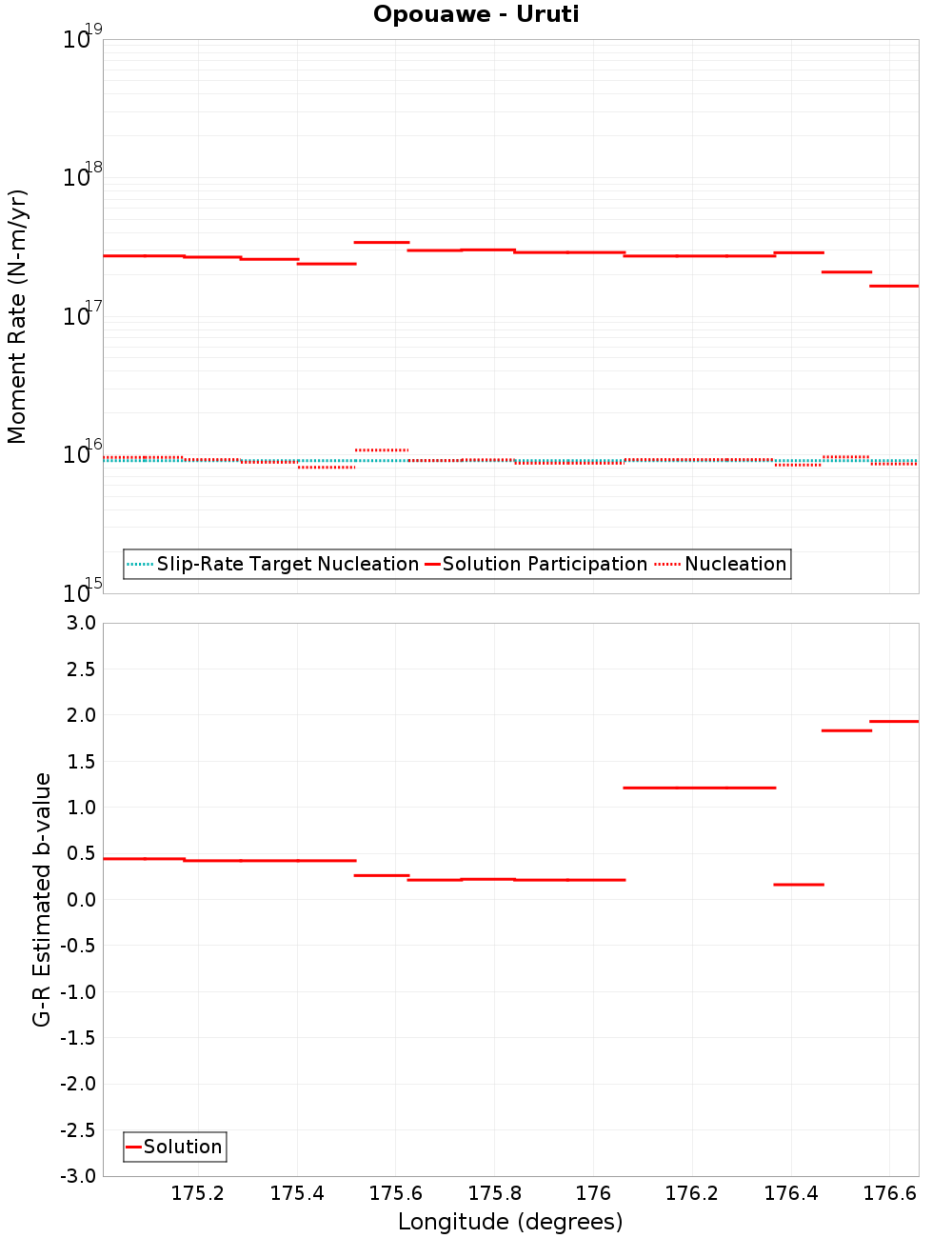

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
BooBoo, 0.13 km away
Uruti Basin 2, 0.14 km away
Uruti Basin, 0.16 km away
Te Rapa 2, 0.25 km away
Uruti Ridge 2, 2.43 km away
Pahaua, 2.68 km away
Kekerengu Bank, 5.25 km away
Uruti East - PorWest 1, 5.54 km away
Honeycomb, 5.87 km away
Otaraia, 7.95 km away
Palliser - Kaiwhata, 8.58 km away
Upper Slope, 13.4 km away
Uruti North, 13.46 km away
Campbell Bank, 13.93 km away
Dry River - Huangarua: 1, 14.3 km away

BooBoo, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNzIuME1YZGFM
Connected?	true
Directly Connected?	true
Co-rupture Count	16,117
Co-rupture Rate	1.4150186E-4

Uruti Basin 2, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNzIuME1YZGFM
Connected?	true
Directly Connected?	true
Co-rupture Count	5,368
Co-rupture Rate	4.740949E-5

Uruti Basin, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNzIuME1YZGFM
Connected?	true
Directly Connected?	true
Co-rupture Count	6,281
Co-rupture Rate	3.0175503E-4

Te Rapa 2, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNzIuME1YZGFM
Connected?	true
Directly Connected?	true
Co-rupture Count	5,424
Co-rupture Rate	1.08017404E-4

Uruti Ridge 2, 2.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNzIuME1YZGFM
Connected?	true
Directly Connected?	true
Co-rupture Count	3,981
Co-rupture Rate	3.7280253E-5

Pahaua, 2.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNzIuME1YZGFM
Connected?	true
Directly Connected?	true
Co-rupture Count	1,607
Co-rupture Rate	1.8682687E-5

Kekerengu Bank, 5.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNzIuME1YZGFM
Connected?	true
Directly Connected?	true
Co-rupture Count	4,854
Co-rupture Rate	1.6565592E-4

Uruti East - PorWest 1, 5.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNzIuME1YZGFM
Connected?	true
Directly Connected?	true
Co-rupture Count	10,772
Co-rupture Rate	7.431187E-5

Honeycomb, 5.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNzIuME1YZGFM
Connected?	true
Directly Connected?	true
Co-rupture Count	2,971
Co-rupture Rate	1.3940736E-5

Otaraia, 7.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNzIuME1YZGFM
Connected?	true
Directly Connected?	true
Co-rupture Count	1,430
Co-rupture Rate	2.435804E-5

Palliser - Kaiwhata, 8.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNzIuME1YZGFM
Connected?	true
Directly Connected?	true
Co-rupture Count	2,041
Co-rupture Rate	2.0243537E-5

Upper Slope, 13.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNzIuME1YZGFM
Connected?	true
Directly Connected?	false
Co-rupture Count	1,629
Co-rupture Rate	1.9810554E-5

Uruti North, 13.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNzIuME1YZGFM
Connected?	true
Directly Connected?	false
Co-rupture Count	2,892
Co-rupture Rate	3.5410743E-5

Campbell Bank, 13.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNzIuME1YZGFM
Connected?	true
Directly Connected?	false
Co-rupture Count	1,818
Co-rupture Rate	2.718299E-5

Dry River - Huangarua: 1, 14.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNzIuME1YZGFM
Connected?	true
Directly Connected?	true
Co-rupture Count	686
Co-rupture Rate	2.3491735E-5
