Hope: Hamner SW Details

Property	Value
Rupture Count	6,152
Ruptures Above Sect Min Mag	6,150
Ruptures w/ Nonzero Rates	160
Magnitude Range	[6.70, 8.62]
Length Range	[11, 946] km
Total Rate	4.0191796E-4 /yr
Multi-Fault Rate	4.0191796E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	174

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

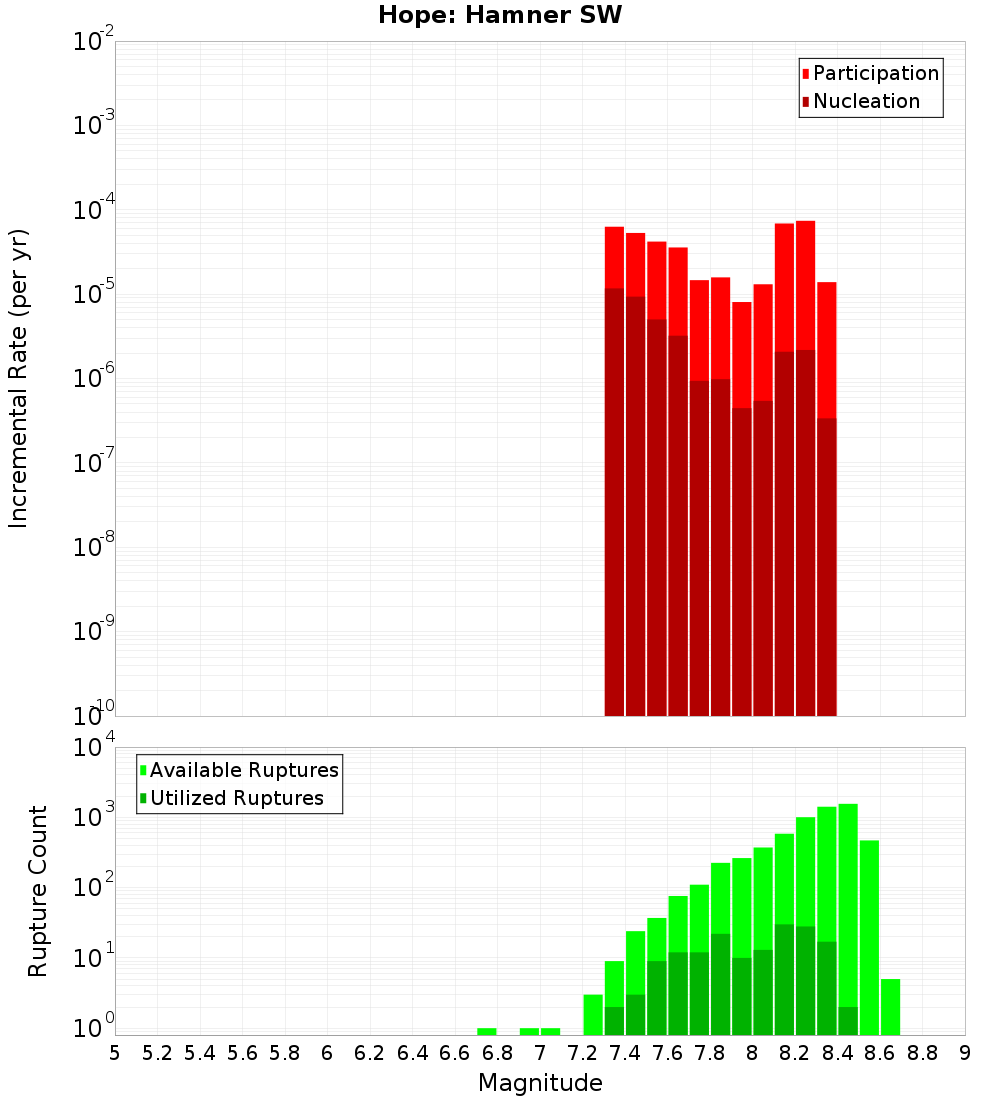

Magnitude-Frequency Distribution

Incremental	Cumulative

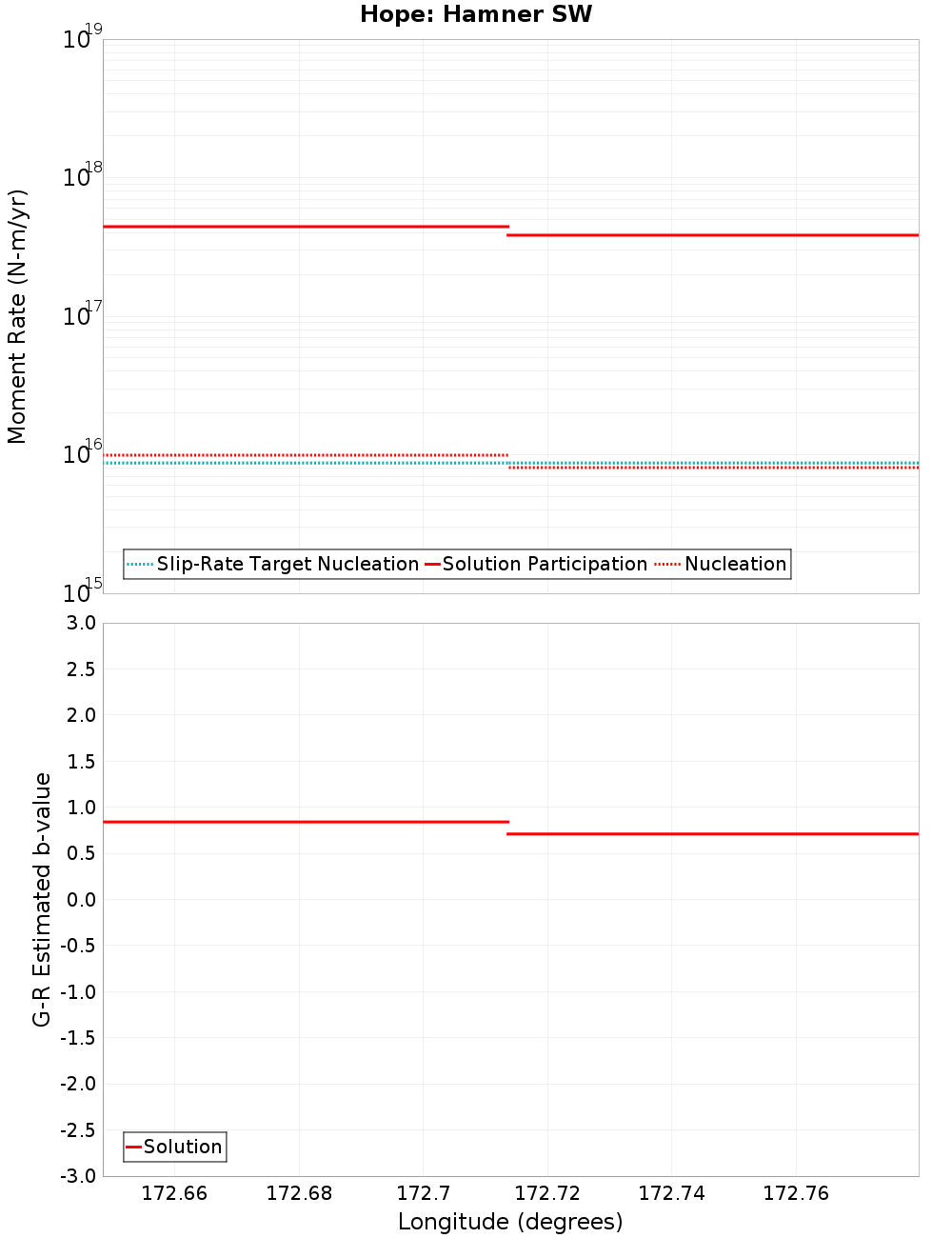

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Hope: Hamner SE, 0 km away
Hope: Kakapo-2-Hamner, 0 km away
Hope: Hanmer NW, 0 km away
Hanmer, 0.55 km away
Kakapo, 6.3 km away
Hope: Hope River, 6.3 km away
Esk North, 9.97 km away
The Humps, 10.61 km away
Hope: Conway, 13.75 km away
Clarence: Southwest, 13.9 km away
Hurunui Peak, 14.89 km away

Hope: Hamner SE, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNzYuMDVaYkxT
Connected?	true
Directly Connected?	false
Co-rupture Count	2,827
Co-rupture Rate	6.602463E-5

Hope: Kakapo-2-Hamner, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNzYuMDVaYkxT
Connected?	true
Directly Connected?	true
Co-rupture Count	5,950
Co-rupture Rate	3.9768912E-4

Hope: Hanmer NW, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNzYuMDVaYkxT
Connected?	true
Directly Connected?	true
Co-rupture Count	4,629
Co-rupture Rate	3.0355924E-4

Hanmer, 0.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNzYuMDVaYkxT
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kakapo, 6.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNzYuMDVaYkxT
Connected?	true
Directly Connected?	false
Co-rupture Count	1,618
Co-rupture Rate	1.0278001E-4

Hope: Hope River, 6.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNzYuMDVaYkxT
Connected?	true
Directly Connected?	false
Co-rupture Count	4,459
Co-rupture Rate	2.9482943E-4

Esk North, 9.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNzYuMDVaYkxT
Connected?	true
Directly Connected?	false
Co-rupture Count	24
Co-rupture Rate	4.2205875E-6

The Humps, 10.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNzYuMDVaYkxT
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Conway, 13.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNzYuMDVaYkxT
Connected?	true
Directly Connected?	false
Co-rupture Count	2,755
Co-rupture Rate	5.3882282E-5

Clarence: Southwest, 13.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNzYuMDVaYkxT
Connected?	true
Directly Connected?	false
Co-rupture Count	96
Co-rupture Rate	1.6414989E-10

Hurunui Peak, 14.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzNzYuMDVaYkxT
Connected?	true
Directly Connected?	false
Co-rupture Count	228
Co-rupture Rate	3.6581177E-6
