Huxley Details
| Property | Value |
|---|---|
| Rupture Count | 13,744 |
| Ruptures Above Sect Min Mag | 13,741 |
| Ruptures w/ Nonzero Rates | 2,949 |
| Magnitude Range | [6.76, 8.40] |
| Length Range | [18, 762] km |
| Total Rate | 1.7597209E-5 /yr |
| Multi-Fault Rate | 1.7597209E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 118 |
Table Of Contents

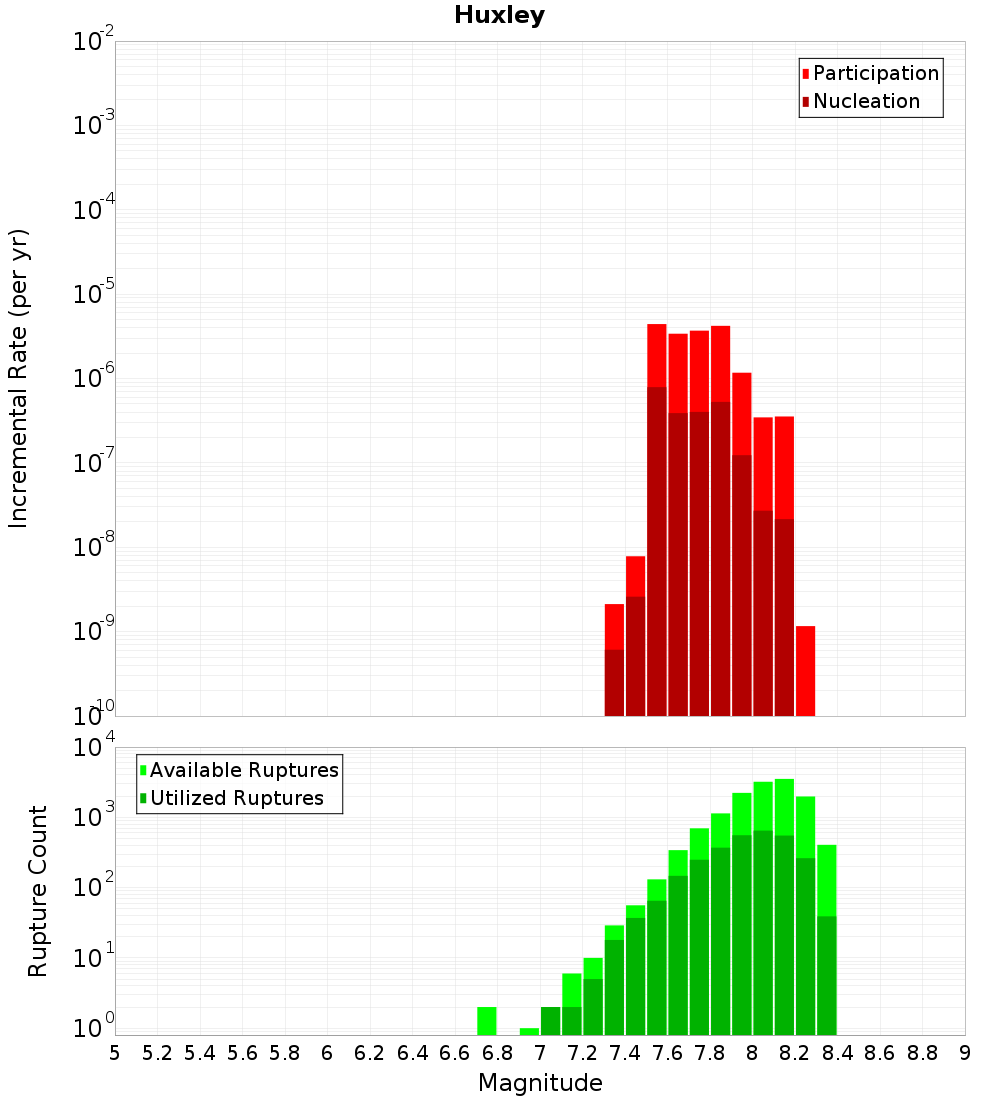

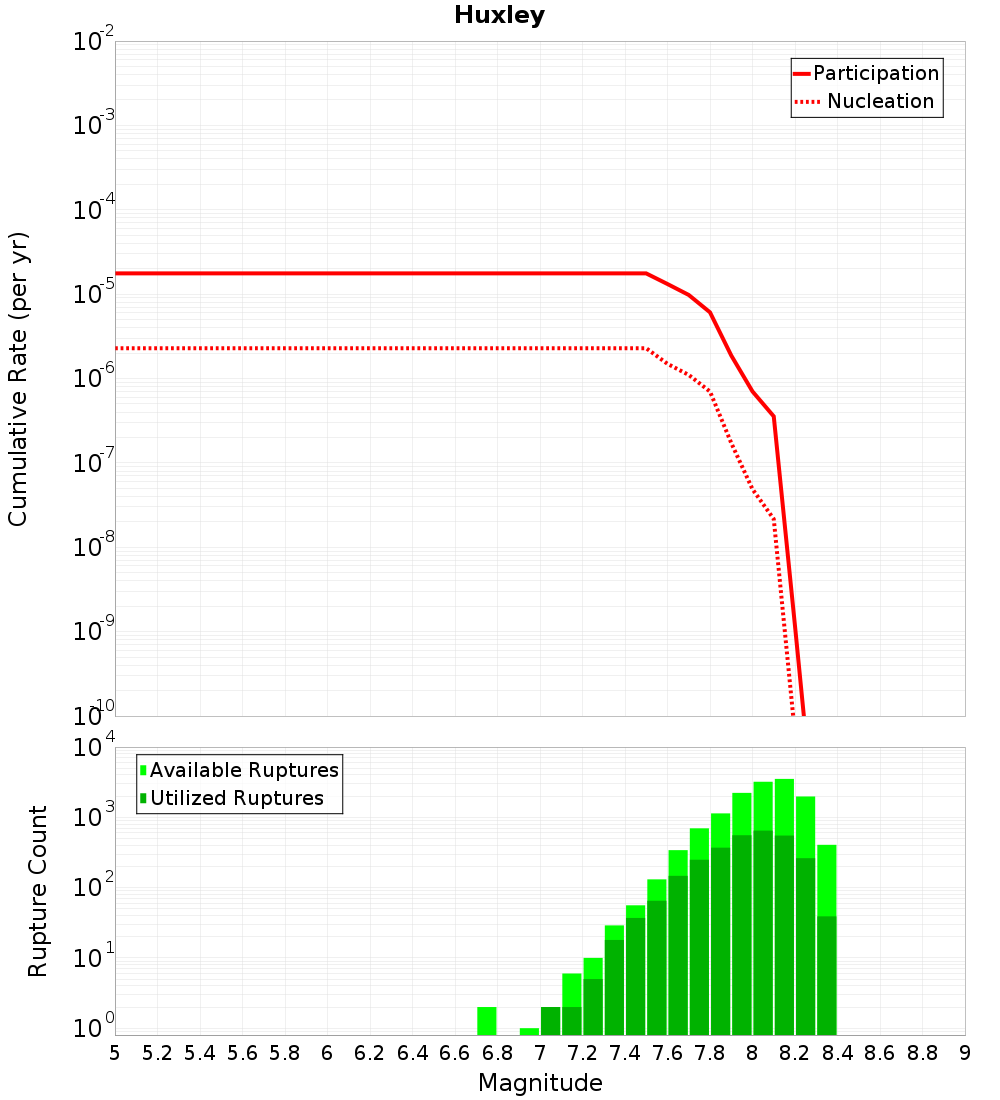

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

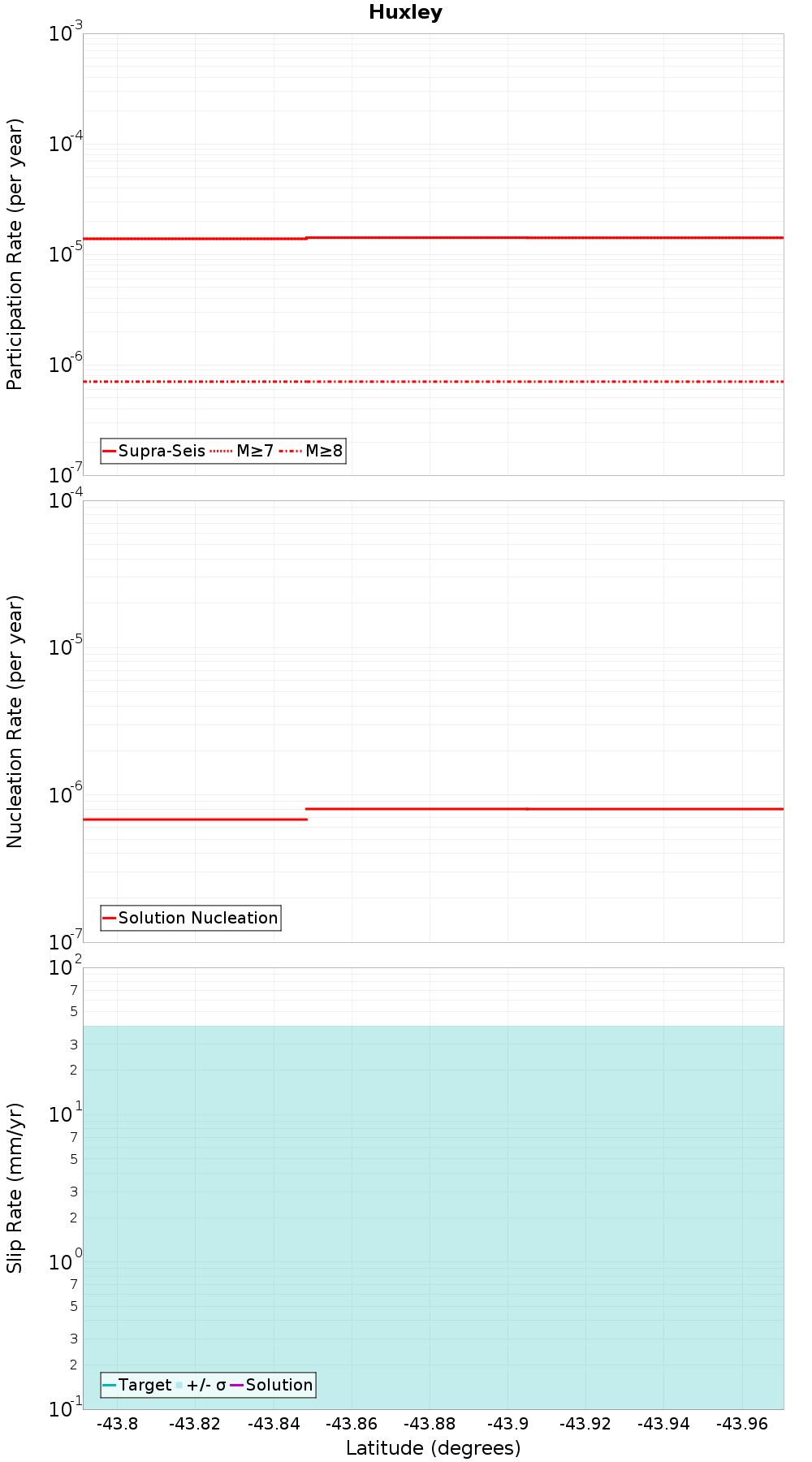

Along-Strike Values
Moment-Rates and b-Values

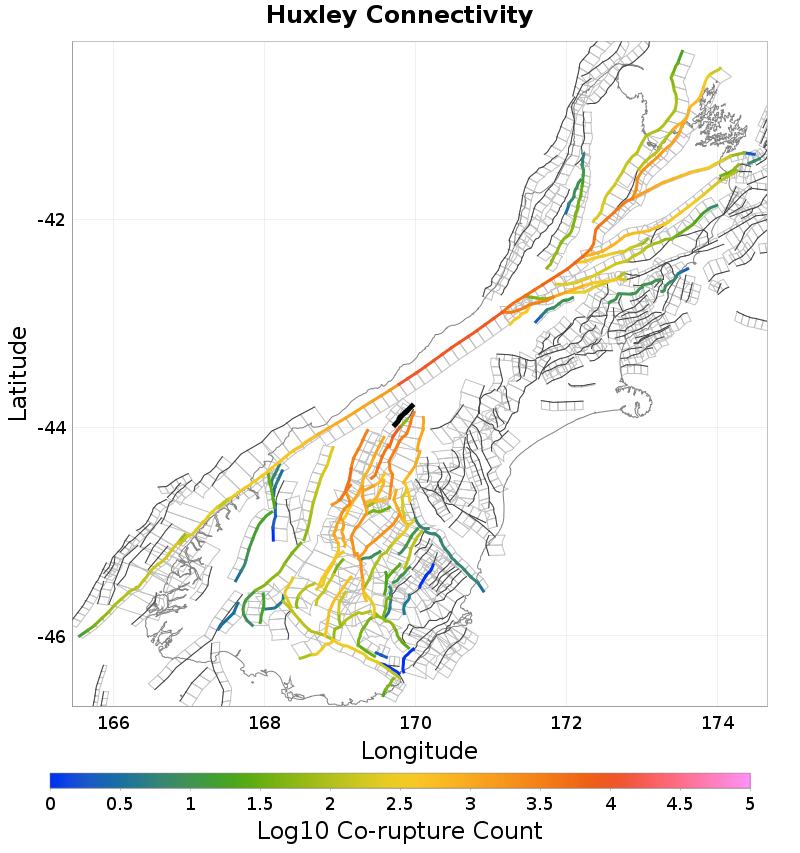

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Alpine: Jacksons to Kaniere, 1.8 km away |
| Hopkins, 3.39 km away |
| Barrier Range, 5.8 km away |
| Ostler North, 10.38 km away |
Alpine: Jacksons to Kaniere, 1.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMGN3d05l | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11,659 |
| Co-rupture Rate | 1.3801293E-5 |
Hopkins, 3.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMGN3d05l | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8,388 |
| Co-rupture Rate | 1.4075569E-5 |
Barrier Range, 5.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMGN3d05l | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,319 |
| Co-rupture Rate | 3.47535E-6 |
Ostler North, 10.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMGN3d05l | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,091 |
| Co-rupture Rate | 4.1584446E-8 |
