Kidnappers Ridge Details

PropertyValue
Rupture Count122
Ruptures Above Sect Min Mag112
Ruptures w/ Nonzero Rates87
Magnitude Range[6.70, 7.56]
Length Range[19, 140] km
Total Rate8.4021816E-4 /yr
Multi-Fault Rate7.420965E-4 /yr (88.32%)
Directly-Connected Faults3
All Co-Rupturing Faults7

Table Of Contents

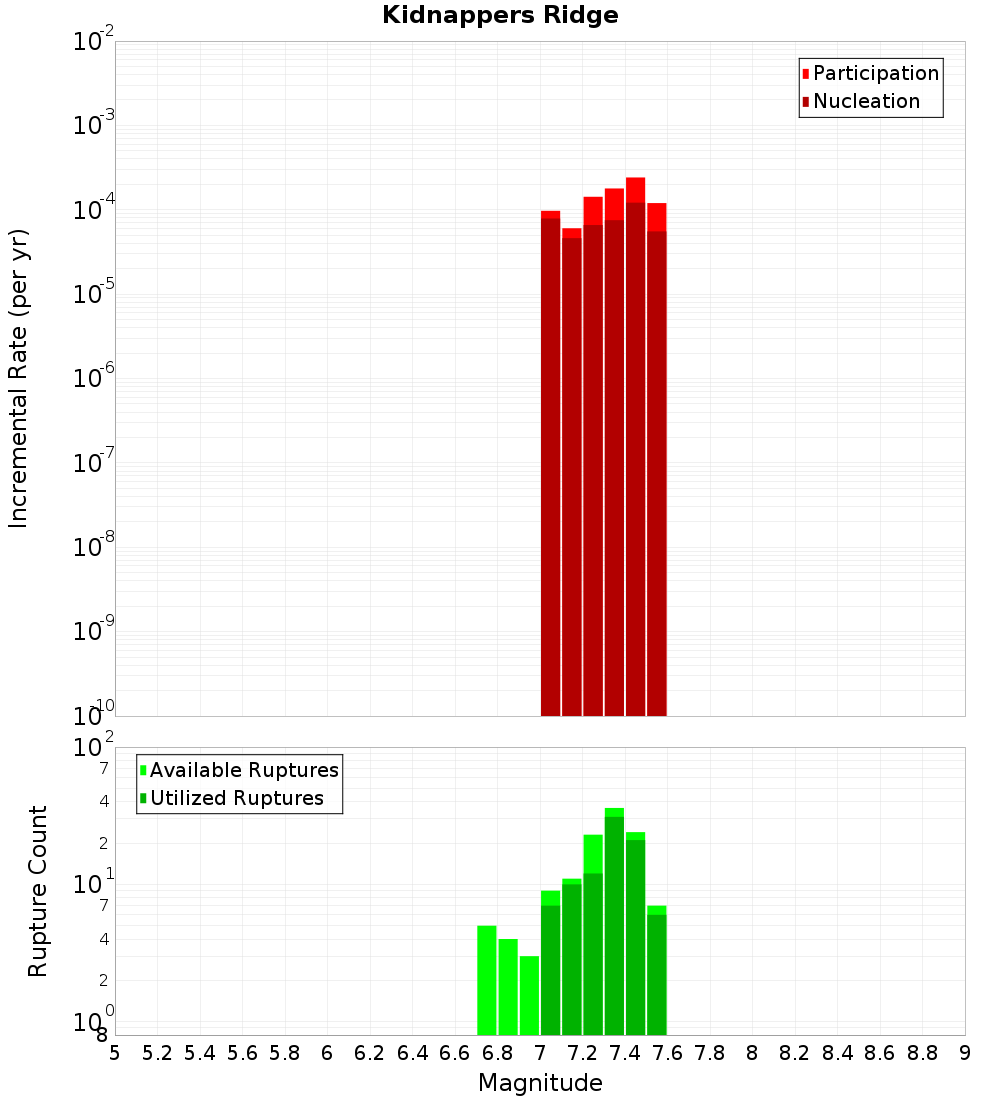

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

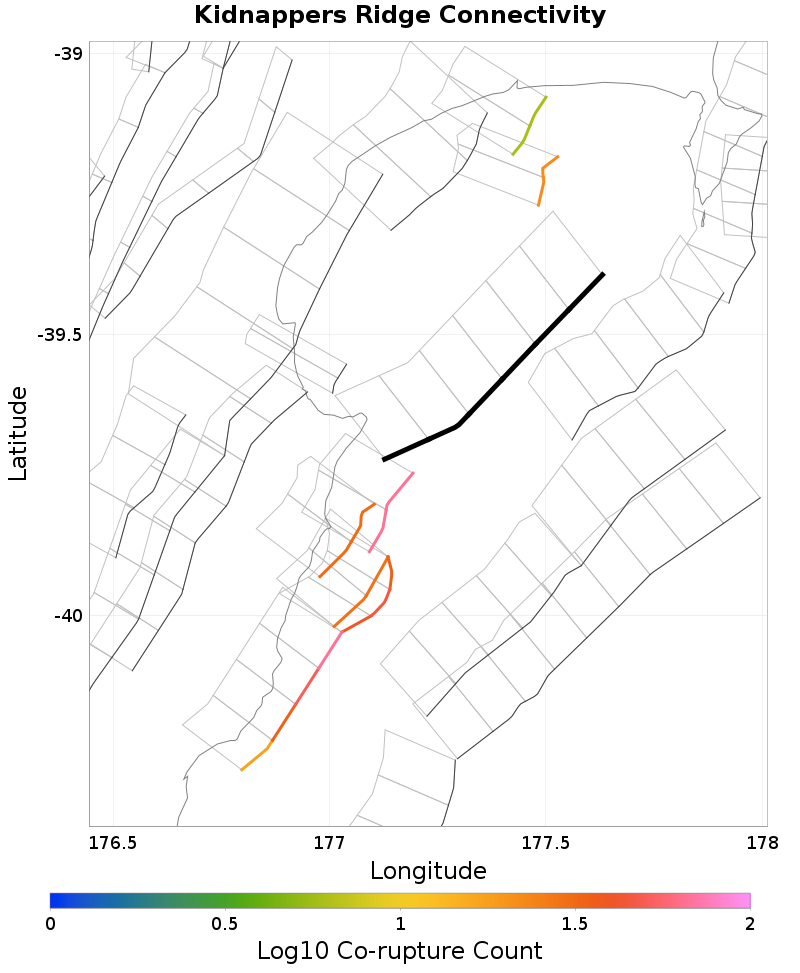

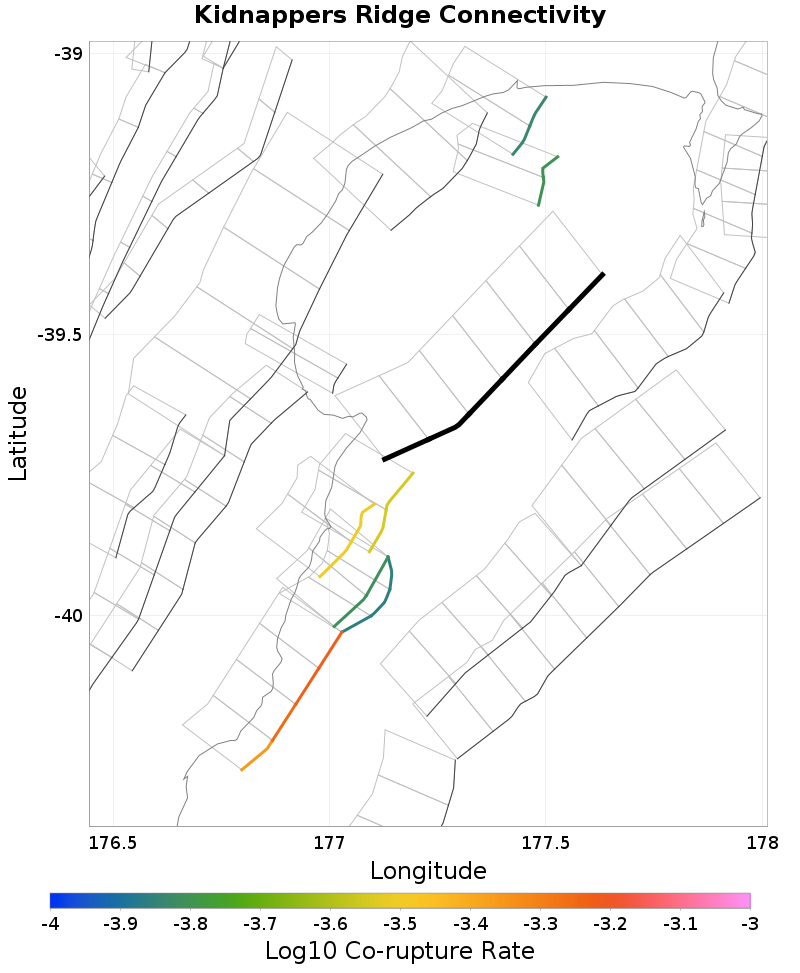

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waimarama 3 & 4, 3.48 km away
Waimarama 1 & 2, 8.69 km away
Hawke Bay 8, 10.62 km away
Lachlan 1 & 2, 10.9 km away
Tukituki Thrust, 11.24 km away
Hawke Bay 5 & 11, 11.87 km away

Waimarama 3 & 4, 3.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMGN3d05l
Connected?true
Directly Connected?true
Co-rupture Count66
Co-rupture Rate2.8387384E-4

Waimarama 1 & 2, 8.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMGN3d05l
Connected?true
Directly Connected?true
Co-rupture Count31
Co-rupture Rate3.1345093E-4

Hawke Bay 8, 10.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMGN3d05l
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lachlan 1 & 2, 10.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMGN3d05l
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tukituki Thrust, 11.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMGN3d05l
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawke Bay 5 & 11, 11.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMGN3d05l
Connected?true
Directly Connected?true
Co-rupture Count22
Co-rupture Rate1.5664213E-4
