Taonui Details
| Property | Value |
|---|---|
| Rupture Count | 159 |
| Ruptures Above Sect Min Mag | 158 |
| Ruptures w/ Nonzero Rates | 82 |
| Magnitude Range | [6.75, 7.92] |
| Length Range | [13, 245] km |
| Total Rate | 8.470779E-5 /yr |
| Multi-Fault Rate | 8.470779E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 19 |
Table Of Contents

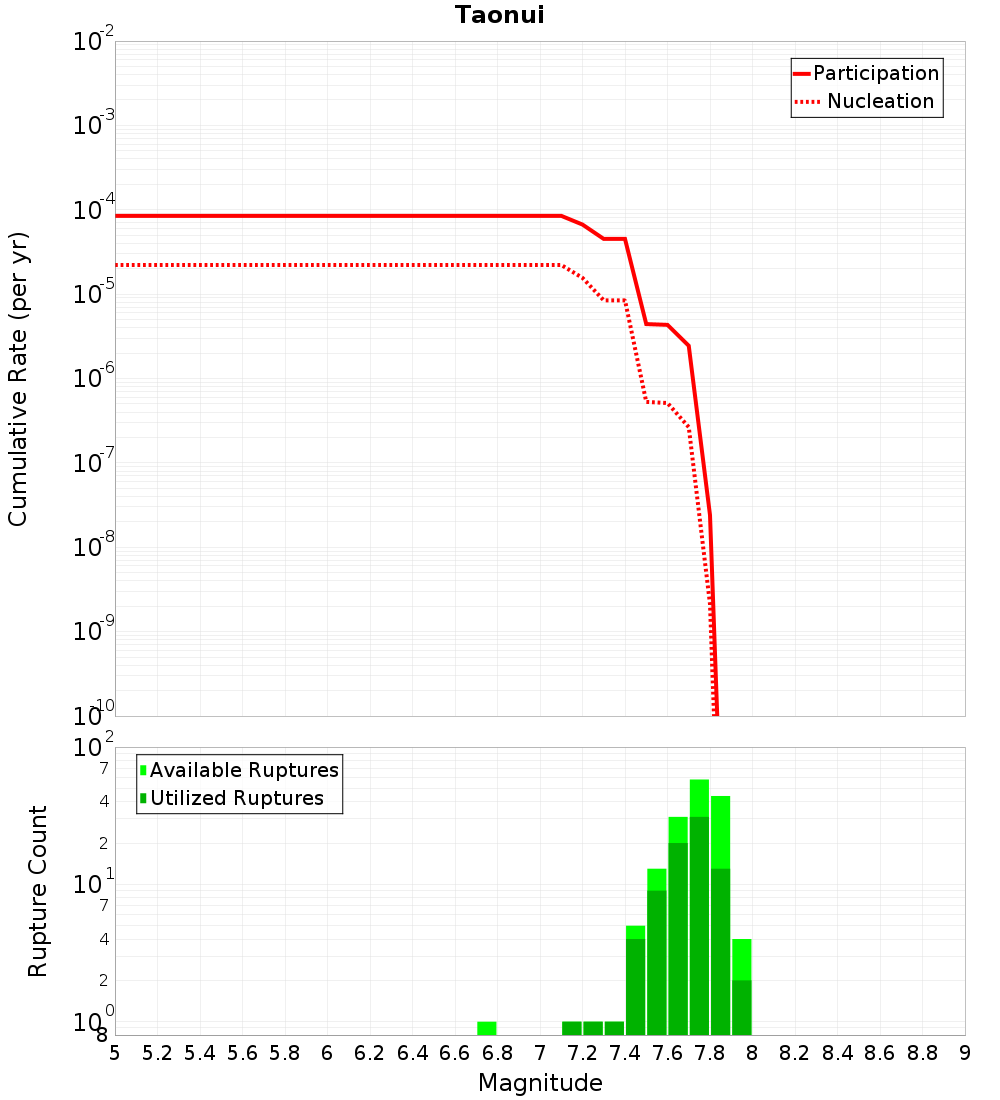

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

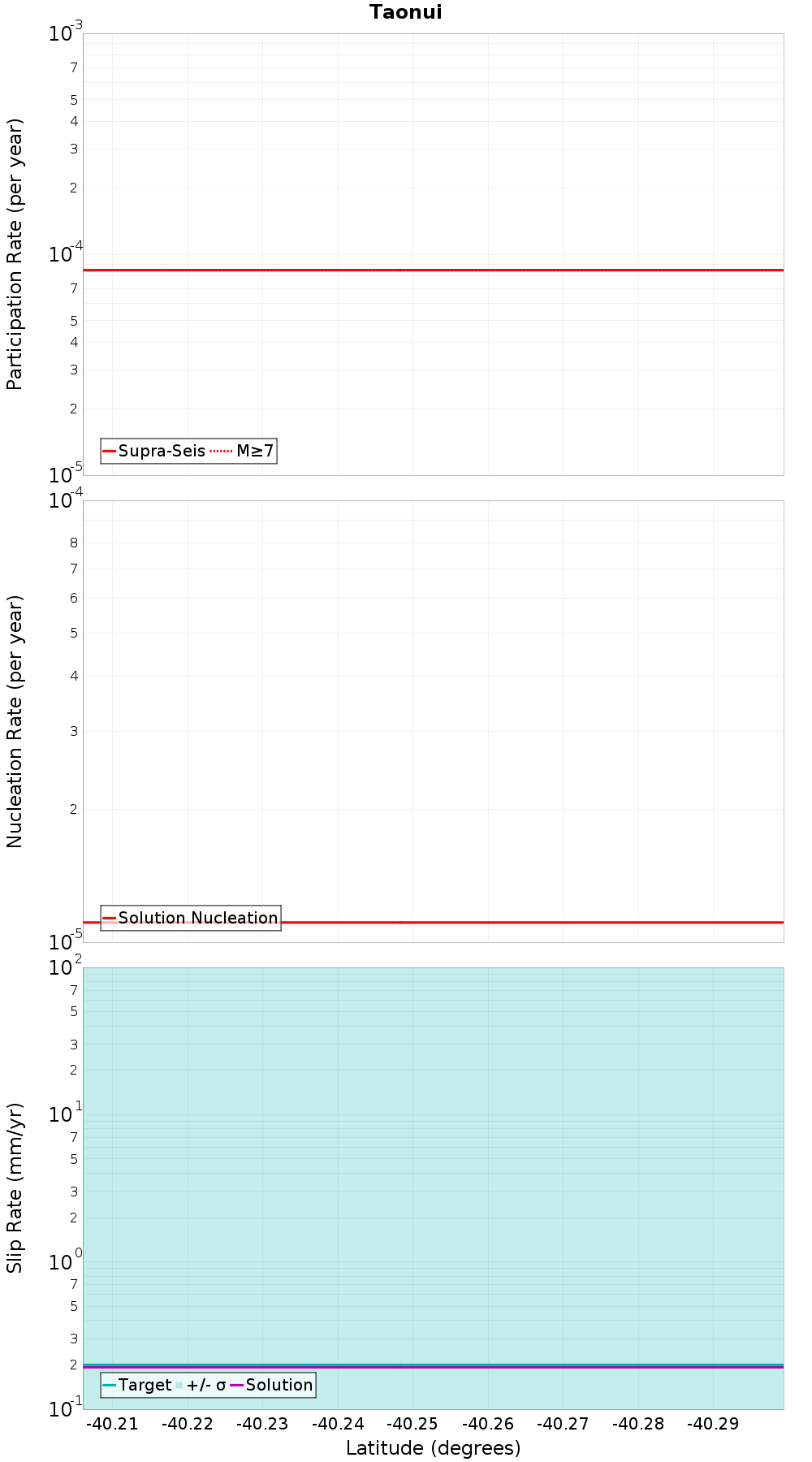

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Rauoterangi, 2.62 km away |
| Mt Stewart, 4.96 km away |
| Pohangina, 9.7 km away |
| Tokomaru, 12.27 km away |
| Mascarin, 13.08 km away |
| Himatangi, 13.28 km away |
Rauoterangi, 2.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMGN3d05l | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 52 |
| Co-rupture Rate | 3.329025E-5 |
Mt Stewart, 4.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMGN3d05l | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 157 |
| Co-rupture Rate | 6.6734596E-5 |
Pohangina, 9.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMGN3d05l | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tokomaru, 12.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMGN3d05l | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mascarin, 13.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMGN3d05l | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Himatangi, 13.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMGN3d05l | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
