Wendon Valley Details

PropertyValue
Rupture Count3,212
Ruptures Above Sect Min Mag3,211
Ruptures w/ Nonzero Rates496
Magnitude Range[7.02, 8.44]
Length Range[25, 816] km
Total Rate1.7715596E-5 /yr
Multi-Fault Rate1.1477028E-5 /yr (64.78%)
Directly-Connected Faults4
All Co-Rupturing Faults75

Table Of Contents

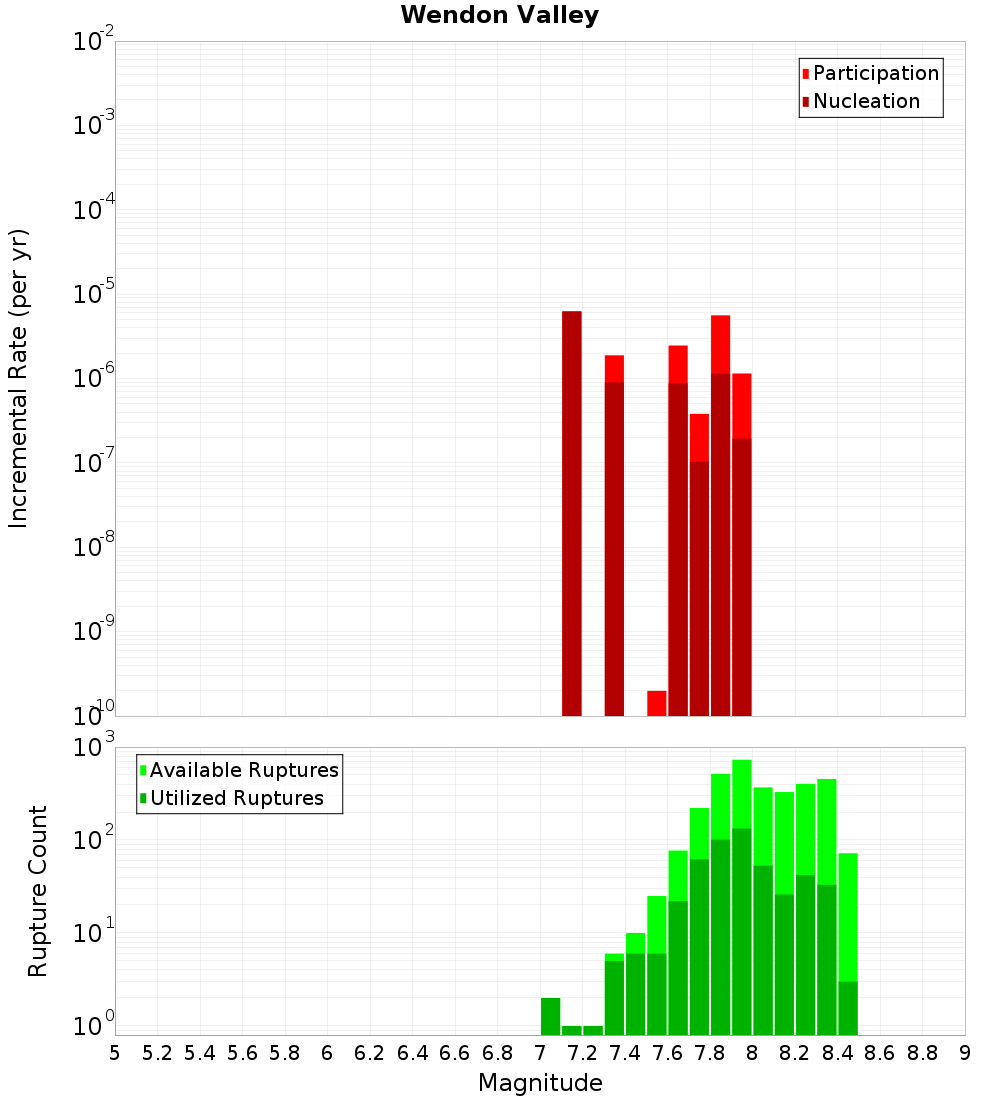

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

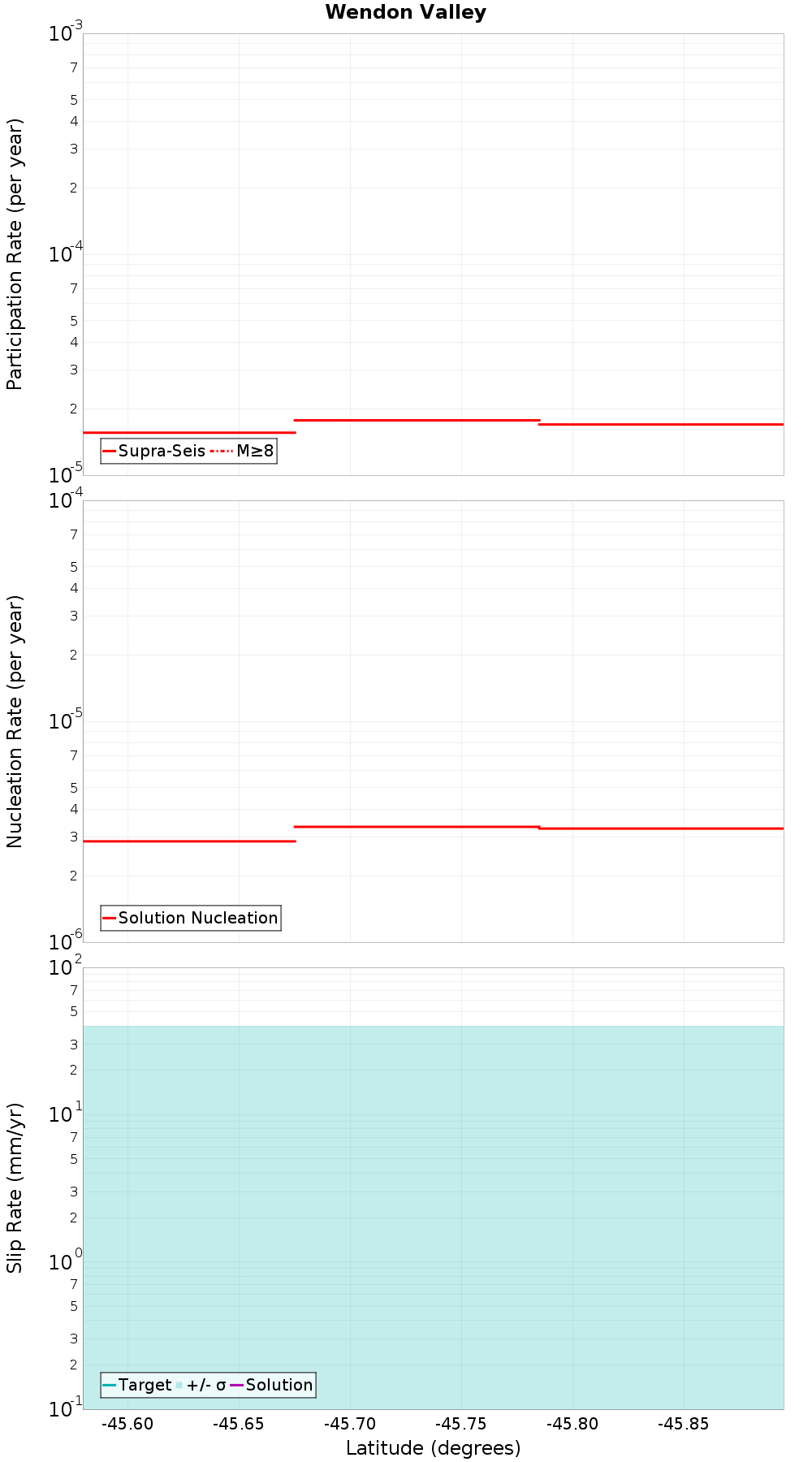

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Teviot, 0.18 km away
Waikaka, 0.19 km away
Old Man, 0.27 km away
Waikaia, 3.01 km away
Spylaw, 3.67 km away
Garvie, 5.65 km away
Roaring Lion, 9.71 km away
Backbone, 10.78 km away
Lake Onslow, 11.68 km away
Beacon Hill, 13.85 km away

Teviot, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMGN3d05l
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate2.7655443E-14

Waikaka, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMGN3d05l
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate3.171253E-15

Old Man, 0.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMGN3d05l
Connected?true
Directly Connected?true
Co-rupture Count3,128
Co-rupture Rate1.3007178E-6

Waikaia, 3.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMGN3d05l
Connected?true
Directly Connected?true
Co-rupture Count394
Co-rupture Rate1.8841669E-6

Spylaw, 3.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMGN3d05l
Connected?true
Directly Connected?false
Co-rupture Count126
Co-rupture Rate2.7252662E-7

Garvie, 5.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMGN3d05l
Connected?true
Directly Connected?true
Co-rupture Count51
Co-rupture Rate8.197023E-6

Roaring Lion, 9.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMGN3d05l
Connected?true
Directly Connected?false
Co-rupture Count495
Co-rupture Rate1.3007108E-6

Backbone, 10.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMGN3d05l
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lake Onslow, 11.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMGN3d05l
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Beacon Hill, 13.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMGN3d05l
Connected?true
Directly Connected?true
Co-rupture Count510
Co-rupture Rate3.6964224E-7
