Waipukurau - Poukawa Details

PropertyValue
Rupture Count1,338
Ruptures Above Sect Min Mag1,333
Ruptures w/ Nonzero Rates92
Magnitude Range[6.88, 8.23]
Length Range[19, 408] km
Total Rate6.5432617E-4 /yr
Multi-Fault Rate4.4877303E-4 /yr (68.59%)
Directly-Connected Faults5
All Co-Rupturing Faults45

Table Of Contents

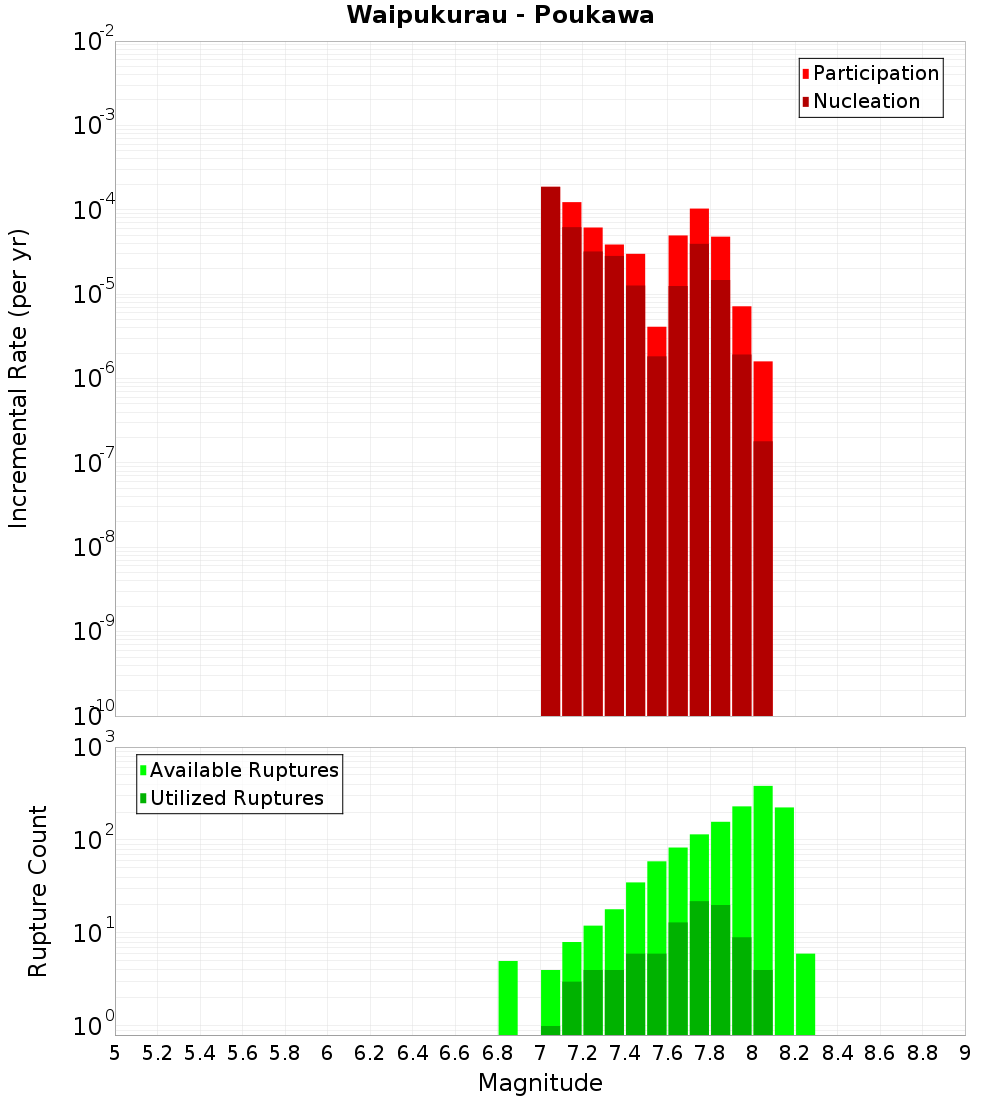

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Awanui, 0 km away
Clear Hills - Waikopiro, 0.34 km away
Oruawharo - Mangatoro, 3.21 km away
Tukituki Thrust, 3.57 km away
Te Heka, 5.65 km away
Ruataniwha, 13.21 km away

Awanui, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMHFSaXd2
Connected?true
Directly Connected?true
Co-rupture Count1,110
Co-rupture Rate1.876968E-4

Clear Hills - Waikopiro, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMHFSaXd2
Connected?true
Directly Connected?true
Co-rupture Count464
Co-rupture Rate3.567755E-5

Oruawharo - Mangatoro, 3.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMHFSaXd2
Connected?true
Directly Connected?true
Co-rupture Count464
Co-rupture Rate1.14029746E-4

Tukituki Thrust, 3.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMHFSaXd2
Connected?true
Directly Connected?true
Co-rupture Count39
Co-rupture Rate1.7755655E-4

Te Heka, 5.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMHFSaXd2
Connected?true
Directly Connected?true
Co-rupture Count138
Co-rupture Rate2.0330617E-5

Ruataniwha, 13.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzODQuMHFSaXd2
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate4.6735518E-6
