Hope: Hanmer NW Details

PropertyValue
Rupture Count5,509
Ruptures Above Sect Min Mag5,506
Ruptures w/ Nonzero Rates4,765
Magnitude Range[6.53, 8.42]
Length Range[12, 946] km
Total Rate0.0027535125 /yr
Multi-Fault Rate0.0027535125 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults197

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

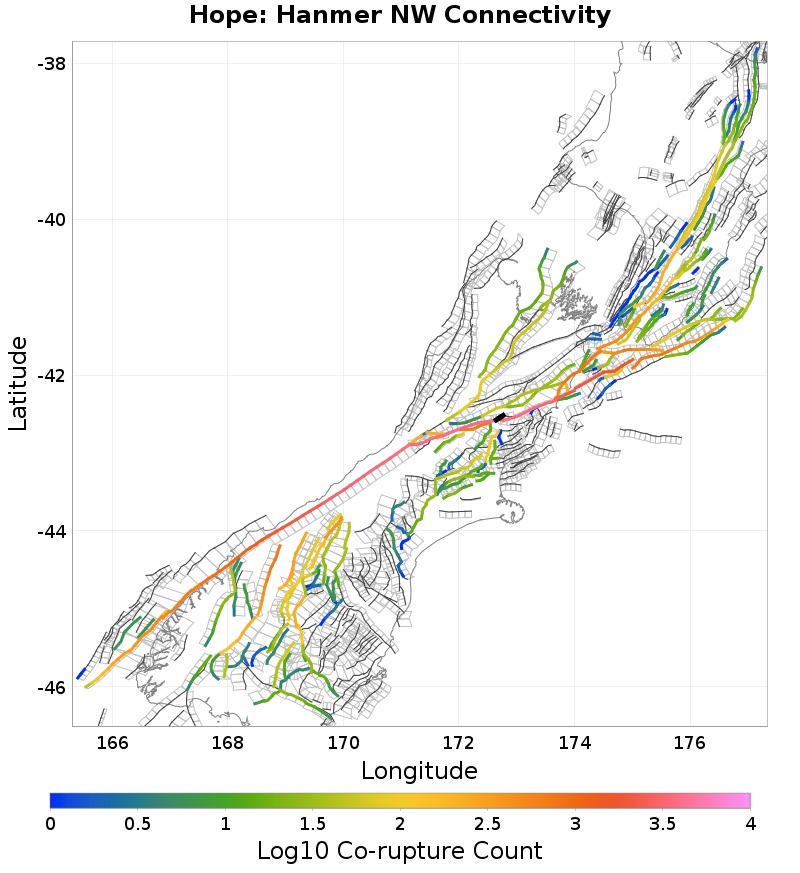

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hope: Kakapo-2-Hamner, 0 km away
Hope: Hamner SW, 0 km away
Hope: Hamner SE, 0.15 km away
Hanmer, 0.2 km away
Hope: Hope River, 6.3 km away
Kakapo, 6.3 km away
Esk North, 9.97 km away
Hurunui Peak, 10.96 km away
Clarence: Southwest, 12.23 km away
Elliott, 12.52 km away
Balmoral, 12.75 km away
Hope: Conway, 12.84 km away
Clarence: Central, 13.28 km away
Mt Culverden, 14.84 km away

Hope: Kakapo-2-Hamner, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm
Connected?true
Directly Connected?false
Co-rupture Count4,428
Co-rupture Rate0.0010356852

Hope: Hamner SW, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm
Connected?true
Directly Connected?true
Co-rupture Count4,629
Co-rupture Rate0.0010941485

Hope: Hamner SE, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm
Connected?true
Directly Connected?true
Co-rupture Count3,706
Co-rupture Rate0.002506909

Hanmer, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hope River, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm
Connected?true
Directly Connected?false
Co-rupture Count3,621
Co-rupture Rate9.613299E-4

Kakapo, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm
Connected?true
Directly Connected?false
Co-rupture Count847
Co-rupture Rate7.434295E-5

Esk North, 9.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate4.0126383E-6

Hurunui Peak, 10.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm
Connected?true
Directly Connected?false
Co-rupture Count106
Co-rupture Rate2.2172221E-6

Clarence: Southwest, 12.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm
Connected?true
Directly Connected?false
Co-rupture Count58
Co-rupture Rate8.723981E-11

Elliott, 12.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm
Connected?true
Directly Connected?false
Co-rupture Count29
Co-rupture Rate4.2354313E-6

Balmoral, 12.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate1.4173722E-13

Hope: Conway, 12.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm
Connected?true
Directly Connected?false
Co-rupture Count3,633
Co-rupture Rate0.0024255563

Clarence: Central, 13.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm
Connected?true
Directly Connected?false
Co-rupture Count37
Co-rupture Rate2.490117E-11

Mt Culverden, 14.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
