Hope: Hurunui Details

PropertyValue
Rupture Count31,188
Ruptures Above Sect Min Mag31,187
Ruptures w/ Nonzero Rates23,991
Magnitude Range[6.63, 8.46]
Length Range[14, 973] km
Total Rate0.0039803386 /yr
Multi-Fault Rate0.0039803386 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults168

Table Of Contents

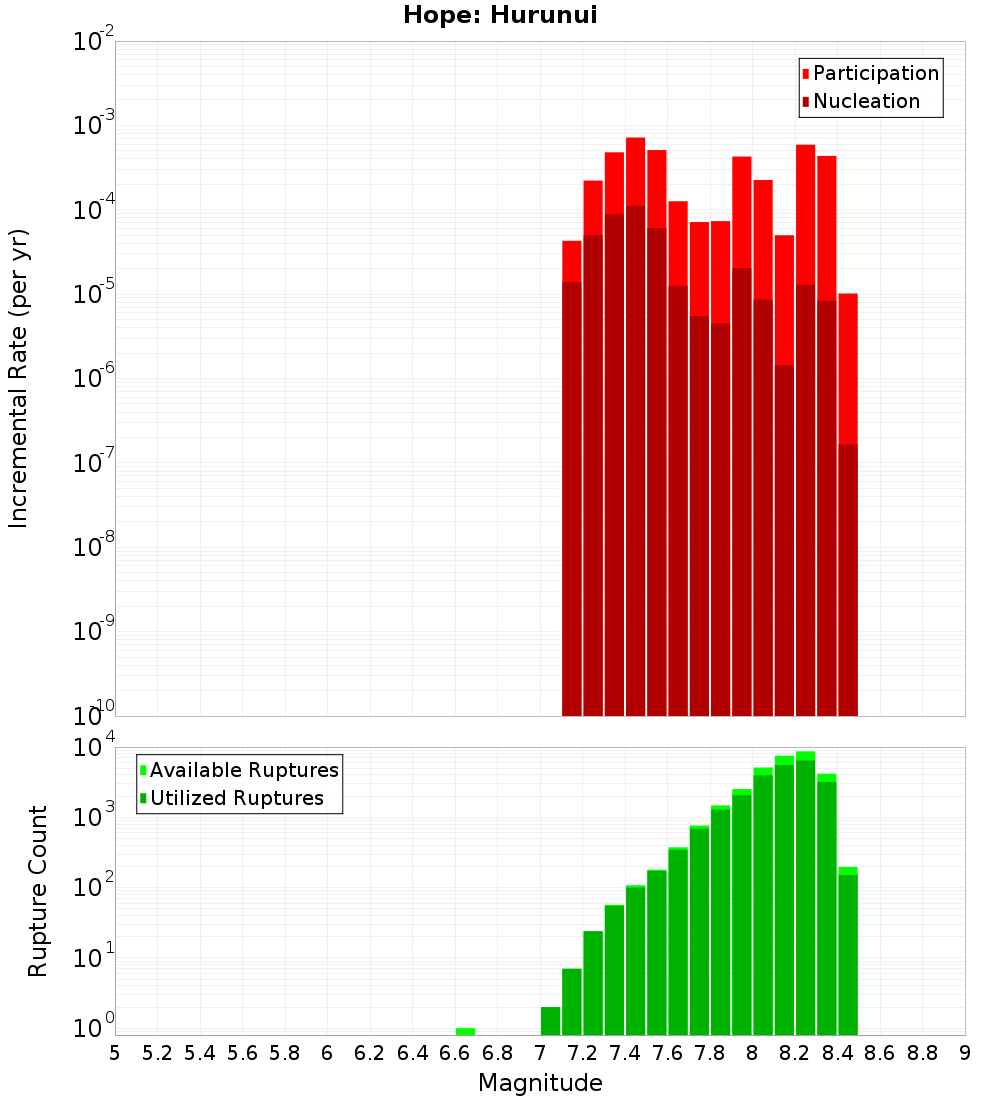

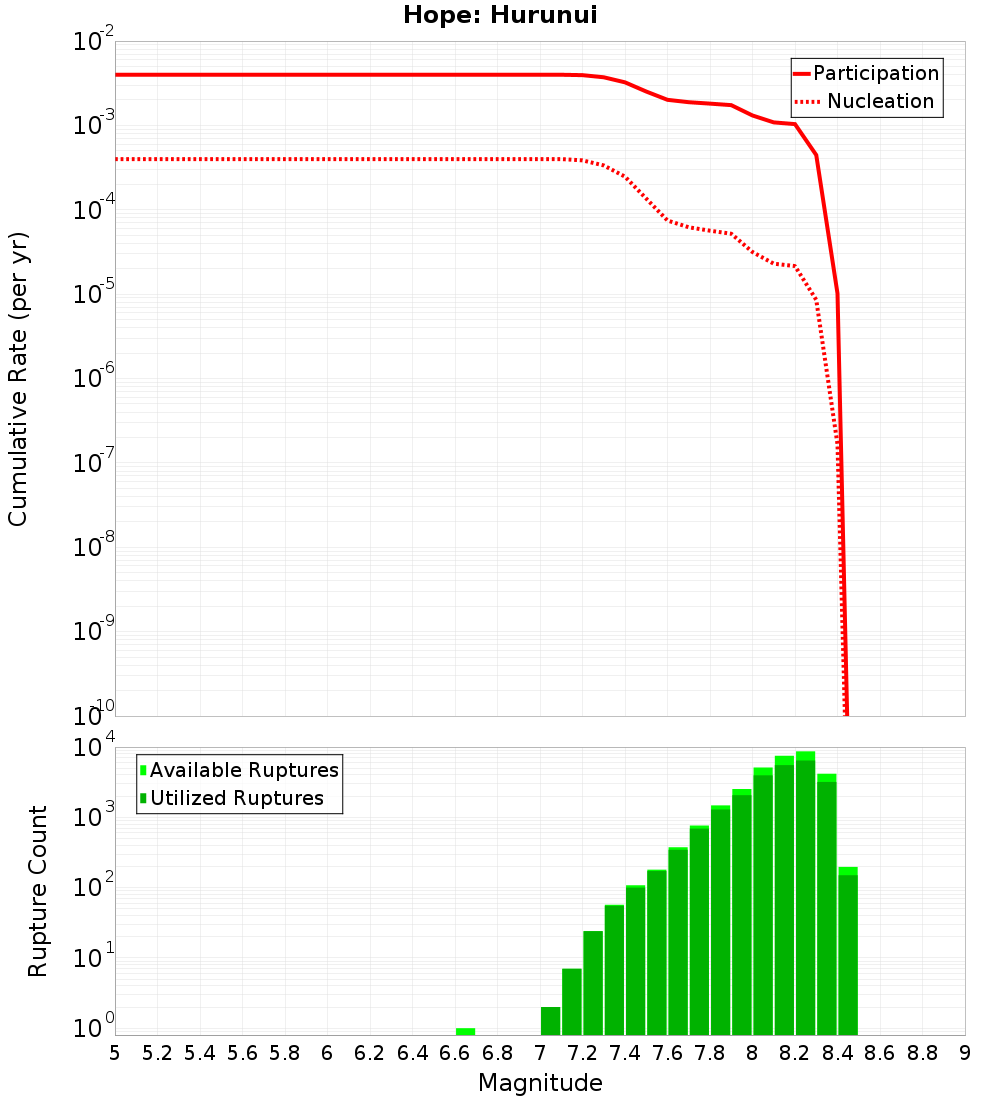

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kakapo, 0 km away
Hope: Taramakau, 0 km away
Kelly, 0 km away
Hope: Hope River, 0 km away
Alpine: Kaniere to Springs Junction, 0.19 km away
Poulter, 7.27 km away
Clarence: Southwest, 8.29 km away

Kakapo, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm
Connected?true
Directly Connected?true
Co-rupture Count6,997
Co-rupture Rate0.0013283615

Hope: Taramakau, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm
Connected?true
Directly Connected?false
Co-rupture Count1,721
Co-rupture Rate0.0011898077

Kelly, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm
Connected?true
Directly Connected?true
Co-rupture Count29,970
Co-rupture Rate0.0034221448

Hope: Hope River, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm
Connected?true
Directly Connected?true
Co-rupture Count23,914
Co-rupture Rate0.0029798483

Alpine: Kaniere to Springs Junction, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm
Connected?true
Directly Connected?true
Co-rupture Count11,548
Co-rupture Rate0.001277711

Poulter, 7.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm
Connected?true
Directly Connected?false
Co-rupture Count52
Co-rupture Rate1.062039E-11

Clarence: Southwest, 8.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm
Connected?true
Directly Connected?false
Co-rupture Count8,724
Co-rupture Rate5.9624197E-4
