Pisa Details
| Property | Value |
|---|---|
| Rupture Count | 49,572 |
| Ruptures Above Sect Min Mag | 49,571 |
| Ruptures w/ Nonzero Rates | 28,754 |
| Magnitude Range | [7.14, 8.52] |
| Length Range | [32, 963] km |
| Total Rate | 3.9690796E-5 /yr |
| Multi-Fault Rate | 3.9690793E-5 /yr (100.00%) |
| Directly-Connected Faults | 10 |
| All Co-Rupturing Faults | 89 |
Table Of Contents

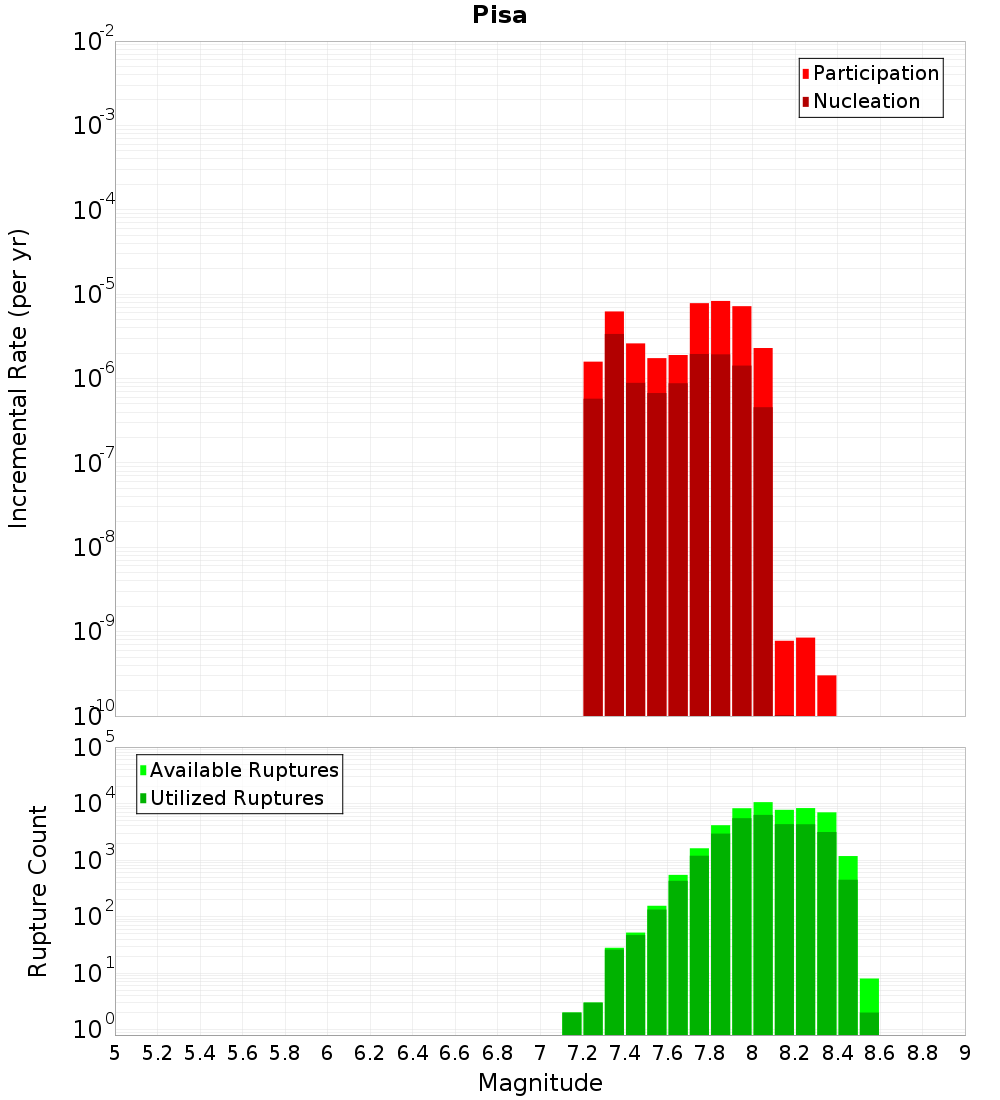

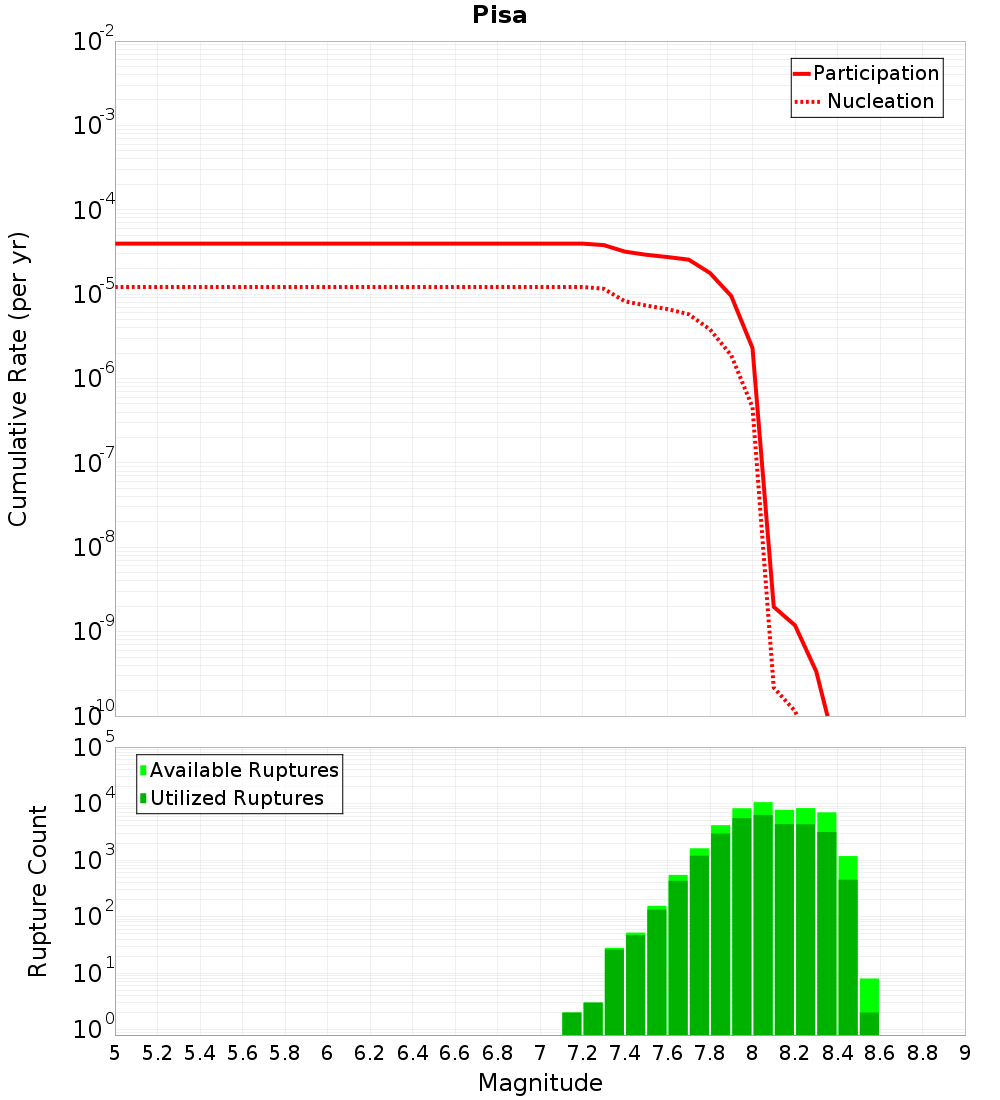

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

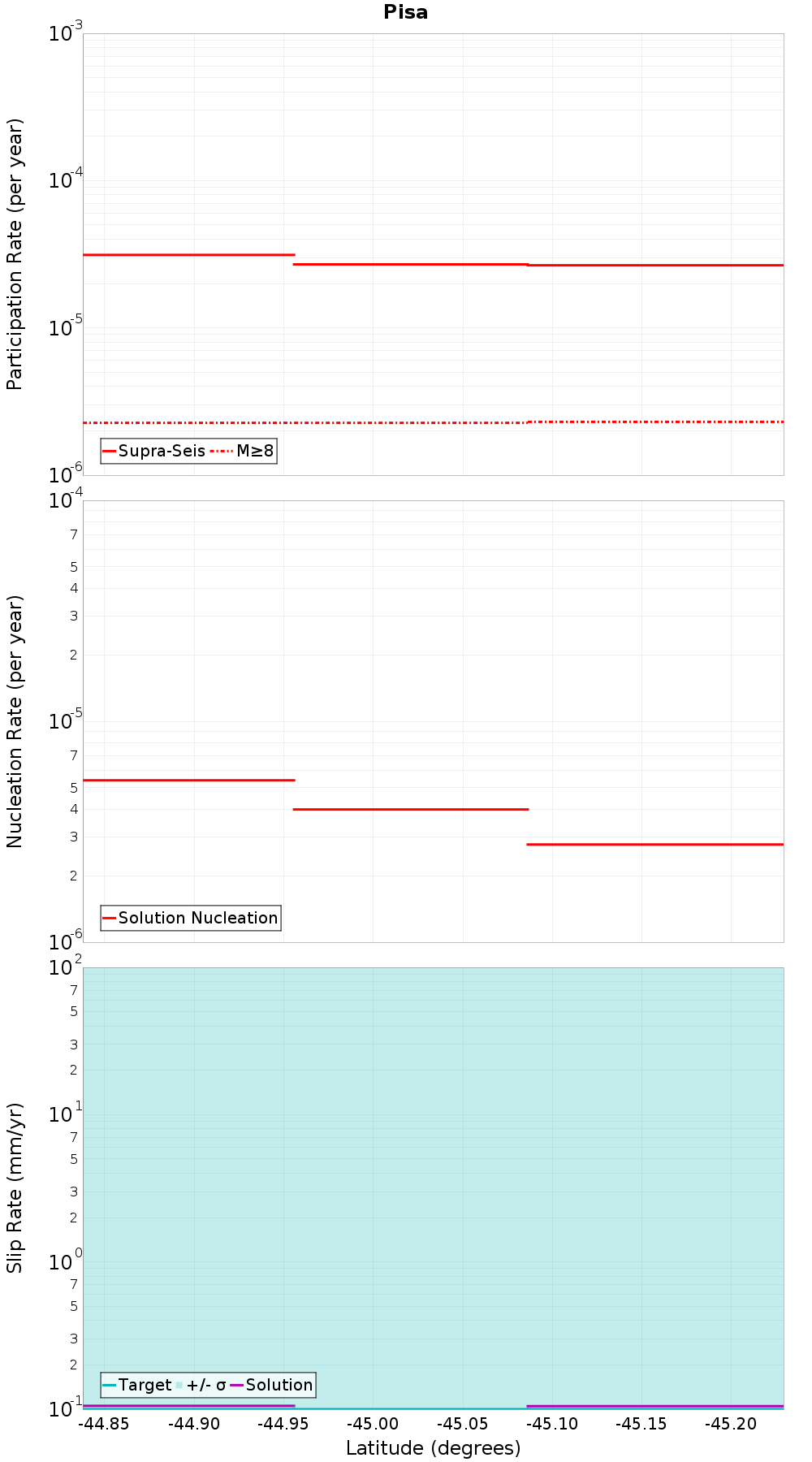

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Motatapu, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 27,303 |
| Co-rupture Rate | 2.8478473E-5 |
Roaring Meg, 0.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 10,705 |
| Co-rupture Rate | 1.1966734E-5 |
Paddys Ridge, 0.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,759 |
| Co-rupture Rate | 3.7889897E-10 |
Roaring Lion, 0.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 16,574 |
| Co-rupture Rate | 1.2508501E-5 |
Grandview, 1.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7,727 |
| Co-rupture Rate | 1.4244376E-9 |
Old Man, 1.75 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 20,623 |
| Co-rupture Rate | 2.0880725E-6 |
Cluden, 1.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,465 |
| Co-rupture Rate | 5.5603E-6 |
Dunstan, 4.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 454 |
| Co-rupture Rate | 2.3787786E-8 |
NW Cardrona South, 5.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5,891 |
| Co-rupture Rate | 1.1895783E-6 |
Goodger, 7.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,505 |
| Co-rupture Rate | 1.6903114E-8 |
Galloway, 7.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Garvie, 8.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7,567 |
| Co-rupture Rate | 1.1845636E-5 |
NW Cardrona North, 9.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 10,821 |
| Co-rupture Rate | 9.86727E-6 |
Nevis, 9.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3,810 |
| Co-rupture Rate | 1.1534336E-6 |
Lindis River, 12.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 409 |
| Co-rupture Rate | 2.5085143E-9 |
Cardrona - Hawea, 13.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkzOTMuMEpCUlhm | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 9,171 |
| Co-rupture Rate | 5.19554E-6 |
