Darran Details

Property	Value
Rupture Count	4,648
Ruptures Above Sect Min Mag	4,643
Ruptures w/ Nonzero Rates	33
Magnitude Range	[6.74, 8.41]
Length Range	[18, 837] km
Total Rate	2.2857316E-4 /yr
Multi-Fault Rate	2.2857316E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	67

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

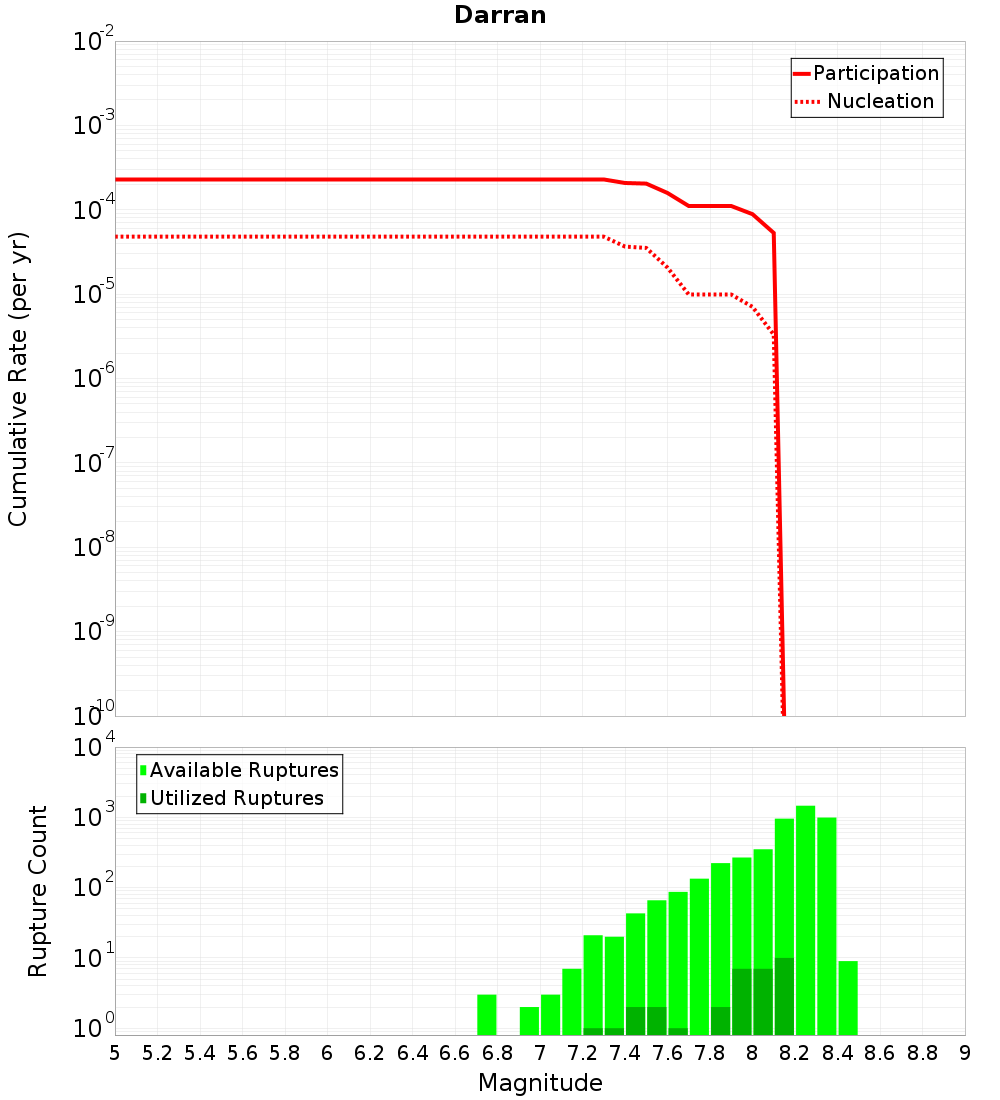

Magnitude-Frequency Distribution

Incremental	Cumulative

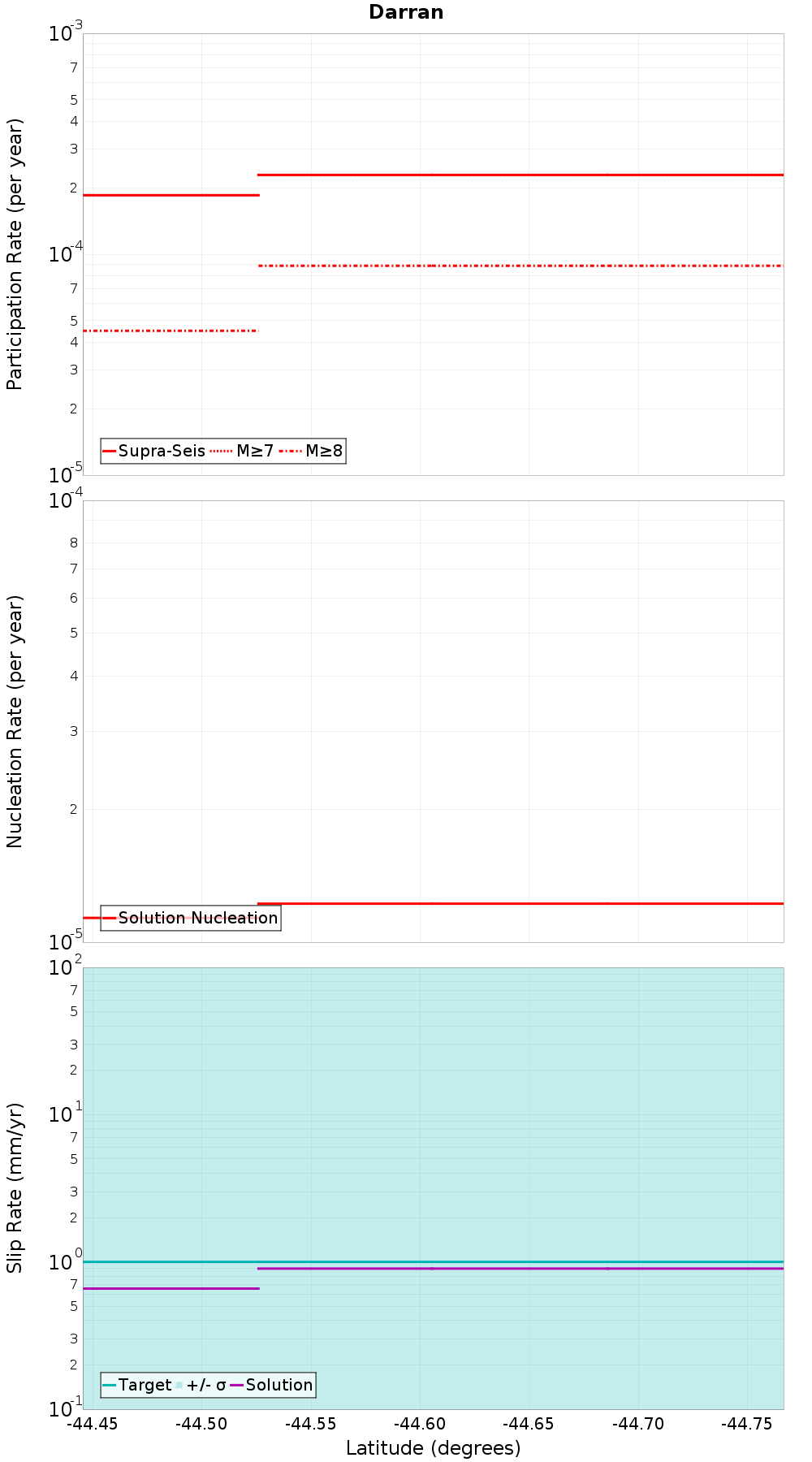

Along-Strike Values

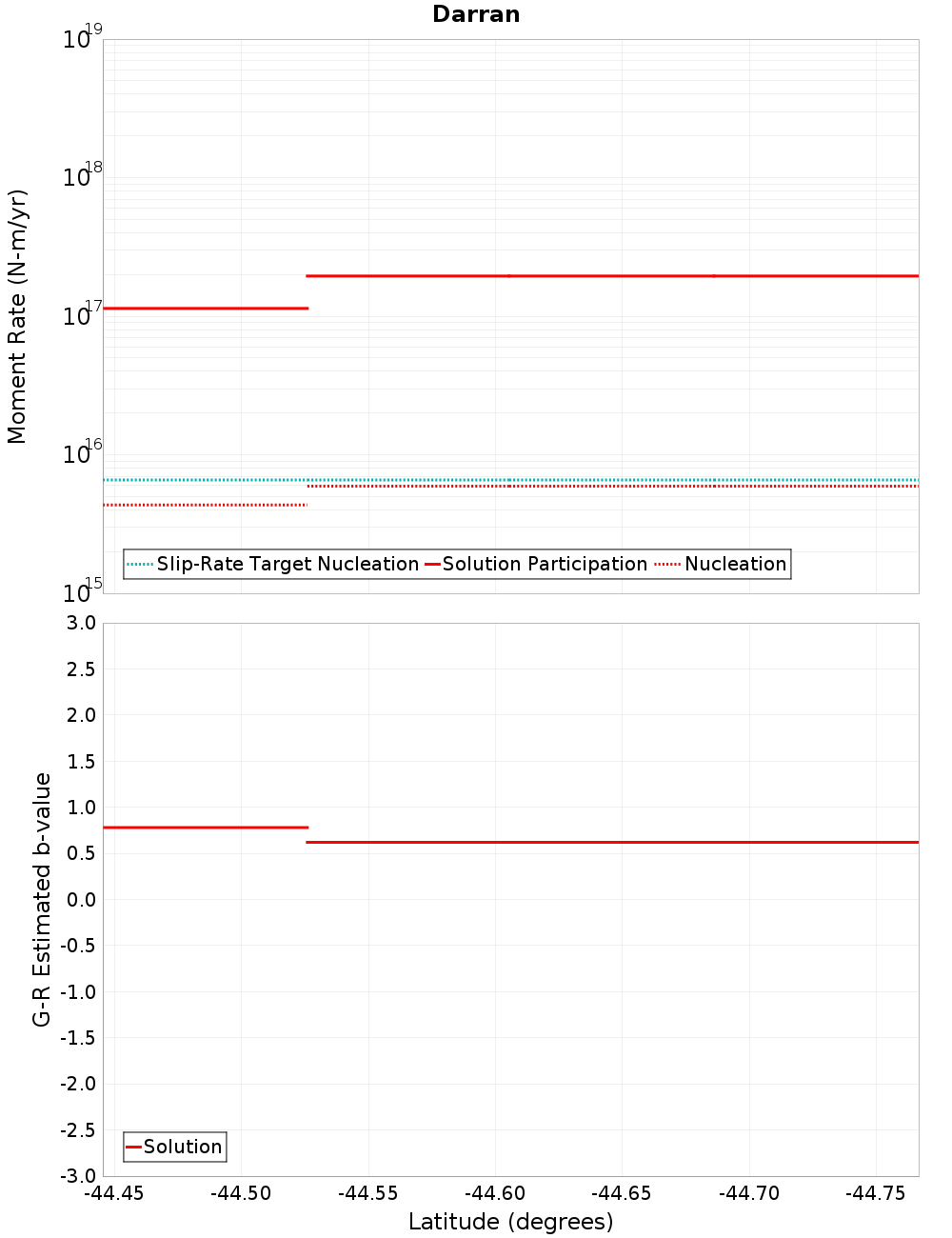

Moment-Rates and b-Values

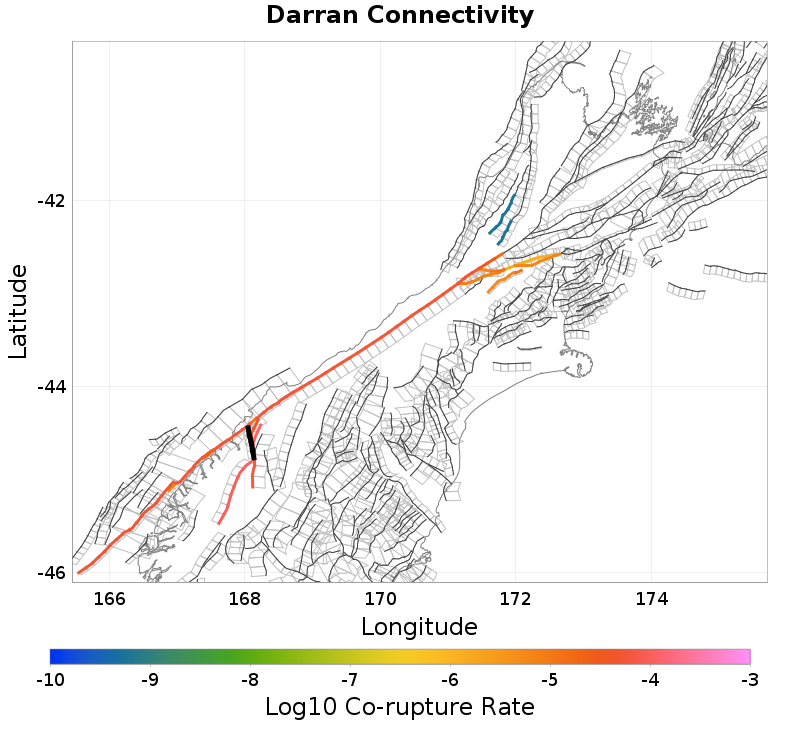

Connectivity

Nearby Sections

Fault Section
Hollyford, 0.22 km away
Alpine: George to Jacksons, 0.26 km away
Madagascar, 0.27 km away
Livingstone, 0.78 km away
Skippers, 0.83 km away
Te Anau, 4.51 km away
West Wakatipu, 12.9 km away

Hollyford, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MDEuMFlLcHl3
Connected?	true
Directly Connected?	true
Co-rupture Count	12
Co-rupture Rate	1.17833006E-4

Alpine: George to Jacksons, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MDEuMFlLcHl3
Connected?	true
Directly Connected?	true
Co-rupture Count	4,598
Co-rupture Rate	1.10740155E-4

Madagascar, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MDEuMFlLcHl3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Livingstone, 0.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MDEuMFlLcHl3
Connected?	true
Directly Connected?	true
Co-rupture Count	339
Co-rupture Rate	7.0725015E-5

Skippers, 0.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MDEuMFlLcHl3
Connected?	true
Directly Connected?	true
Co-rupture Count	194
Co-rupture Rate	4.361603E-5

Te Anau, 4.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MDEuMFlLcHl3
Connected?	true
Directly Connected?	true
Co-rupture Count	2,763
Co-rupture Rate	1.0925004E-4

West Wakatipu, 12.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MDEuMFlLcHl3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
