Raukumara 21 Details

Property	Value
Rupture Count	29
Ruptures Above Sect Min Mag	29
Ruptures w/ Nonzero Rates	2
Magnitude Range	[6.96, 8.27]
Length Range	[19, 469] km
Total Rate	1.8199624E-5 /yr
Multi-Fault Rate	1.8199624E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	15

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

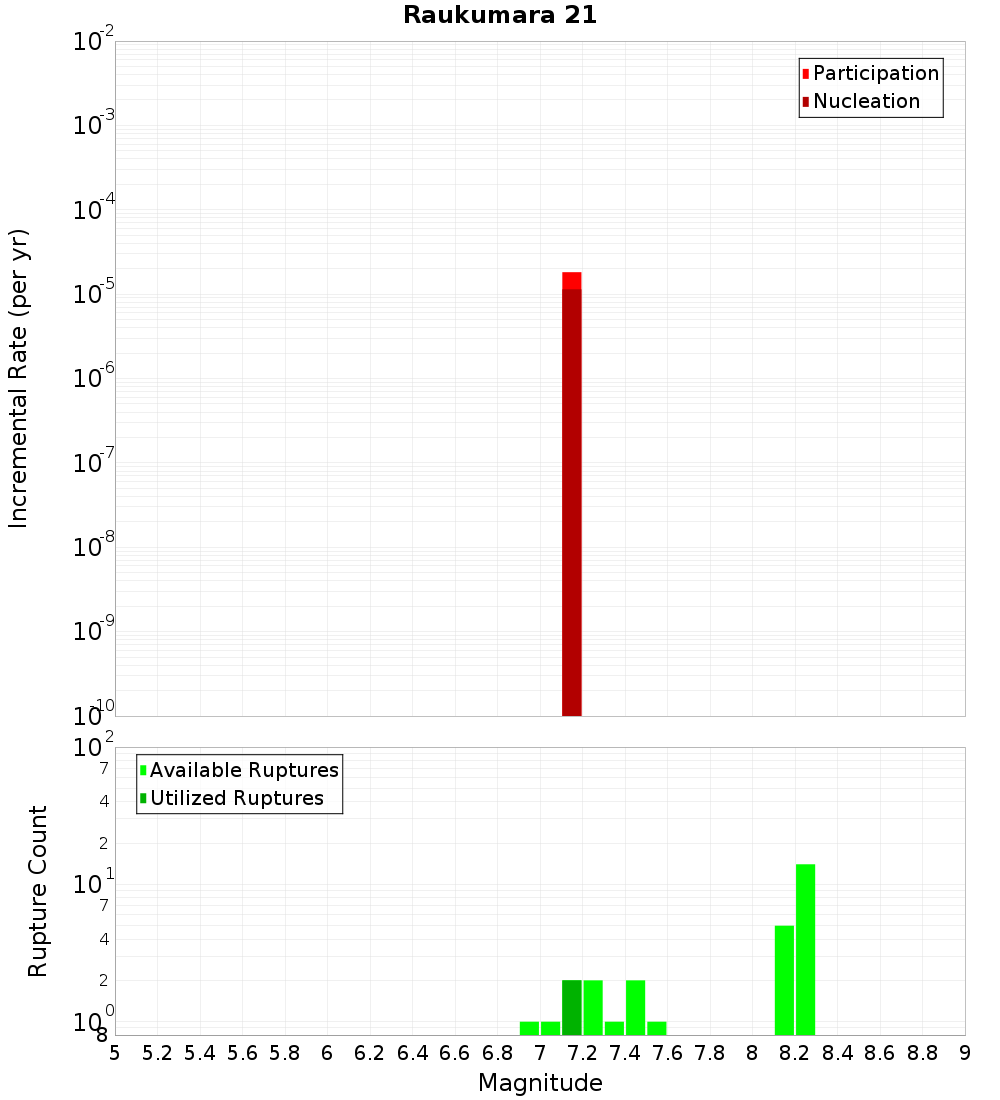

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

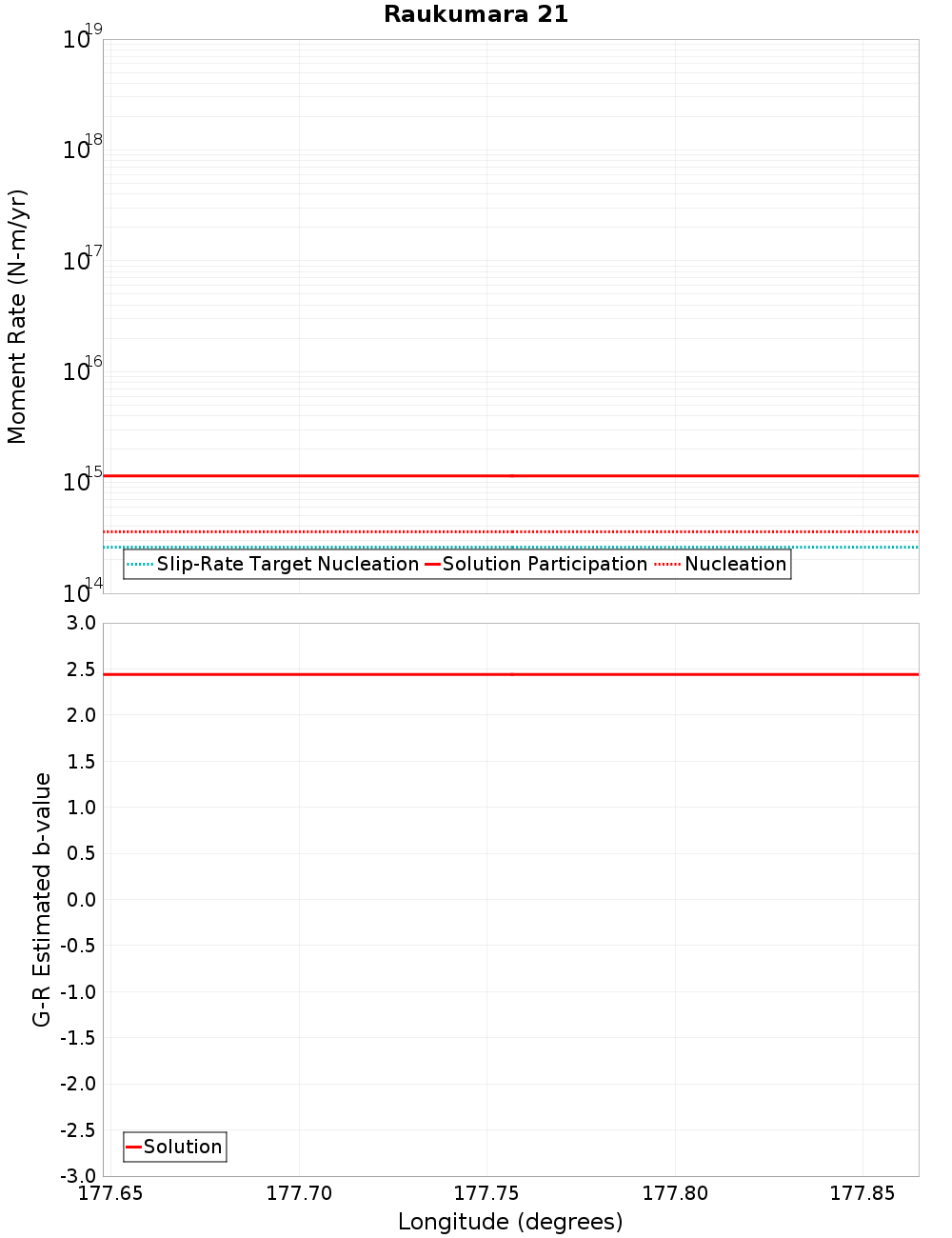

Moment-Rates and b-Values

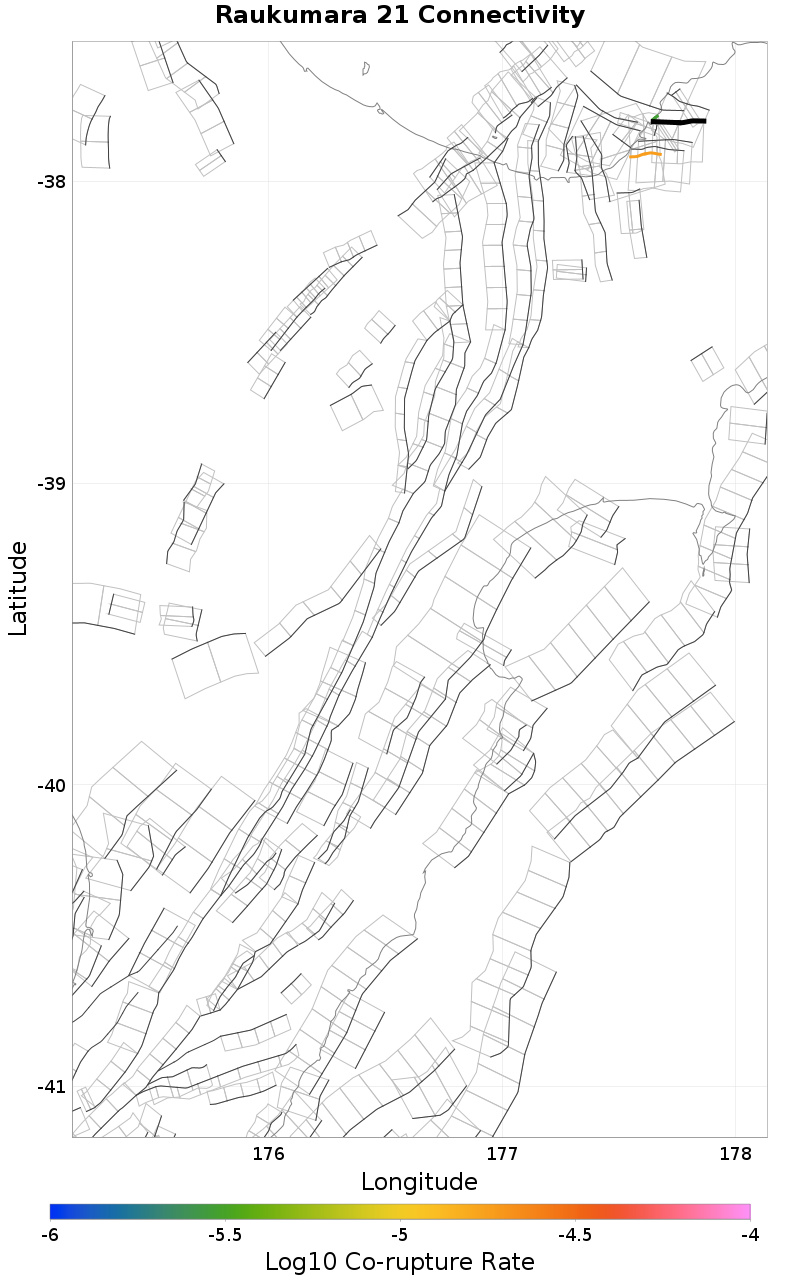

Connectivity

Nearby Sections

Fault Section
Raukumara 20, 0.1 km away
Opape 1, 0.21 km away
Raukumara 17, 0.34 km away
Raukumara 25, 0.91 km away
Kereu, 3.81 km away
Hariki, 4.31 km away
Motu River, 5.46 km away
Ohae 3, 5.47 km away
Ohae 2, 5.73 km away
Ohae 1, 5.94 km away
Raukumara 18, 7.91 km away
Raukumara 24, 9.15 km away

Raukumara 20, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MDMuMFBySGdD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Opape 1, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MDMuMFBySGdD
Connected?	true
Directly Connected?	true
Co-rupture Count	22
Co-rupture Rate	0.0

Raukumara 17, 0.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MDMuMFBySGdD
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	1.8199624E-5

Raukumara 25, 0.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MDMuMFBySGdD
Connected?	true
Directly Connected?	true
Co-rupture Count	5
Co-rupture Rate	2.9029693E-6

Kereu, 3.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MDMuMFBySGdD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hariki, 4.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MDMuMFBySGdD
Connected?	true
Directly Connected?	true
Co-rupture Count	1
Co-rupture Rate	0.0

Motu River, 5.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MDMuMFBySGdD
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Ohae 3, 5.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MDMuMFBySGdD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohae 2, 5.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MDMuMFBySGdD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohae 1, 5.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MDMuMFBySGdD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Raukumara 18, 7.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MDMuMFBySGdD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Raukumara 24, 9.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MDMuMFBySGdD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
