Waikuku Details

PropertyValue
Rupture Count581
Ruptures Above Sect Min Mag574
Ruptures w/ Nonzero Rates28
Magnitude Range[6.59, 8.04]
Length Range[14, 311] km
Total Rate4.6479316E-5 /yr
Multi-Fault Rate4.6479316E-5 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults29

Table Of Contents

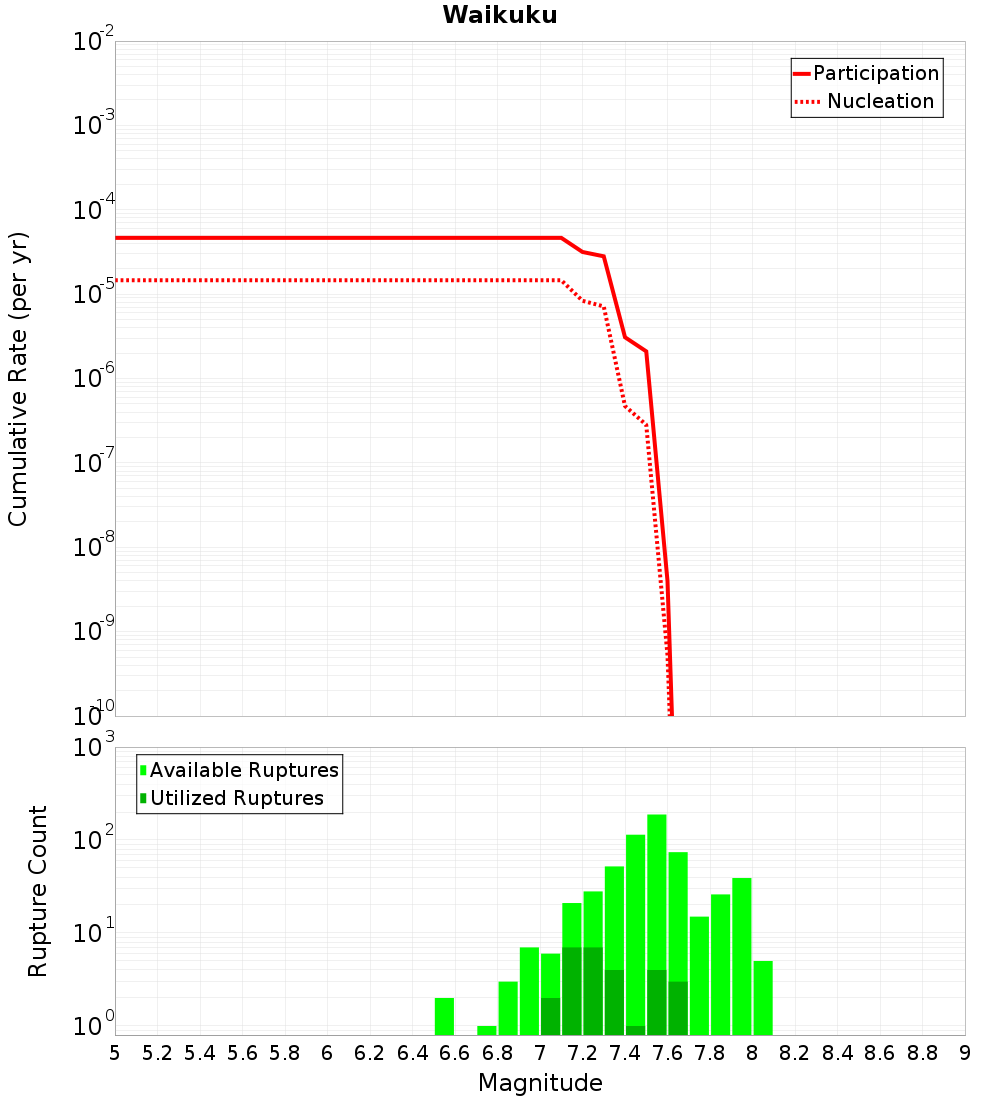

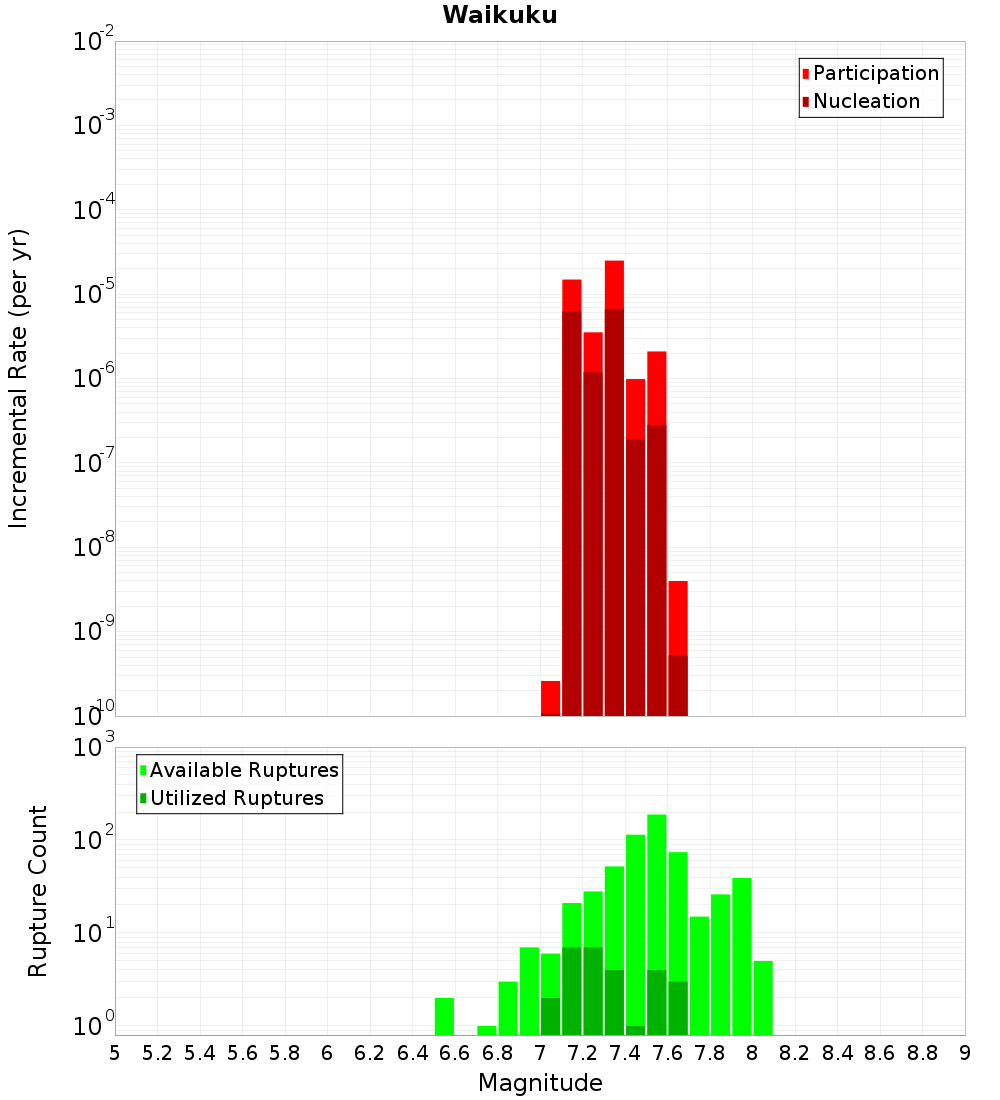

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

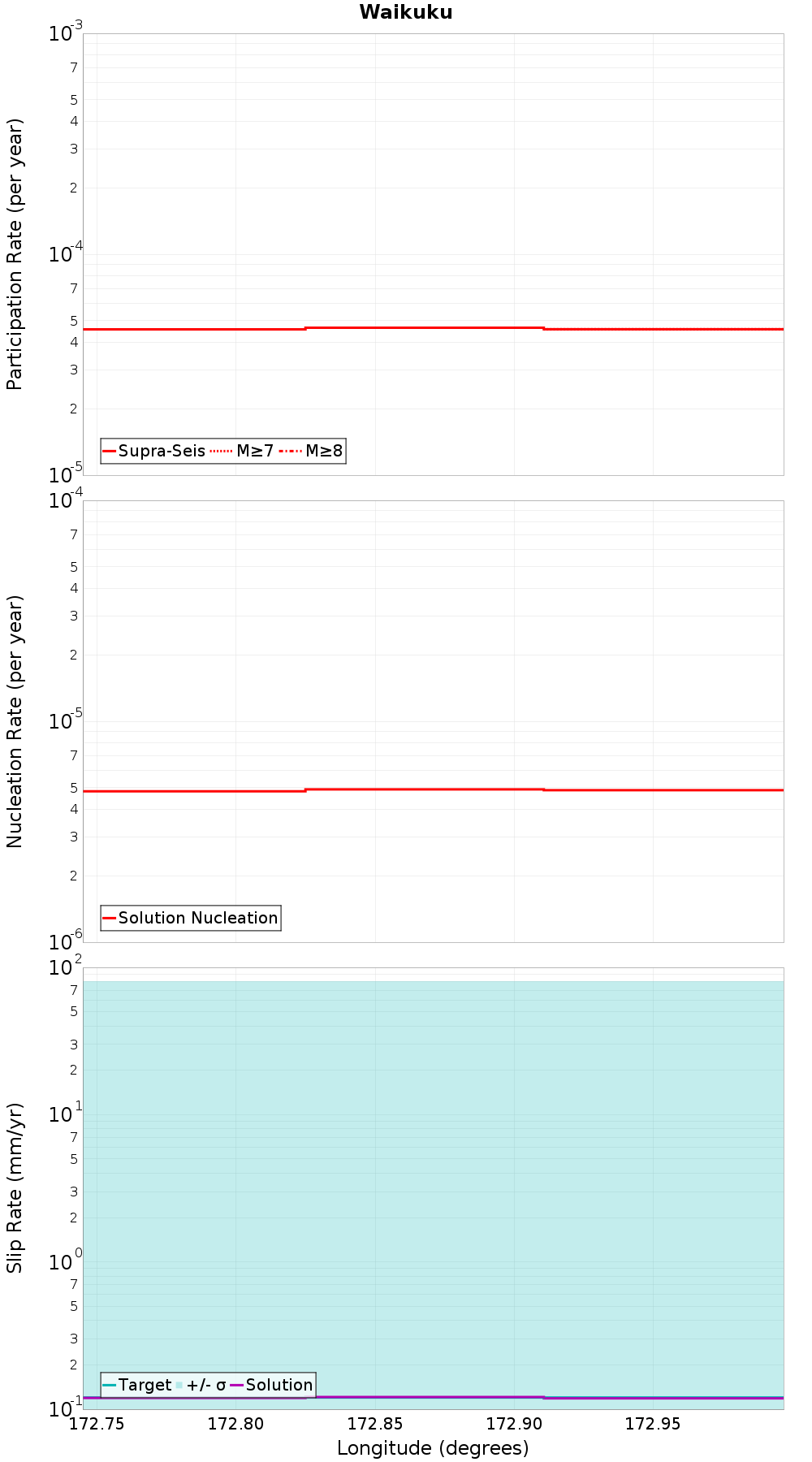

Along-Strike Values

(top)

Along-strike plot

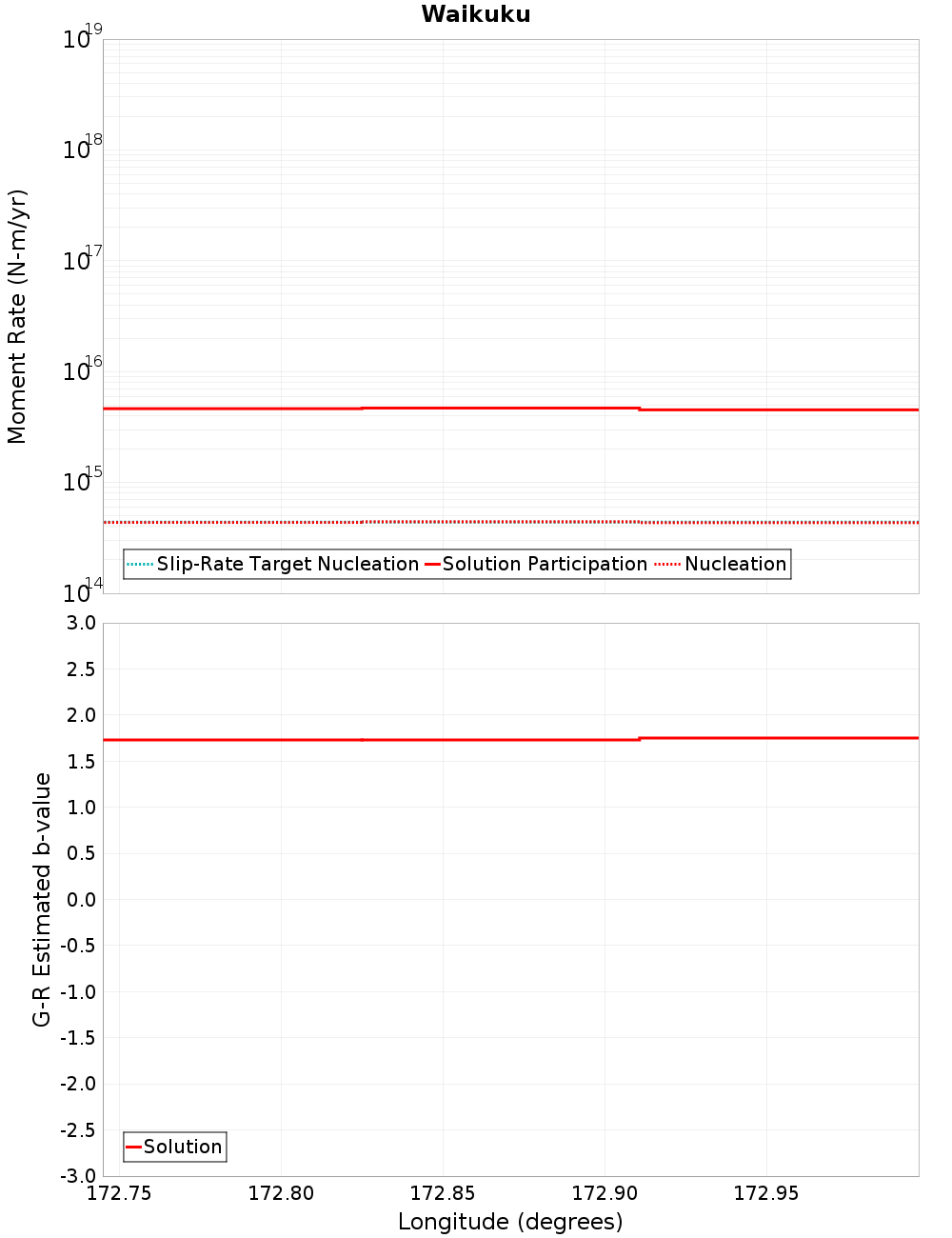

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pegasus Bay, 3.19 km away
Leithfield - NCVI - NCVII, 4.07 km away
North Canterbury Shelf 2, 4.61 km away
North Canterbury Shelf 4, 5.12 km away
Motunau, 9.01 km away
AmberBlyth, 9.2 km away
Starvation - Ashley, 11.22 km away
CenPeg1n2, 11.9 km away
OmihiLwrHuru, 14.73 km away

Pegasus Bay, 3.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MTYuMDJKUXFh
Connected?true
Directly Connected?true
Co-rupture Count44
Co-rupture Rate1.4057439E-5

Leithfield - NCVI - NCVII, 4.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MTYuMDJKUXFh
Connected?true
Directly Connected?true
Co-rupture Count221
Co-rupture Rate2.6701373E-5

North Canterbury Shelf 2, 4.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MTYuMDJKUXFh
Connected?true
Directly Connected?true
Co-rupture Count96
Co-rupture Rate9.728655E-6

North Canterbury Shelf 4, 5.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MTYuMDJKUXFh
Connected?true
Directly Connected?true
Co-rupture Count124
Co-rupture Rate4.5093986E-9

Motunau, 9.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MTYuMDJKUXFh
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate5.0082517E-6

AmberBlyth, 9.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MTYuMDJKUXFh
Connected?true
Directly Connected?true
Co-rupture Count8
Co-rupture Rate7.073271E-7

Starvation - Ashley, 11.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MTYuMDJKUXFh
Connected?true
Directly Connected?true
Co-rupture Count474
Co-rupture Rate1.3895863E-6

CenPeg1n2, 11.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MTYuMDJKUXFh
Connected?true
Directly Connected?true
Co-rupture Count31
Co-rupture Rate3.9082595E-5

OmihiLwrHuru, 14.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MTYuMDJKUXFh
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0
