Springbank Details

Property	Value
Rupture Count	744
Ruptures Above Sect Min Mag	744
Ruptures w/ Nonzero Rates	21
Magnitude Range	[6.96, 8.16]
Length Range	[21, 380] km
Total Rate	3.8481183E-5 /yr
Multi-Fault Rate	3.8481183E-5 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	58

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

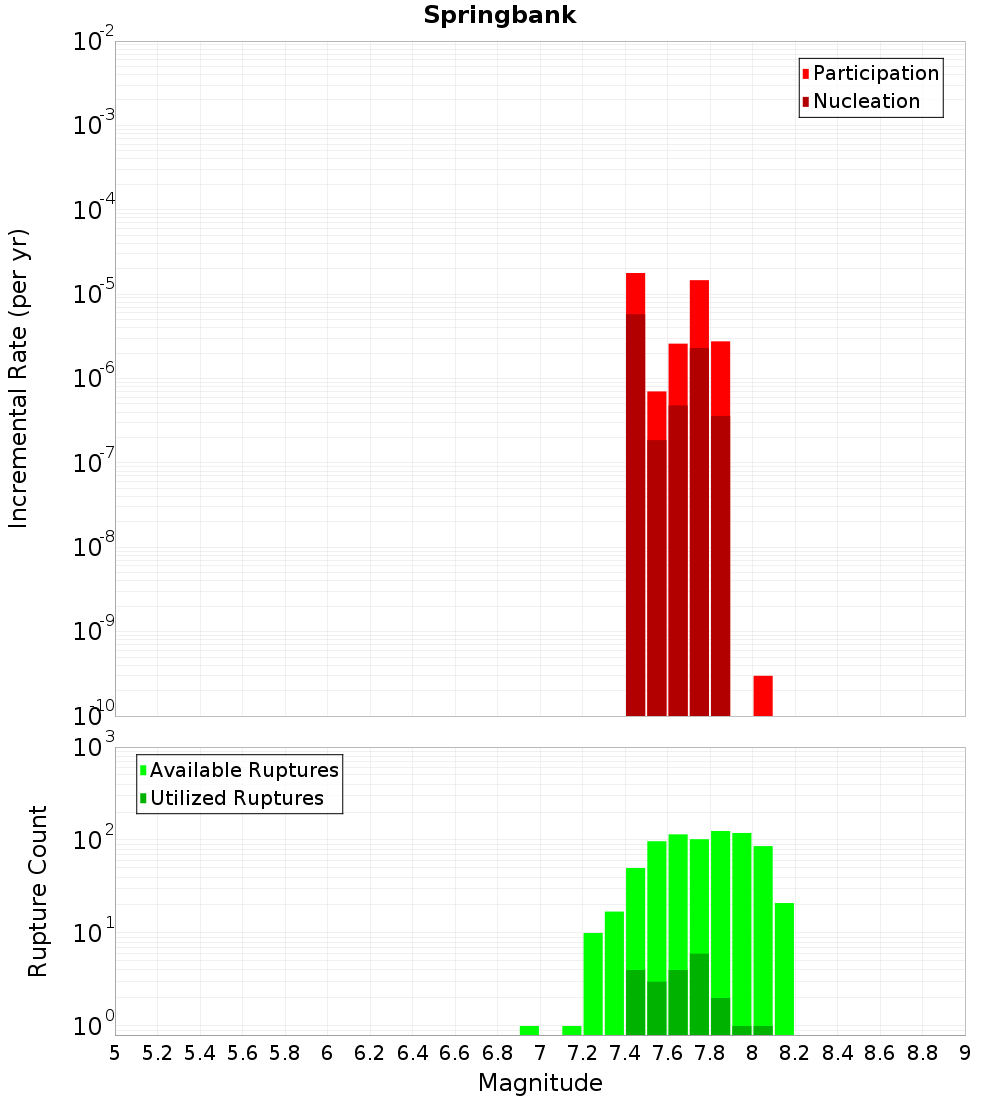

Magnitude-Frequency Distribution

Incremental	Cumulative

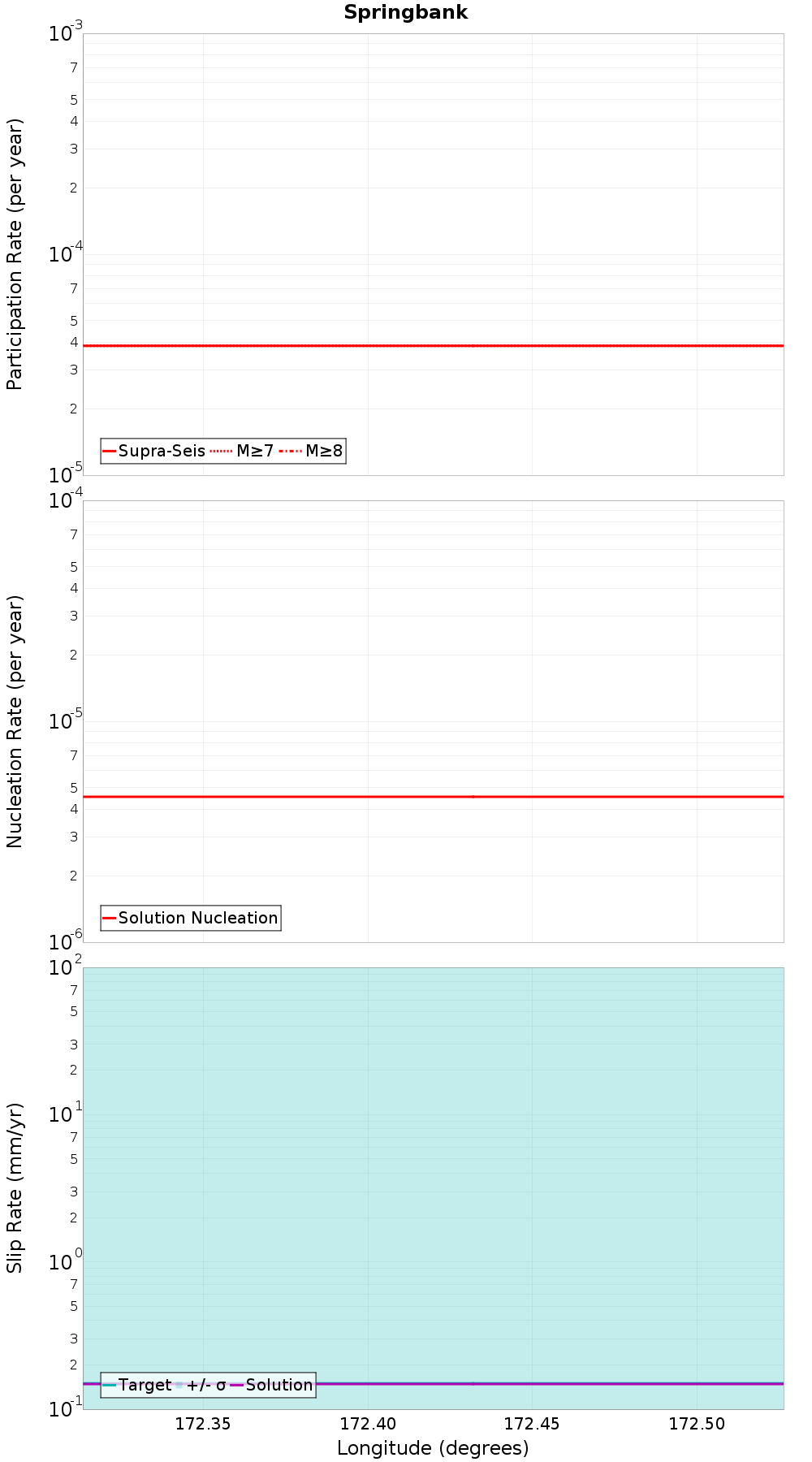

Along-Strike Values

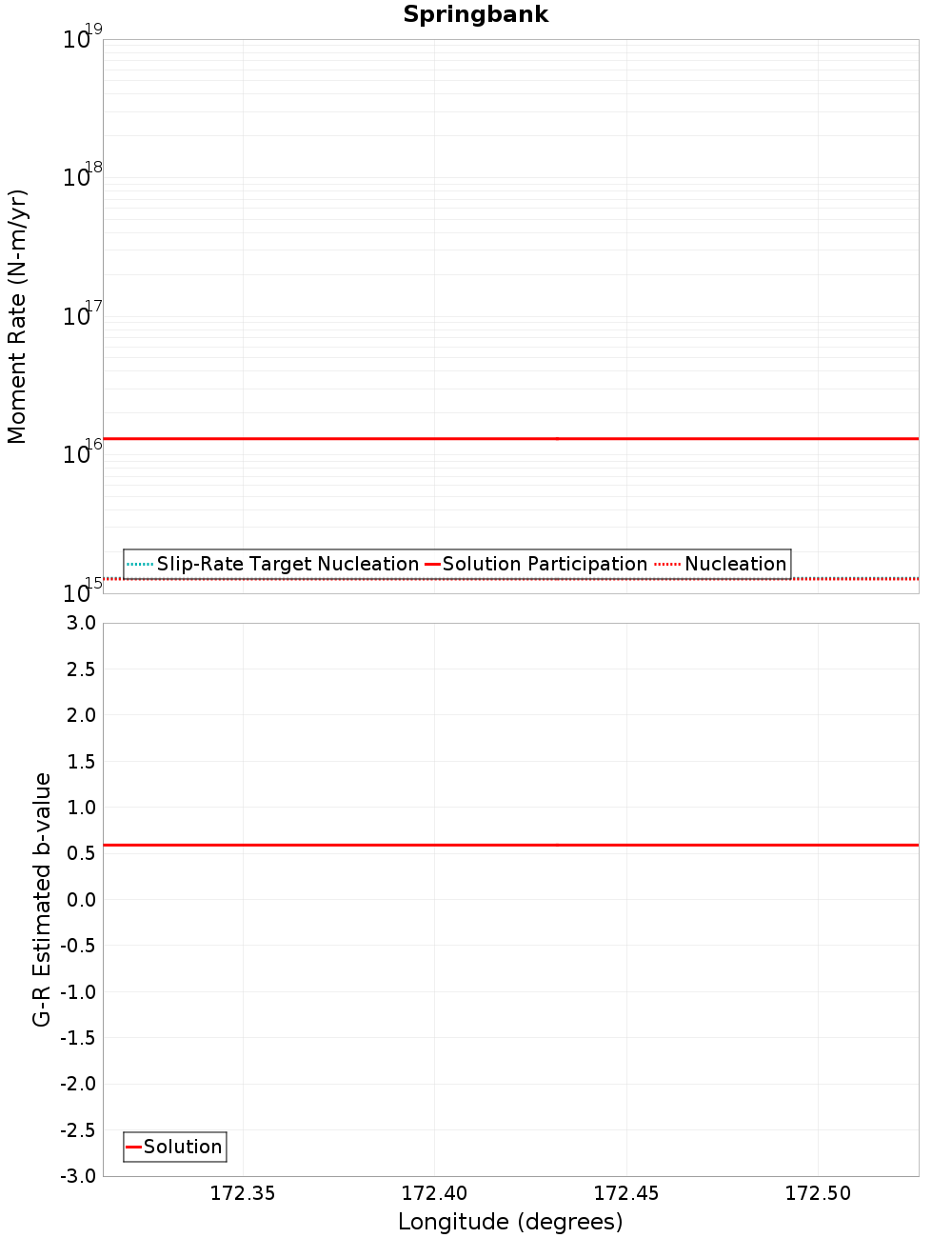

Moment-Rates and b-Values

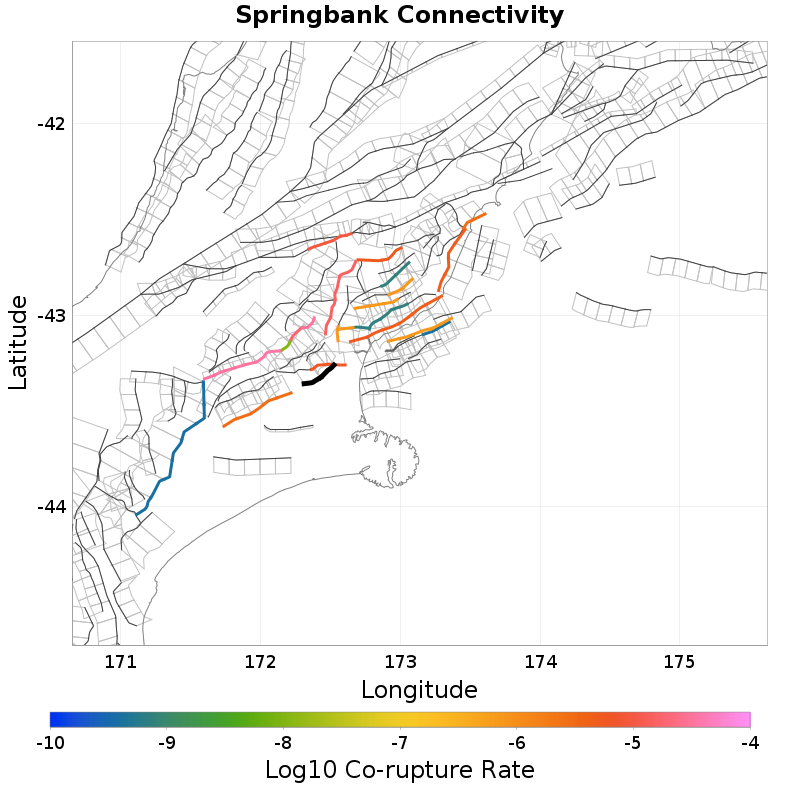

Connectivity

Nearby Sections

Fault Section
Pancake, 0.13 km away
Starvation - Ashley, 0.14 km away
Lees Valley, 0.24 km away
Mt Lawry, 0.46 km away
Esk South, 5.58 km away
Knowles Top, 8 km away
Hororata, 8.03 km away
Boby Stream, 9.36 km away
Kowai - View Hill, 10.45 km away
Mt Arden, 11.68 km away
Doctors, 12.28 km away
High Peak - Sheffield, 13.42 km away

Pancake, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MjUuMGZlSFc2
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Starvation - Ashley, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MjUuMGZlSFc2
Connected?	true
Directly Connected?	true
Co-rupture Count	338
Co-rupture Rate	6.0734947E-6

Lees Valley, 0.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MjUuMGZlSFc2
Connected?	true
Directly Connected?	true
Co-rupture Count	905
Co-rupture Rate	6.827697E-5

Mt Lawry, 0.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MjUuMGZlSFc2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Esk South, 5.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MjUuMGZlSFc2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Knowles Top, 8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MjUuMGZlSFc2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hororata, 8.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MjUuMGZlSFc2
Connected?	true
Directly Connected?	false
Co-rupture Count	194
Co-rupture Rate	2.7609972E-6

Boby Stream, 9.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MjUuMGZlSFc2
Connected?	true
Directly Connected?	false
Co-rupture Count	187
Co-rupture Rate	7.1176856E-7

Kowai - View Hill, 10.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MjUuMGZlSFc2
Connected?	true
Directly Connected?	false
Co-rupture Count	21
Co-rupture Rate	0.0

Mt Arden, 11.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MjUuMGZlSFc2
Connected?	true
Directly Connected?	false
Co-rupture Count	291
Co-rupture Rate	1.4614524E-5

Doctors, 12.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MjUuMGZlSFc2
Connected?	true
Directly Connected?	false
Co-rupture Count	105
Co-rupture Rate	7.110487E-7

High Peak - Sheffield, 13.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MjUuMGZlSFc2
Connected?	true
Directly Connected?	false
Co-rupture Count	45
Co-rupture Rate	0.0
