Tutaki Details

PropertyValue
Rupture Count11,804
Ruptures Above Sect Min Mag11,802
Ruptures w/ Nonzero Rates57
Magnitude Range[7.17, 8.66]
Length Range[24, 947] km
Total Rate4.8365615E-5 /yr
Multi-Fault Rate4.8365615E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults76

Table Of Contents

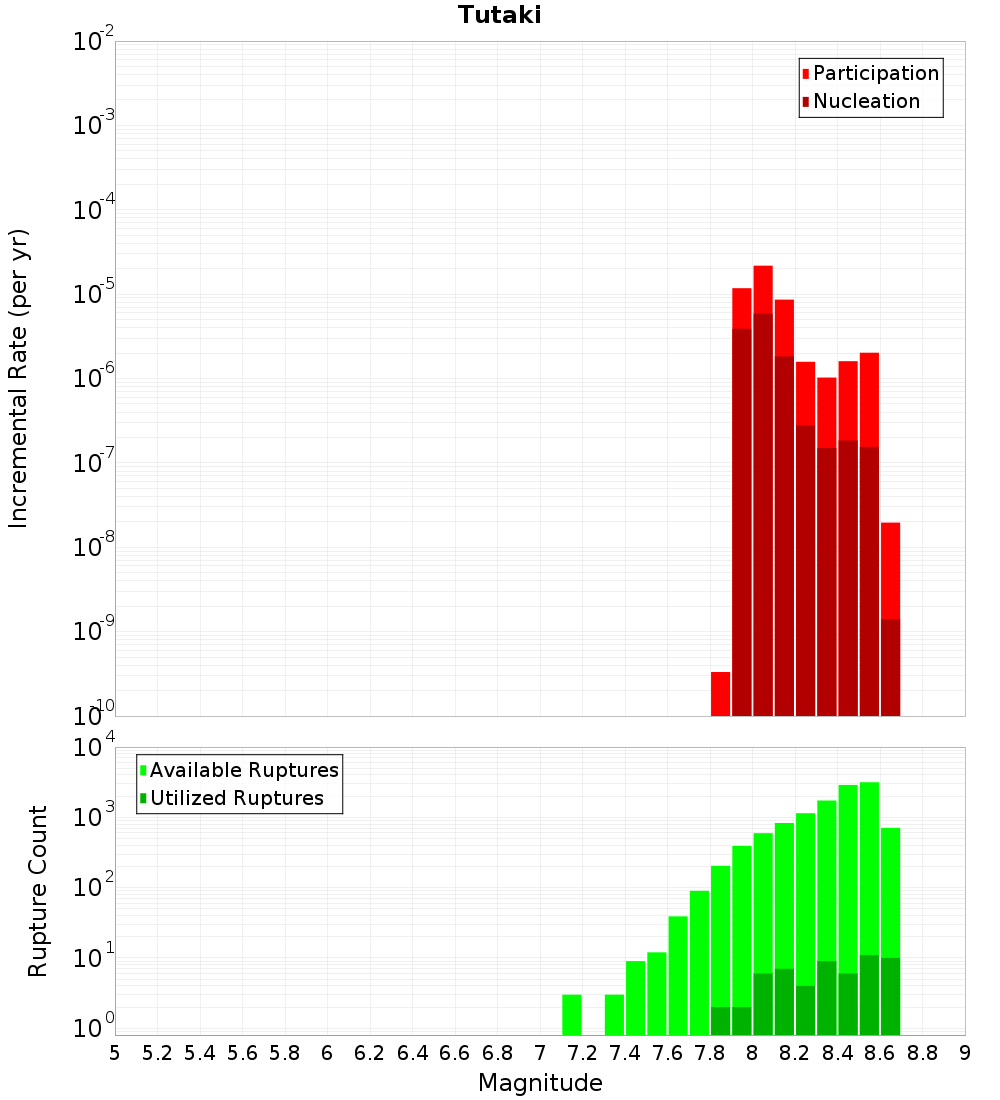

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

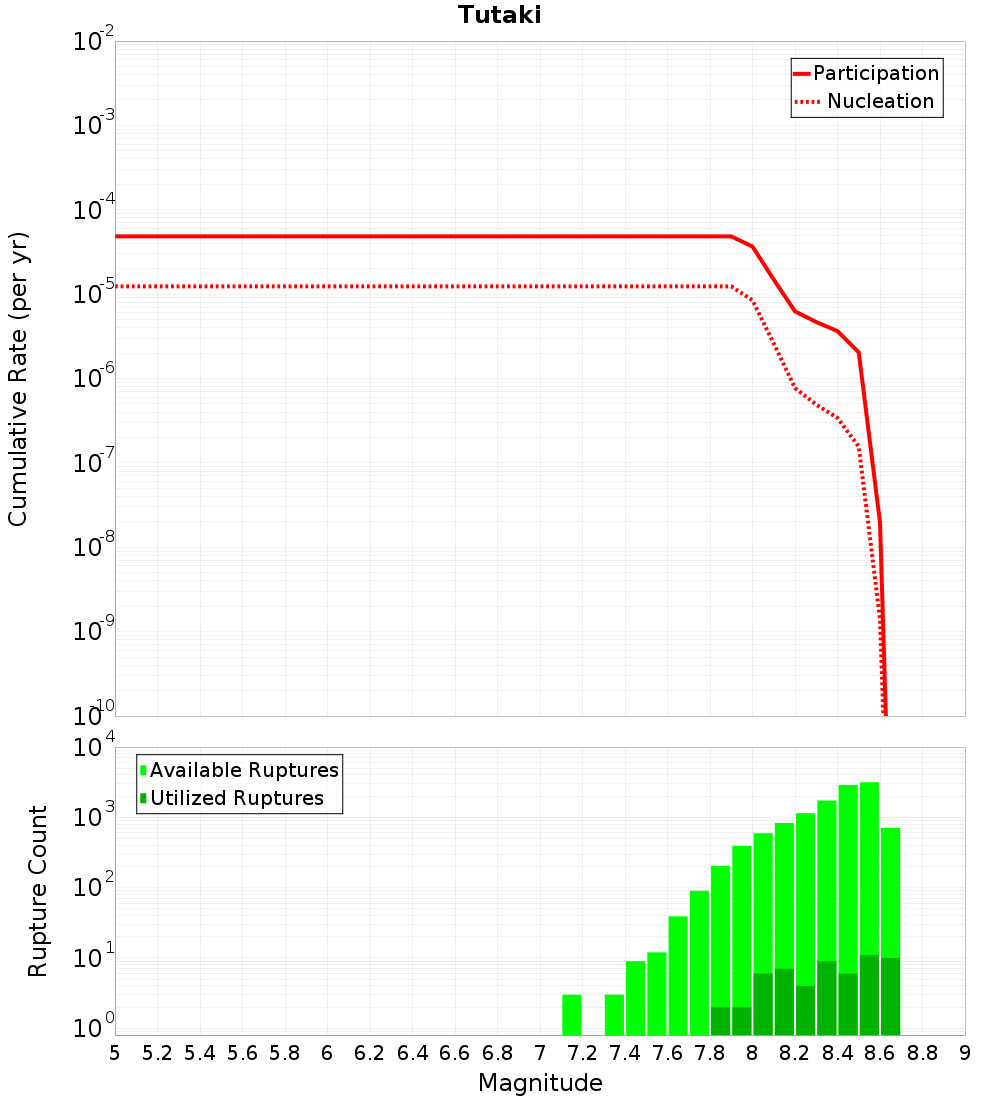

Incremental PlotCumulative Plot

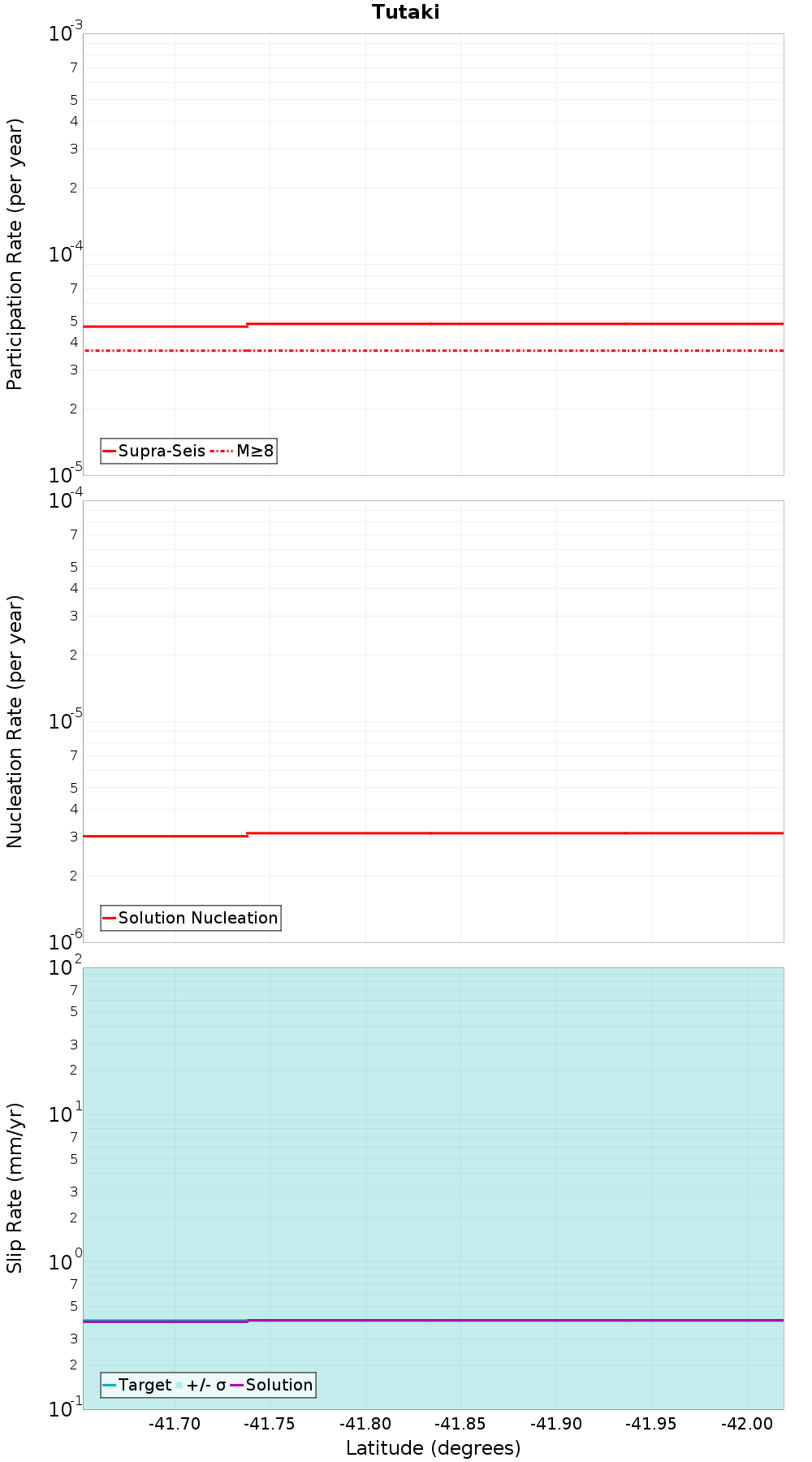

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Springs Junction to Tophouse, 0.13 km away
Flaxmore - Waimea - Tahunanui, 2.49 km away
Ruby Bay - Moutere, 3.43 km away
Wairau, 7.34 km away
Awatere: Southwest, 9.47 km away
Whangamoa, 14.86 km away

Alpine: Springs Junction to Tophouse, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MzEuMHllNUpq
Connected?true
Directly Connected?true
Co-rupture Count7,144
Co-rupture Rate4.5732006E-5

Flaxmore - Waimea - Tahunanui, 2.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MzEuMHllNUpq
Connected?true
Directly Connected?true
Co-rupture Count191
Co-rupture Rate0.0

Ruby Bay - Moutere, 3.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MzEuMHllNUpq
Connected?true
Directly Connected?true
Co-rupture Count9,010
Co-rupture Rate2.0901945E-5

Wairau, 7.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MzEuMHllNUpq
Connected?true
Directly Connected?true
Co-rupture Count295
Co-rupture Rate0.0

Awatere: Southwest, 9.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MzEuMHllNUpq
Connected?true
Directly Connected?true
Co-rupture Count4,677
Co-rupture Rate2.63361E-6

Whangamoa, 14.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MzEuMHllNUpq
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0
