Murphys Creek Details

PropertyValue
Rupture Count199
Ruptures Above Sect Min Mag198
Ruptures w/ Nonzero Rates34
Magnitude Range[7.09, 8.17]
Length Range[22, 244] km
Total Rate1.3740109E-5 /yr
Multi-Fault Rate3.7080295E-6 /yr (26.99%)
Directly-Connected Faults5
All Co-Rupturing Faults24

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

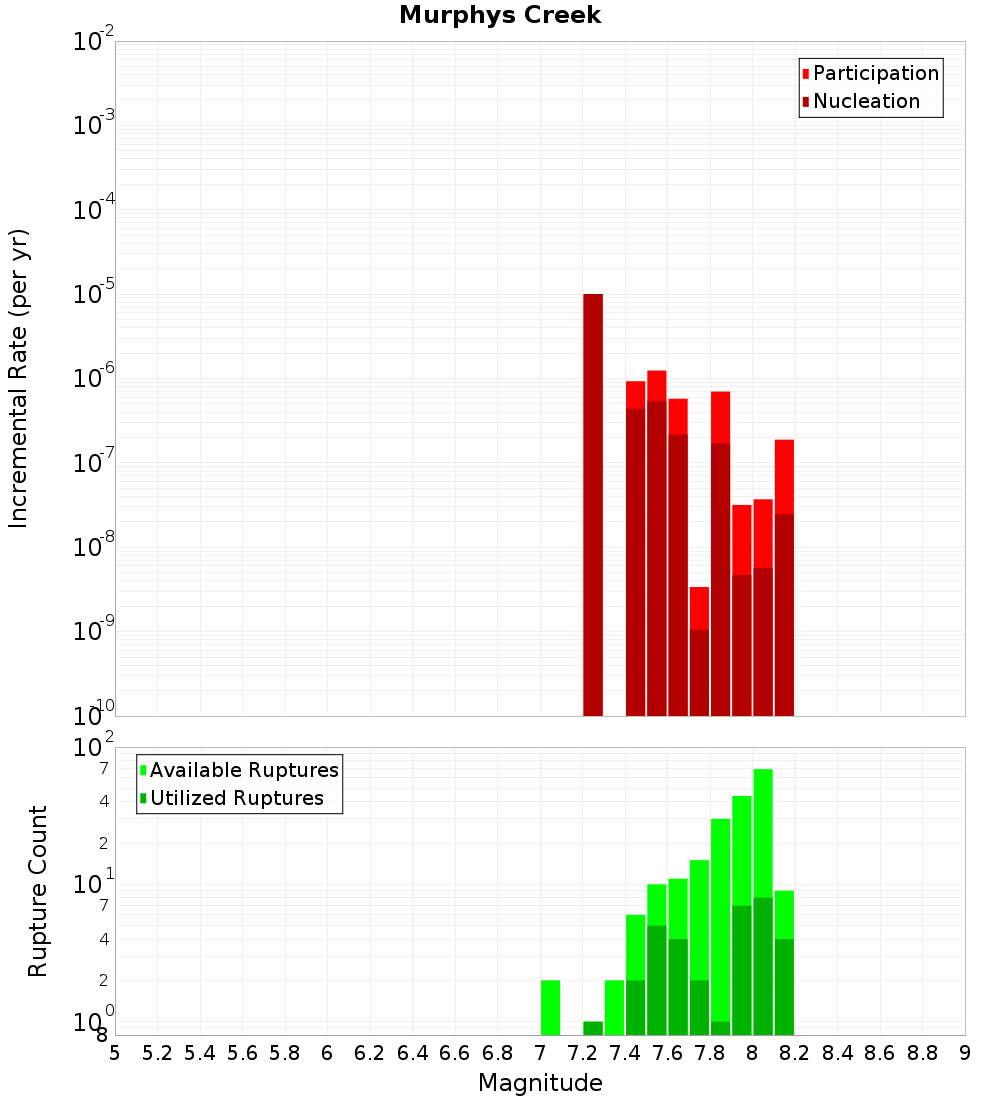

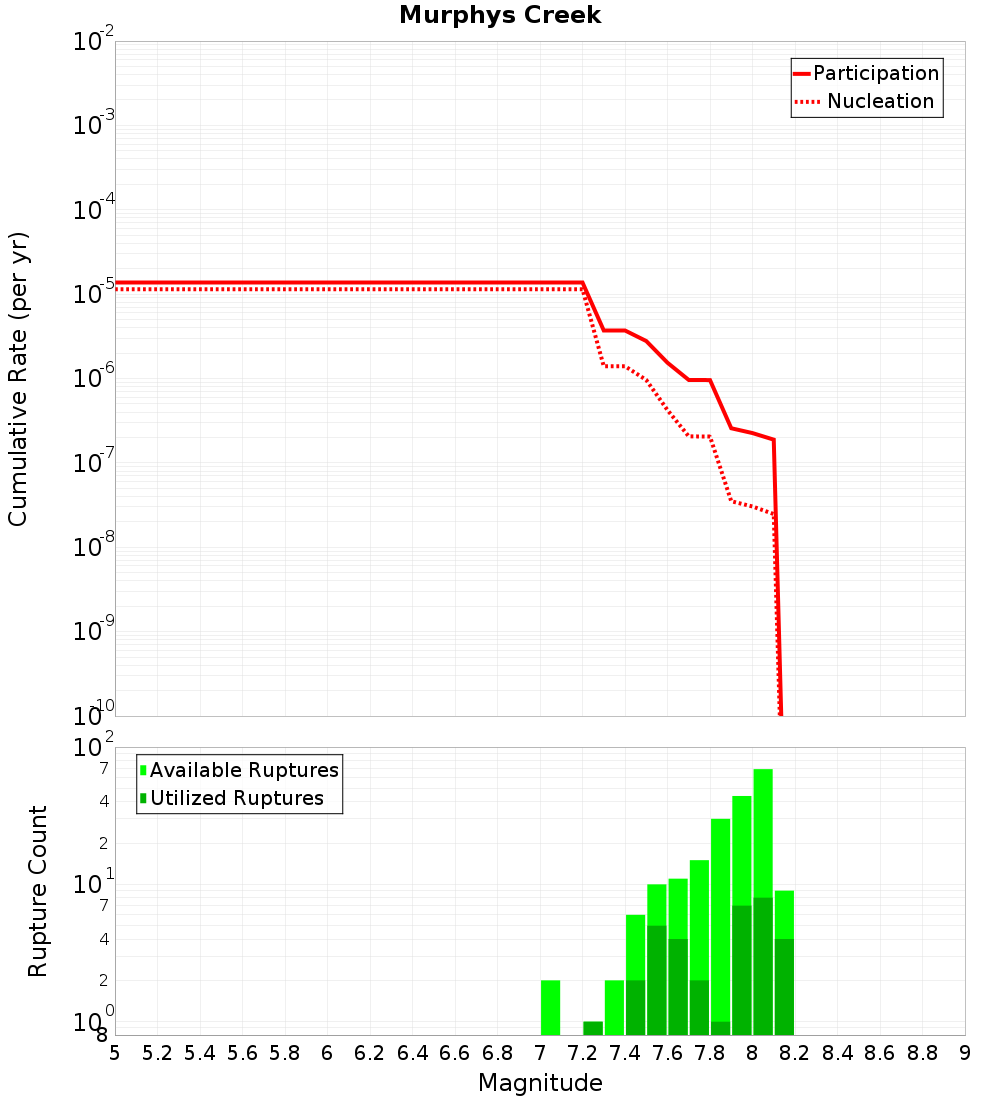

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waipiata, 0.21 km away
Ranfurly, 0.76 km away
Billys Ridge, 2.04 km away
Dunback Hill, 2.53 km away
Waihemo, 3.71 km away
Logan Burn, 4.58 km away
Horse Flat, 5.19 km away
Pylap, 6.31 km away
Flat Stream - Glenpark, 7.18 km away
Nichols Rock, 7.39 km away
Hyde North, 12.4 km away

Waipiata, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MzkuMGFNd3Nw
Connected?true
Directly Connected?true
Co-rupture Count14
Co-rupture Rate7.8401385E-8

Ranfurly, 0.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MzkuMGFNd3Nw
Connected?true
Directly Connected?true
Co-rupture Count24
Co-rupture Rate9.737915E-7

Billys Ridge, 2.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MzkuMGFNd3Nw
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate7.506337E-8

Dunback Hill, 2.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MzkuMGFNd3Nw
Connected?true
Directly Connected?true
Co-rupture Count10
Co-rupture Rate5.3825124E-7

Waihemo, 3.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MzkuMGFNd3Nw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Logan Burn, 4.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MzkuMGFNd3Nw
Connected?true
Directly Connected?true
Co-rupture Count184
Co-rupture Rate2.1704E-6

Horse Flat, 5.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MzkuMGFNd3Nw
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate8.4187074E-10

Pylap, 6.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MzkuMGFNd3Nw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Flat Stream - Glenpark, 7.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MzkuMGFNd3Nw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Nichols Rock, 7.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MzkuMGFNd3Nw
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate5.373681E-7

Hyde North, 12.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0MzkuMGFNd3Nw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
