Marlborough Slope 2 Details

Property	Value
Rupture Count	1,095
Ruptures Above Sect Min Mag	1,093
Ruptures w/ Nonzero Rates	39
Magnitude Range	[6.88, 8.32]
Length Range	[17, 526] km
Total Rate	1.8664025E-4 /yr
Multi-Fault Rate	1.8664025E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	32

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

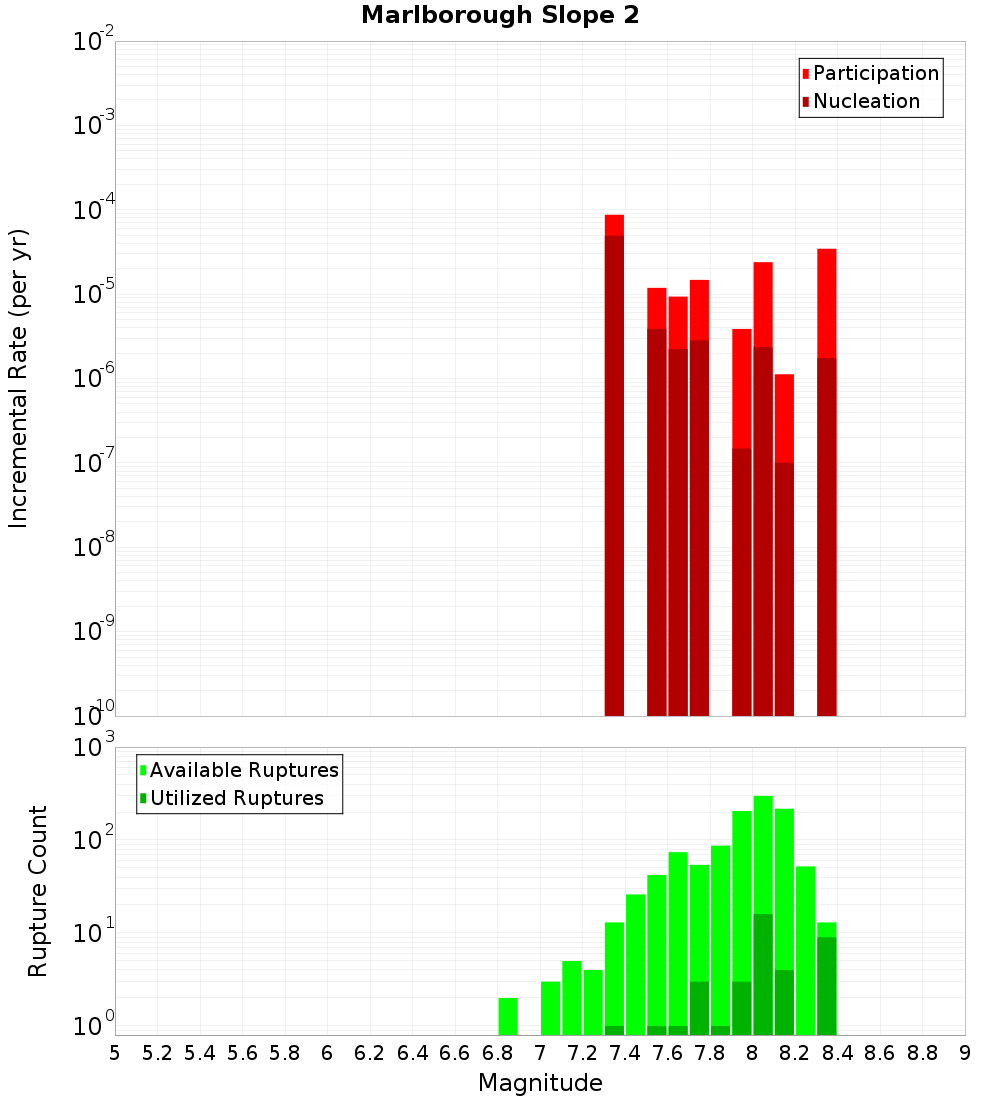

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

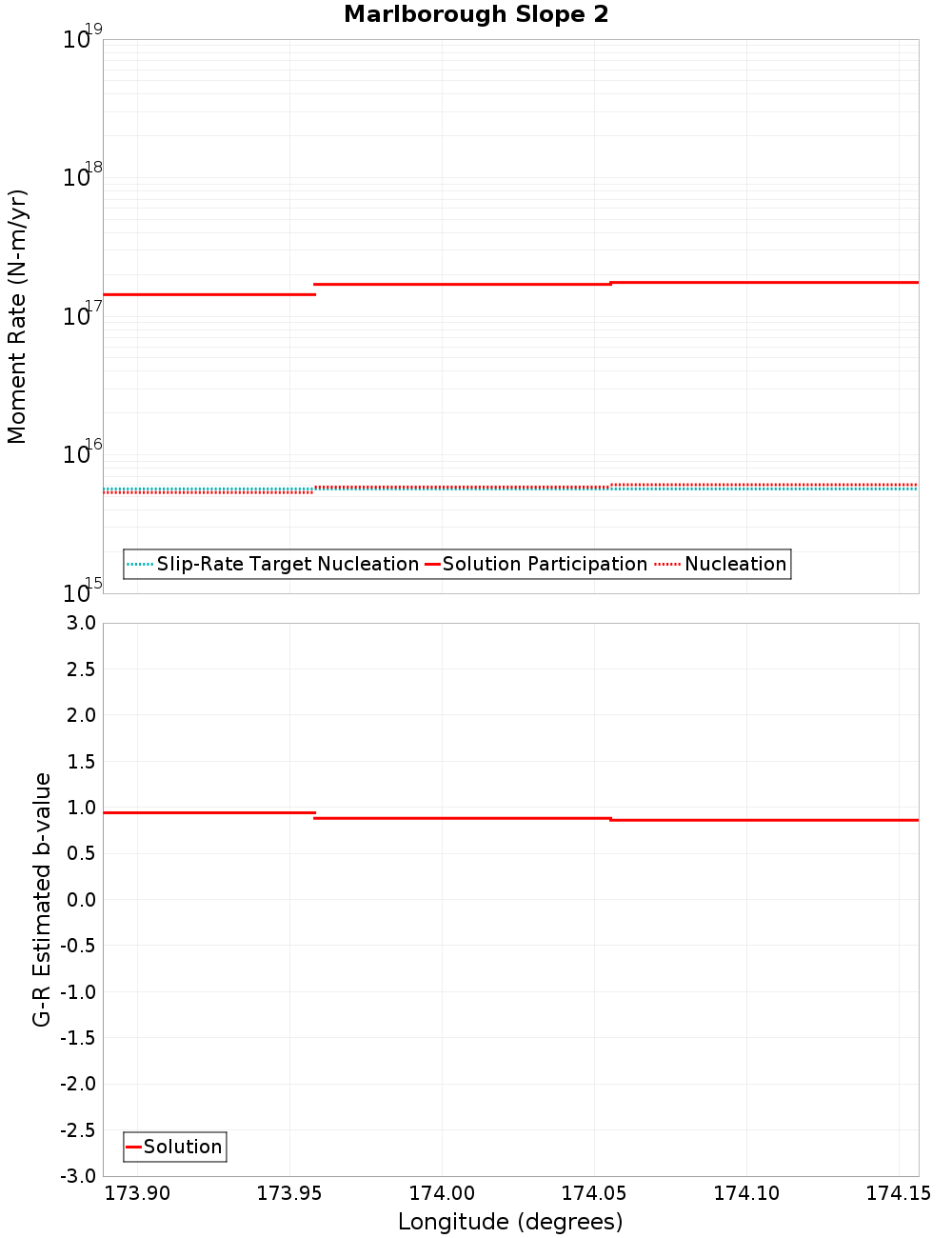

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Kekerengu Bank, 4.37 km away
Marlborough Slope 4, 6.6 km away
Marlborough Slope 11, 9.5 km away
Kaikoura - Mangamaunu, 11.74 km away
Conway Trough West, 12.27 km away
Conway Trough East, 13.46 km away
Marlborough Slope 9, 13.95 km away

Kekerengu Bank, 4.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDAuMFJ4Z0RM
Connected?	true
Directly Connected?	true
Co-rupture Count	1,064
Co-rupture Rate	9.002854E-5

Marlborough Slope 4, 6.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDAuMFJ4Z0RM
Connected?	true
Directly Connected?	true
Co-rupture Count	257
Co-rupture Rate	2.9186278E-5

Marlborough Slope 11, 9.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDAuMFJ4Z0RM
Connected?	true
Directly Connected?	true
Co-rupture Count	95
Co-rupture Rate	8.8738685E-5

Kaikoura - Mangamaunu, 11.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDAuMFJ4Z0RM
Connected?	true
Directly Connected?	true
Co-rupture Count	23
Co-rupture Rate	6.060501E-6

Conway Trough West, 12.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDAuMFJ4Z0RM
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Conway Trough East, 13.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDAuMFJ4Z0RM
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	8.7259716E-5

Marlborough Slope 9, 13.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDAuMFJ4Z0RM
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
