Whitemans Valley Details

Property	Value
Rupture Count	5,613
Ruptures Above Sect Min Mag	5,611
Ruptures w/ Nonzero Rates	6
Magnitude Range	[6.93, 8.46]
Length Range	[18, 640] km
Total Rate	3.979829E-5 /yr
Multi-Fault Rate	2.28891E-5 /yr (57.51%)
Directly-Connected Faults	8
All Co-Rupturing Faults	128

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

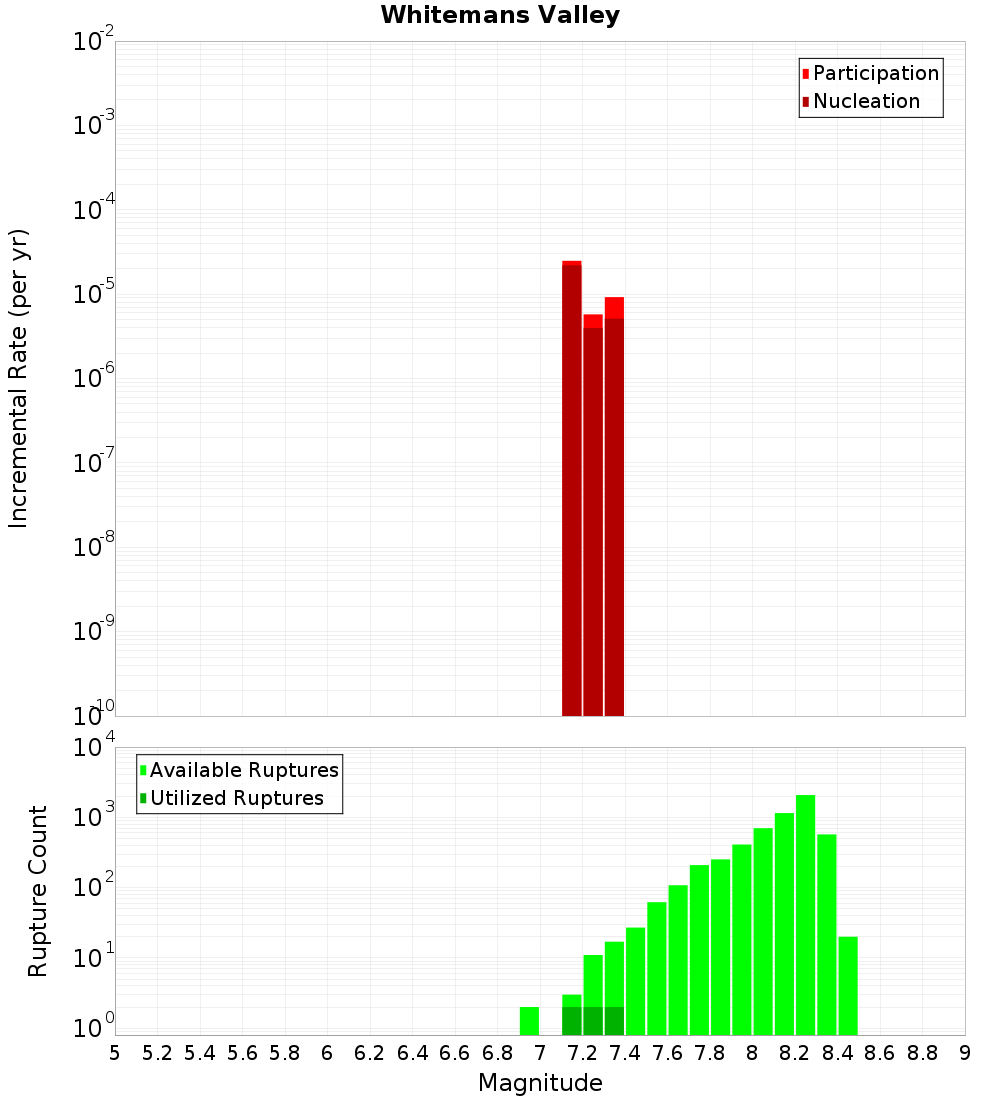

Magnitude-Frequency Distribution

Incremental	Cumulative

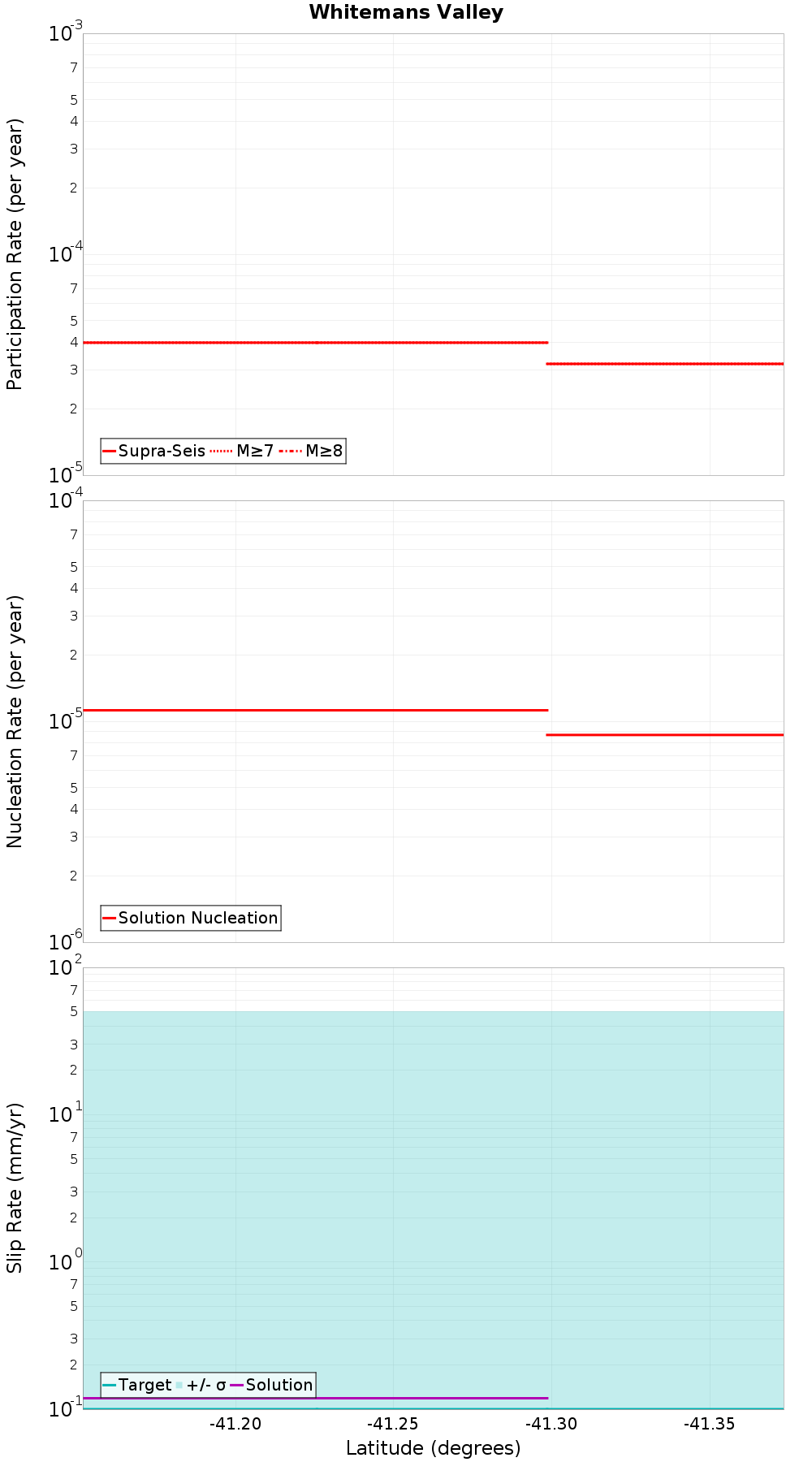

Along-Strike Values

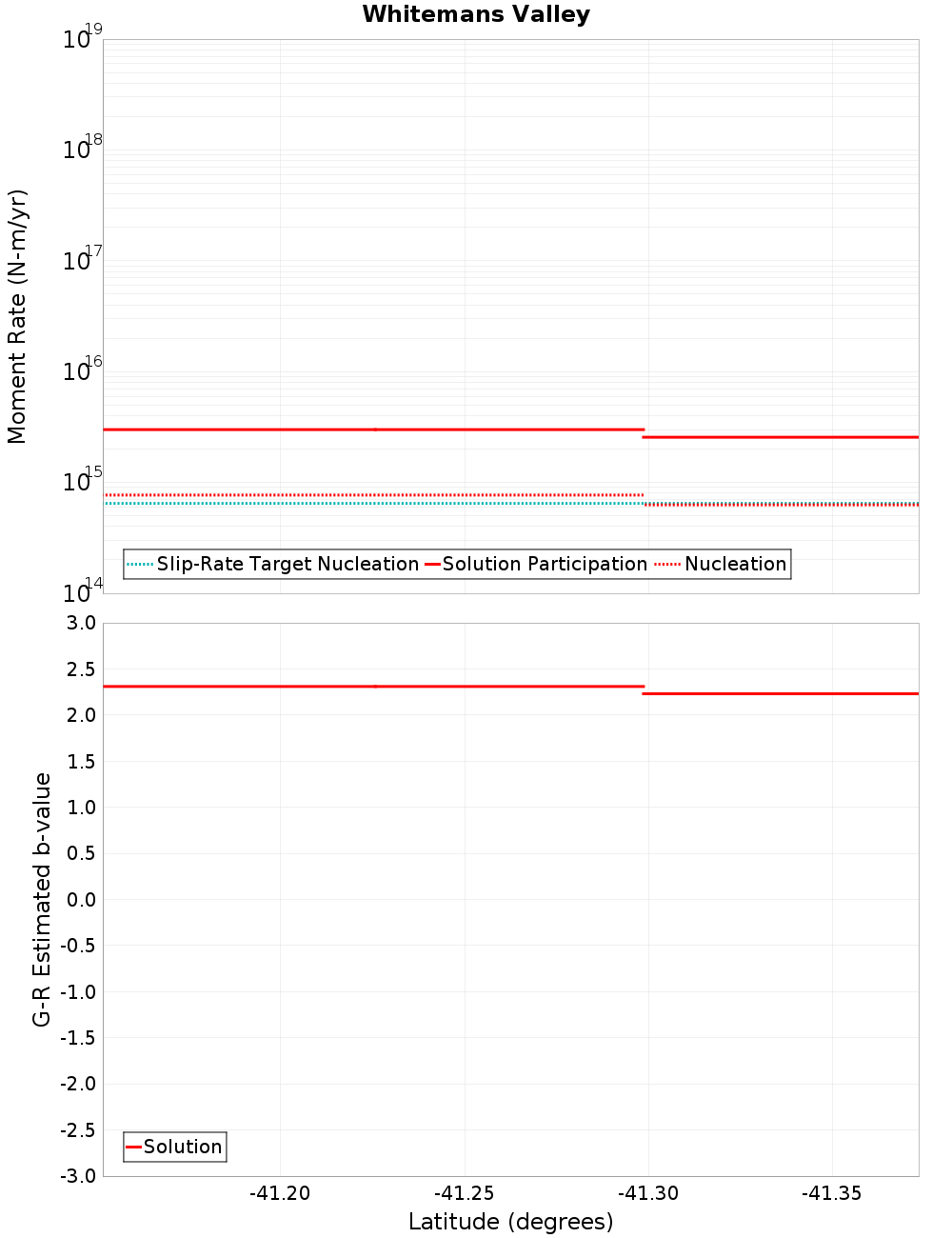

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Wellington Hutt Valley: 4, 0.09 km away
Moonshine, 0.2 km away
Aotea - Evans Bay, 0.45 km away
Wellington Hutt Valley: 3, 1.35 km away
Wellington Hutt Valley: 5, 2.4 km away
Ohariu, 2.44 km away
Akatarawa, 3.01 km away
Wharekauhau, 3.03 km away
Wairarapa: 1, 5.26 km away
Pukerua - Shepherds Gully: 3, 6.29 km away
Wellington Hutt Valley: 2, 8.91 km away
Pukerua - Shepherds Gully: 2, 9.44 km away
Pukerua - Shepherds Gully: 1, 9.8 km away
Wairarapa: 2, 10.22 km away

Wellington Hutt Valley: 4, 0.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDAuMFJ4Z0RM
Connected?	true
Directly Connected?	true
Co-rupture Count	45
Co-rupture Rate	0.0

Moonshine, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDAuMFJ4Z0RM
Connected?	true
Directly Connected?	true
Co-rupture Count	2,162
Co-rupture Rate	2.2862843E-9

Aotea - Evans Bay, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDAuMFJ4Z0RM
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington Hutt Valley: 3, 1.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDAuMFJ4Z0RM
Connected?	true
Directly Connected?	true
Co-rupture Count	12
Co-rupture Rate	7.920974E-6

Wellington Hutt Valley: 5, 2.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDAuMFJ4Z0RM
Connected?	true
Directly Connected?	true
Co-rupture Count	1,264
Co-rupture Rate	1.4965792E-5

Ohariu, 2.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDAuMFJ4Z0RM
Connected?	true
Directly Connected?	true
Co-rupture Count	177
Co-rupture Rate	0.0

Akatarawa, 3.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDAuMFJ4Z0RM
Connected?	true
Directly Connected?	true
Co-rupture Count	2,181
Co-rupture Rate	4.7645752E-11

Wharekauhau, 3.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDAuMFJ4Z0RM
Connected?	true
Directly Connected?	true
Co-rupture Count	731
Co-rupture Rate	0.0

Wairarapa: 1, 5.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDAuMFJ4Z0RM
Connected?	true
Directly Connected?	true
Co-rupture Count	323
Co-rupture Rate	0.0

Pukerua - Shepherds Gully: 3, 6.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDAuMFJ4Z0RM
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington Hutt Valley: 2, 8.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDAuMFJ4Z0RM
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	0.0

Pukerua - Shepherds Gully: 2, 9.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDAuMFJ4Z0RM
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pukerua - Shepherds Gully: 1, 9.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDAuMFJ4Z0RM
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairarapa: 2, 10.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDAuMFJ4Z0RM
Connected?	true
Directly Connected?	false
Co-rupture Count	80
Co-rupture Rate	0.0
