North Branch Details
| Property | Value |
|---|---|
| Rupture Count | 71 |
| Ruptures Above Sect Min Mag | 68 |
| Ruptures w/ Nonzero Rates | 9 |
| Magnitude Range | [6.65, 7.82] |
| Length Range | [18, 206] km |
| Total Rate | 6.206555E-5 /yr |
| Multi-Fault Rate | 6.206555E-5 /yr (100.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 17 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

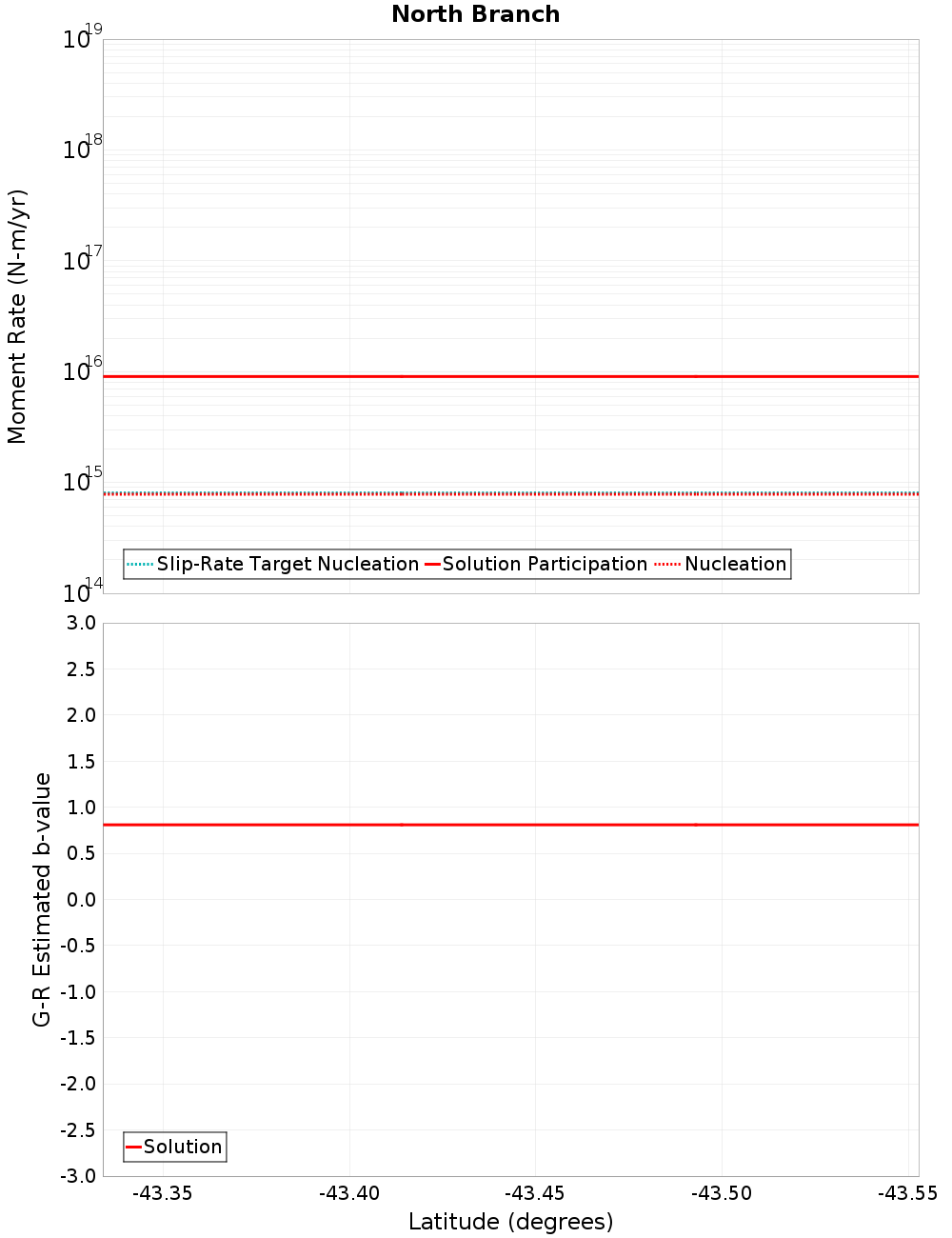

Moment-Rates and b-Values

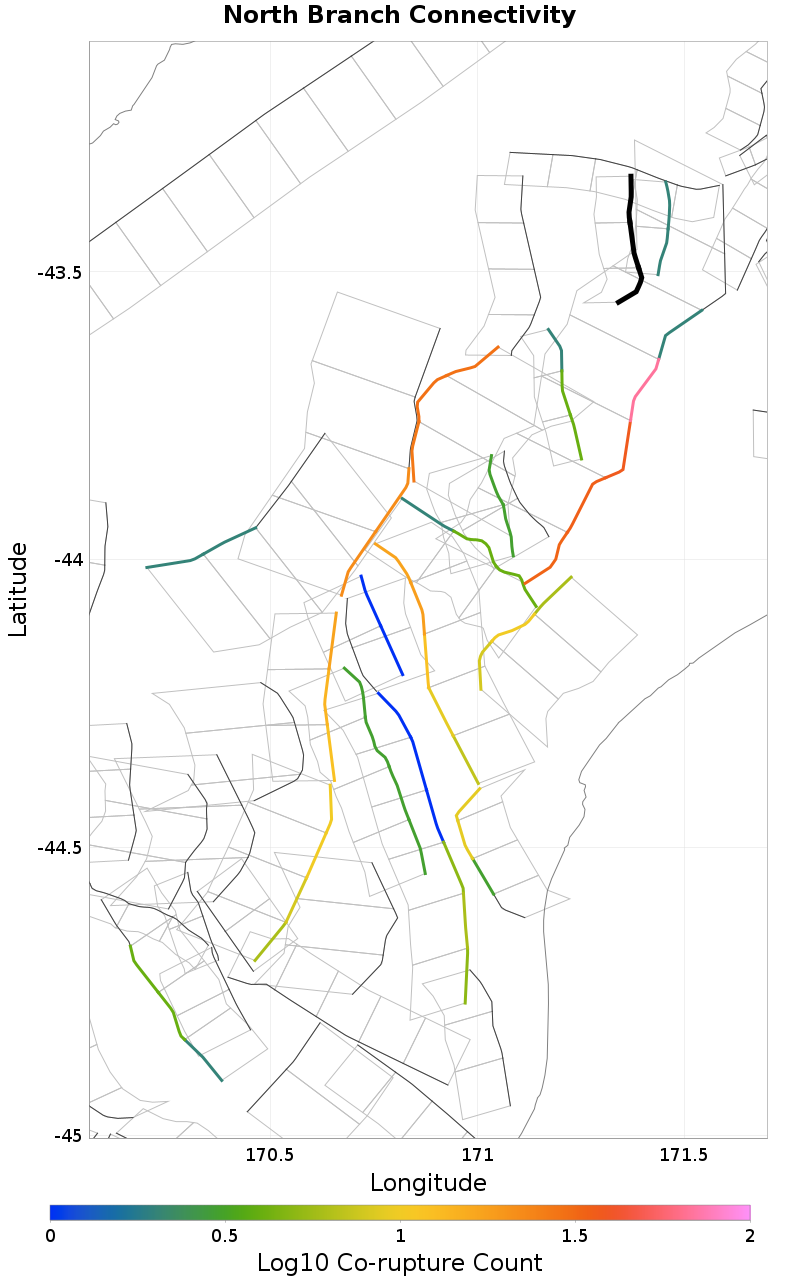

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hutt Peel, 0.04 km away |
| Double Hill, 0.32 km away |
| Redcliffe, 3.06 km away |
| Klondyke Moor, 12.86 km away |
| Lake Heron, 14.3 km away |
Hutt Peel, 0.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDMuMFF1OHI2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 68 |
| Co-rupture Rate | 6.206555E-5 |
Double Hill, 0.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDMuMFF1OHI2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Redcliffe, 3.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDMuMFF1OHI2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 2.741724E-5 |
Klondyke Moor, 12.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDMuMFF1OHI2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 1.1803692E-5 |
Lake Heron, 14.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDMuMFF1OHI2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
