Upper Slope Details

PropertyValue
Rupture Count3,433
Ruptures Above Sect Min Mag3,422
Ruptures w/ Nonzero Rates74
Magnitude Range[6.77, 8.07]
Length Range[20, 467] km
Total Rate5.641767E-4 /yr
Multi-Fault Rate5.641767E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults84

Table Of Contents

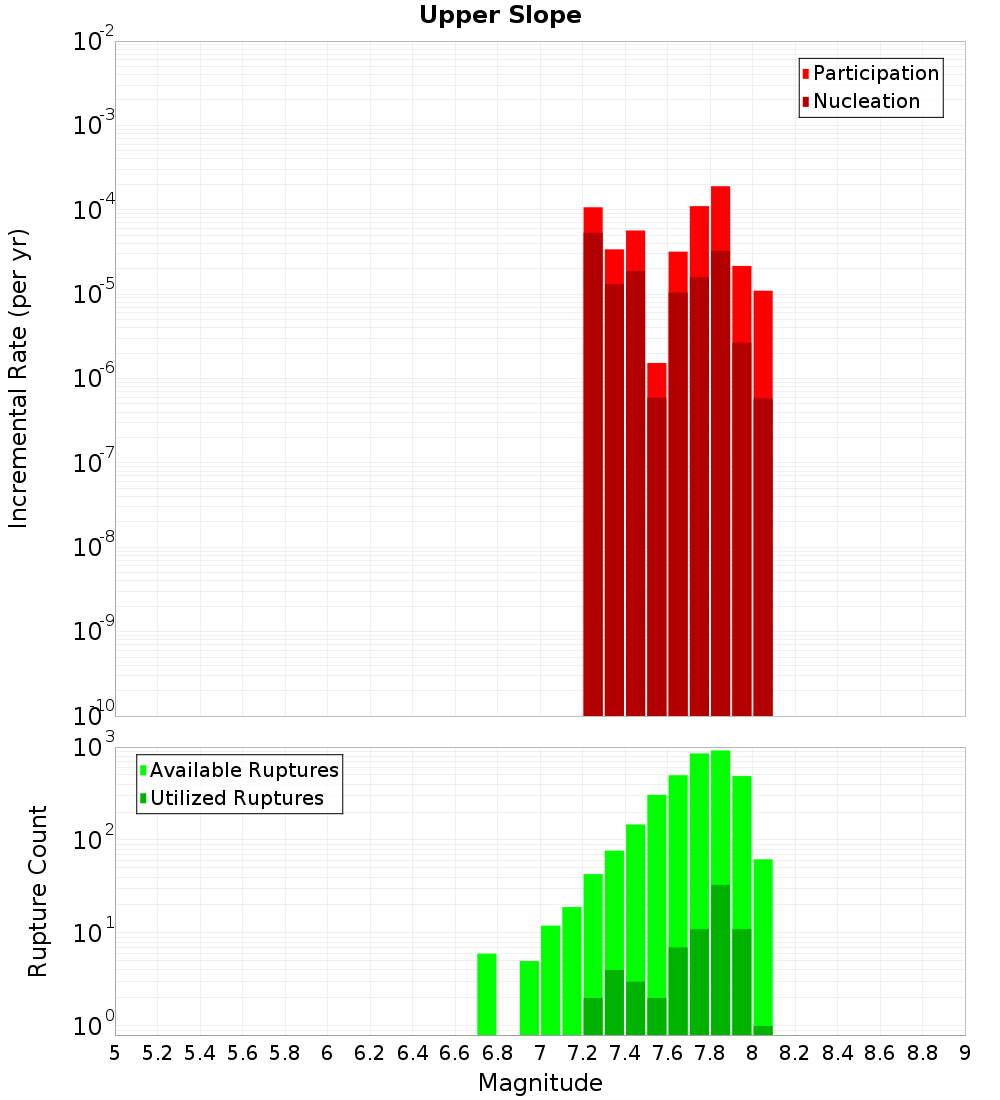

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

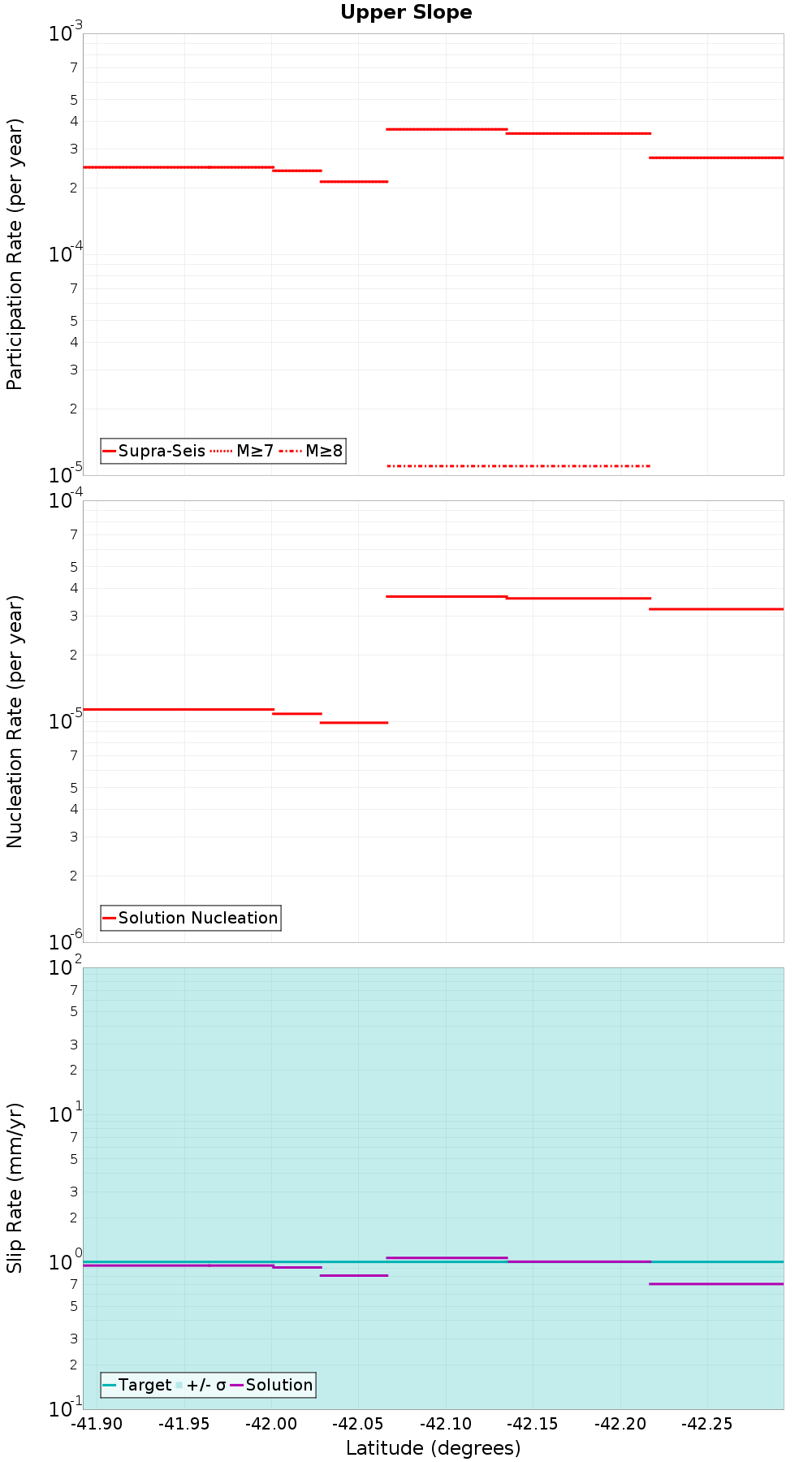

Along-Strike Values

(top)

Along-strike plot

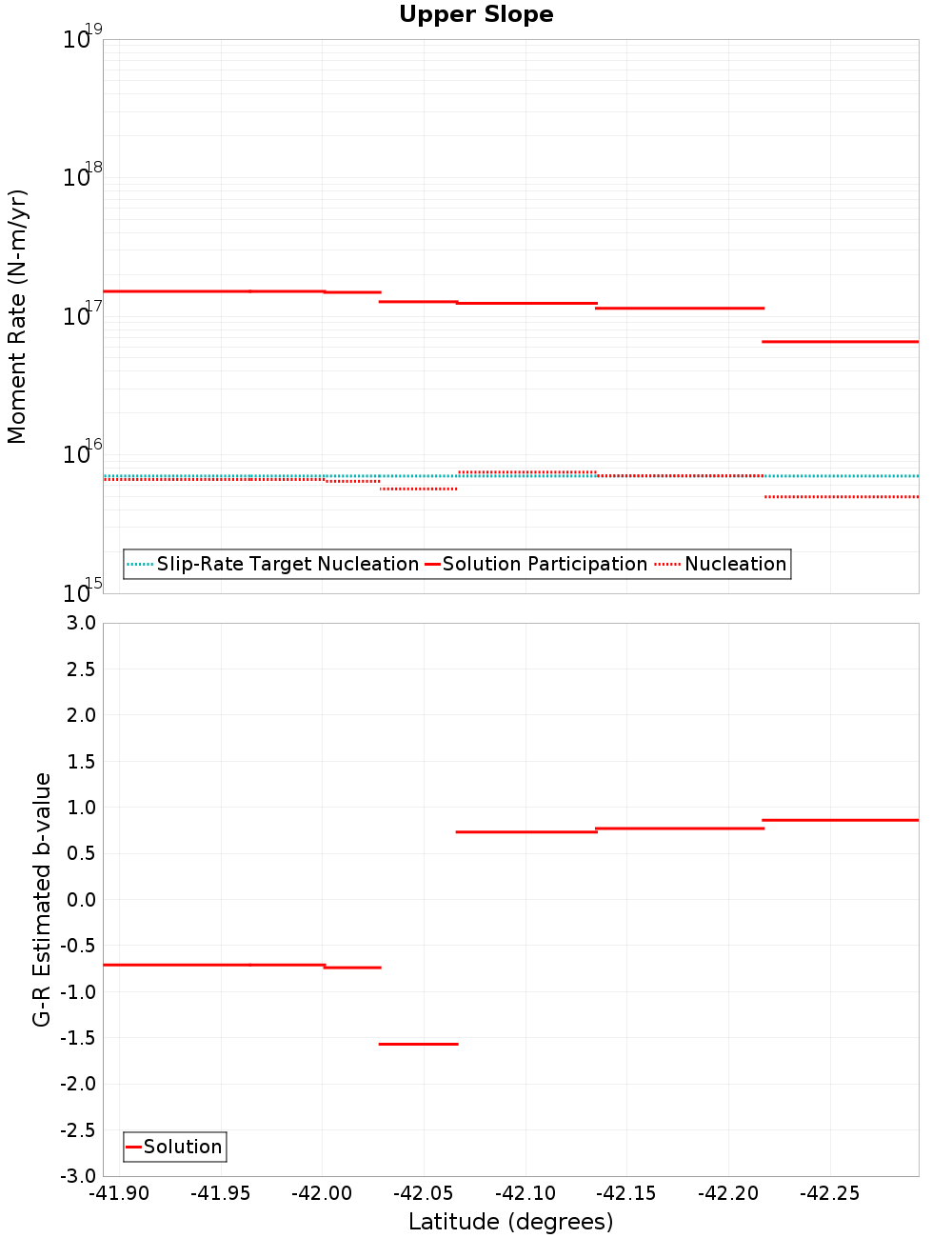

Moment-Rates and b-Values

(top)

Along-strike plot

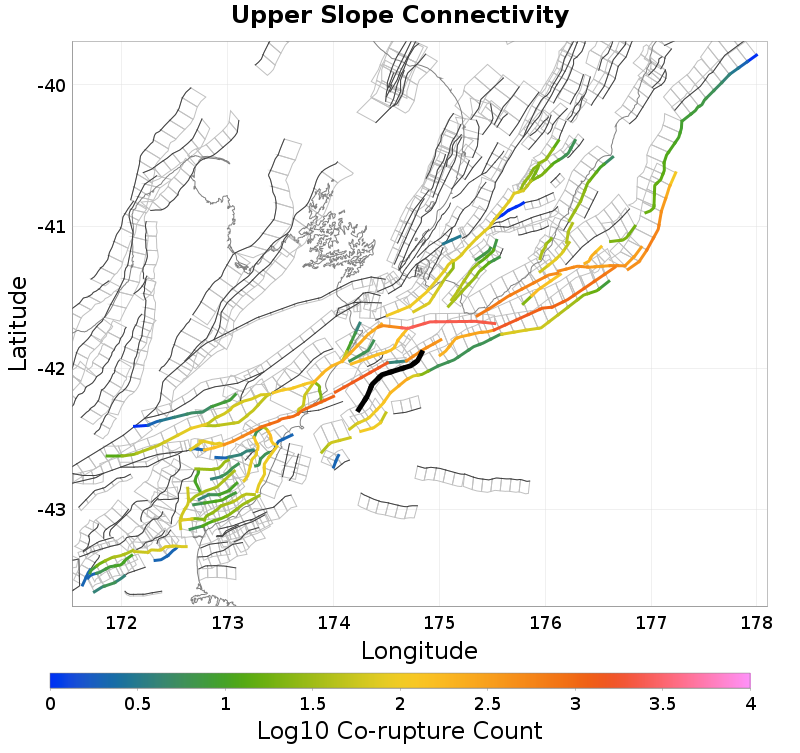

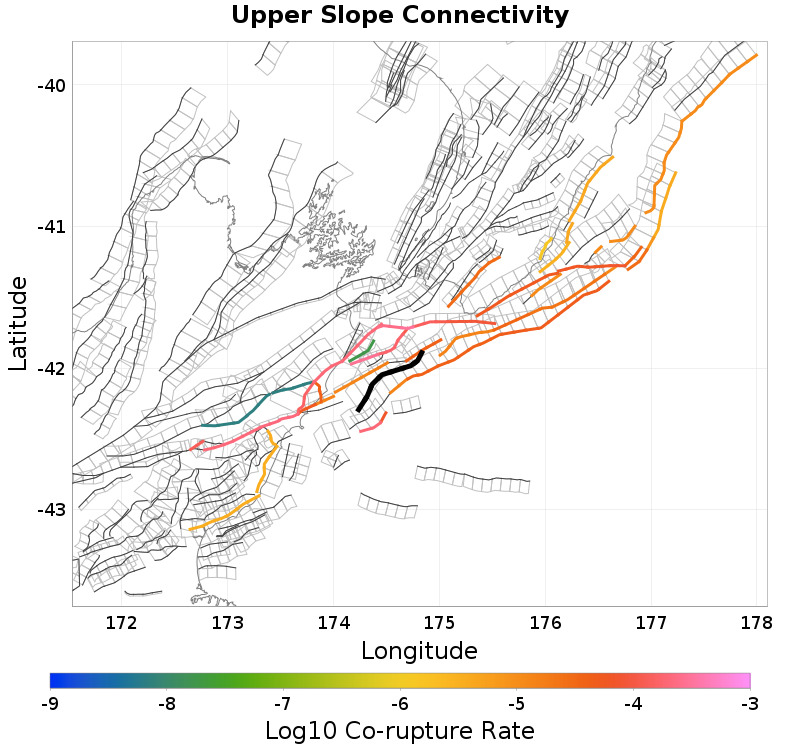

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hope: Te Rapa, 0.1 km away
Te Rapa 1, 0.13 km away
Te Rapa 2, 0.18 km away
Campbell Bank, 0.3 km away
London Hill, 0.69 km away
Wharanui, 1.45 km away
Chancet, 1.61 km away
Kekerengu Bank, 5.98 km away
Kaikoura - Mangamaunu, 6.47 km away
BooBoo, 9.5 km away
Hope: Seaward, 10.39 km away
Marlborough Slope 4, 12.3 km away
Opouawe - Uruti, 13.4 km away
Needles East 2, 13.52 km away
Needles, 14.3 km away

Hope: Te Rapa, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDMuMFF1OHI2
Connected?true
Directly Connected?true
Co-rupture Count1,500
Co-rupture Rate1.622889E-5

Te Rapa 1, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDMuMFF1OHI2
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Te Rapa 2, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDMuMFF1OHI2
Connected?true
Directly Connected?true
Co-rupture Count469
Co-rupture Rate4.0447878E-5

Campbell Bank, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDMuMFF1OHI2
Connected?true
Directly Connected?false
Co-rupture Count157
Co-rupture Rate1.692682E-4

London Hill, 0.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDMuMFF1OHI2
Connected?true
Directly Connected?true
Co-rupture Count52
Co-rupture Rate0.0

Wharanui, 1.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDMuMFF1OHI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Chancet, 1.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDMuMFF1OHI2
Connected?true
Directly Connected?true
Co-rupture Count163
Co-rupture Rate2.7620778E-4

Kekerengu Bank, 5.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDMuMFF1OHI2
Connected?true
Directly Connected?true
Co-rupture Count252
Co-rupture Rate5.4026117E-5

Kaikoura - Mangamaunu, 6.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDMuMFF1OHI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

BooBoo, 9.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDMuMFF1OHI2
Connected?true
Directly Connected?true
Co-rupture Count2,826
Co-rupture Rate3.13209E-4

Hope: Seaward, 10.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDMuMFF1OHI2
Connected?true
Directly Connected?false
Co-rupture Count1,113
Co-rupture Rate5.331568E-5

Marlborough Slope 4, 12.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDMuMFF1OHI2
Connected?true
Directly Connected?true
Co-rupture Count107
Co-rupture Rate1.970237E-4

Opouawe - Uruti, 13.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDMuMFF1OHI2
Connected?true
Directly Connected?false
Co-rupture Count1,629
Co-rupture Rate3.680293E-5

Needles East 2, 13.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDMuMFF1OHI2
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate1.7757044E-8

Needles, 14.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDMuMFF1OHI2
Connected?true
Directly Connected?false
Co-rupture Count247
Co-rupture Rate1.964017E-4
