Ohena 3 Details
| Property | Value |
|---|---|
| Rupture Count | 43 |
| Ruptures Above Sect Min Mag | 42 |
| Ruptures w/ Nonzero Rates | 38 |
| Magnitude Range | [7.13, 7.85] |
| Length Range | [23, 126] km |
| Total Rate | 3.0353916E-5 /yr |
| Multi-Fault Rate | 3.0348576E-5 /yr (99.98%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 9 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

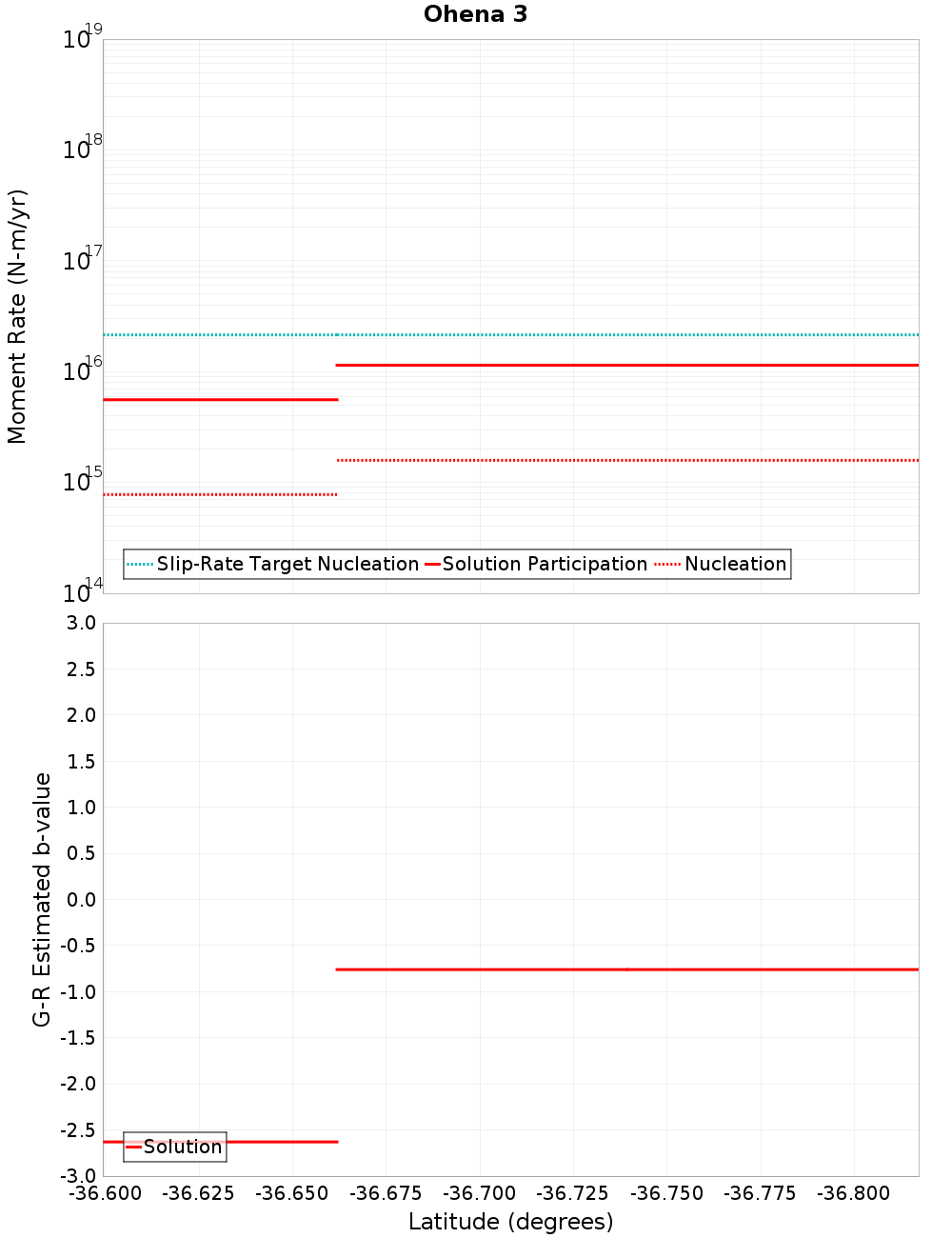

Moment-Rates and b-Values

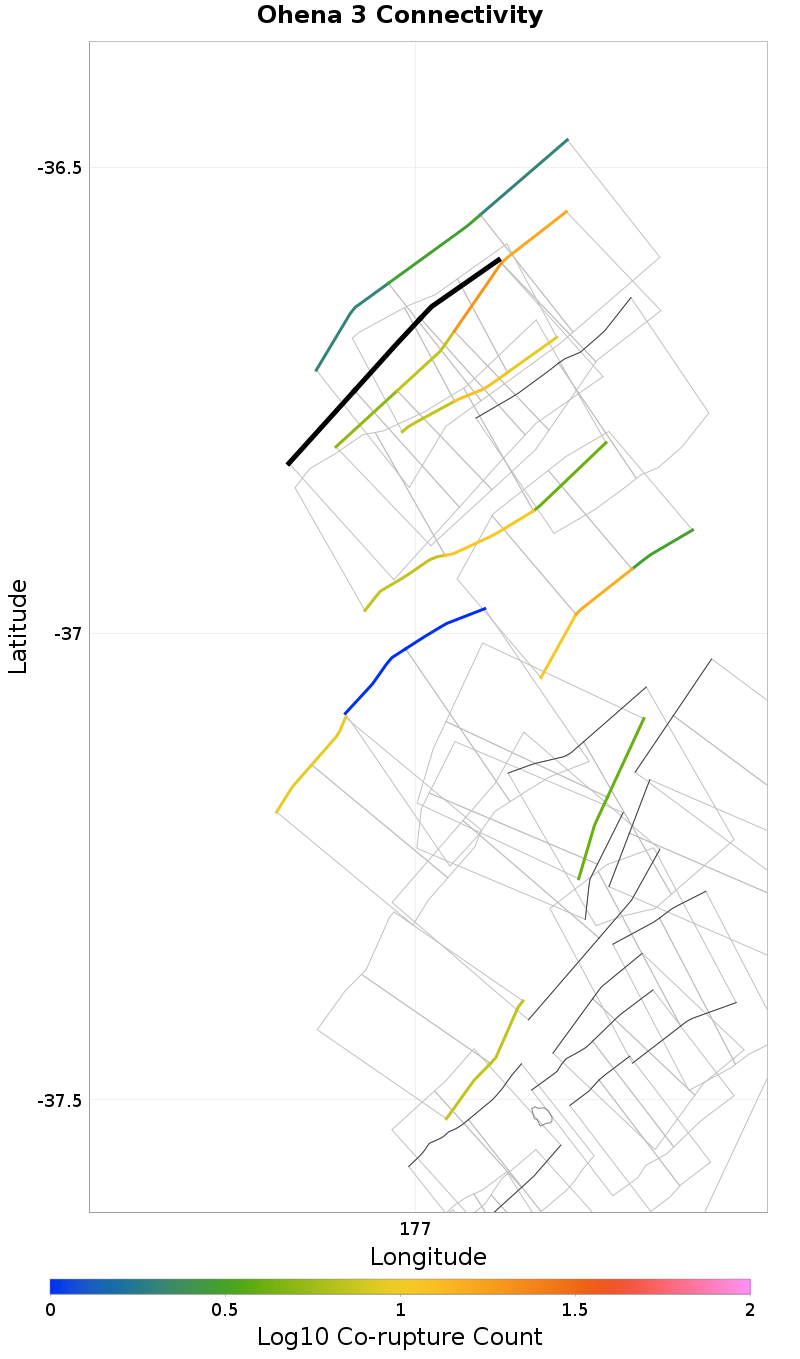

Connectivity
 |  |
|---|
Nearby Sections
Tauranga Trough West 2, 0.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDkuMEFWb2Nh | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11 |
| Co-rupture Rate | 1.2709927E-5 |
Ngatoro South 5, 0.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDkuMEFWb2Nh | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 12 |
| Co-rupture Rate | 8.3089035E-6 |
Ohena 2, 0.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDkuMEFWb2Nh | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 21 |
| Co-rupture Rate | 1.8274957E-5 |
Ohena 4, 3.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDkuMEFWb2Nh | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3 |
| Co-rupture Rate | 7.454537E-8 |
Tauranga Trough East 2, 5.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDkuMEFWb2Nh | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 15 |
| Co-rupture Rate | 1.3641937E-5 |
Ngatoro South 2, 9.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDkuMEFWb2Nh | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Otara West 2, 13.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NDkuMEFWb2Nh | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 6.2998715E-6 |
