Grampian Details

Property	Value
Rupture Count	137
Ruptures Above Sect Min Mag	136
Ruptures w/ Nonzero Rates	14
Magnitude Range	[7.09, 7.91]
Length Range	[21, 177] km
Total Rate	1.0899666E-5 /yr
Multi-Fault Rate	7.851853E-6 /yr (72.04%)
Directly-Connected Faults	4
All Co-Rupturing Faults	18

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

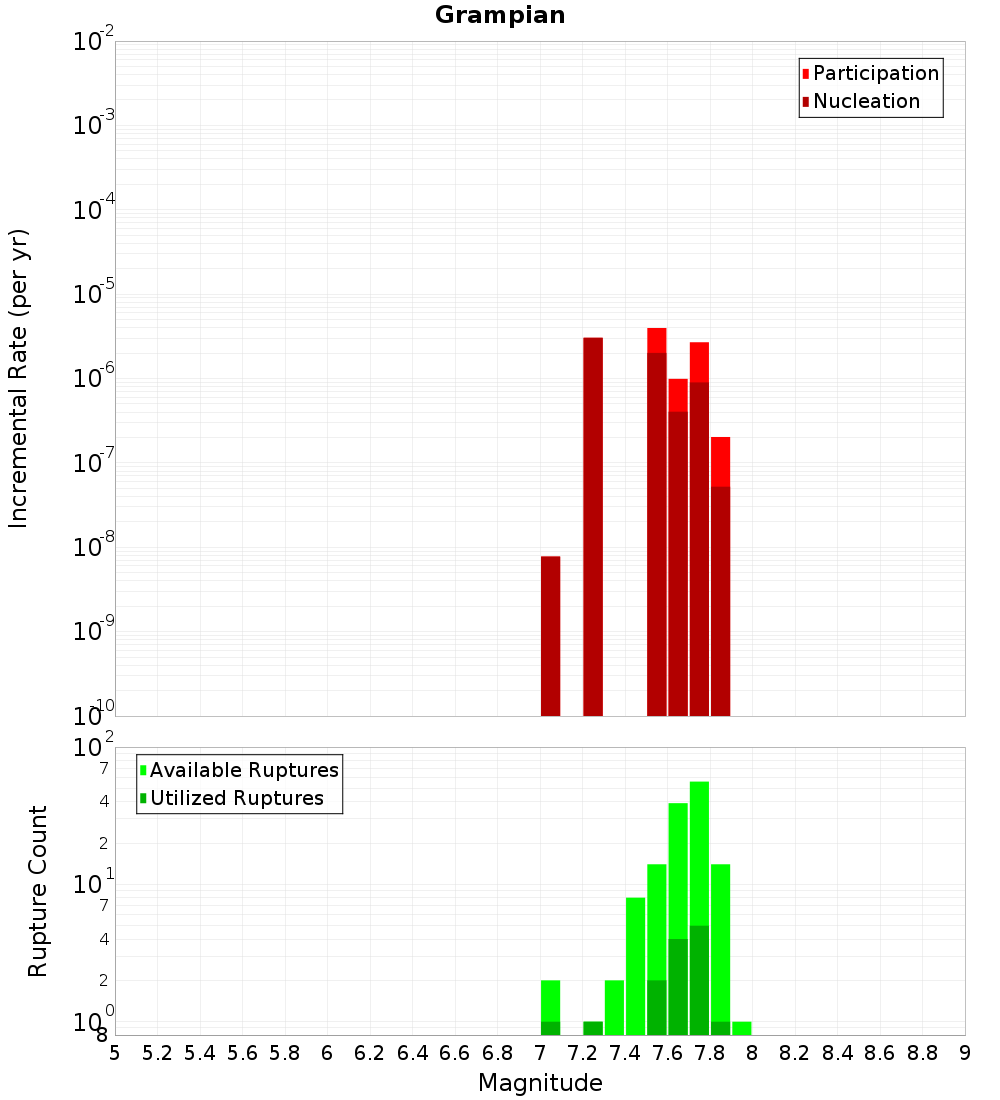

Magnitude-Frequency Distribution

Incremental	Cumulative

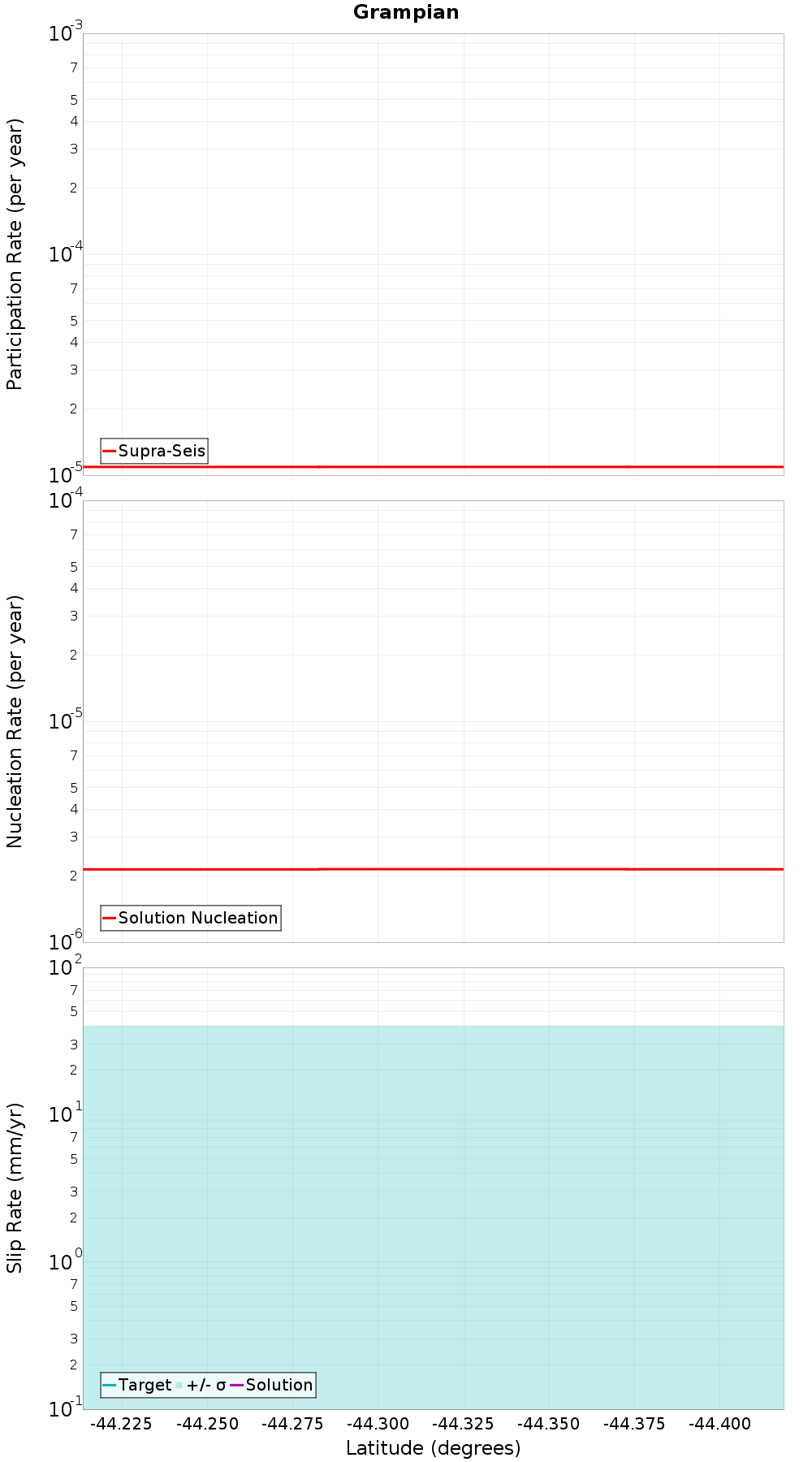

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Mt Sutton, 1.54 km away
Dalgety, 4.61 km away
Kirkliston, 4.67 km away
Gibson, 6.29 km away
Irishman Creek, 10.72 km away
Middle Range, 11.17 km away
Chamberlain, 11.5 km away
Falstone, 12.43 km away
Dryburgh, 13.34 km away
Waitangi, 14.38 km away
Hunters, 14.81 km away

Mt Sutton, 1.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NjQuMFVTeVRv
Connected?	true
Directly Connected?	true
Co-rupture Count	72
Co-rupture Rate	1.2853067E-6

Dalgety, 4.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NjQuMFVTeVRv
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kirkliston, 4.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NjQuMFVTeVRv
Connected?	true
Directly Connected?	true
Co-rupture Count	41
Co-rupture Rate	5.993235E-6

Gibson, 6.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NjQuMFVTeVRv
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Irishman Creek, 10.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NjQuMFVTeVRv
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Middle Range, 11.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NjQuMFVTeVRv
Connected?	true
Directly Connected?	false
Co-rupture Count	45
Co-rupture Rate	3.4638097E-7

Chamberlain, 11.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NjQuMFVTeVRv
Connected?	true
Directly Connected?	true
Co-rupture Count	12
Co-rupture Rate	5.641252E-7

Falstone, 12.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NjQuMFVTeVRv
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dryburgh, 13.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NjQuMFVTeVRv
Connected?	true
Directly Connected?	false
Co-rupture Count	22
Co-rupture Rate	3.968629E-6

Waitangi, 14.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NjQuMFVTeVRv
Connected?	true
Directly Connected?	false
Co-rupture Count	23
Co-rupture Rate	3.4638097E-7

Hunters, 14.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NjQuMFVTeVRv
Connected?	true
Directly Connected?	true
Co-rupture Count	17
Co-rupture Rate	5.733122E-7
