Cross Eden Details

Property	Value
Rupture Count	1,216
Ruptures Above Sect Min Mag	1,215
Ruptures w/ Nonzero Rates	11
Magnitude Range	[6.75, 8.04]
Length Range	[19, 298] km
Total Rate	2.1223355E-5 /yr
Multi-Fault Rate	2.1223355E-5 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	36

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

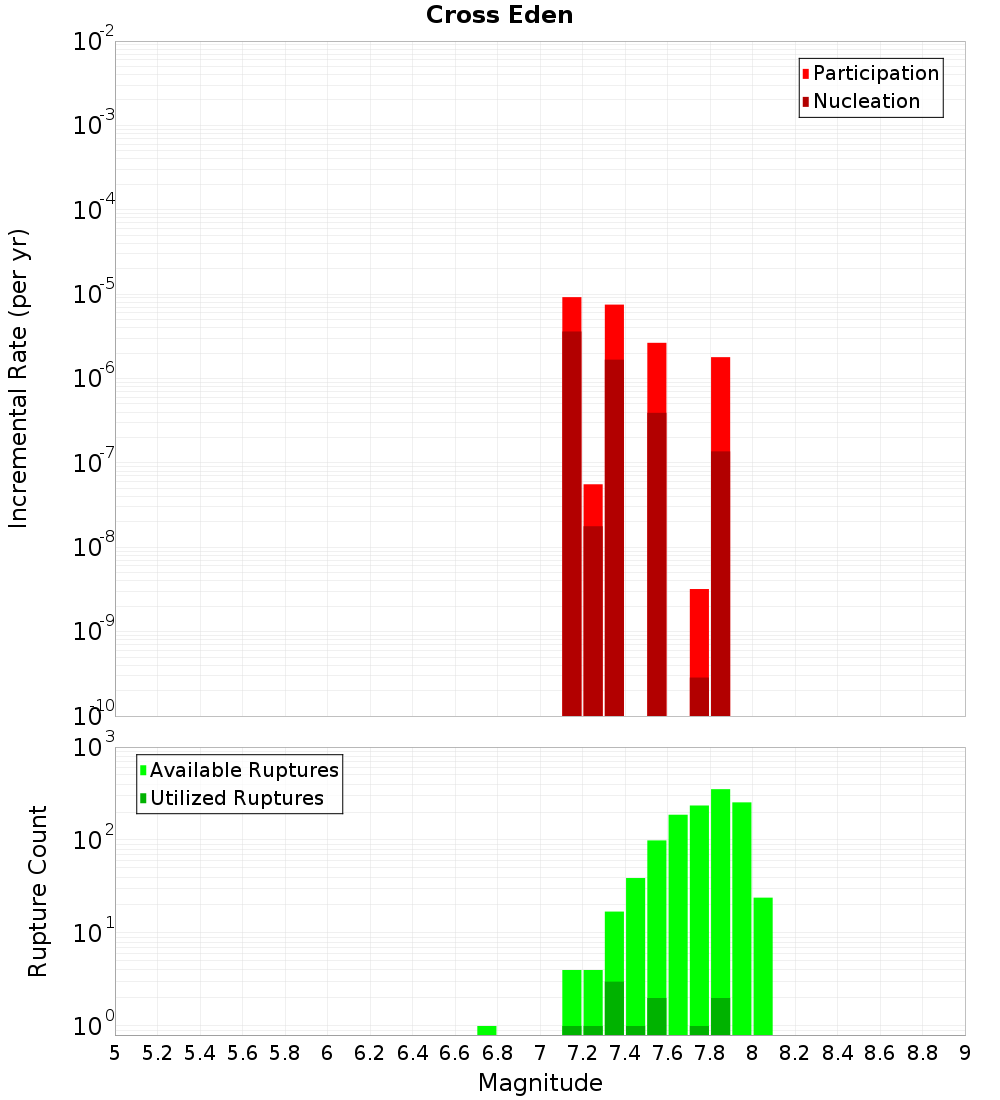

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

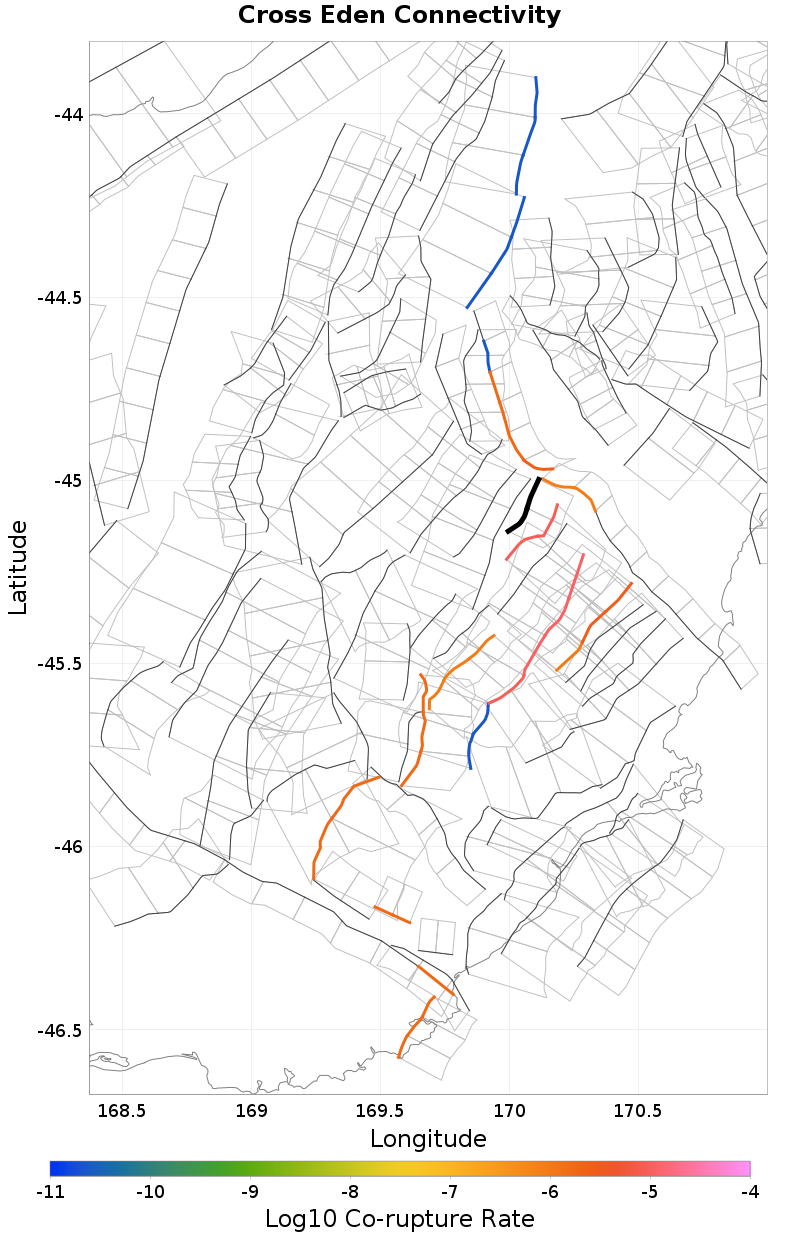

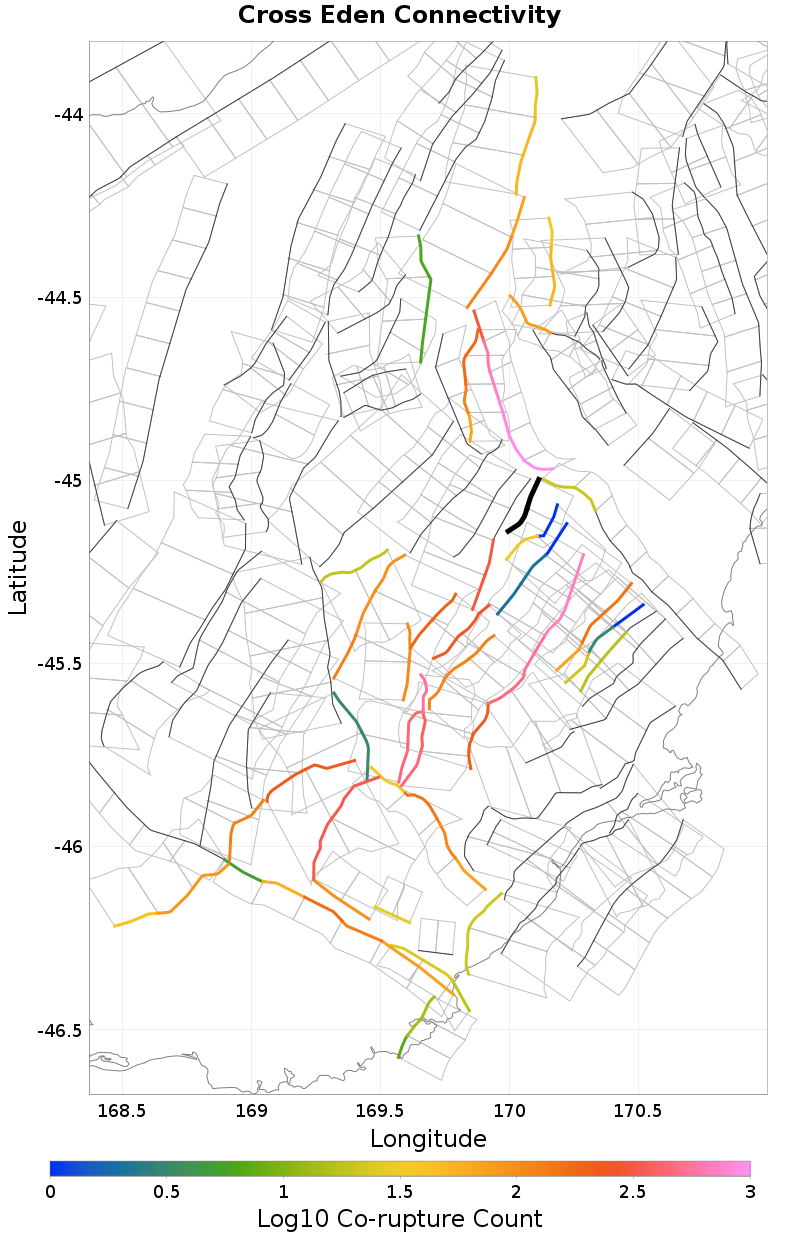

Connectivity

Nearby Sections

Fault Section
Hyde North, 0.18 km away
Waihemo, 1.13 km away
Gimmerburn, 2.3 km away
Hawkdun, 3.2 km away
Ranfurly, 4.43 km away
Horse Flat, 7.44 km away
Garibaldi, 7.5 km away
Waipiata, 10.38 km away
Billys Ridge, 13.09 km away

Hyde North, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMFhydFM0
Connected?	true
Directly Connected?	true
Co-rupture Count	777
Co-rupture Rate	1.1054869E-5

Waihemo, 1.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMFhydFM0
Connected?	true
Directly Connected?	false
Co-rupture Count	20
Co-rupture Rate	8.99578E-7

Gimmerburn, 2.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMFhydFM0
Connected?	true
Directly Connected?	true
Co-rupture Count	314
Co-rupture Rate	0.0

Hawkdun, 3.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMFhydFM0
Connected?	true
Directly Connected?	true
Co-rupture Count	949
Co-rupture Rate	2.6489472E-6

Ranfurly, 4.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMFhydFM0
Connected?	true
Directly Connected?	true
Co-rupture Count	32
Co-rupture Rate	9.210688E-6

Horse Flat, 7.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMFhydFM0
Connected?	true
Directly Connected?	true
Co-rupture Count	151
Co-rupture Rate	2.707264E-6

Garibaldi, 7.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMFhydFM0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waipiata, 10.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMFhydFM0
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Billys Ridge, 13.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMFhydFM0
Connected?	true
Directly Connected?	false
Co-rupture Count	21
Co-rupture Rate	0.0
