Nevis Details
| Property | Value |
|---|---|
| Rupture Count | 7,552 |
| Ruptures Above Sect Min Mag | 7,551 |
| Ruptures w/ Nonzero Rates | 32 |
| Magnitude Range | [7.14, 8.52] |
| Length Range | [33, 963] km |
| Total Rate | 9.88491E-5 /yr |
| Multi-Fault Rate | 9.88491E-5 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 74 |
Table Of Contents

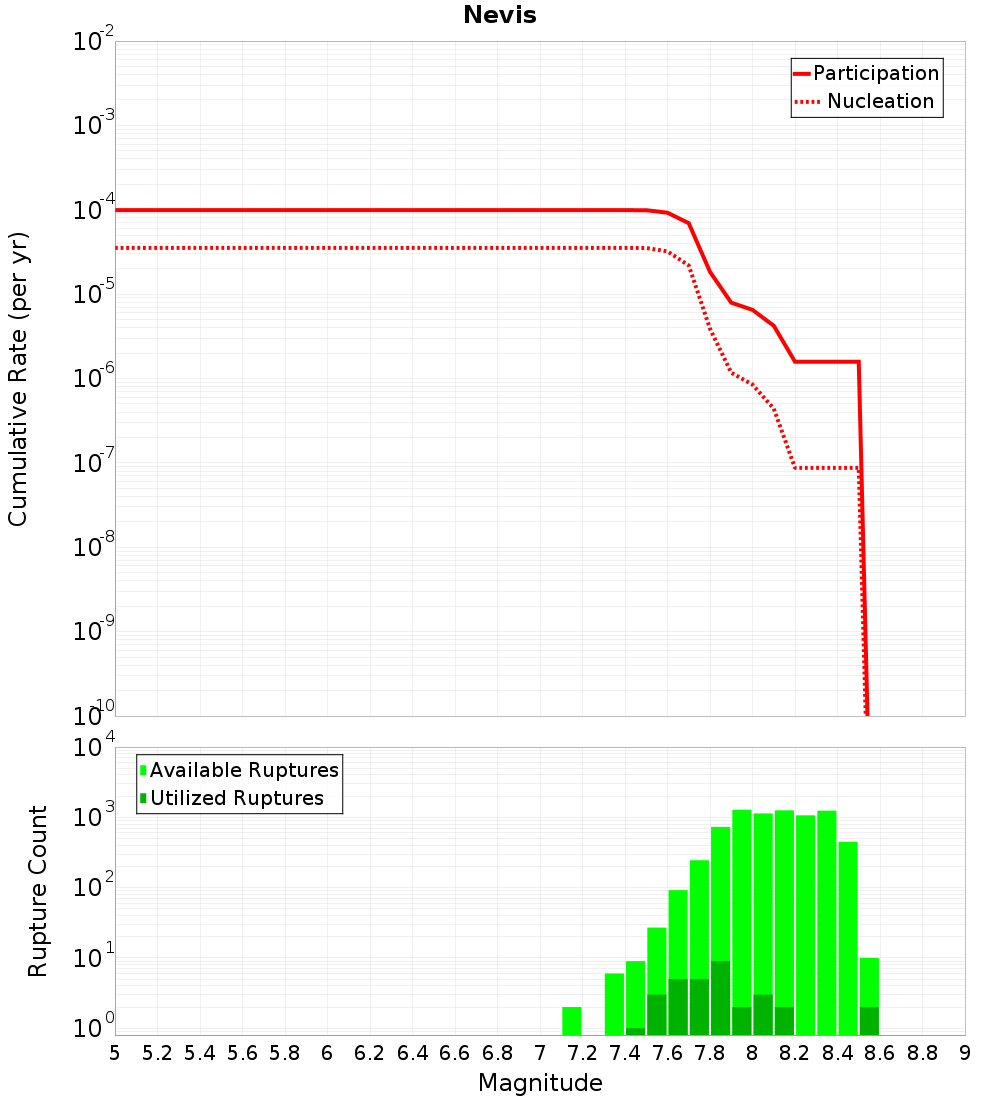

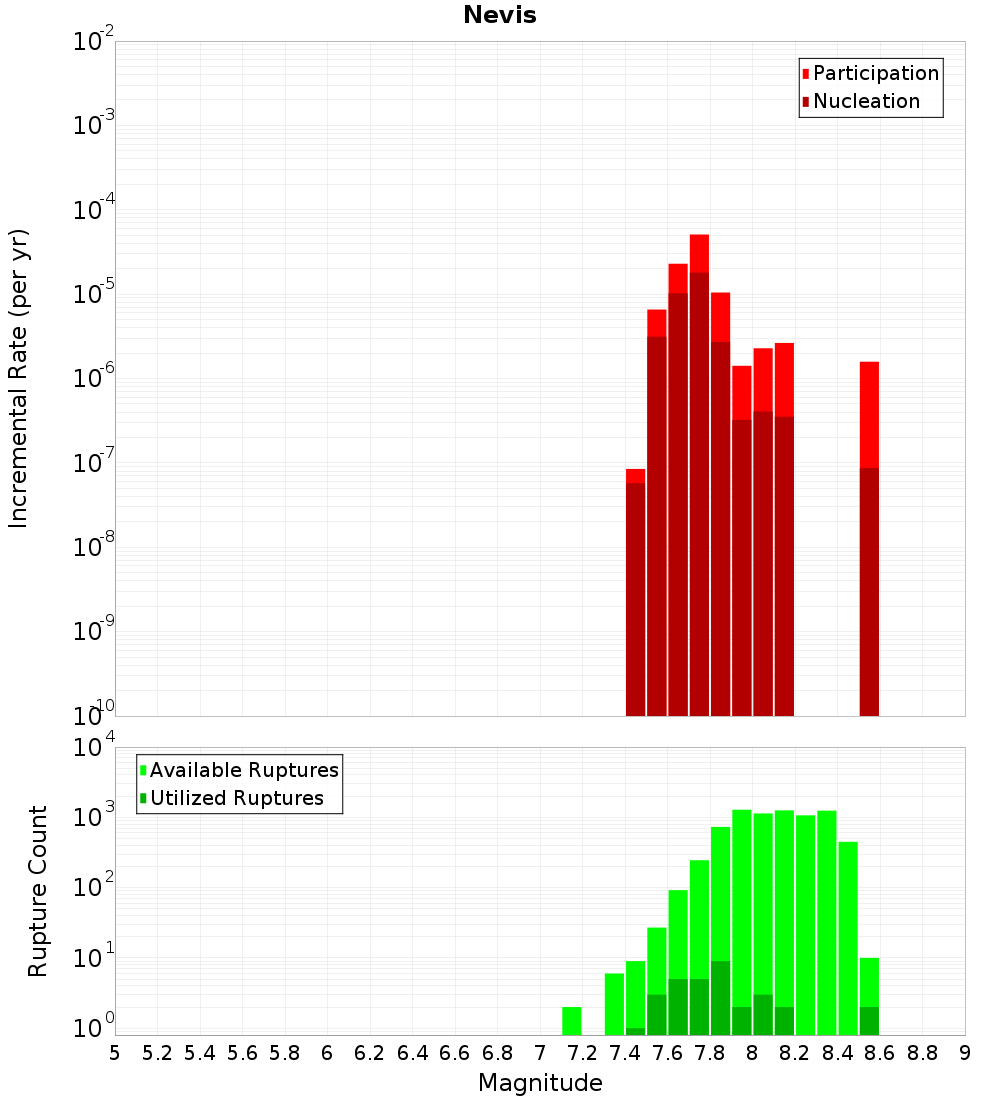

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

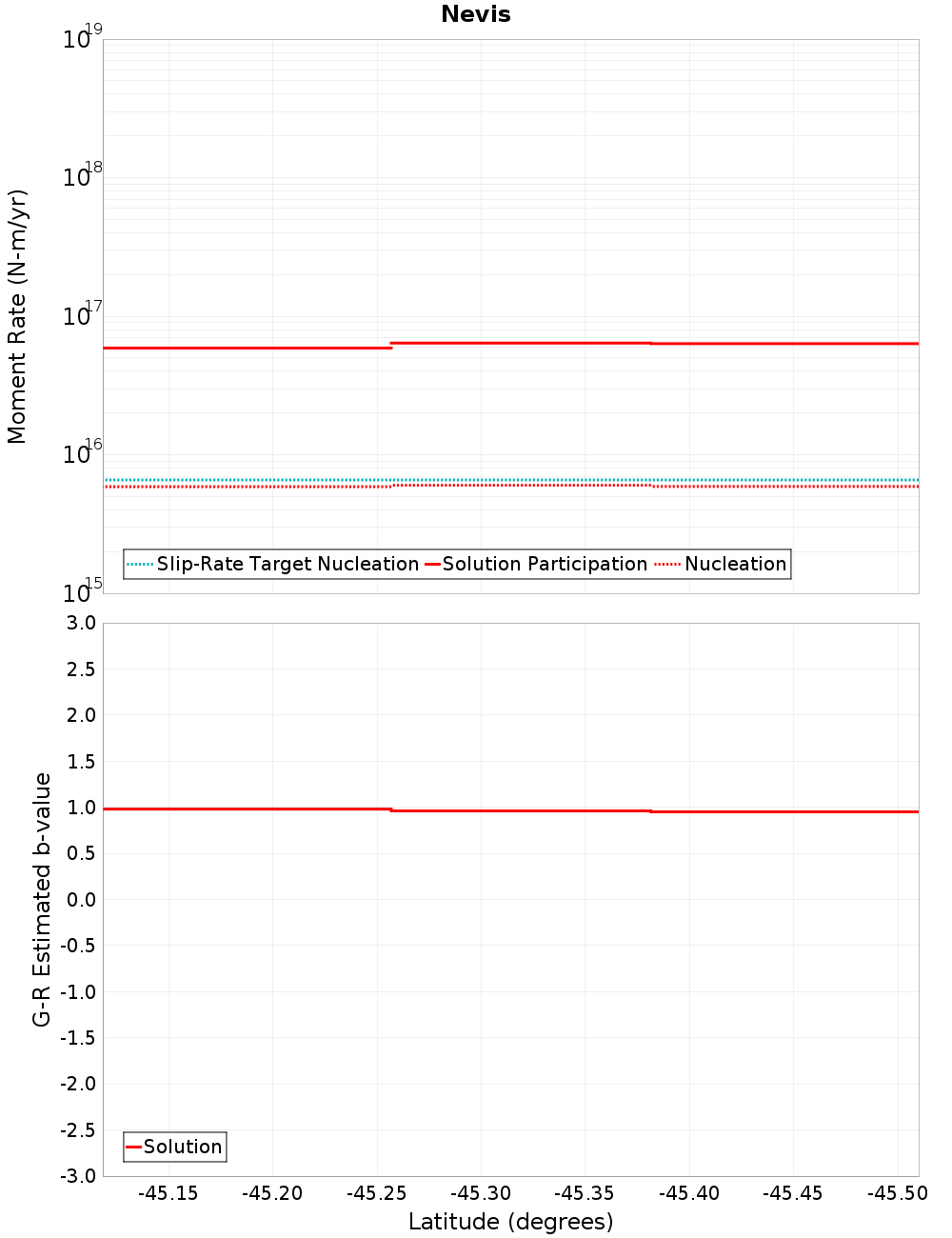

Moment-Rates and b-Values

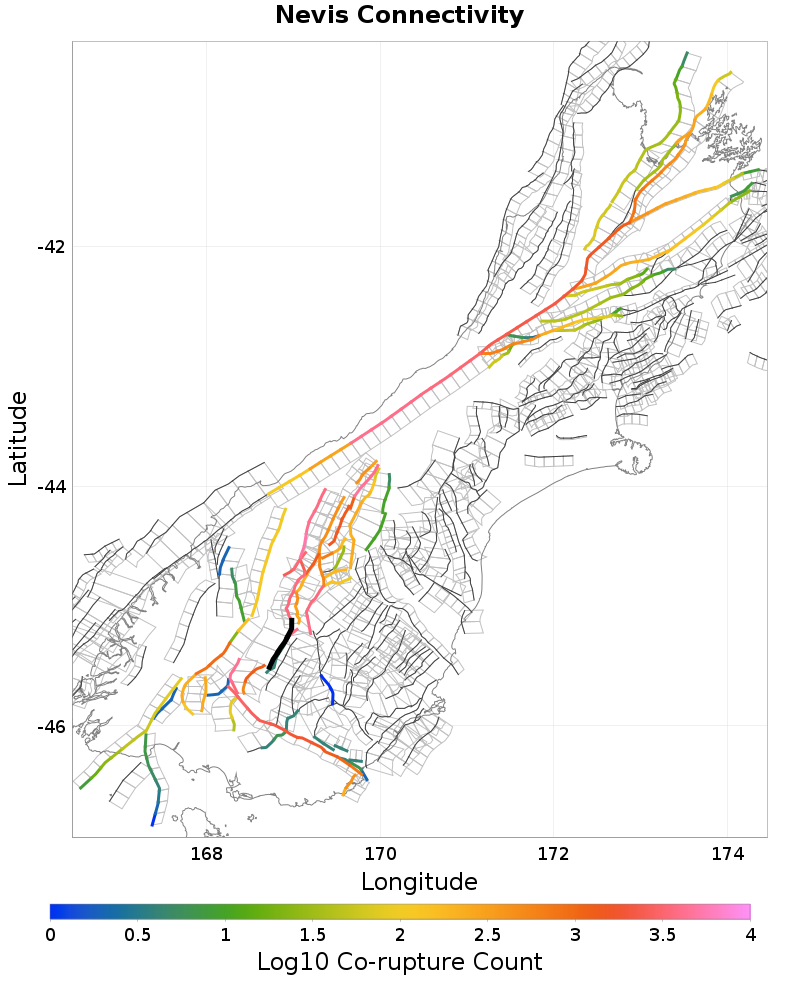

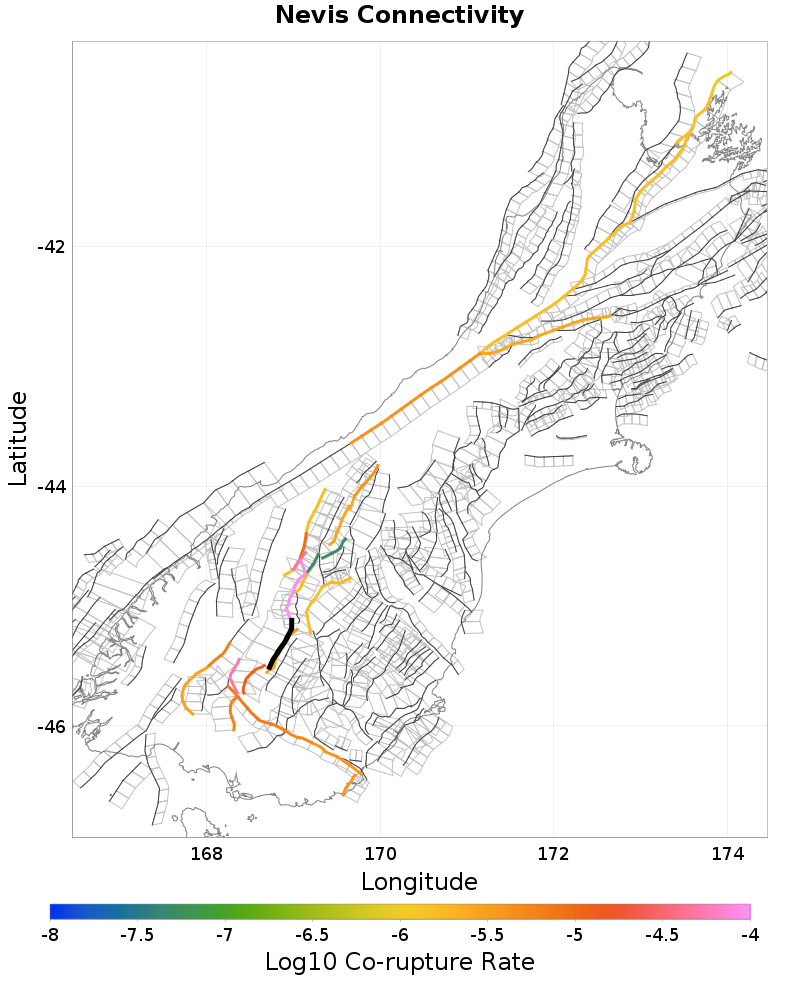

Connectivity
 |  |
|---|
Nearby Sections
Roaring Lion, 0.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,814 |
| Co-rupture Rate | 4.0314794E-6 |
NW Cardrona South, 0.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,462 |
| Co-rupture Rate | 9.4817624E-5 |
Mid Dome, 0.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,283 |
| Co-rupture Rate | 1.1580951E-5 |
Acton, 0.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4,201 |
| Co-rupture Rate | 5.2107654E-5 |
Moonlight South, 1.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,099 |
| Co-rupture Rate | 6.200012E-6 |
Roaring Meg, 5.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 470 |
| Co-rupture Rate | 0.0 |
Garvie, 6.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
West Wakatipu, 7.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 9 |
| Co-rupture Rate | 0.0 |
Pisa, 9.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3,834 |
| Co-rupture Rate | 1.4803222E-6 |
Old Man, 14.69 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
