Otakiri Details

Property	Value
Rupture Count	4,952
Ruptures Above Sect Min Mag	4,935
Ruptures w/ Nonzero Rates	364
Magnitude Range	[6.50, 8.28]
Length Range	[13, 672] km
Total Rate	3.0232174E-4 /yr
Multi-Fault Rate	3.0232174E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	76

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

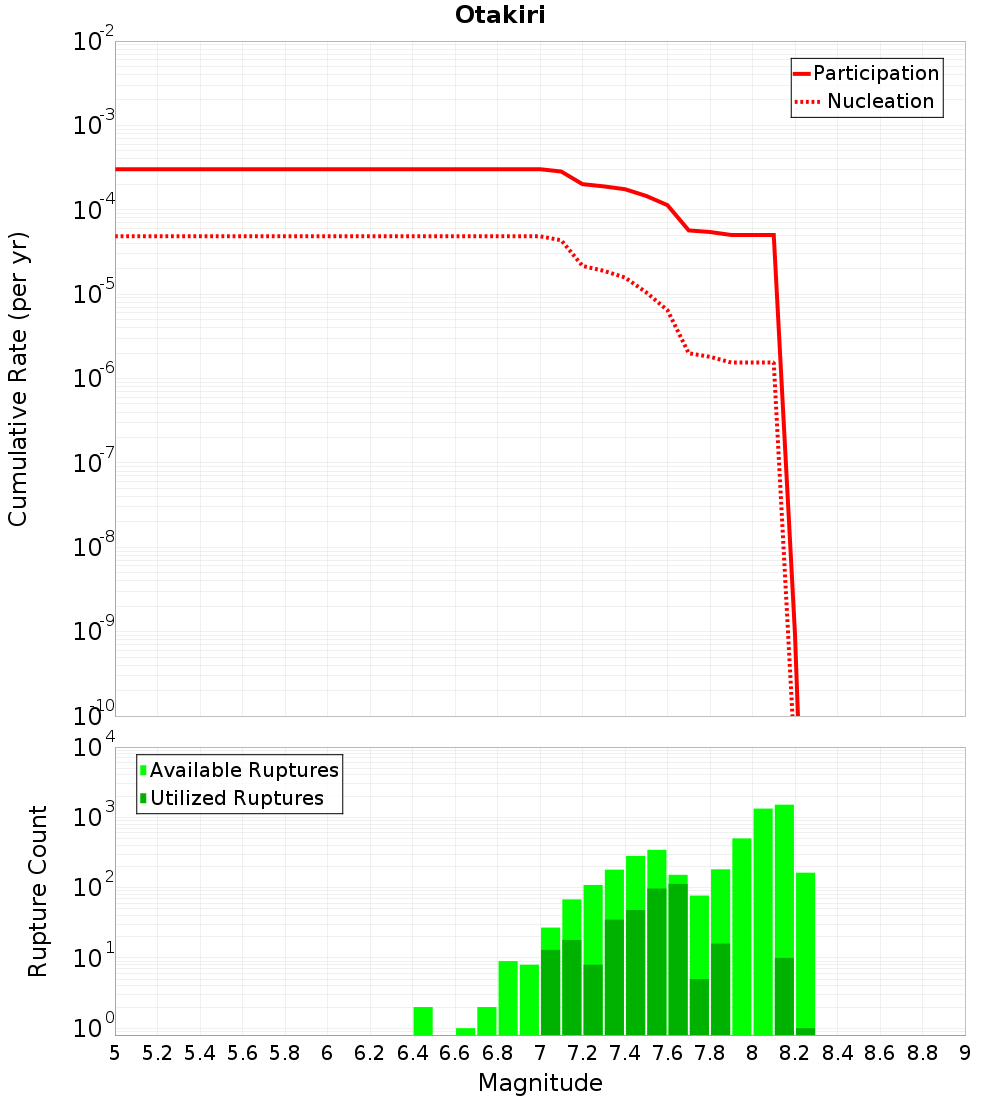

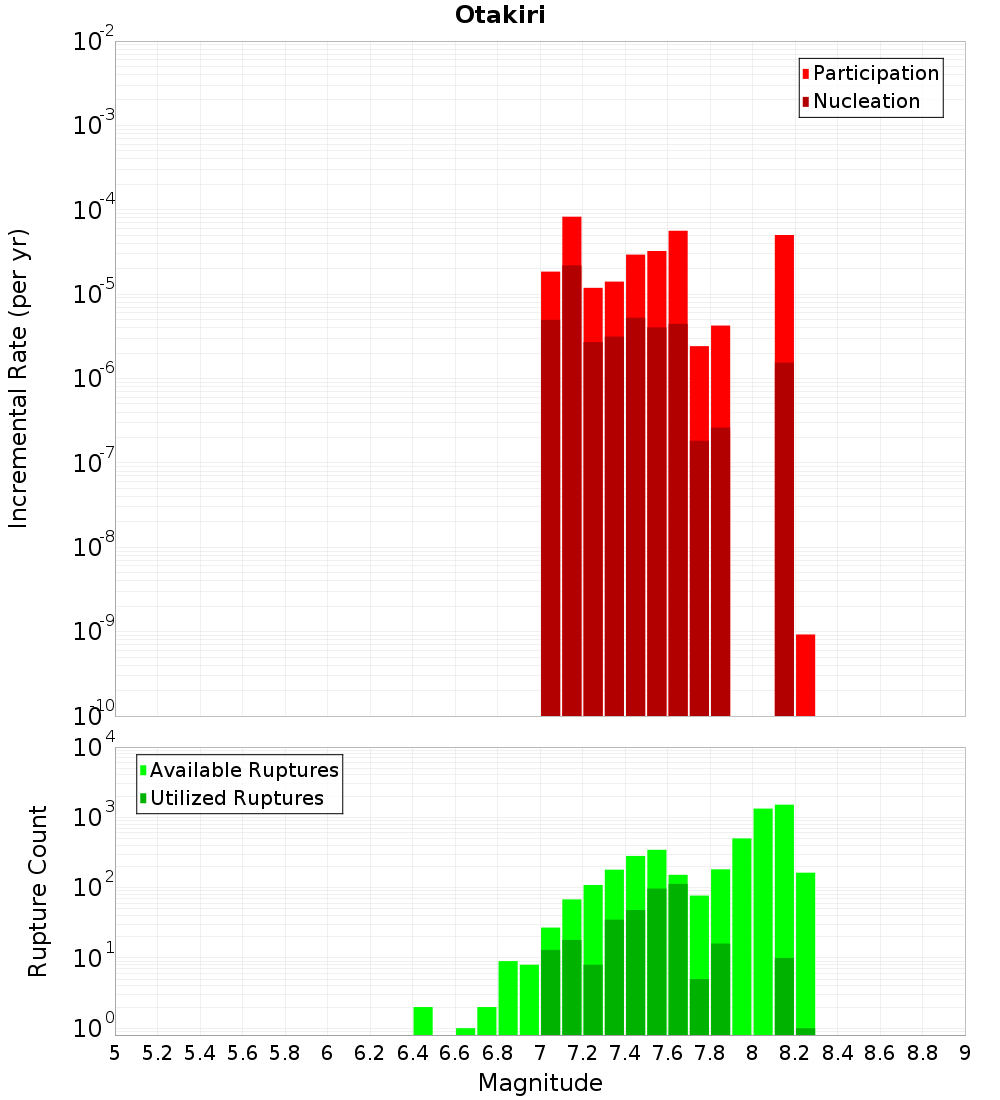

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

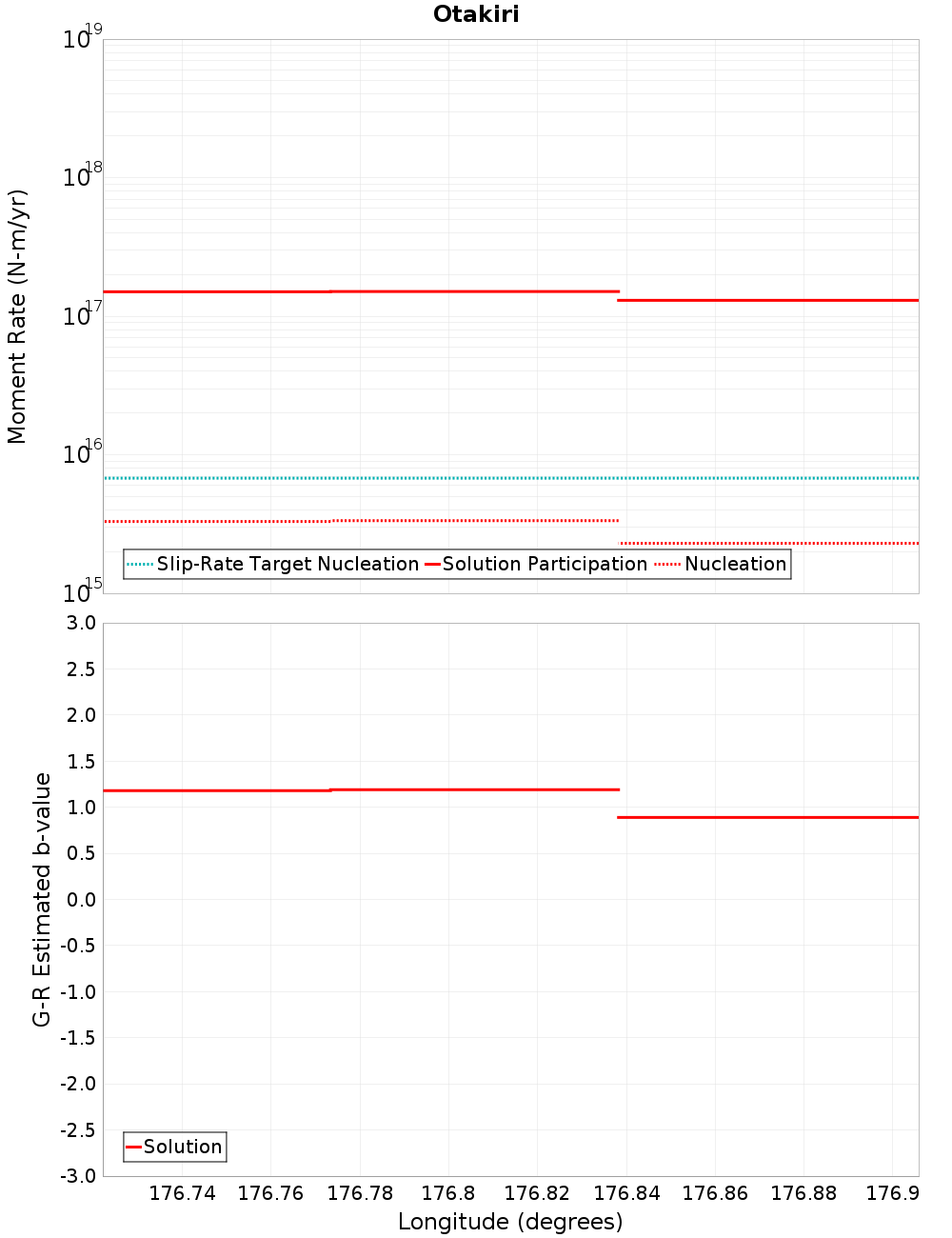

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Edgecumbe Coastal, 0.1 km away
Whakatane: North, 0.17 km away
Edgecumbe 1987, 0.19 km away
Braemar, 0.26 km away
Waiohau: North, 0.39 km away
White Island 1, 2.46 km away
Keepa, 2.9 km away
Matata, 4.49 km away
Waimana: North, 8.24 km away
Rangitaiki 1, 10.94 km away
Waiotahi: North, 13.76 km away

Edgecumbe Coastal, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk
Connected?	true
Directly Connected?	true
Co-rupture Count	1,128
Co-rupture Rate	3.1234424E-5

Whakatane: North, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Edgecumbe 1987, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk
Connected?	true
Directly Connected?	true
Co-rupture Count	2,010
Co-rupture Rate	6.534653E-5

Braemar, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk
Connected?	true
Directly Connected?	true
Co-rupture Count	796
Co-rupture Rate	1.9758419E-4

Waiohau: North, 0.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk
Connected?	true
Directly Connected?	true
Co-rupture Count	2,461
Co-rupture Rate	3.187977E-5

White Island 1, 2.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk
Connected?	true
Directly Connected?	true
Co-rupture Count	2,696
Co-rupture Rate	1.8632575E-4

Keepa, 2.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk
Connected?	true
Directly Connected?	false
Co-rupture Count	1,077
Co-rupture Rate	5.5868357E-5

Matata, 4.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk
Connected?	true
Directly Connected?	false
Co-rupture Count	1,679
Co-rupture Rate	6.884904E-5

Waimana: North, 8.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk
Connected?	true
Directly Connected?	true
Co-rupture Count	3,224
Co-rupture Rate	8.634408E-5

Rangitaiki 1, 10.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk
Connected?	true
Directly Connected?	false
Co-rupture Count	484
Co-rupture Rate	4.5161123E-5

Waiotahi: North, 13.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
