Papatea Details
| Property | Value |
|---|---|
| Rupture Count | 4,675 |
| Ruptures Above Sect Min Mag | 4,673 |
| Ruptures w/ Nonzero Rates | 51 |
| Magnitude Range | [6.66, 8.28] |
| Length Range | [18, 697] km |
| Total Rate | 3.7683238E-4 /yr |
| Multi-Fault Rate | 3.7683238E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 156 |
Table Of Contents

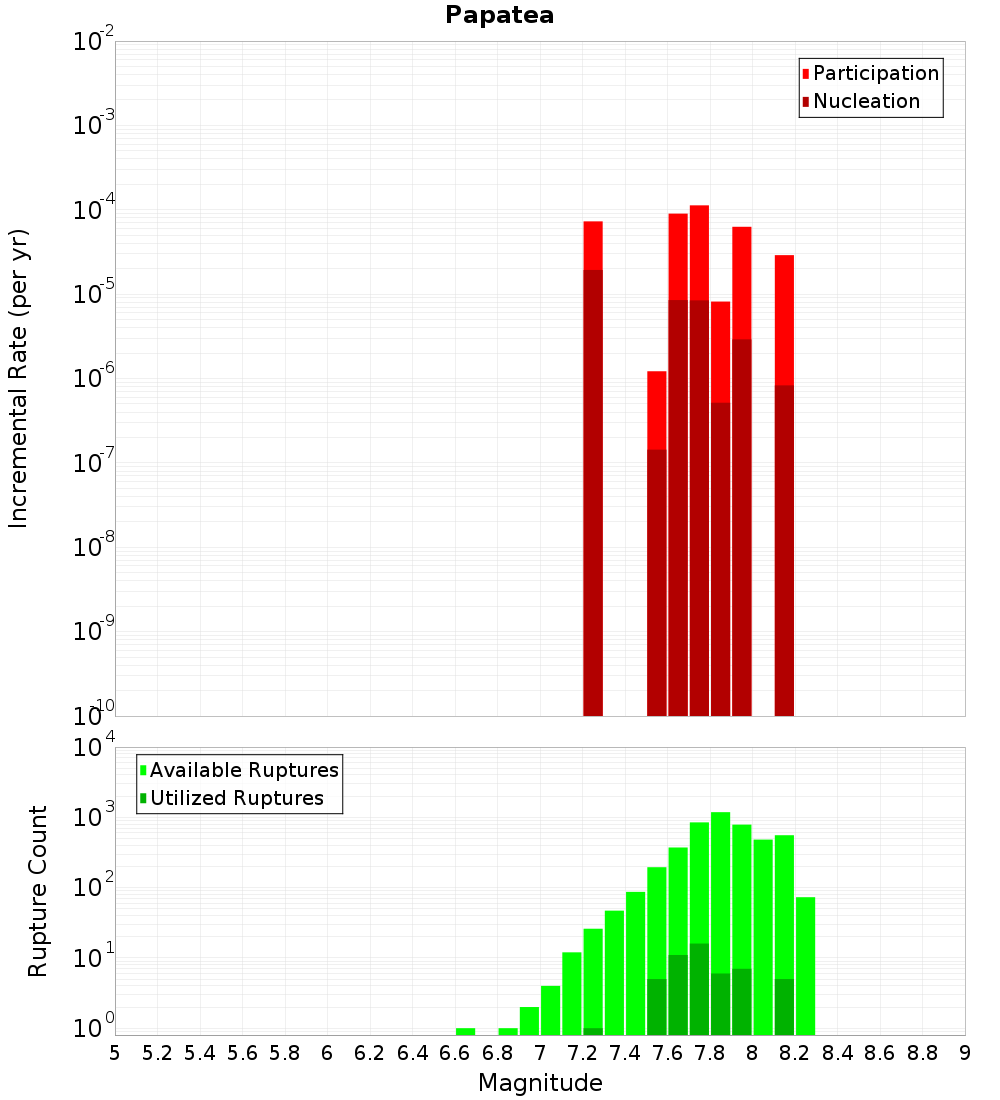

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

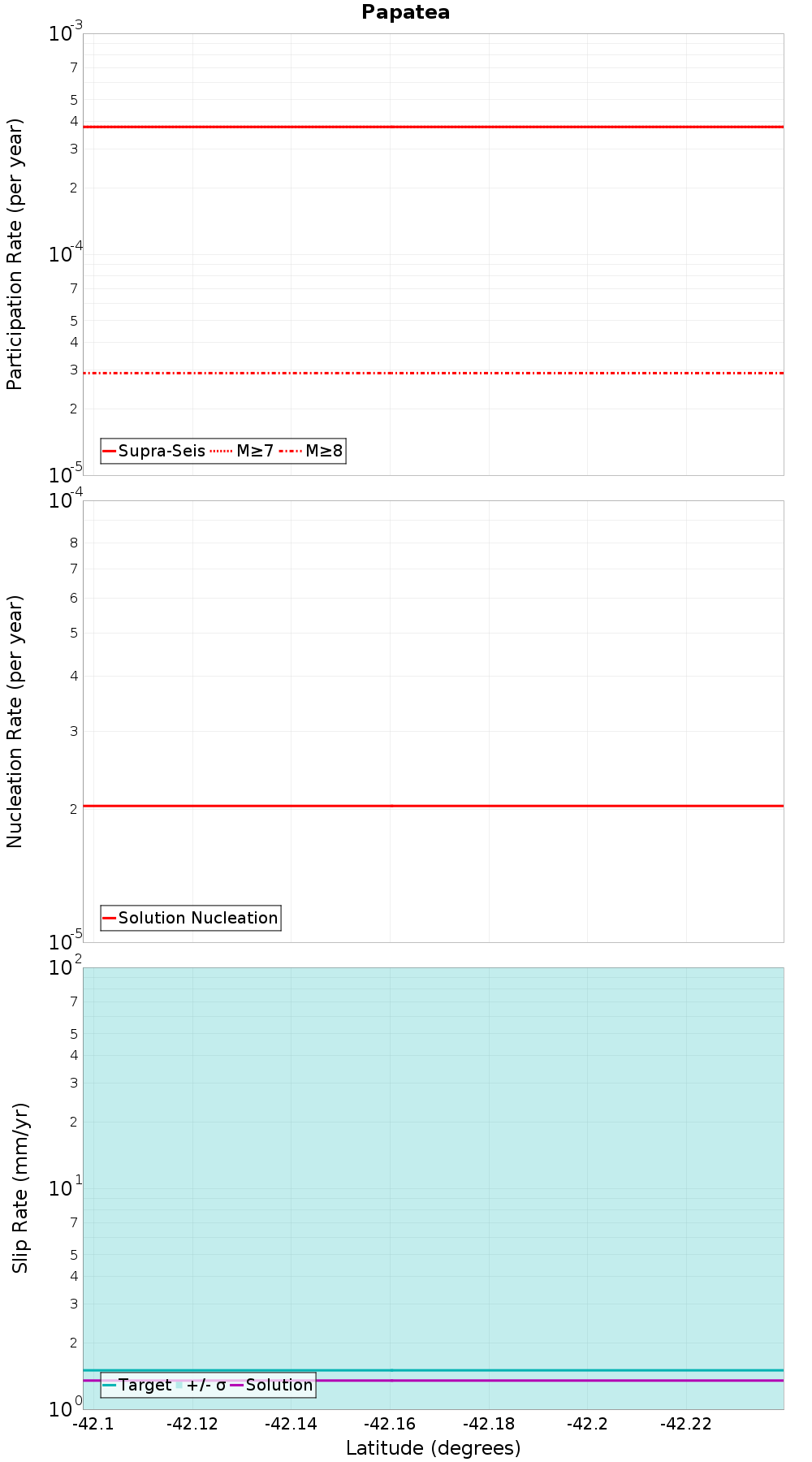

Along-Strike Values

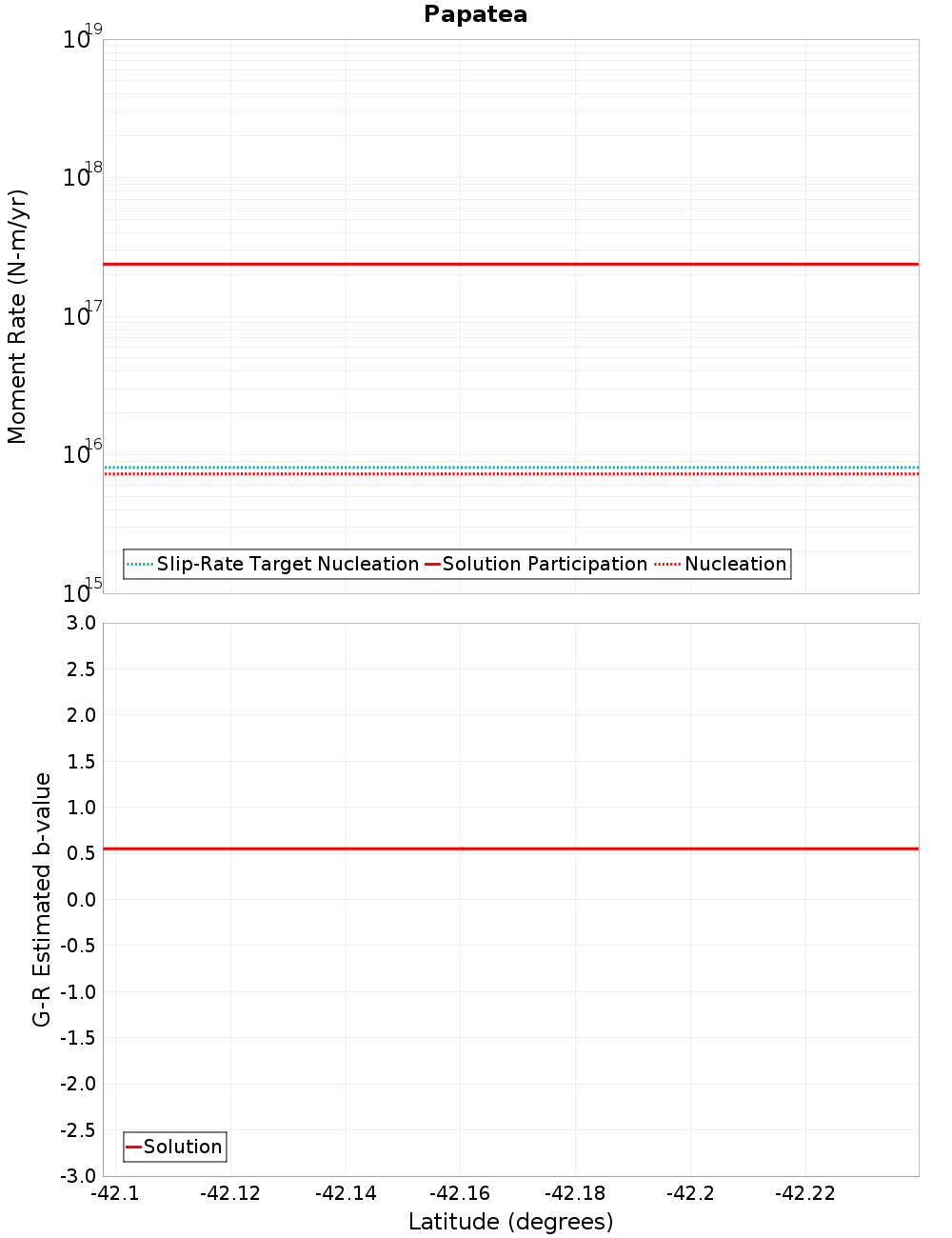

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Kekerengu 1, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4,329 |
| Co-rupture Rate | 3.7683238E-4 |
Fidget, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 40 |
| Co-rupture Rate | 0.0 |
Jordan, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hope: Seaward, 0.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,358 |
| Co-rupture Rate | 2.6792655E-4 |
Kaikoura - Mangamaunu, 4.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hope: Conway, 10.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2,796 |
| Co-rupture Rate | 2.6792655E-4 |
Hope: Te Rapa, 11.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Clarence: Northeast, 11.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzQuMHM2S1Bk | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 189 |
| Co-rupture Rate | 1.0844838E-4 |
