Wheao: South Details

PropertyValue
Rupture Count15,069
Ruptures Above Sect Min Mag15,057
Ruptures w/ Nonzero Rates41
Magnitude Range[6.68, 8.28]
Length Range[19, 670] km
Total Rate1.16097566E-4 /yr
Multi-Fault Rate1.16097566E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults107

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

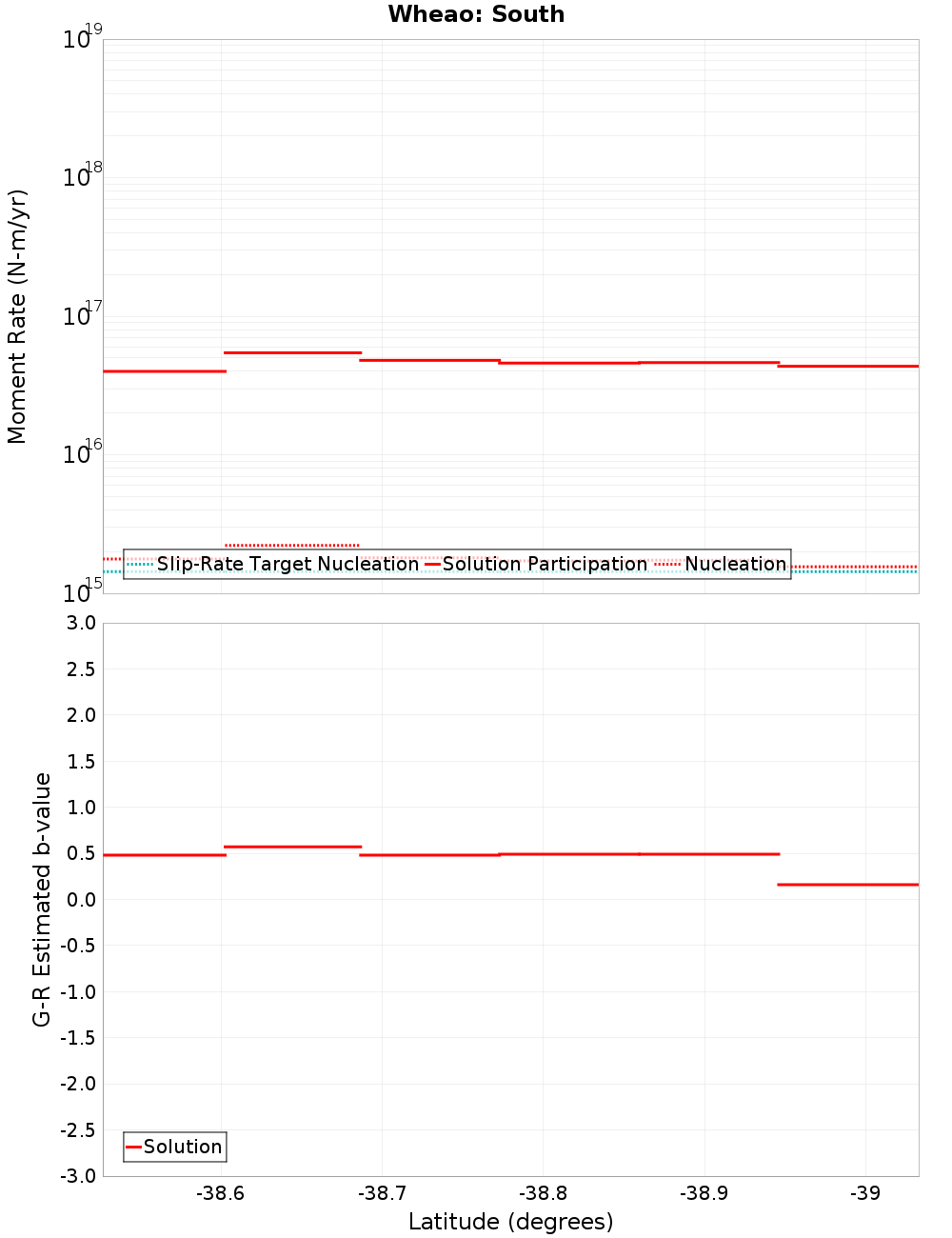

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wheao: North, 0 km away
Waiohau: South, 0.22 km away
Te Whaiti South, 0.44 km away
Ruahine: North, 2.68 km away
Kaingaroa 1, 4.66 km away
Te Whaiti North, 11.11 km away
Waiohau: North, 11.7 km away
Kaingaroa 3, 12.86 km away
Mohaka: North, 13.51 km away
Whakatane: South, 14.52 km away
Waimana: South, 14.54 km away
Kaingaroa 2, 14.76 km away

Wheao: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzguMHJkOFVr
Connected?true
Directly Connected?true
Co-rupture Count9,427
Co-rupture Rate8.151366E-5

Waiohau: South, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzguMHJkOFVr
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Te Whaiti South, 0.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzguMHJkOFVr
Connected?true
Directly Connected?true
Co-rupture Count608
Co-rupture Rate0.0

Ruahine: North, 2.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzguMHJkOFVr
Connected?true
Directly Connected?true
Co-rupture Count13,426
Co-rupture Rate2.7669766E-5

Kaingaroa 1, 4.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzguMHJkOFVr
Connected?true
Directly Connected?true
Co-rupture Count353
Co-rupture Rate0.0

Te Whaiti North, 11.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzguMHJkOFVr
Connected?true
Directly Connected?false
Co-rupture Count152
Co-rupture Rate0.0

Waiohau: North, 11.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzguMHJkOFVr
Connected?true
Directly Connected?false
Co-rupture Count8,593
Co-rupture Rate8.151366E-5

Kaingaroa 3, 12.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzguMHJkOFVr
Connected?true
Directly Connected?true
Co-rupture Count110
Co-rupture Rate1.12424E-5

Mohaka: North, 13.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzguMHJkOFVr
Connected?true
Directly Connected?false
Co-rupture Count866
Co-rupture Rate0.0

Whakatane: South, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzguMHJkOFVr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimana: South, 14.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzguMHJkOFVr
Connected?true
Directly Connected?false
Co-rupture Count1,066
Co-rupture Rate0.0

Kaingaroa 2, 14.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA0NzguMHJkOFVr
Connected?true
Directly Connected?true
Co-rupture Count68
Co-rupture Rate2.3036908E-5
