Mohaka: North Details

PropertyValue
Rupture Count39,239
Ruptures Above Sect Min Mag39,234
Ruptures w/ Nonzero Rates87
Magnitude Range[6.88, 8.61]
Length Range[20, 1,132] km
Total Rate4.3696395E-4 /yr
Multi-Fault Rate4.3696395E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults131

Table Of Contents

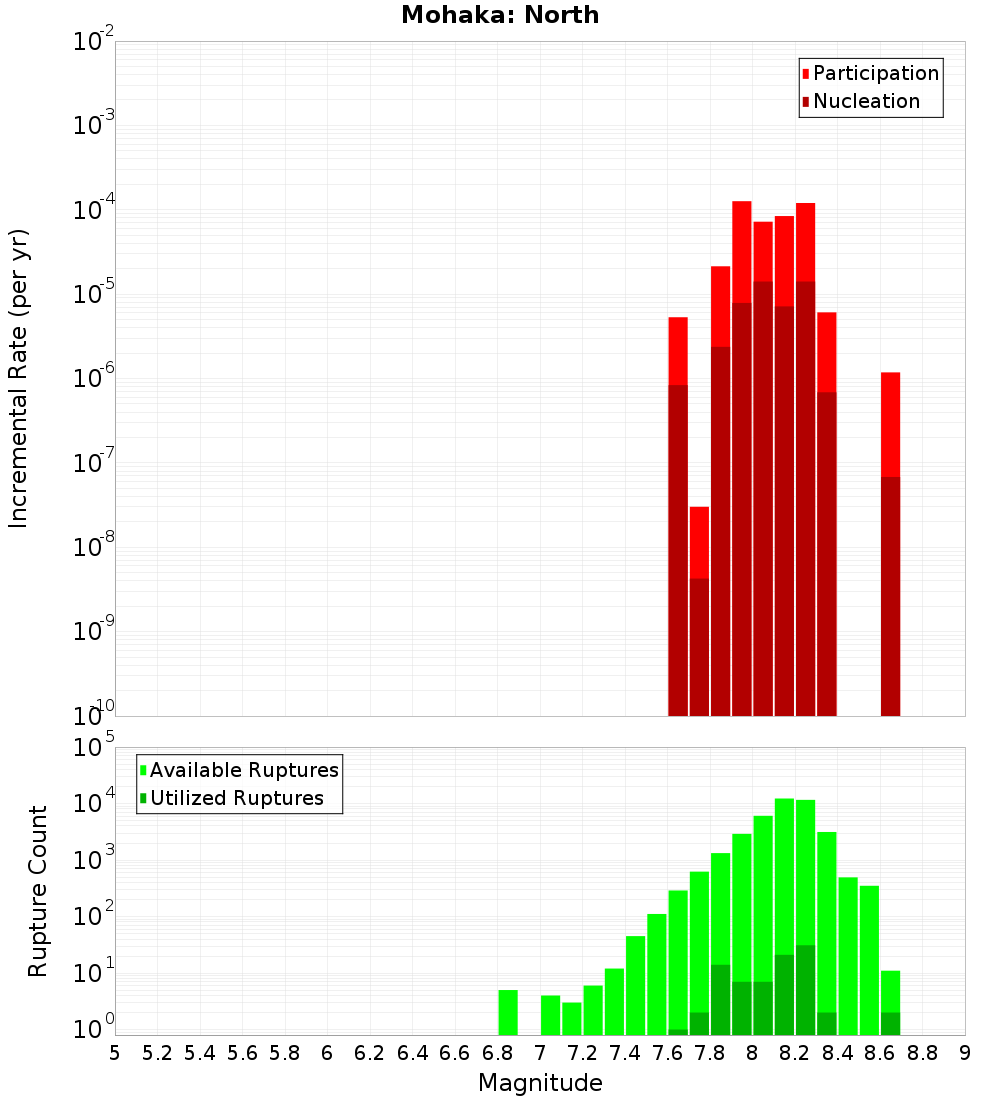

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

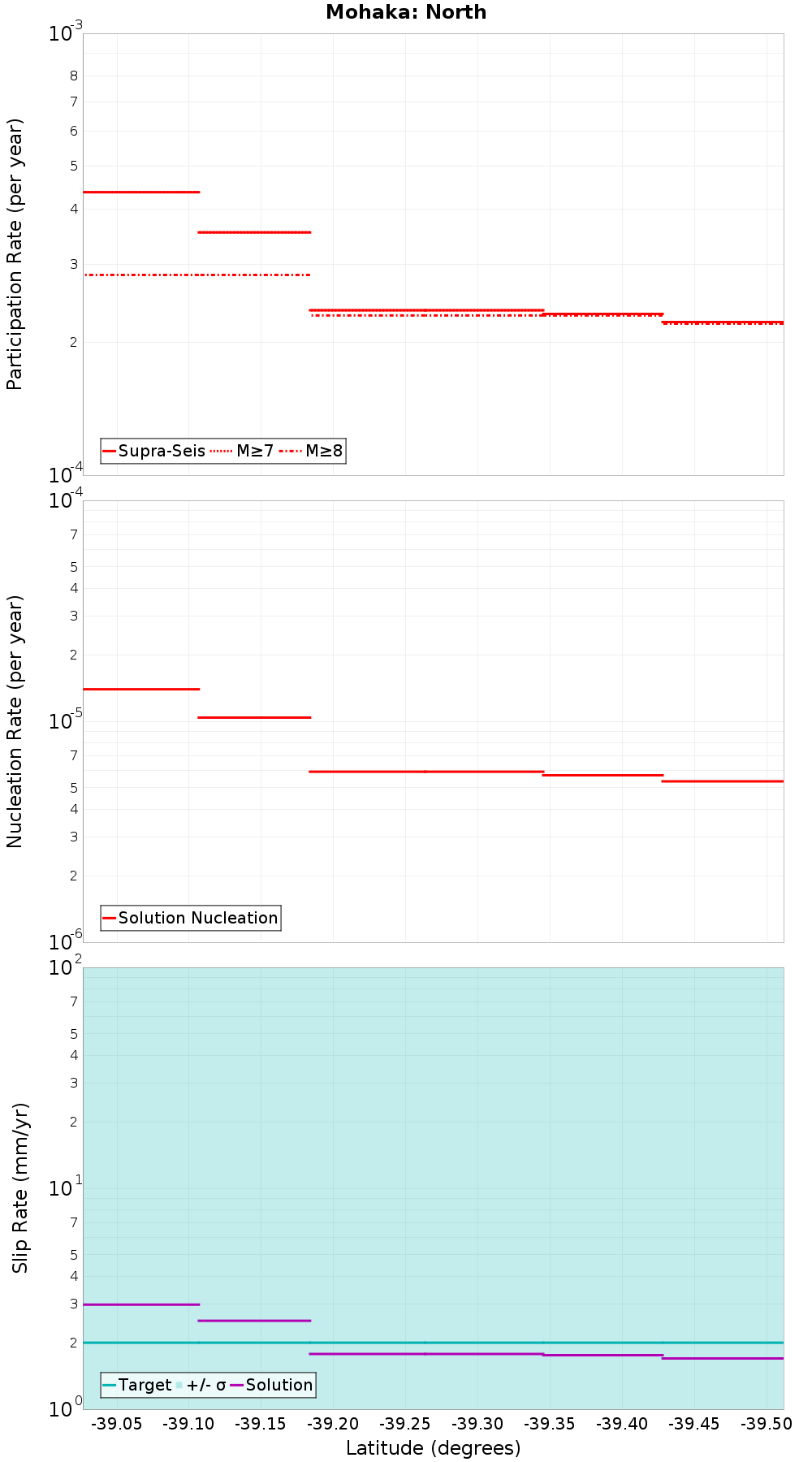

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

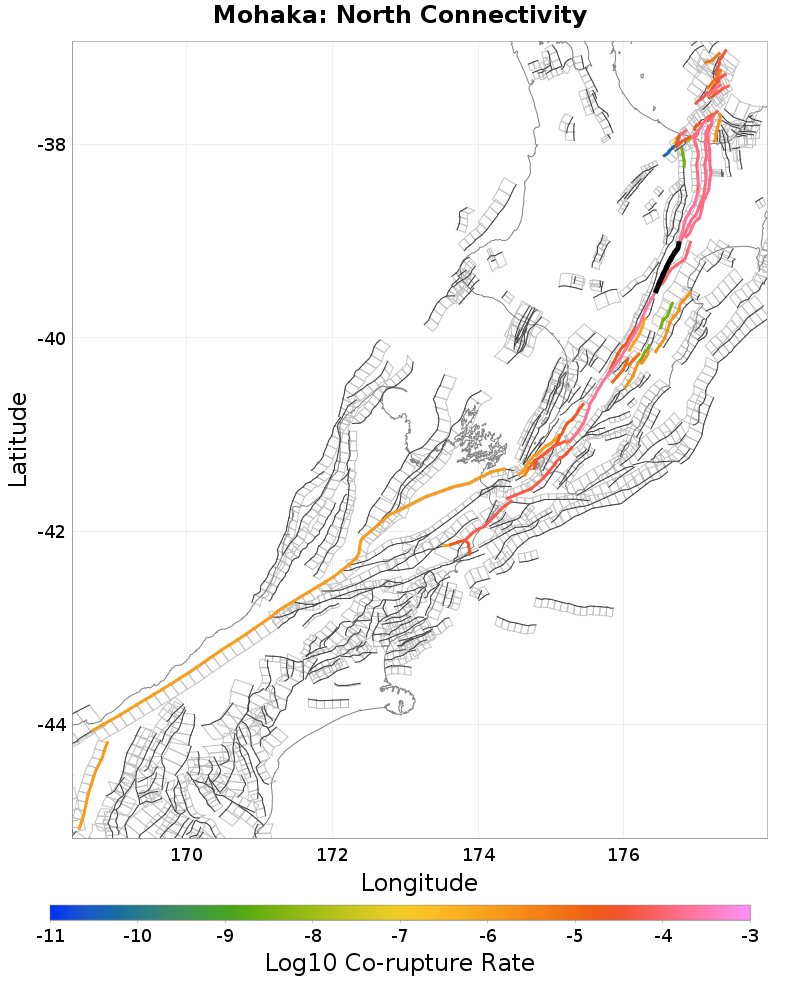

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mohaka: South, 0 km away
Whakatane: South, 0 km away
Waimana: South, 0 km away
Patoka - Rangiora, 0.41 km away
Ruahine: North, 5.2 km away
Ruahine: Central, 7.58 km away
Waiohau: South, 8.1 km away
Wakarara, 9.63 km away
Kaweka, 10.6 km away
Awanui, 11.19 km away
Waiotahi: South, 11.48 km away
Wheao: South, 13.51 km away
Te Heka, 14.28 km away

Mohaka: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MTIuME1vNDhZ
Connected?true
Directly Connected?true
Co-rupture Count39,377
Co-rupture Rate2.3852238E-4

Whakatane: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MTIuME1vNDhZ
Connected?true
Directly Connected?true
Co-rupture Count7,813
Co-rupture Rate2.2474874E-4

Waimana: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MTIuME1vNDhZ
Connected?true
Directly Connected?true
Co-rupture Count23,921
Co-rupture Rate1.4632761E-4

Patoka - Rangiora, 0.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MTIuME1vNDhZ
Connected?true
Directly Connected?true
Co-rupture Count1,658
Co-rupture Rate1.1817463E-4

Ruahine: North, 5.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MTIuME1vNDhZ
Connected?true
Directly Connected?false
Co-rupture Count206
Co-rupture Rate0.0

Ruahine: Central, 7.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MTIuME1vNDhZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiohau: South, 8.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MTIuME1vNDhZ
Connected?true
Directly Connected?false
Co-rupture Count828
Co-rupture Rate0.0

Wakarara, 9.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MTIuME1vNDhZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaweka, 10.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MTIuME1vNDhZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awanui, 11.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MTIuME1vNDhZ
Connected?true
Directly Connected?true
Co-rupture Count1,289
Co-rupture Rate1.8827752E-6

Waiotahi: South, 11.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MTIuME1vNDhZ
Connected?true
Directly Connected?true
Co-rupture Count5,719
Co-rupture Rate1.487196E-4

Wheao: South, 13.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MTIuME1vNDhZ
Connected?true
Directly Connected?false
Co-rupture Count866
Co-rupture Rate0.0

Te Heka, 14.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MTIuME1vNDhZ
Connected?true
Directly Connected?false
Co-rupture Count238
Co-rupture Rate3.0863876E-9
