Wendon Valley Details

Property	Value
Rupture Count	3,212
Ruptures Above Sect Min Mag	3,211
Ruptures w/ Nonzero Rates	8
Magnitude Range	[7.12, 8.54]
Length Range	[25, 816] km
Total Rate	8.871537E-6 /yr
Multi-Fault Rate	8.871537E-6 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	75

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

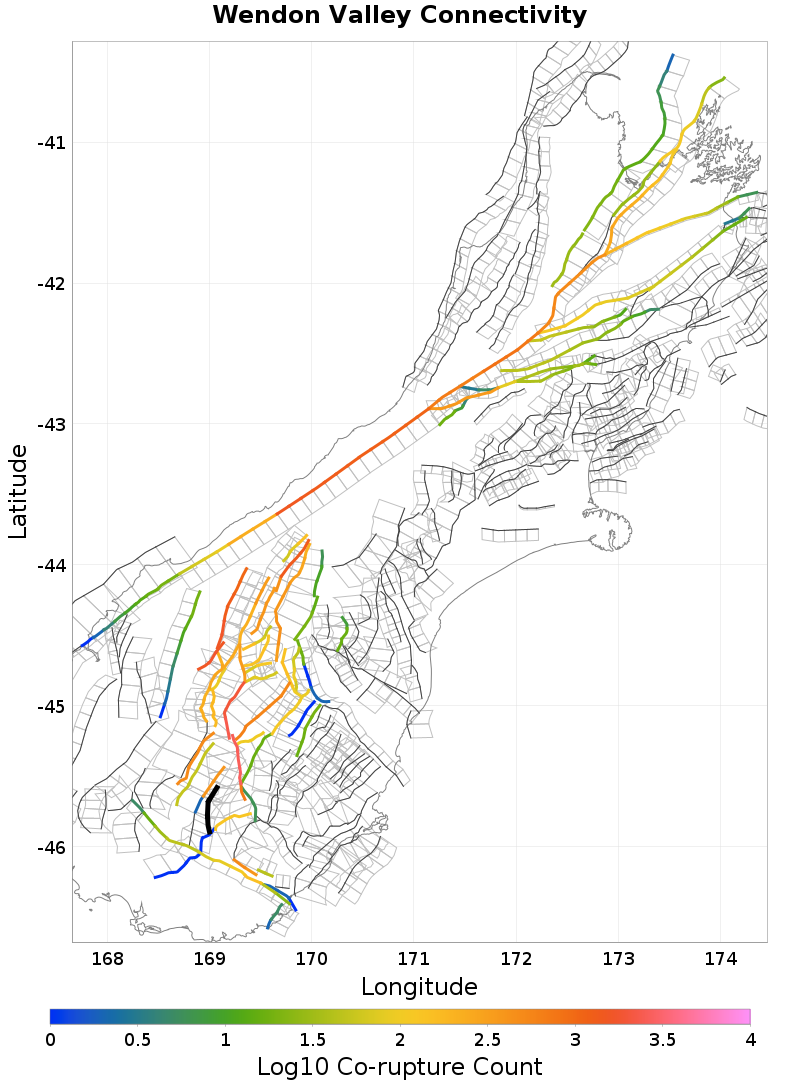

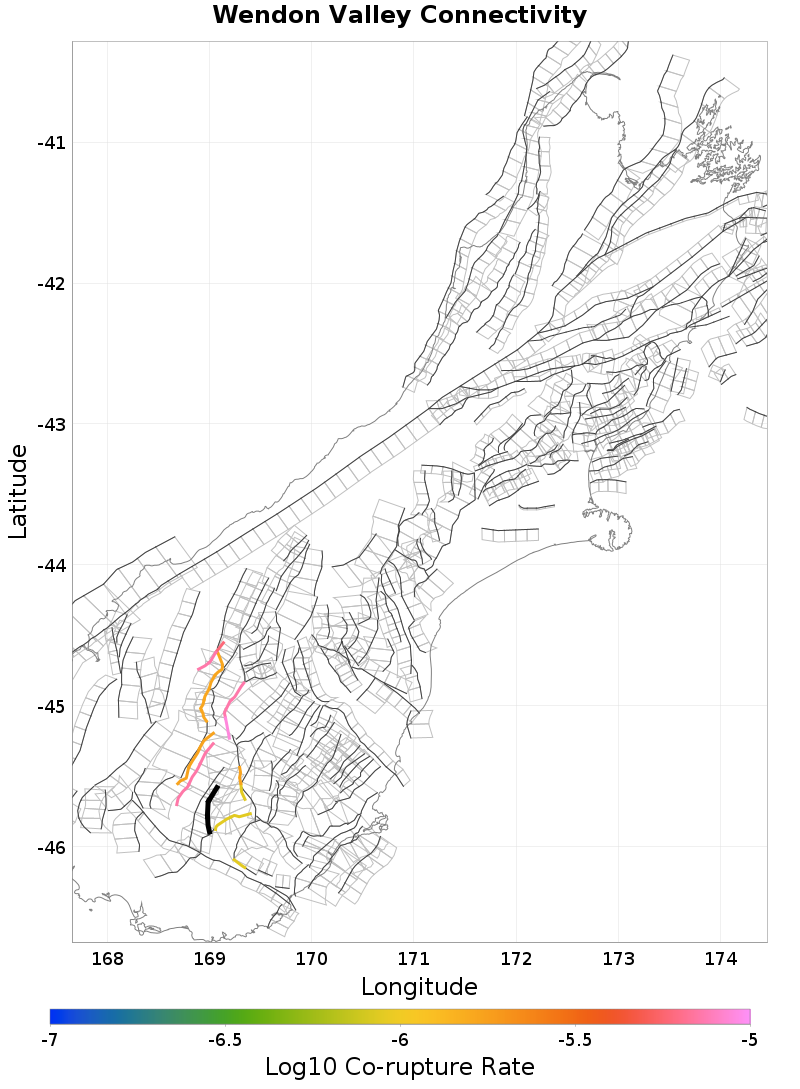

Connectivity

Nearby Sections

Fault Section
Teviot, 0.18 km away
Waikaka, 0.19 km away
Old Man, 0.27 km away
Waikaia, 3.01 km away
Spylaw, 3.67 km away
Garvie, 5.65 km away
Roaring Lion, 9.71 km away
Backbone, 10.78 km away
Lake Onslow, 11.68 km away
Beacon Hill, 13.85 km away

Teviot, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MTQuMFN3dGNa
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	0.0

Waikaka, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MTQuMFN3dGNa
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Old Man, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MTQuMFN3dGNa
Connected?	true
Directly Connected?	true
Co-rupture Count	3,128
Co-rupture Rate	1.6972034E-6

Waikaia, 3.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MTQuMFN3dGNa
Connected?	true
Directly Connected?	true
Co-rupture Count	394
Co-rupture Rate	0.0

Spylaw, 3.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MTQuMFN3dGNa
Connected?	true
Directly Connected?	false
Co-rupture Count	126
Co-rupture Rate	8.772953E-7

Garvie, 5.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MTQuMFN3dGNa
Connected?	true
Directly Connected?	true
Co-rupture Count	51
Co-rupture Rate	7.174334E-6

Roaring Lion, 9.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MTQuMFN3dGNa
Connected?	true
Directly Connected?	false
Co-rupture Count	495
Co-rupture Rate	1.6972034E-6

Backbone, 10.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MTQuMFN3dGNa
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Lake Onslow, 11.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MTQuMFN3dGNa
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Beacon Hill, 13.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MTQuMFN3dGNa
Connected?	true
Directly Connected?	true
Co-rupture Count	510
Co-rupture Rate	8.772953E-7
